Blending layers problem while using VR Comp

  • May 22, 2019
  • 3 replies
  • 1574 views

Hi all,

I have to edit a still 360 panorama and add some effect to it using VR Comp 3D Editor .

I managed to have a few 3d layers with different blending mode working all fine in the 3D comp, but when i want to render the final flatout comp, all the blending mode are ignored.

I have seen a few topics about the same issue. But I can't fix it.

It is working if I use the VR COMP 2D Editor. But only the one facing the camera is rendered, no other one ;(

Any help apprecisated.

many thanks

Thomas

This topic has been closed for replies.

3 replies

Participant
May 23, 2019

So here is what I worked out:

  1. Import footage
  2. Create comp from that footage
  3. Add 3D Edit to that newly created comp
  4. Select the following    (Use 2-Node Camera)  (I am using 3D plugins) (Source footage has alpha)
  5. Position all your layers into that scene by importing various clips and turning on the 3D layers for each clip
  6. Open original comp you created before adding 3D edit (Second Step)
  7. Hide the footage in that comp
  8. Open Output/Render (you know have an alpha with all your assets placed in a rectilinear comp)
  9. Create new Comp with your original footage
  10. Drag in your (VR2 Output) comp (the one we just viewed with the alpha) and change the blending mode globally for all the assets you have added into your scene.

Now Chris's solution is great for 1 or two clips you need to add in, but if you're in my situation where there are 32 layers that need to be comped in (fire, smoke, atmosphere etc. This solution might work a bit better. You can essentially create groups of blend modes if needed. A comp for Additive, A comp for Screen etc.

Hope that all makes sense.

Good luck, now back to work on this comp. I'll let you know if I run into any issues while i'm going further into this rabbit hole.

tharmine
tharmineAuthor
Known Participant
May 26, 2019

Thanks, I'll try that.

Participant
May 23, 2019

I am having the exact same issue and I have about 32 layers that need to be comped into the scene with various blend modes so the Add 2D edit, although a solution it would seem, would take far too long to accomplish as well as potential bloating of the final render comp. Another solution i was thinking but can't quite seem to figure out the best method is as followed:

Is there a possbiitliy to place all objects into their respective positions in the 3D Edit comp but then hide the original source layer the overlaying the final output (with only the the comped layers) on top of the original output render. That might be a solution but I can't seem to just hide the (VR Precomp1) layer since i'm sure it's pulling the source from another pre comp for the final output.

I'm not sure if I explained that clearly enough but I think this may be a temp solution until the blend mode bug gets sorted out.

Chris, let me know if there are any other solutions you can think of for a high volume of layers that need blend modes placed into a VR comp.

Adobe Employee
May 22, 2019

Hi Thomas,

Can you please supply the exact steps you do so that we can try to reproduce the problem here.

Chris

tharmine
tharmineAuthor
Known Participant
May 23, 2019

Hi,

here are my steps.

  • Import still image 360 and place in timeline
  • Add 3D edit with VR COMP
  • Import footage and place in timeline.
  • Change blending mode of new footage to screen (or any other).

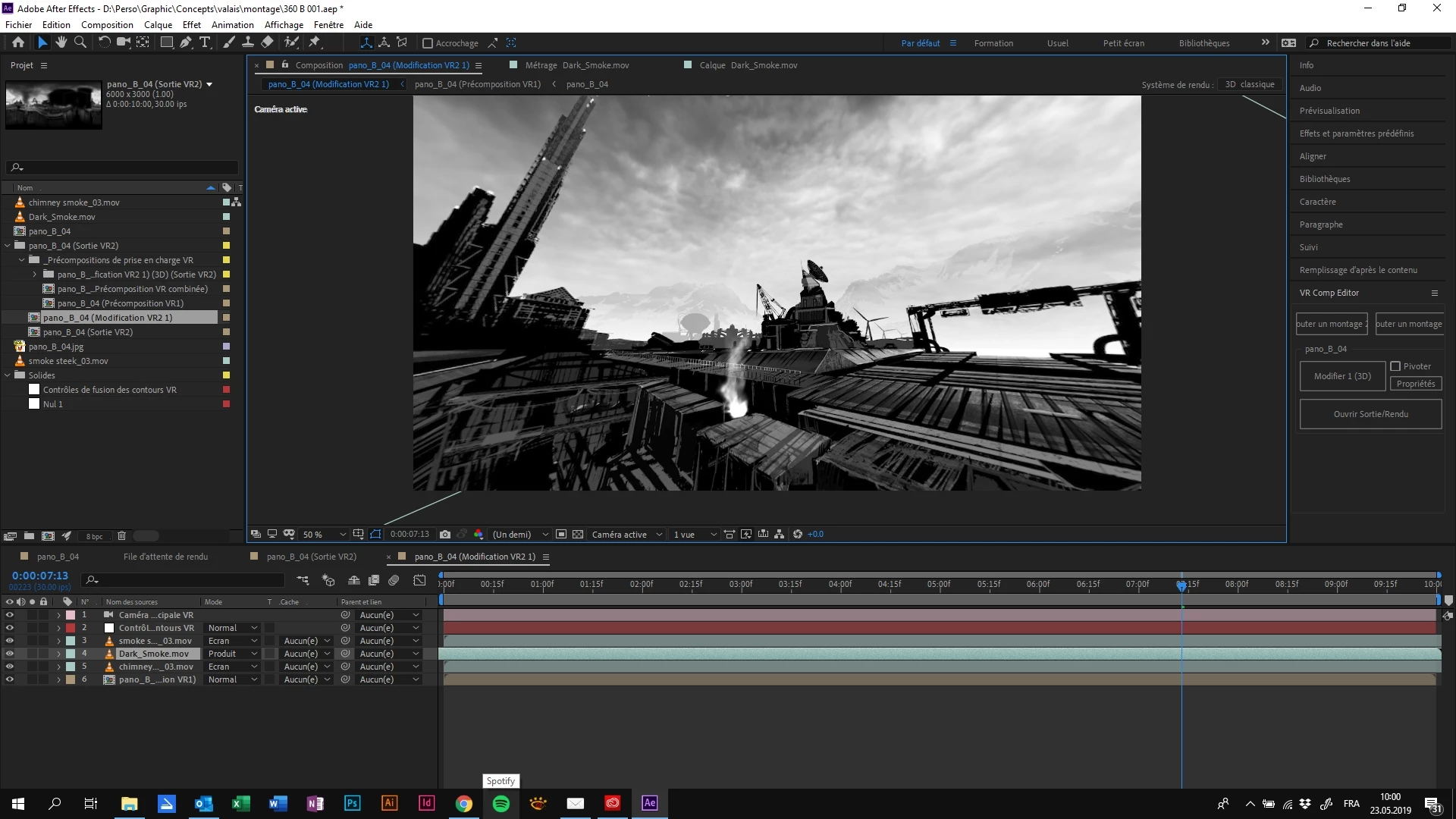

  • In VR COMP, Modify : everything look fine (screenshot 1, the white smoke inthe center).

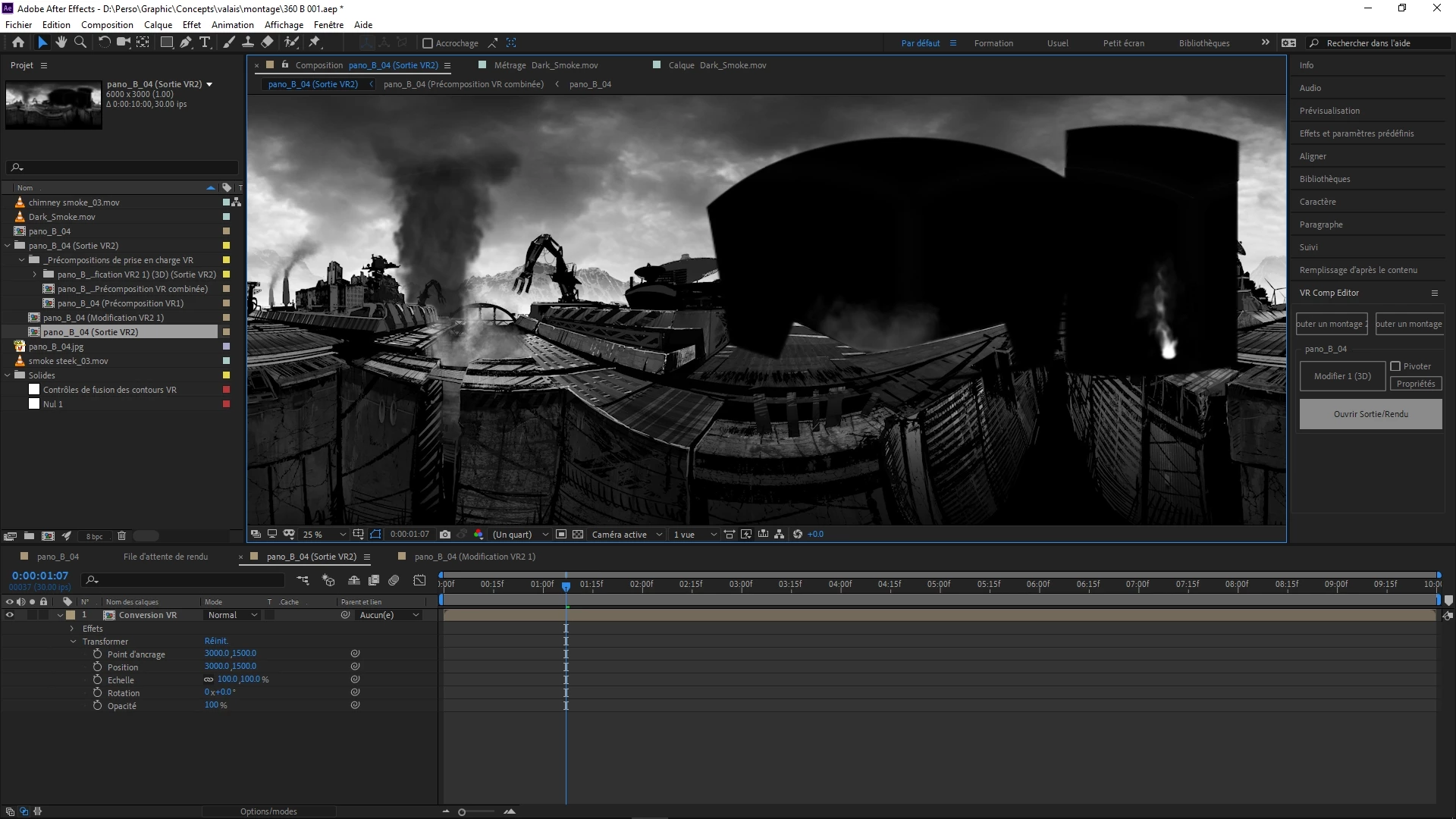

  • In VR COMP Output/Render, the footage has no blending mode (screenshot 2).

cheers

Adobe Employee
May 23, 2019

Hi Thomas,

I can confirm that this is a bug with the "Add 3D Edit" feature in VR Comp Editor. I will investigate this with the AE team and report back.

Workaround: Please use the "Add 2D Edit" feature in VR Comp Editor. This retains the blending mode.

Chris
