Calculating auto tangent for 3 random points

Question

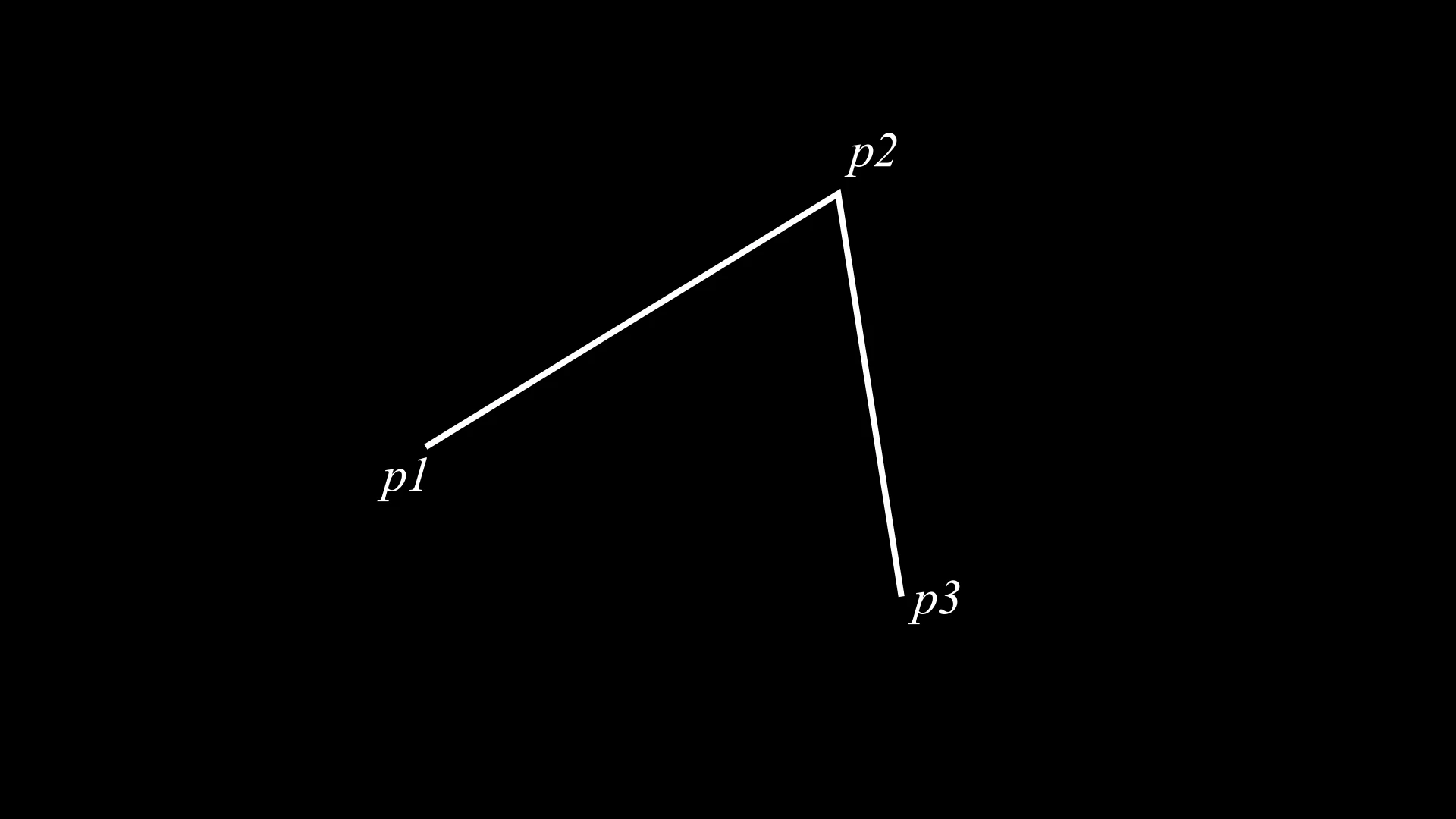

Hi there,How could we calculate auto tangent for second point amoung 3 random points in space.

Mahesh Shetty · Accepted Answer

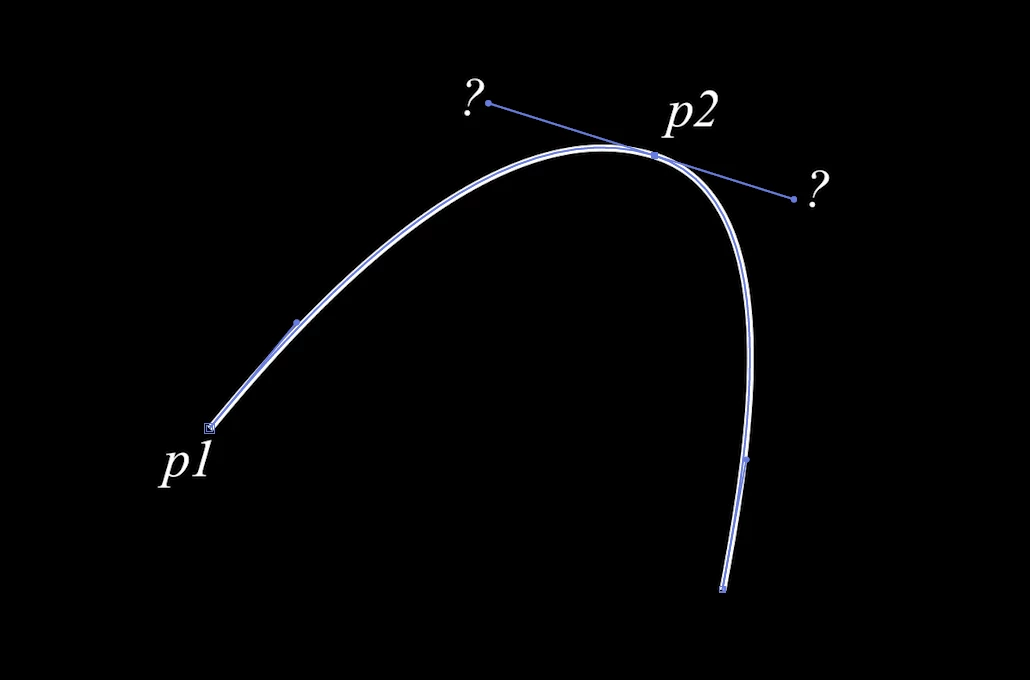

In Rotobazier, intangents and out tangets are parallel to the line formed between previous point and next point and lengths of those tangets are 1/3 (or close to ) of length between current point and previous point ( for in tangent) , 1/3 of length between current point and next point (for out tangent ).

Same is illustrated with expression below.

p1=fromComp(thisComp.layer("1").transform.position);
p2=fromComp(thisComp.layer("2").transform.position);
p3=fromComp(thisComp.layer("3").transform.position);
// 3 Nulls to follow for position;

intan2=((p1-p3)/length(p1,p3)) * ( length(p2,p1)/3);
outtan2=((p3-p1)/length(p1,p3)) * ( length(p2,p3)/3);
// number 3 at denometer can be varied to adjust curve (>2 is better)

//((p1-p3)/length(p1,p3)) gives a tangent of unit length in required intan direction.

//((p3-p1)/length(p1,p3)) gives a tangent of unit length in required outtan direction.

pts=[p1,p2,p3];
intan=[[0,0],intan2,[0,0]];
outtan=[[0,0],outtan2,[0,0]];

createPath(points = pts, inTangents = intan, outTangents = outtan, isClosed = false)

Dan Ebberts · Answer

I think the formula for the auto bezier out tangent is (next point - previous point)/6 and the in tangent is the inverse of that. So building your 3-point path with an expression would look like this (although the tangents for the first and third points don't match what you have in your illustration):p1 = [561,589];p2 = [1105,256];p3 = [1188,787];p = [fromComp(p1),fromComp(p2),fromComp(p3)];iT = [[0,0],(p1-p3)/6,(p2-p3)/6];oT = [(p2-p1)/6,(p3-p1)/6,[0,0]];createPath(p,iT,oT,false);
