convert Ae keyframes info to cubicbezier points

OK! For anyone interested, I managed to make it work with multiple dimensions! As some properties cannot be separated (Like Scale).

I also made it work for any case of val1==val2.

Here is how is works:

For multiple dimensions, keyValue() returns an array instead of a float. So another for() made it work. Easy right?

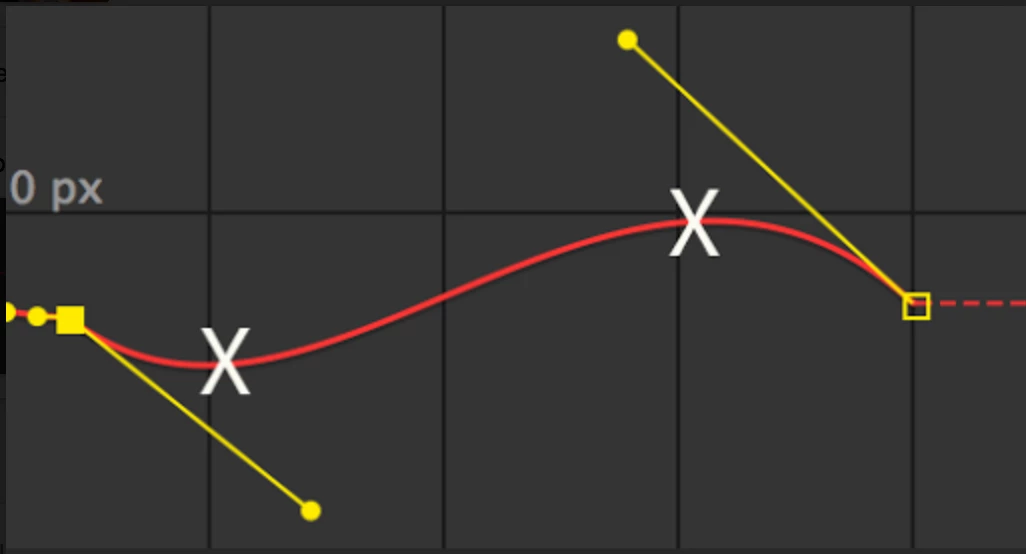

When val1==val2, the trick was to add temporary keyframes at the extreme points of the curves, such as this one:

Correct me if I wrong, but in css for instance, a cubic-bezier the value to be animated needs to be different from from start to end.

Here is the final script.

//start--------------

var curItem = app.project.activeItem;

var selectedLayers = curItem.selectedLayers;

var selectedProperties = curItem.selectedProperties;

if (selectedLayers == 0) {

   alert("Please Select at least one Layer");

}

else if (selectedLayers != 0) {

   for (var i = 0; i < selectedLayers.length; i++) {

   for (var f in selectedProperties) {

   var currentProperty = selectedProperties[f];

   if (currentProperty.numKeys > 1) {

   for (var i = 1; i < currentProperty.numKeys; i++) {

   var t1 = currentProperty.keyTime(i);

   var t2 = currentProperty.keyTime(i + 1);

   var val1 = currentProperty.keyValue(i);

   var val2 = currentProperty.keyValue(i + 1);

   //converting float to array

   if (val1.constructor !== Array) {

   var temp = new Array();

   temp[0] = val1;

   val1 = temp;

  }

   if (val2.constructor !== Array) {

   var temp = new Array();

   temp[0] = val2;

   val2 = temp;

  }

   //multi dimension values

   for (var y = 0; y < val1.length; y++) {

   var delta_t = t2 - t1;

   var c_val1 = parseFloat(val1[y]);

   var c_val2 = parseFloat(val2[y]);

   var delta = c_val2 - c_val1;

   avSpeed = Math.abs(delta) / (delta_t);

   /* $.write("val1 " + c_val1 + "--");

  $.write("val2 " + c_val2 + "\n");

  $.write("avSpeed " + avSpeed + "\n");*/

   $.writeln('dimension ' + y + ':\n');

   //values dispatch

   if (c_val1 != c_val2) {

   getBezier(currentProperty, i, c_val1, c_val2, avSpeed);

  }

   else { //if (c_val1 == c_val2)

   var minmax = getMinMaxPoints(t1, t2, currentProperty, curItem);

   var maxp_val = minmax.maxPoint.value;

   var hasmax = true;

   var hasmin = true;

   var minp_val = minmax.minPoint.value;

   if (!(c_val1 < maxp_val) || !(c_val1 > minp_val)) {

   if (c_val1 < maxp_val) {

   //create temp keyframe to "cut" the curve

   var tempkey_i = currentProperty.addKey(minmax.maxPoint.time);

   var tempavSpeed = Math.abs(maxp_val - c_val1) / (minmax.maxPoint.time - t1);

   //get the 2 bezier-curves

   getBezier(currentProperty, i, c_val1, maxp_val, tempavSpeed);//part going up

   getBezier(currentProperty, tempkey_i, maxp_val, c_val1, tempavSpeed);//part going down

   currentProperty.removeKey(tempkey_i);//remove temp key

  }else {

   hasmax = false;

  }

   if (c_val1 > minp_val) {

   var tempkey_i = currentProperty.addKey(minmax.minPoint.time);

   var tempavSpeed = Math.abs(maxp_val - c_val1) / (minmax.minPoint.time - t1);

   getBezier(currentProperty, i, c_val1, minp_val, tempavSpeed);//part going down

   getBezier(currentProperty, tempkey_i, minp_val, c_val1, tempavSpeed);//part going up

   currentProperty.removeKey(tempkey_i);//remove temp key

  }else{

   hasmin = false;

  }

   if(!hasmax || !hasmin)//if flat curve

   $.writeln("keyframe " + i + " has no animation\n\n");

  } else { //if (c_val1 < maxp_val && c_val1 > minp_val)

   //sort values

   $.write('equal minmax ');

   var first_time, sec_time, first_val, sec_val;

   if (minmax.maxPoint.time < minmax.minPoint.time) {

   //max value if first:

   first_time = minmax.maxPoint.time;

   first_val = maxp_val;

   sec_time = minmax.minPoint.time;

   sec_val = minp_val;

  } else {

   //min value if first:

   first_time = minmax.minPoint.time;

   first_val = minp_val;

   sec_time = minmax.maxPoint.time;

   sec_val = maxp_val;

  }

   // we have 2 extreme points, we need to "cut" twince (it gives 3 curves)

   var tempkey_i = currentProperty.addKey(first_time);

   var tempkey2_i = currentProperty.addKey(sec_time);

   var tempavSpeed_1 = Math.abs(first_val - c_val1) / (first_time - t1);//avspeed 1rst curve

   var tempavSpeed_2 = Math.abs(sec_val - first_val) / (sec_time - first_time);//avspeed 1nd curve

   var tempavSpeed_3 = Math.abs(c_val2 - sec_val) / (t2 - sec_time);//avspeed 3rd curve

   //get the 3 bezier-curves

   getBezier(currentProperty, i, c_val1, first_val, tempavSpeed_1);

   getBezier(currentProperty, tempkey_i, first_val, sec_val, tempavSpeed_2);

   getBezier(currentProperty, tempkey2_i, sec_val, c_val2, tempavSpeed_3);

   currentProperty.removeKey(tempkey_i);//remove temp key

   currentProperty.removeKey(tempkey2_i);//remove temp key

  }

  }//end value dispatch

  }

  }

  }

  }

  }

}

function getMinMaxPoints(t1, t2, currentProperty, curItem) {

   var P = currentProperty;

   var t = t1;

   var min = 999999;

   var max = -999999;

   var tmin = 0;

   var tmax = 0;

   while (t <= t2) {

   var val = P.valueAtTime(t, true);

   if (val > max) {

   max = val;

   tmax = t;

  }

   if (val < min) {

   min = val;

   tmin = t;

  }

   t += curItem.frameDuration;

  }

   if (max == -999999)

   max = P.valueAtTime(t1, true);

   if (min == 999999)

   min = P.valueAtTime(t1, true);

   var maxPoint = {

   value: max,

   time: tmax

  }

   var minPoint = {

   value: min,

   time: tmin

  }

   return { minPoint: minPoint, maxPoint: maxPoint }

}

function getBezier(currentProperty, i, c_val1, c_val2, avSpeed) {

   if (c_val1 < c_val2) {

   x1 = currentProperty.keyOutTemporalEase(i)[0].influence / 100;

   y1 = x1 * currentProperty.keyOutTemporalEase(i)[0].speed / avSpeed;

   x2 = 1 - currentProperty.keyInTemporalEase(i + 1)[0].influence / 100;

   y2 = 1 - (1 - x2) * (currentProperty.keyInTemporalEase(i + 1)[0].speed / avSpeed);

  }

   if (c_val2 < c_val1) {

   x1 = currentProperty.keyOutTemporalEase(i)[0].influence / 100;

   y1 = (-x1) * currentProperty.keyOutTemporalEase(i)[0].speed / avSpeed;

   x2 = currentProperty.keyInTemporalEase(i + 1)[0].influence / 100;

   y2 = 1 + x2 * (currentProperty.keyInTemporalEase(i + 1)[0].speed / avSpeed);

   x2 = 1 - x2;

  }

   $.writeln("keyframe: " + i + " Cubic-bezier[" + x1.toFixed(2) + ", " + y1.toFixed(2) + ", " + x2.toFixed(2) + ", " + y2.toFixed(2) + "]\n\n");

}

//end--------------

I made a couple CSS test using “animation-timing-function”. The result looks pretty good!

What do you guys think?

For what kind of property do you need it ?
