Gauge values following excel data over time

Question

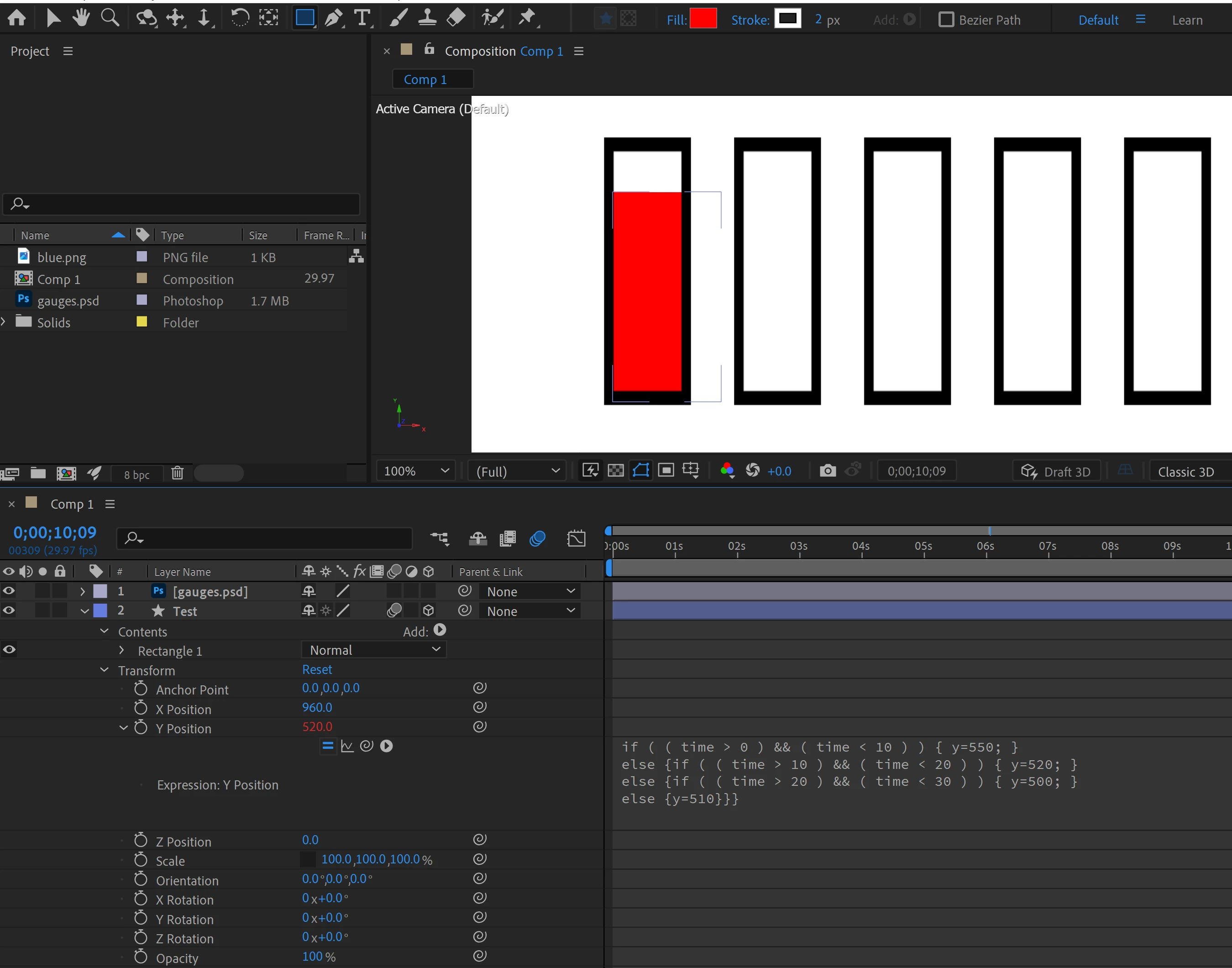

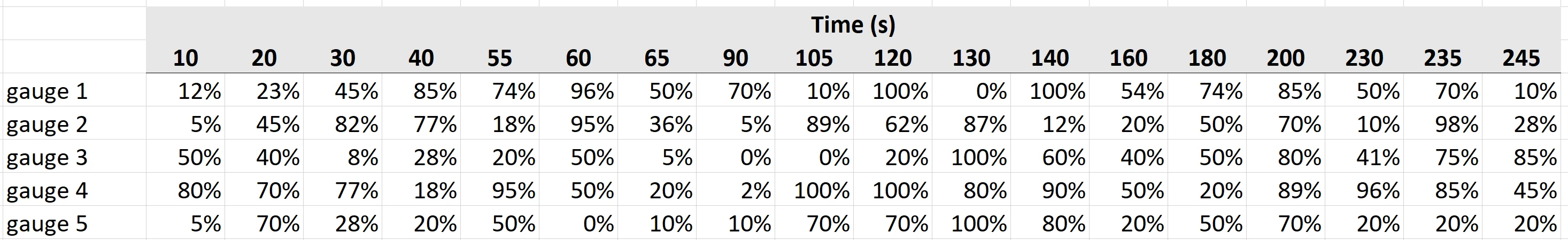

Hi,I am trying to create 5 gauges on my video that will display different values and would need to change 18 times throughout the video.  The gauges values would need to bu updated a few times, so im hoping to create and easily updatable workflow. I manage to create an excel generated IF expression, but id like to make the transitions smother. Could you help me come up with an expression that i can generate from excel and has the desired results?  Target video, excel table and current progress attached.

Mylenium · Accepted Answer

You may want to read the online help on how to actually use external data and then none of this is an issue:

Work with Data-driven animation

It's easy enough to generate inbetween values in Excel and fetch them frame by frame without requiring any extra code to address individual indices in AE and blend the values with linear() or such.

Mylenium

Airweb_AE · Answer

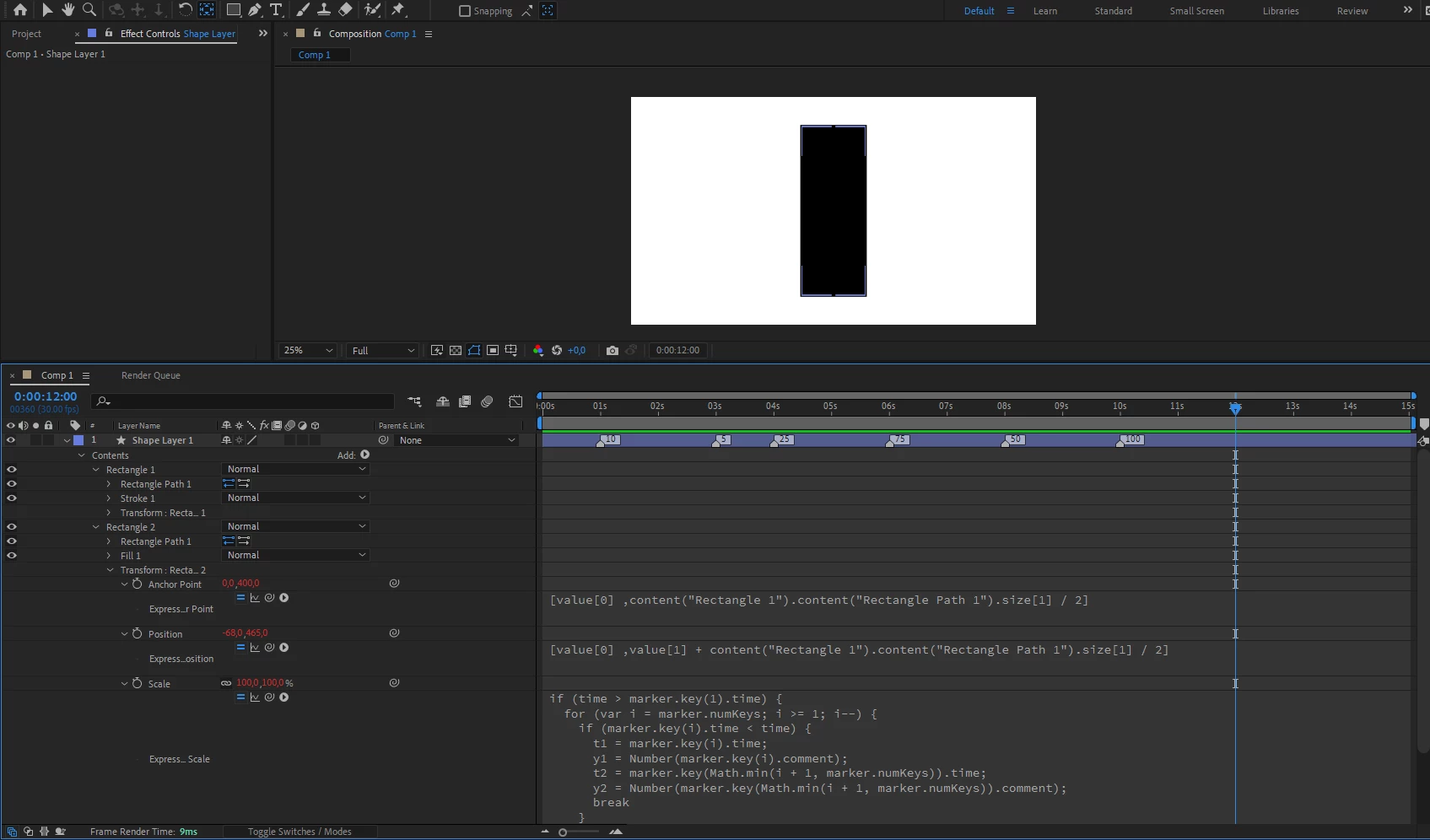

You can use Linear expression

and markers with % values

Rectangle 2 -> transform -> anchorPoint

[value[0] ,content("Rectangle 1").content("Rectangle Path 1").size[1] / 2]

Rectangle 2 -> transform -> position

[value[0] ,value[1] + content("Rectangle 1").content("Rectangle Path 1").size[1] / 2]

Rectangle 2 -> transform -> scale

if (time > marker.key(1).time) {
  for (var i = marker.numKeys; i >= 1; i--) {
    if (marker.key(i).time < time) {
      t1 = marker.key(i).time;
      y1 = Number(marker.key(i).comment);
      t2 = marker.key(Math.min(i + 1, marker.numKeys)).time;
      y2 = Number(marker.key(Math.min(i + 1, marker.numKeys)).comment);
      break
    }
  }
} else {
  t1 = inPoint;
  y1 = 0
  t2 = marker.key(1).time;
  y2 = marker.key(1).comment
}
[100, linear(time, t1, t2, y1, y2)]
