Graph editor looks flat

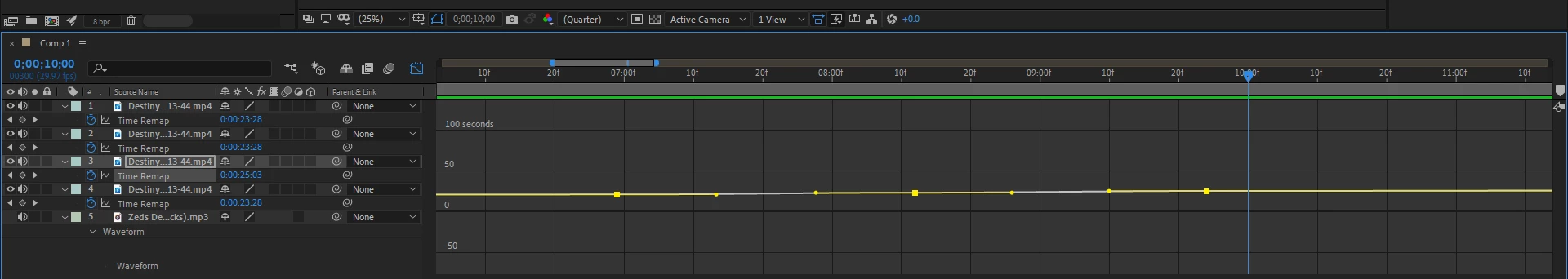

I'm trying to do some time remapping but when I edit my keyframes in the graph editor they look like this? There is no space for me to use the handles or do anything really. It is a reoccurring issue but I have managed to not have this in the past. I have hit F9 and the easy ease function and neither work. Any help would be much appreciated!



 

 

    angie_taylor
    angie_taylorCorrect answer
    Legend
    Feb 26, 2021 4:58 AM UTC

    To see your keyframes in more detail, so you can actually see the slopes of the graph lines ( assuming there are some) - double click on the name tab of the comp in the Timeline. This will extend it to be full-screen. Make sure that Auto-zoom graph height button is clicked too. Now you'll have a much bigger view. Then select the keyframes you want to begin with and hit the "Fir Selected to view" button to zoom in even further. Rick is right, the speed graph is much better for controlling time remapping. However not everyone likes it - sadly.

    View reply

    7 replies

    Rhona316252244zr0
    Participant
    Feb 23, 2026 10:29 AM UTC

    It help me to click the eye icon at the bottom and then tick ‘show animated properties’

    Translate
      angie_taylor
      angie_taylorCorrect answer
      Legend
      Feb 26, 2021 4:58 AM UTC

      To see your keyframes in more detail, so you can actually see the slopes of the graph lines ( assuming there are some) - double click on the name tab of the comp in the Timeline. This will extend it to be full-screen. Make sure that Auto-zoom graph height button is clicked too. Now you'll have a much bigger view. Then select the keyframes you want to begin with and hit the "Fir Selected to view" button to zoom in even further. Rick is right, the speed graph is much better for controlling time remapping. However not everyone likes it - sadly.

      Translate
        Sivanesan5E44Author
        Participant
        Mar 2, 2021 11:24 AM UTC

        i cannot express my thanks



        Translate
          angie_taylor
          angie_taylor
          Legend
          Mar 8, 2021 7:20 AM UTC

          Thats very kind of you, thank you 🙂

          Translate
          Community Expert
          Rick GerardCommunity Expert
          Community Expert
          Feb 26, 2021 4:11 AM UTC

          It looks like you are editing the value graph. I find the speed graph is easier to work with when using Time Remapping. It also looks like every keyframe has the same value. What does the graph look like if you zoom out on the timeline? I would start troubleshooting by using the J and K keys to jump back and forth between keyframes and check the values displayed.





          Translate
          Mathias Moehl
          Community Expert
          Mathias MoehlCommunity Expert
          Community Expert
          Feb 25, 2021 1:55 PM UTC

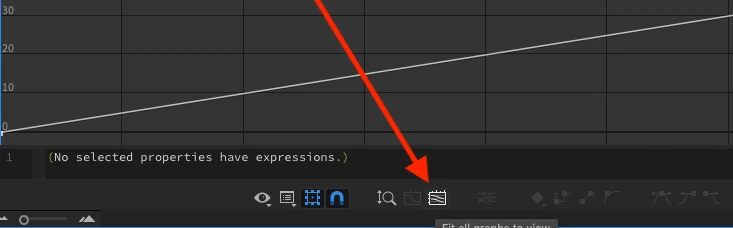

          Have you tried to click the "fit all graphs to view" icon?

          Translate
          Mathias Möhl - Developer of tools like BeatEdit and Automation Blocks for Premiere Pro and After Effects
            Sivanesan5E44Author
            Participant
            Feb 25, 2021 4:48 PM UTC

            yea it hasn't worked unfortunately

            Translate
