how to attach Title moving along with End point of line chart

  • October 10, 2023
  • 返信数 1.
  • 199 ビュー

I just saw Vox video in this link:



https://www.youtube.com/watch?v=O-3Mlj3MQ_Q&t=5s



Right the beginning of vid, Name of countries moving along with the end of its line chart.



I spent a whole day to find to do but ... nothing.



Please help me with this how-to question.



Many thanks

このトピックへの返信は締め切られました。

返信数 1

Community Expert
October 11, 2023
  1. Create a shape layer path with a stroke
  2. Add a left justified text layer
  3. Select the path layer and type "path" in the Search Timeline field to reveal the path and select it
  4. Select Window/Create Nulls From Paths.jsx and select Trace Path
  5. Click the Add button on the Shape Layer and select Trace Path
  6. Find the End property in Trace Path and use the Pickwhip to connect it to the Progress keyframes on the Null
  7. Turn off Loop for in the Effect Control Panel for the Null and adjust the timing of the Progress slider keyframes
  8. Use the Pickwhip to connect the Position of the Text layer to the Null
  9. Adjust the Anchor Point of the Text layer to fine-tune the position of the Text layer
  10. Done

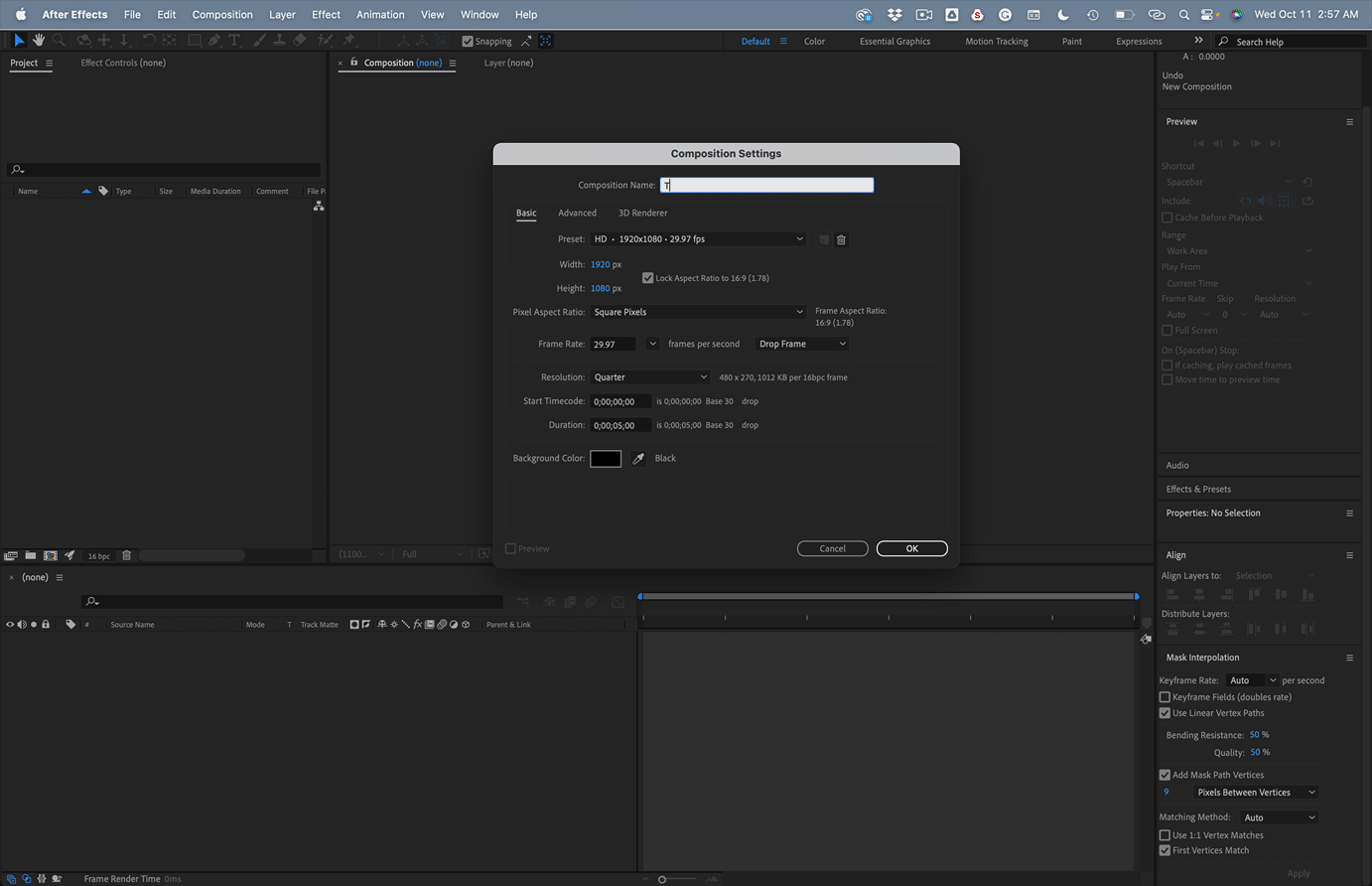

It should take you about 10 minutes and look something like this:





phamqd作成者
Participant
October 12, 2023

it worked successfully! Finally I did thanks to you.



Again, big thank 😉
