How to proportionally move nodes on a line

I would create the whole thing on a single shape layer and use a common expression for all of the circles that set the position of the ellipse based on the length of the line the colored circles are on. The math is relatively straightforward.

Start a new shape layer and create a rectangle that is centered, the width of the comp, and about 4 pixels high. Add an expression slider to the comp and name it Line Length. Rename Rectangle 1 to Baseline Rectangle. Add this expression to the Baseline Rectangle/Rectangle 1 Path/Size and when the slider is set to 100(%) the rectangle will be as wide as the comp:

lineLen = effect("Line Length")("Slider") * .01;
newWidth = width * lineLen;
[newWidth, 4]

Now add an ellipse to the shape layer, zero out all of the Ellipse 1 transforms so that it is in the center of the comp splitting the Baseline Rectangle. Add this expression to the Ellipse 1/Ellipse Path 1/Position. The first line of the expression sets the ellipse (the circle) position as a percentage of the total line length.

pointPosition = 6; // placement as a percentage of the line
barLength = content("Baseline Rectangle").content("Rectangle Path 1").size[0];
barStart = - barLength / 2;
xPosition = barLength * pointPosition;
xOffset = pointPosition * barLength * .01;
[barStart + xOffset, value[1]]

Now duplicate the ellipse as man times as you need data points, edit the fill colors as needed, and set the pointPosition value to the appropriate percentage.

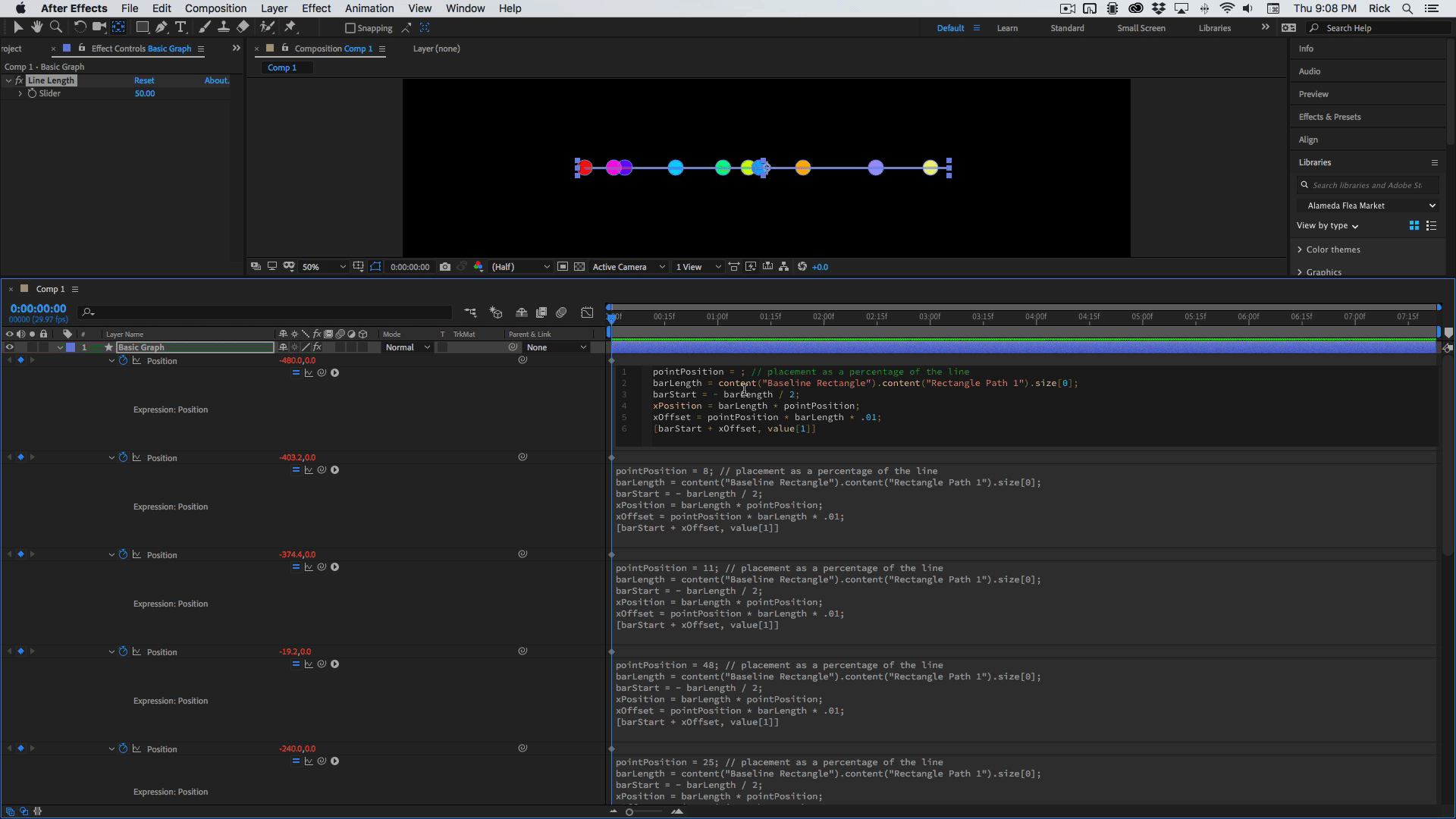

You will end up with a single shape layer that contains the entire line graph and you can size the line to any length you want and the points will stay in the same relative position. The comp looks something like this:

Here's a project file for you to play with. You could fancy it up and use a JSON file to drive the pointPosition value to automate it.

This is just one of the presets and tools that will soon be available for purchase. Enjoy.
