Make Graphics Bend With Extruded Sides in 3D

  • September 26, 2025
  • 1 reply
  • 115 views

Hi there, I'm trying to do something kind of complex, and I'm hoping to find a way to do this natively in AfterEffects, or maybe to get some sort of plugin if that's available.



The basic idea is that I animated a book with bendy pages.





I'm using the Cinema 4D renderer (it seems that my current computer can't use Advanced 3D, either because of system requirements or just because I haven't updated AE quite new enough yet).

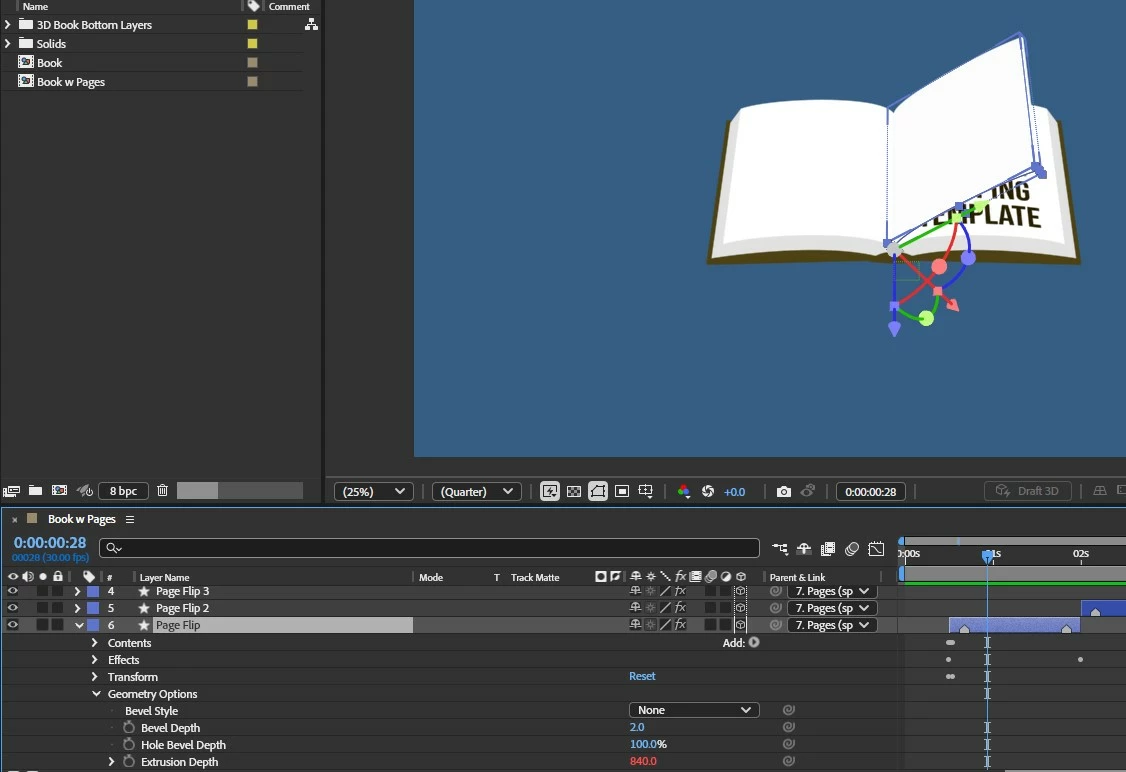

I achieved the page bending by just having a simple curved path, and then I extruded it.





After making the page, I made a text layer with a mask that matched the path of the page, and then (with some doing) got the text to lay down across the page using Per-Character 3D and some relatively simple expressions.





From what I've seen online, all of this seems to be pretty run-of-the-mill. But what I'd REALLY like would be to make it so that these pages could have images on them—for me to be able to create a vector graphic in Illustrator and superimpose that onto the page, so that the vector graphic or image or pre-comp will bend with the page as it's turning.



Is this impossible and/or way out of my league? Any help is appreciated.



Thank you, and have a nice day!

1 reply

ShiveringCactus
Community Expert
Community Expert
October 2, 2025

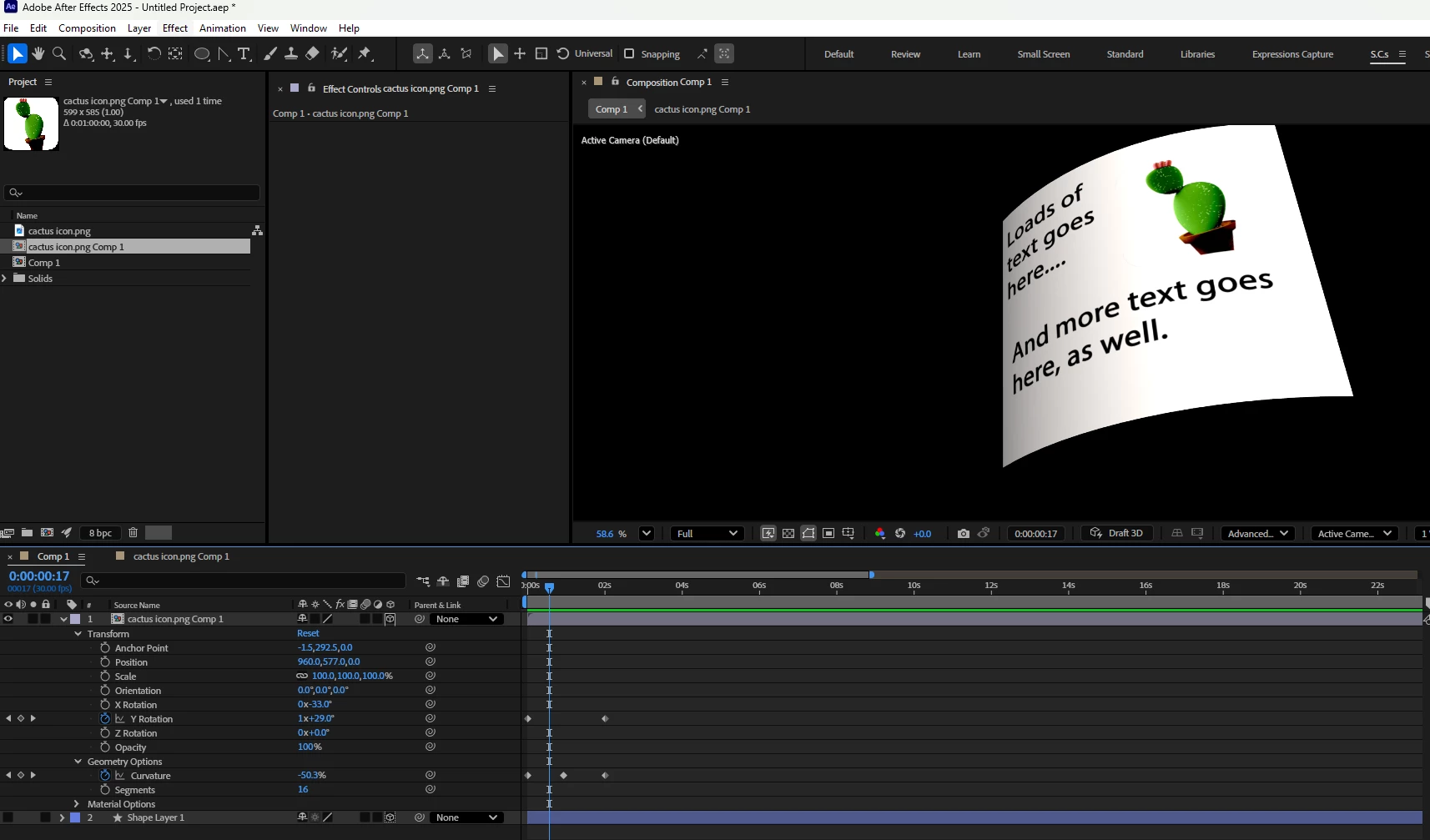

Try creating a precomp with your text and images.  Make this precomp 3D and in Geometry options you'll be able to apply curvature.  You'll need to adjust the anchor and rotation properties, but you should be able to get the look you're after.

kg77Author
Inspiring
October 29, 2025

This doesn't exactly do what I was wanting. The page that I currently have is based on a path that forms the edge, so it doesn't bend symetrically like the Curvature option does.

ShiveringCactus
Community Expert
Community Expert
November 3, 2025

Hmm, I wonder if there's anything that could be done with displacement map to augment the curve to match?
