No cast shadows in Advanced 3d - AE 24.6.1

Forum|Forum|1 year ago
September 5, 2024
2 replies
10104 views

I was trying to animate a Google earth studio map with city names with shadows on it. Thus I discovered that After Effects 24.6.1 doesn't have cast shadows if the renderer is Advanced 3D. Am I wrong with the settings somewhere or in the Advanced 3D shadows are not cast at all?

See an example in the video. Only the classic 3D works. And the Classic 3D would have been fine but for it missing extrusions for layers, which I need and only the Advanced 3D does them

Desktop_2024-09-05_-_17-28-45-01.zip

K

Kim Pimmel

Adobe Employee

I had this same problem with not being able to see shadows for 3d objects on my shadow catcher (with all light/shadow settings correctly set, and shadow catcher and lights oriented correctly as suggested in numerous forum posts)

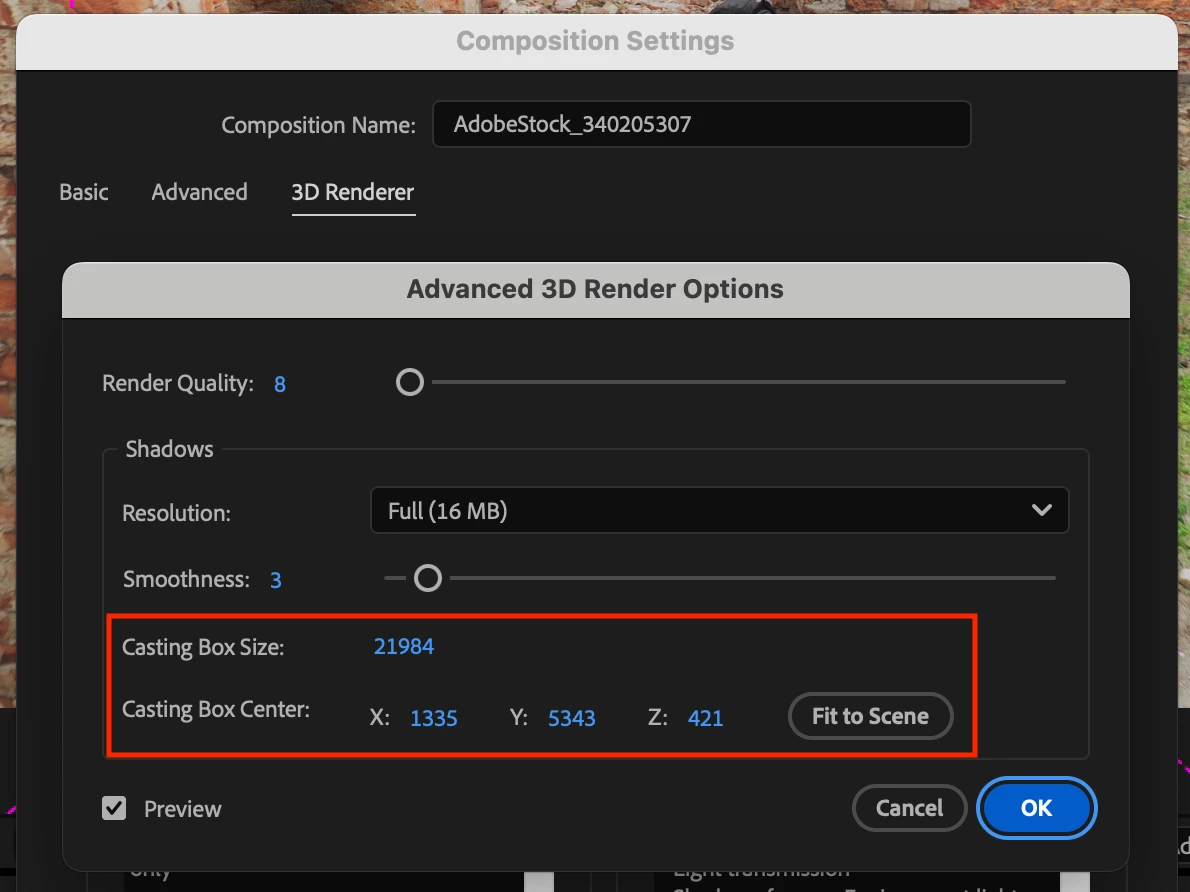

I was able to get my shadows to show for an Advanced 3D comp - for Environmental Lights only- by going into Composition Settings, Options for Advanced 3D, then selecting the 'Fit to Scene' button for Casting Box Size/Center. This changed the values in those boxes and then my scene's shadows became visible.

Hope this helps someone else with the same issue.

T

Thetope

Inspiring

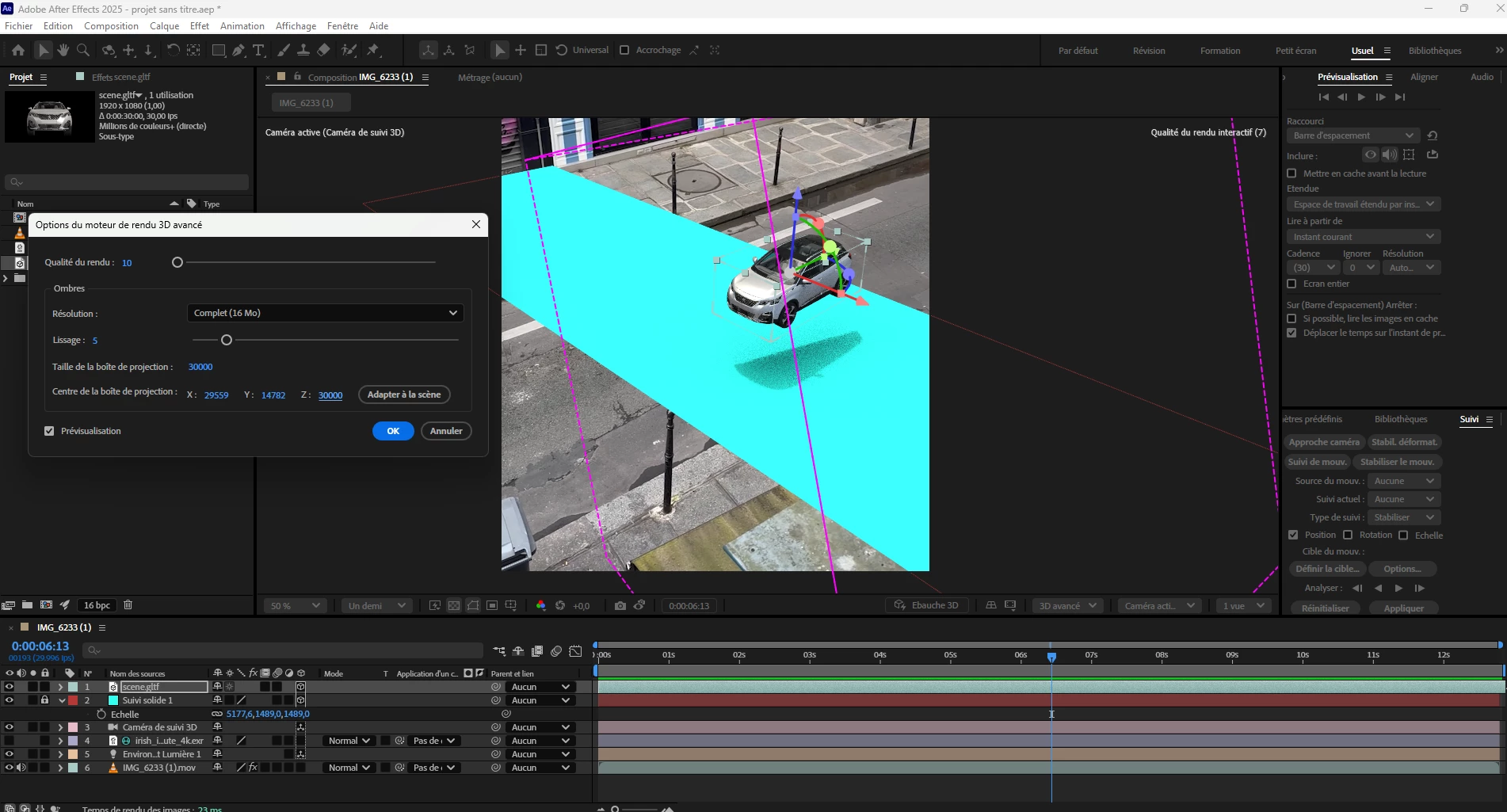

Hello, I have a problem with the casting box position, the value of the Z does not go beyond 30000 and it place the box like this when I click on Fit to Scene. I can't moove the box behond so I can't see the shadow of my car deeper into my scene, I do a lot of search but I have no answer to how fix this box problem.

ShiveringCactus

Community Expert

Can you make your shadow catcher a child of the 3D object, then set its position to 0,0,0 and then move it from there?

R

Rick Gerard

Community Expert

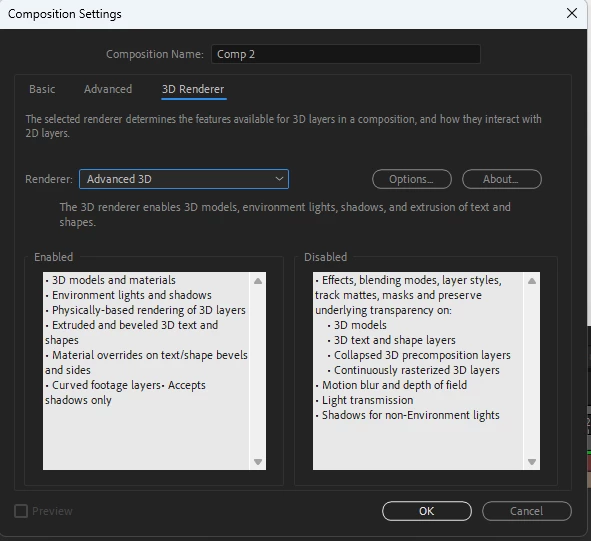

Open composition settings (Ctrl/Cmnd + K) and carefully read the descriptions in the 3D Renderer tab. Everything is explained there.

You will need to work around the limitations using a different workflow and maybe some pre-comps or wait for other features to be added to the different rendering engines. The rendering engines are also limited by GPU compatibility.
