Trying to Copy Path from Shape Layer to Another Shape Layer

Forum|Forum|2 years ago
June 13, 2023
3 replies
2758 views

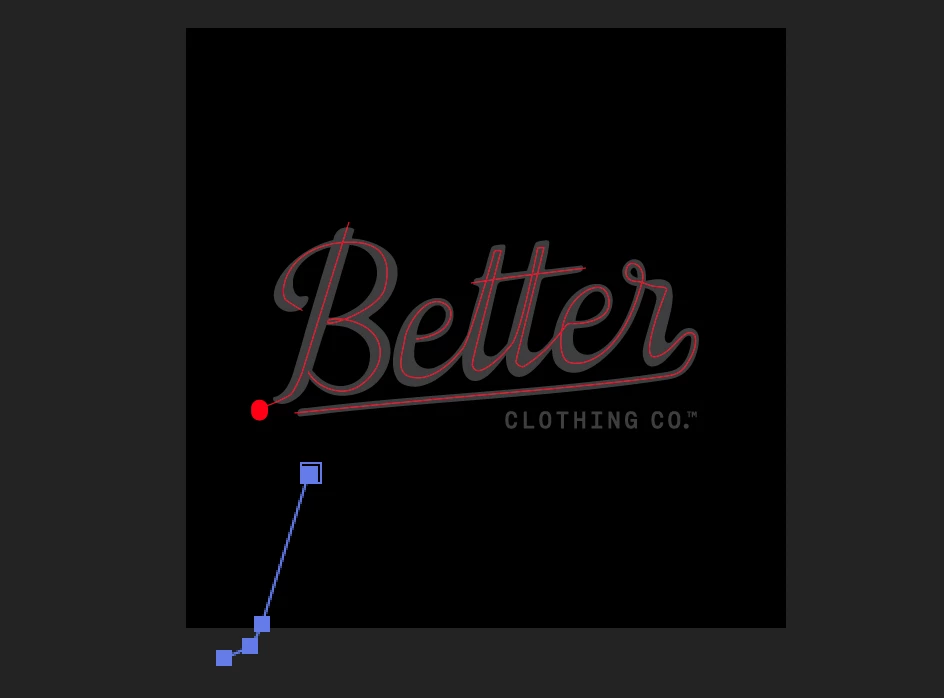

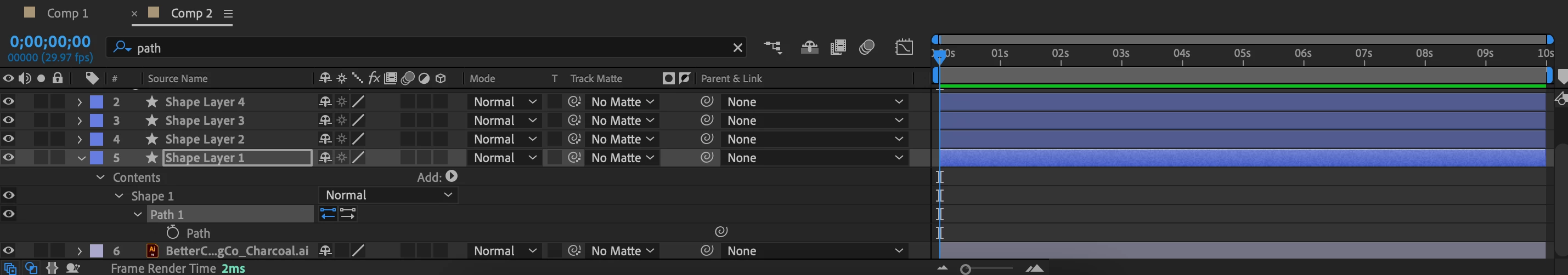

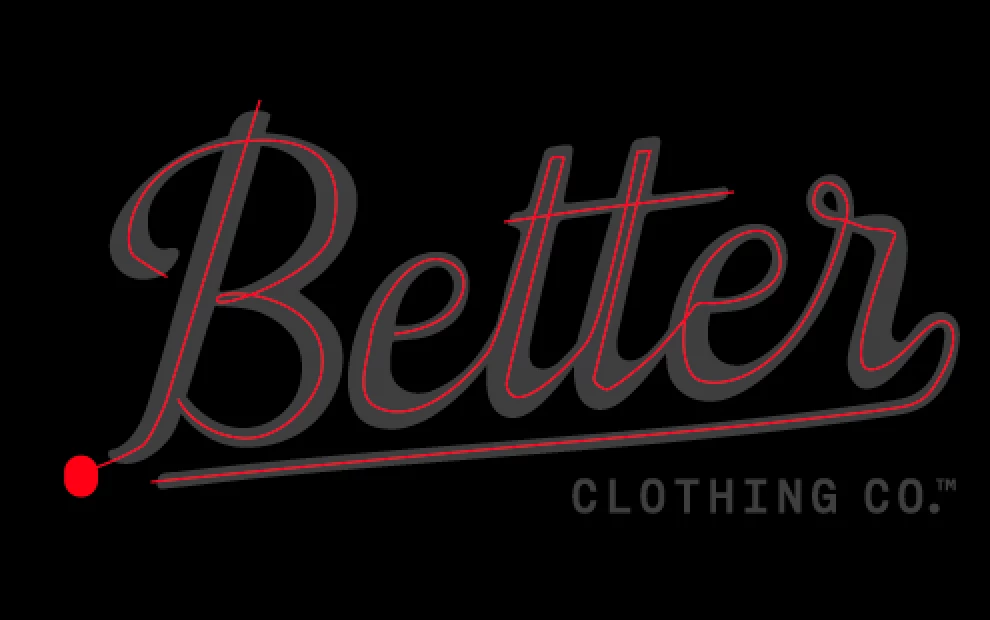

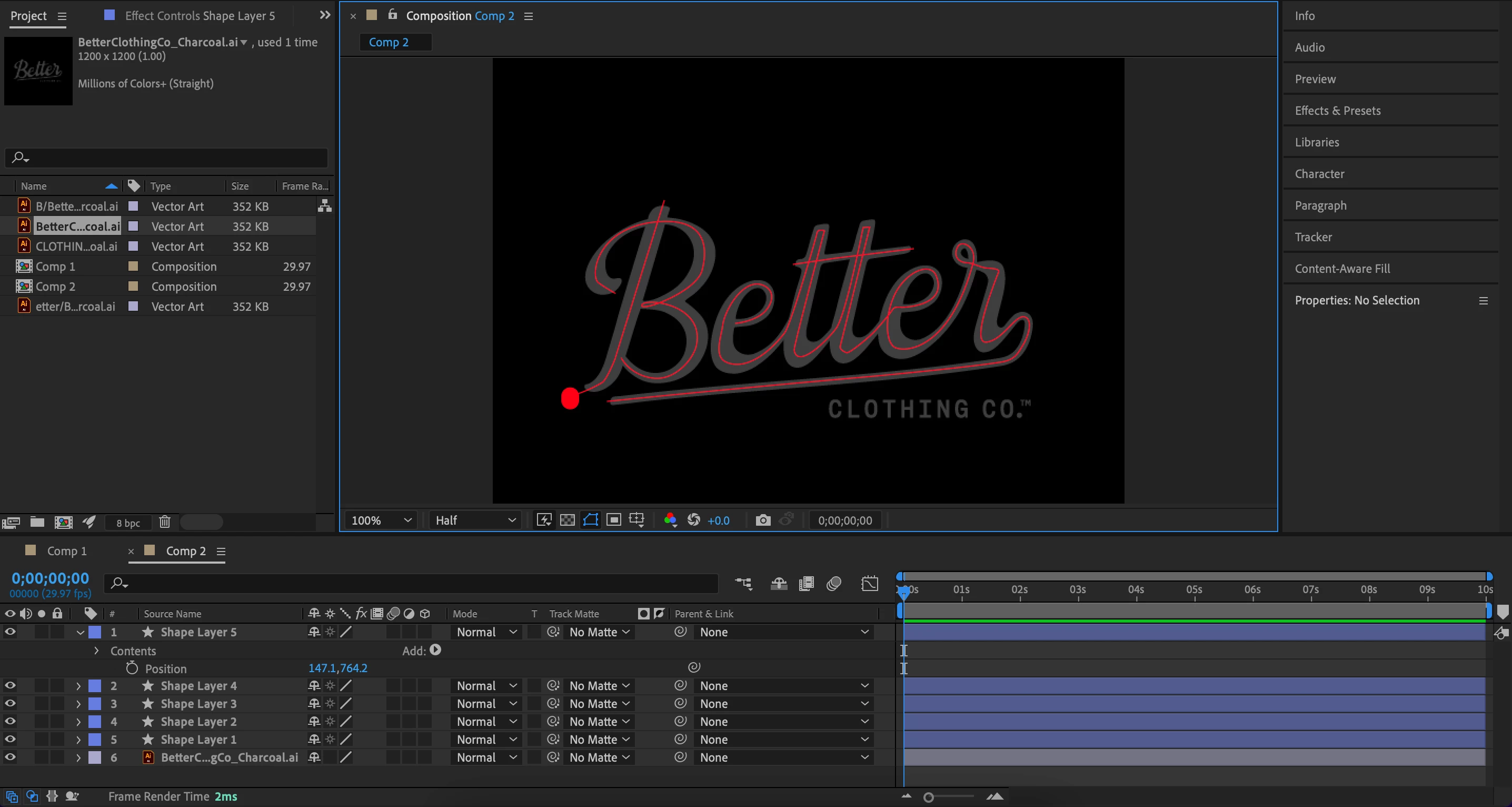

Hello! I am trying to animate a logo and having issues with copying the path of the shape layer and pasting the path into a new shape layer position. When I copy the path and paste, it is just pasting the path again in a different position but not making it a new path for the shape to follow. Attaching screenshots to show my workspace. Appreciate the help!

This topic has been closed for replies.

Kyle Hamrick

Community Expert

In addition to Rick's answer, shape layers have "Position" properties in multiple locations, which can be confusing if you don't know what to look for. I'm guessing that's probably not at play here, but we're not able to rule it out from your screenshots.

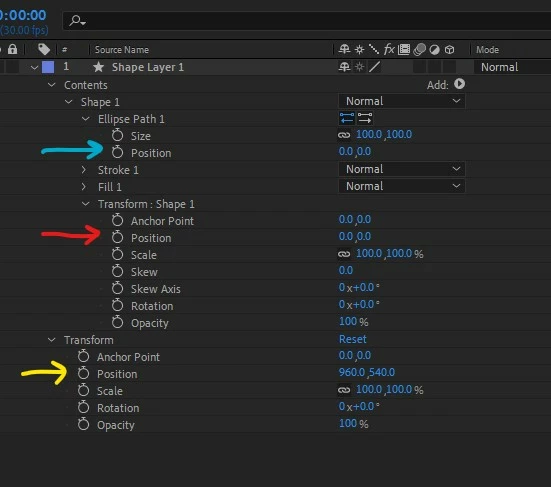

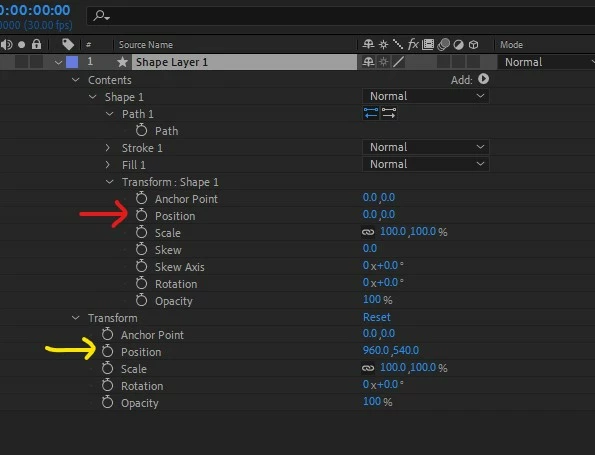

By default, any path you create on a shape layer will have a Position within it's shape group (the red arrow), the layer itself has a Position (the yellow arrow), and then a Path is made up of points with their own positions (which aren't directly visible to users).

If you paste a path from one shape layer to another and it doesn't line up, make sure both of the Position properties I've highlighted here have the same values. If they don't, things won't line up. That said, you can always just manually re-align the path visually, too!

If you're working with parametric shapes (rectangles, ellipses, polygons or stars based on values instead of an editable path), those will have THEIR OWN Position as well!

If this seems like a lot for one shape - it is! It's only when you start using multiple objects to a single shape layer that the need for all this complexity becomes clear.

Good luck, and let us know if you need more guidance!

Kyle Hamrick

Community Expert

From your follow-up comment, I think you might be trying to copy/paste this into another layer's Position property, to use it as the motion path? If so, the easiest route is just to select all those new Position keyframes you just created (with your current time indicator on top of one of them), and just drag them into the right place visually.

R

Rick Gerard

Community Expert

The parent to a null the Shift + Parent to the original layer will also line up a motion path. You just need to remove the parenting and delete the null after the path is lined up.

R

Rick Gerard

Community Expert

The coordinates for a shape path are based on the layer size and the comp coordinates. If the layer has been moved, rotated, or scaled, and you copy the path and paste it to another layer, it will be out of position.

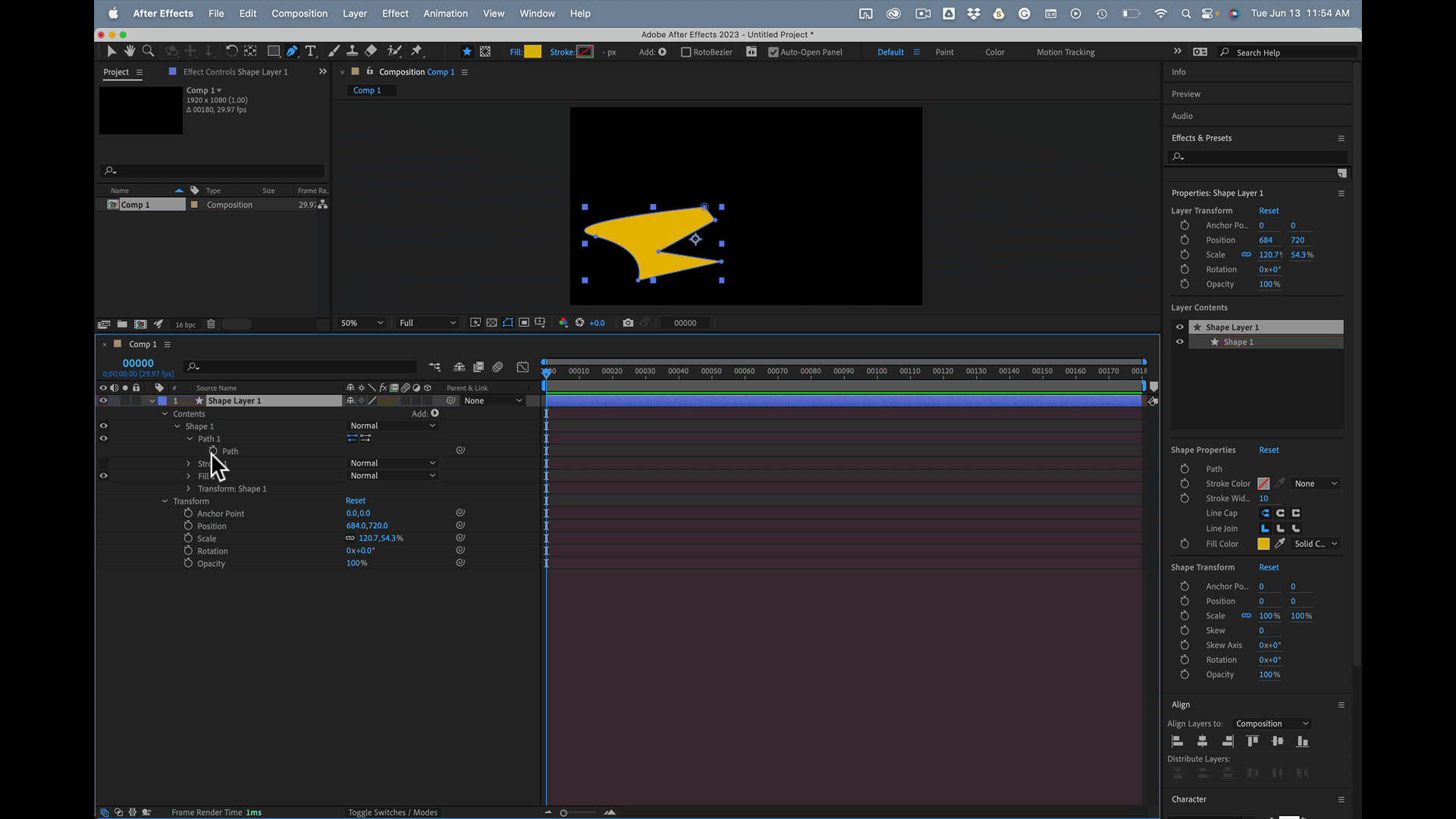

You can fix the position problem by adding a null to the Comp, making the Null the Parent of the new layer with the offset path, then Shift + Parent the new Null to the original layer. It takes about 15 seconds. You can then remove the parenting and delete the null unless you need to keep the fixed path lined up with the original layer.
