VR environment render glitches

  • January 6, 2022
  • 1 reply
  • 626 views

I'm new to the VR environment plugin for AE and in my experiments I've experienced renders with occaisional camera glitches (one or more camera 'segment' glitches out for a frame or so).

I'm rendering for 360 fulldome fisheye using Element 3D and Nodes 3 Plugins.

Anyone have any advice for how to get a clean render?

Thanks



AE 2022

Mac Pro 2019 3.3 GHz 12 Core

192 GB memory

AMD ProVega II Duo 32 GB

This topic has been closed for replies.

1 reply

nishu_kush
Legend
January 8, 2022

Hi moonspinner5656,



Thanks for writing in.

Could you share a screenshot of the glitch?

We're here to help.



Thanks,

Nishu

Known Participant
January 8, 2022

Thanks Nishu,

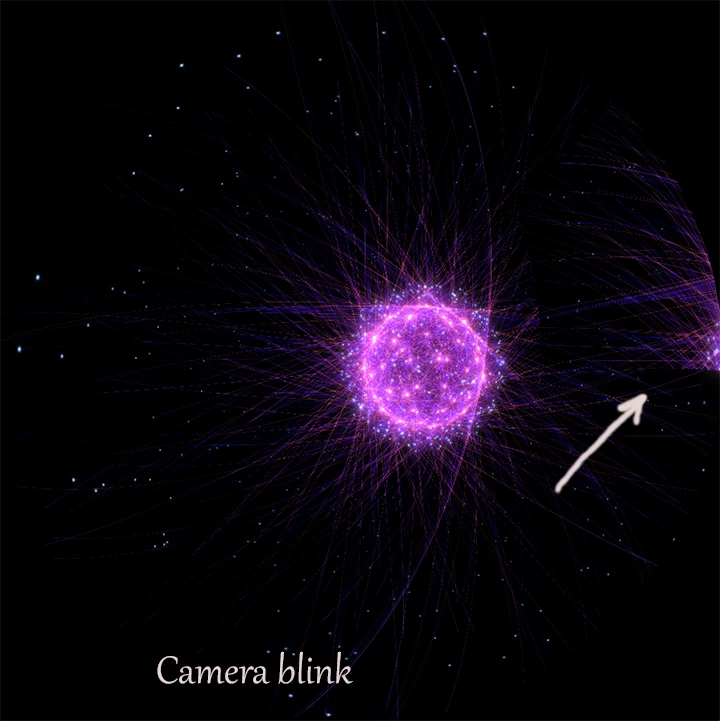

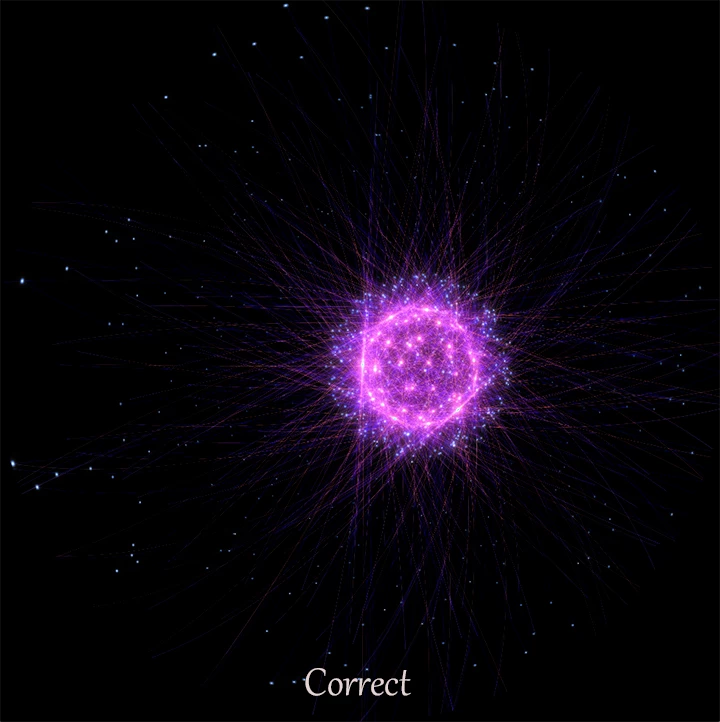

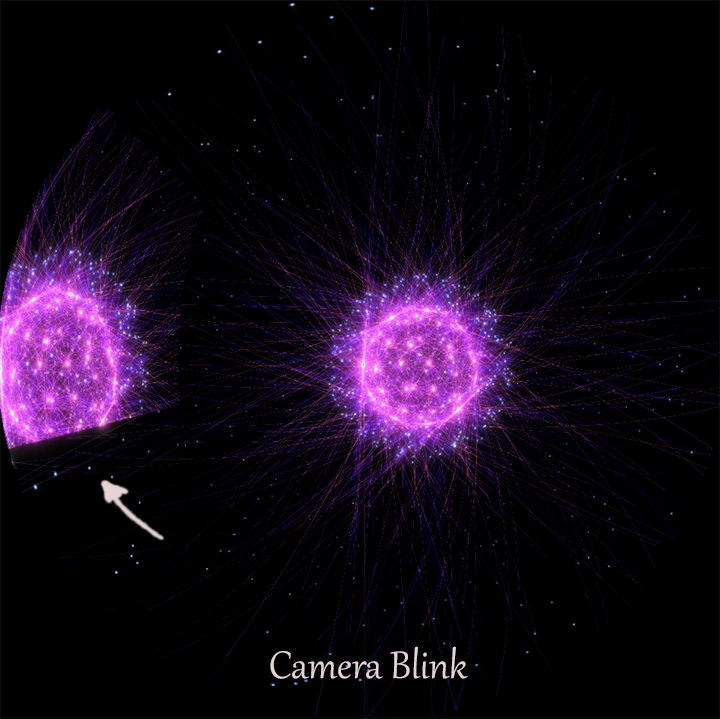

Samples attached





ShiveringCactus
Community Expert
Community Expert
January 8, 2022

So the way AE's VR appear to work is by duplicating the main comp into comps for each view (front, back, left, right, top and down) then brings these comps together and blends them into a nearly seemless spherical texture.  But because this is really complicated and you're using 3rd party plugins it is possible that some effects are not responding correctly and are appearing in the different comps.  Some "3D" effects might be 2D effects with shortcuts to make them appear 3D.

Whenever you adjust your comp, you need to use the VR panel's Refresh VR Output button to switch back and forth.  This updates / replaces the precomps.  I generally find I need to get the whole thing right in a single comp, save a new version, then generate the precomps from the VR panel and render out.  If I need to make changes I go back to the non-VR comp and start from there.

VR in AE is a really clever use of AE's 3D space, but there will likely always be glitches.  If you don't need to fly into your purple orb thing, it might be simpler to render out that element and treat it as a 2.5D layer.  This will also cut down final render time too.
