How to Export Animations while keeping quality high?

There are a couple of other tips I haven't seen mentioned so far.

In the Library, find all bitmaps and set them to be lossless. They can all be changed in one go.

You should animate with an ActionScript 3.0 FLA, that has more flexibility than an HTML5 Canvas one has. One thing you can then do is to is add some code to the first frame in the timeline. If you add this:

stage.quality = "16x16";

that will make the render have the best possible antialiasing.

To _keyframer,

This solution has vastly improved my video quality, thank you very much for this.

One thing I do notice is the colour is slightly duller. Is there any solution/work around for this?

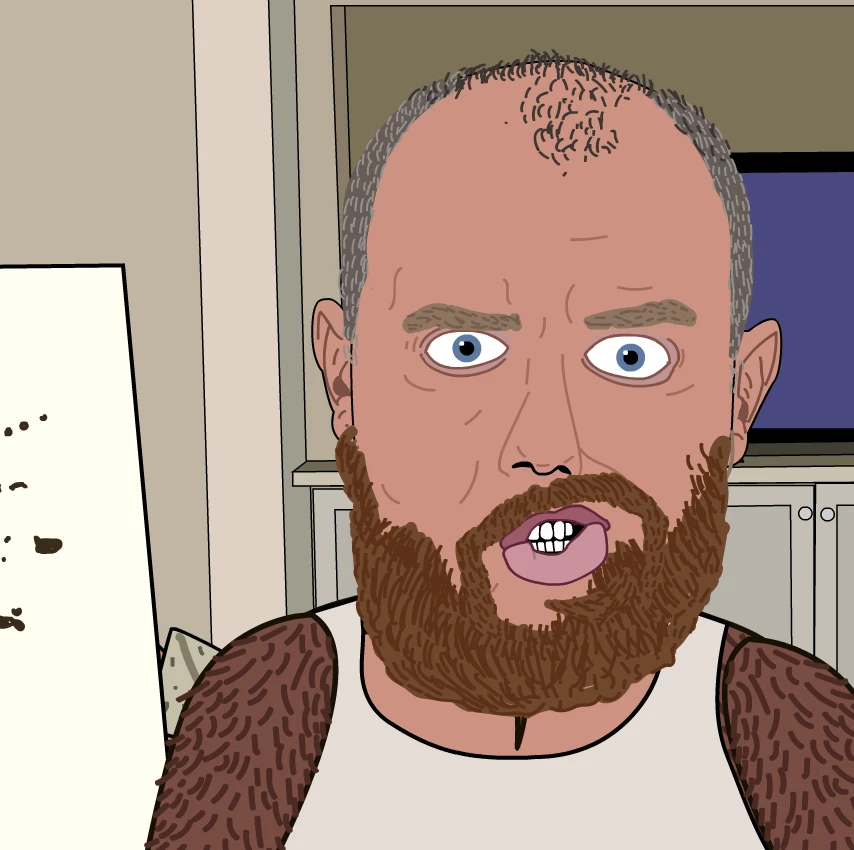

.swf file colour

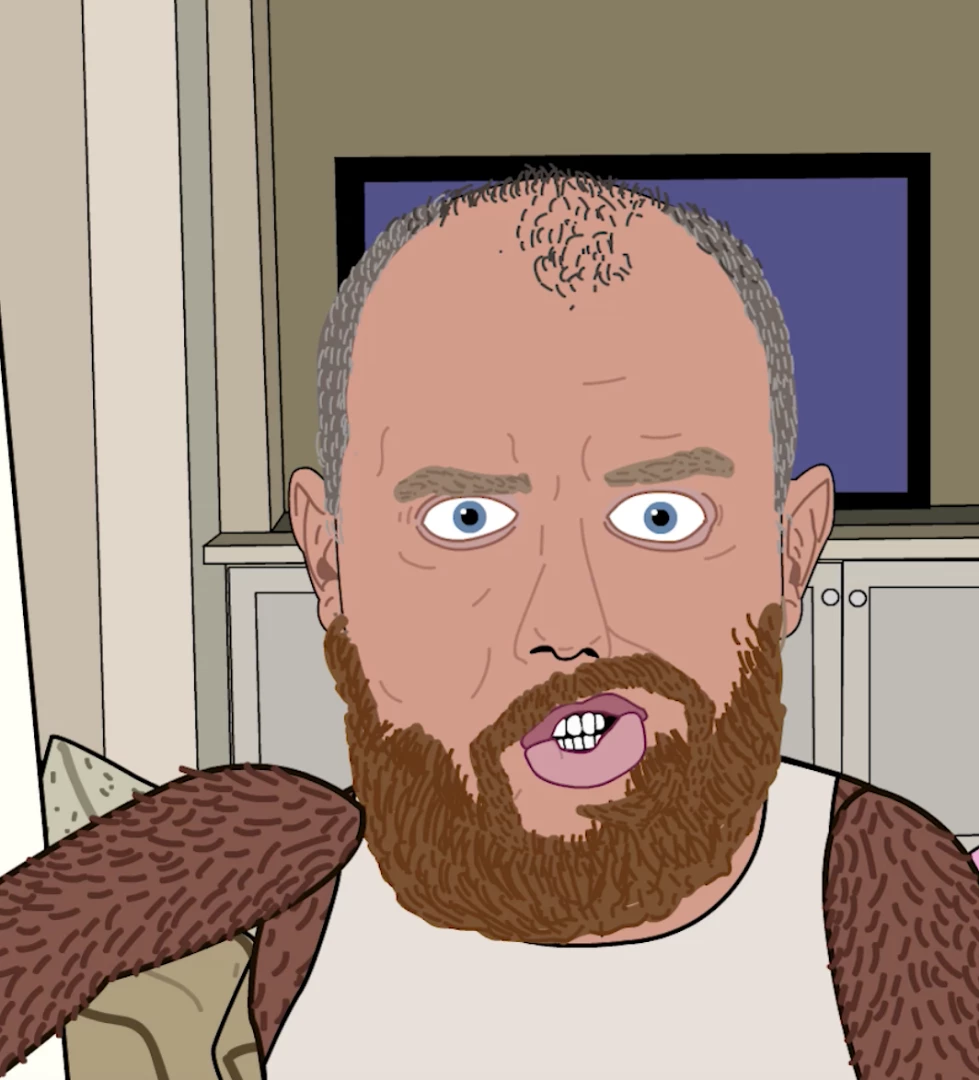

.mp4/.mov colour

Thanks again for your advice i'm so happy I don't have to screen record swf files anymore.

Hey Preran,

This is Ben John, using another account.

I followed the following steps, it doesn't appear to have affected it.

• Turn off other applications. When recording, Flash uses all of your system's available resources as much as possible, so any interference of the system performance affects the result of the recording. We recommend you quit other applications before exporting to a video.

  (DONE)

• Turn off audio. The audio in Flash may also slow the performance, possibly causing dropped frames. Turn off the audio, if you have many dropped frames in the first attempt. Other video editing tools can be used to add the audio to the video after export.

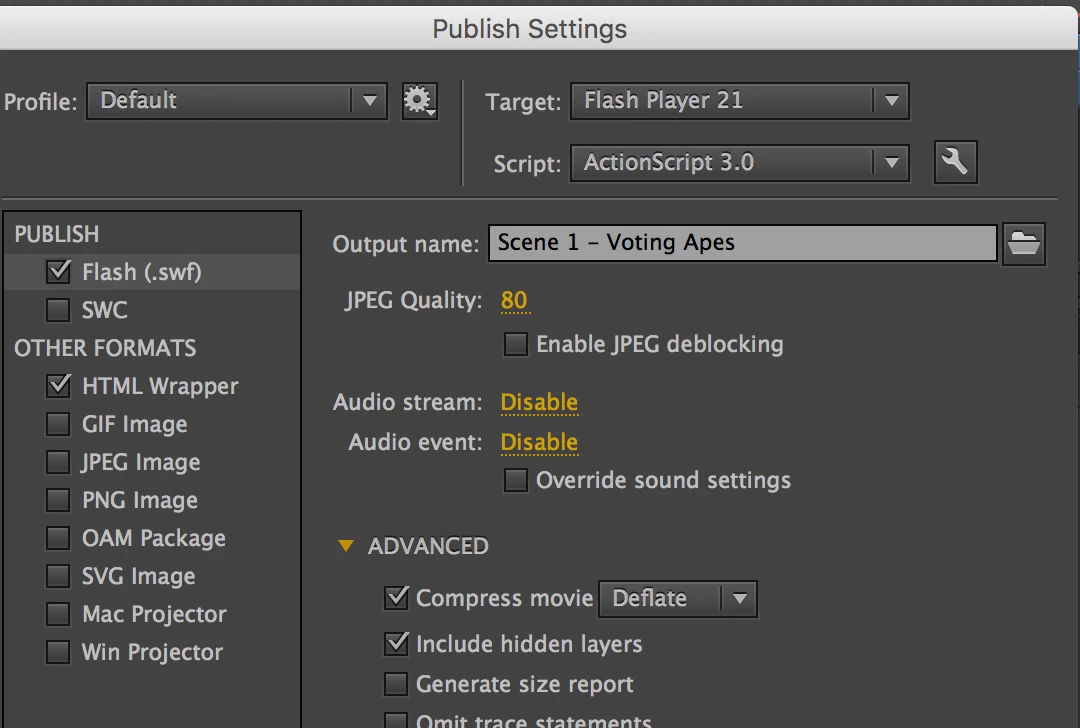

  (DONE - IMAGE BELOW)

• Reduce frame rate. If the Flash content dimensions are a full size NTSC video, 740 x 480, and frame rate is 30 fps, you are more likely to have dropped frames. Reducing the fps of Flash content increases the chance of grabbing all the frames. Other video editing tools can be used to adjust the frame rate of the video after export.

  (I DID NOT DO THIS, BECAUSE THE FRAME RATE WAS NOT THE ISSUE, IT WAS THE VIDEO QUALITY).

• Use ActionScript 3.0. Animation created by ActionScript 2.0 and ActionScript 3.0 are different in playback performance. Convert the ActionScript in your animation to ActionScript 3.0 for optimized performance.

  (DONE, SEE IMAGE ABOVE)

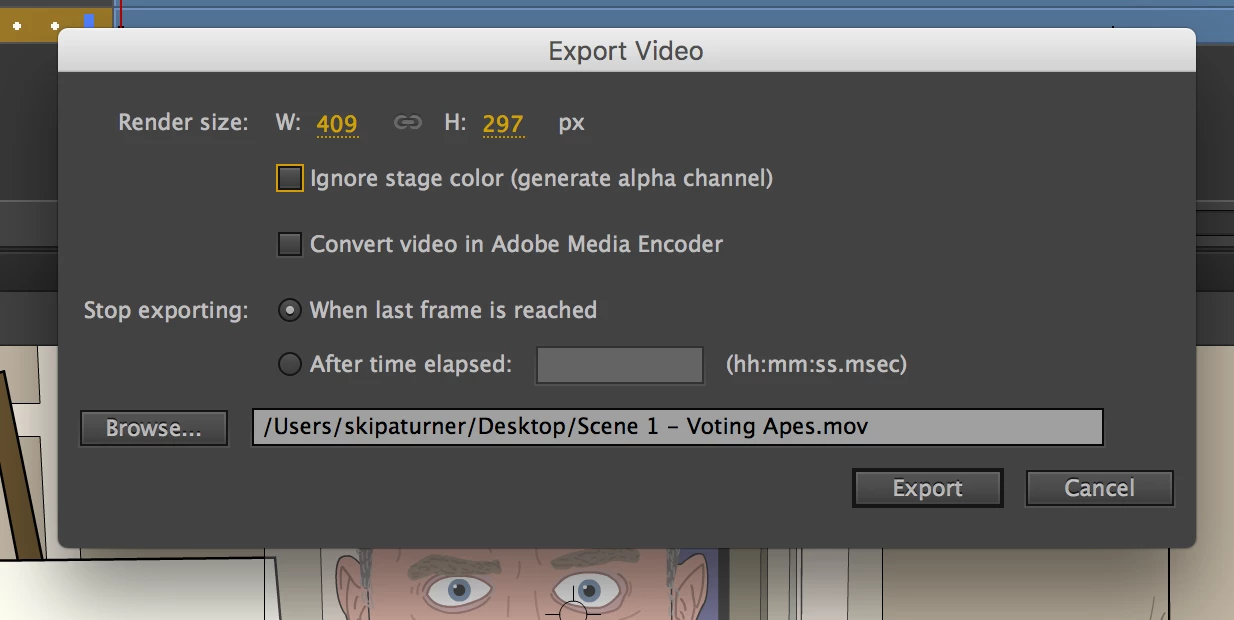

Dimension settings in two places. The dimension settings in Export Settings dialog sets the dimension of the SWF movie to be captured. The Size settings in QuickTime Settings dialog sets the dimension of the exported MOV files. If the SWF size is smaller than the exported MOV size, the picture quality will be degraded; if it is larger than the exported MOV file, you may have better picture quality. For best quality (and often performance) these settings should match.

(Is this how to change the SWF dimensions at "Properties W/H"?)

(Is this how to change the QuickTime Settings size?)

(If what I did was correct, I exported the .mov file at 409x297, when the SWF file was 1390x1011. The video file remains 'poor quality'.)

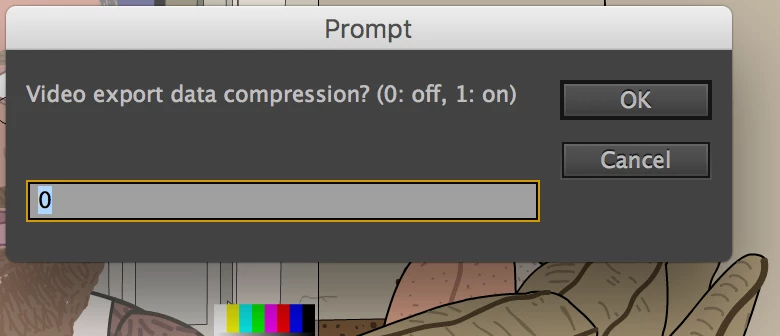

Changing the preference for temp data. During export, Flash compresses the export data when recording it to memory, allowing Flash to record longer content. This compressing process, however, consumes time, and may drop frames. Using a custom command, this preference can be toggled and turned on or off to help reduce that possibility. For a short, heavy content, it is recommended you turn it off and record the temp data to memory without compression. Otherwise, you should leave the option turned on. The command for changing this option is available for download below. You can run this command using the Commands > Run Command... option in Flash. Inputting a value of 1 will turn on compression while a value of 0 will turn it off.

(DONE)

Have you got any another suggestions?
