Play until frame?

There's gotoAndPlay() and gotoAndStop(), but is there a function to play until a frame number?



The functions I mentioned directly jump to that frame, I want the animation to play until that frame and then stop.

    This topic is closed to new replies. Start a new post to keep the conversation going.
    ClayUUIDCorrect answer
    Legend
    Sep 29, 2020 9:34 PM UTC

    I have a bunch of buttons numbered from one to ten.



    Then I have a shape tween that goes from size zero to size ten.



    If I press the button six, the shape tween should grow to size six. I can get the frame number to which it should go and stop, but I don't want it to just jump to that frame and stop.



    I want the shape tween to animate until that frame and then stop.


    I see. Tricky. Well, this is somewhat abusing the way Animate wants to work, but give this a shot:



    createjs.MovieClip.prototype.playTo = function(dest) {
	this.playtoFrame = this.timeline.resolve(dest);
	this.timeline.removeEventListener("change", this.playtoListener);
	if (this.playtoFrame > this.timeline.position) {
		this.playtoListener = this.timeline.addEventListener("change", (function(evt) {
			if (this.timeline.position === this.playtoFrame) {
				this.paused = true;
				evt.remove();
			}
		}).bind(this));
		this.play();
	}
}

    Just paste somewhere in your setup code, probably the first frame. Then call as e.g.--

    this.myClip.playTo(5);

    View reply

    13 replies

    JoãoCésar17023019
    Community Expert
    JoãoCésar17023019Community Expert
    Community Expert
    Sep 28, 2020 9:32 PM UTC

    Hi.



    Here is an experiment in which I add a goUntil method to any MovieClip instance. Just add these lines in the beginning of your code:

    createjs.MovieClip.prototype.goUntil = function(positionOrLabel)
	{
		var duration;
		var to = this.timeline.resolve(positionOrLabel);

		this.tweenFrame = this.timeline.position;

		if (this.tweenFrame == null)
			return;

		duration = Math.abs(((to - this.tweenFrame) / lib.properties.fps) * 1000);

		createjs.Tween.get(this, { override: true }).to({ tweenFrame: to }, duration).addEventListener("change", function(e)
		{
			var target = e.currentTarget.target;

			target.gotoAndStop(Math.round(target.tweenFrame));

			if (target.tweenFrame === to)
				e.currentTarget.removeAllEventListeners("change");
		});
	};



    Then you can call the goUntil method in any instance like you would do with the gotoAndStop and gotoAndPlay methods. Like this:

    this.yourAnim.goUntil(19);
// or
this.yourOtherAnim.goUntil("intro");



    Preview:

    https://bit.ly/2FYu3Hz



    Files / code / FLA / source:

    https://github.com/joao-cesar/adobe/tree/master/animate%20cc/html5_canvas/play_until_frame



    Please let me know if the code needs to be fixed or improved or if you need further assistance.



    Regards,

    JC

    Translate
    Jeffery.Wright
    Jeffery.Wright
    Inspiring
    Feb 28, 2023 4:54 PM UTC

    JC, That is incredibly handy code and works a treat.

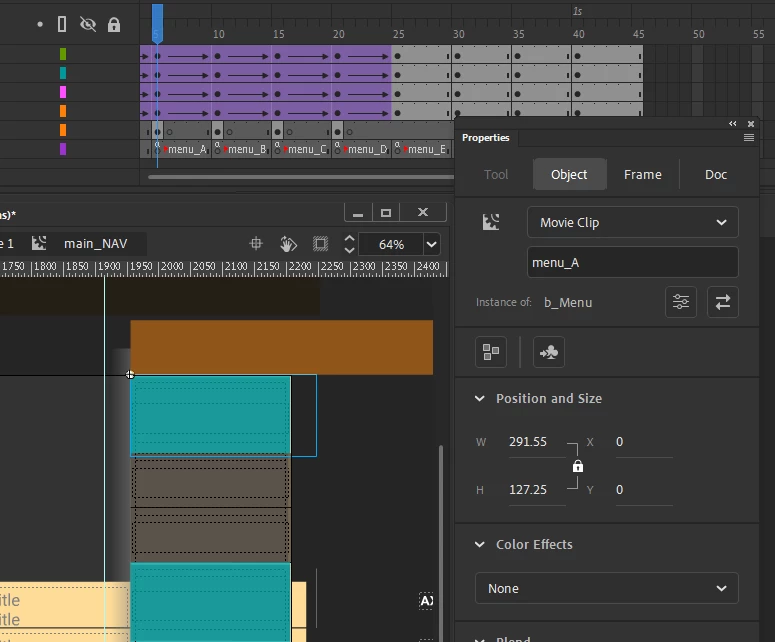

    Your code captures clicks on a MC on the parent/root timeline, from within the MC that does the animating between Labeled frames. I am trying to alter it to capture clicks from within the same MC that animates between the frames but having no luck. ( I am trying to emulate an accordion-style navigation menu)

    On the root I have a MC named main_NAV. main_NAV has labelled frames to tween to and from. main_NAV also has the buttons that when clicked should initiate the animation.



    I tried altering the code:





    // Referring to the MC to itself from the root didn't work:
exportRoot.main_NAV.on("click", function(e)
// nor did:
this.parent.main_NAV.on("click", function(e)
// Referring to the MC to itself locally didn't work:
this.on("click", function(e)
	{ // I always get scope wrong, neither of these worked:
this.goUntil(e.target.name);
// nor:
root.goUntil(e.target.name);
	});







    It would be very efficient, modular and compact to have a self contained MC that tweened from one Labelled frame to another. The solution may be very obvious to you, but I'm stumped, am I missing something simple?





    Grateful for any insight, thanks!







    Translate
      JoãoCésar17023019
      Community Expert
      JoãoCésar17023019Community Expert
      Community Expert
      Feb 28, 2023 6:39 PM UTC

      Hi, Jeffery!



      I'm glad you liked and that that's useful to you.



      If I understand correctly what you want, the code to play a Movie Clip instance by clicking on a button that lives inside of this same Movie Clip instance could be something like this:

      this.main_NAV.yourButton.on("click", function(e)
{
    this.parent.goUntil(this.name);
});



      In this case, this.parent is the timeline that you want to animate and this is the button that received the event listener.

      If this is confusing, is always a good idea to save the context in an outer scope first. Like this:

      var targetAnim = this;

this.main_NAV.yourButton.on("click", function(e)
{
	targetAnim.goUntil(this.name);
});



      I hope this makes sense.



      Regards,

      JC

      Translate
        ClayUUID
        Legend
        Sep 27, 2020 1:12 AM UTC

        If you want playback to stop on a frame, put a stop() on that frame.

        Translate
        ruturaj20Author
        Participating Frequently
        Sep 27, 2020 1:26 AM UTC

        I do not know in advance which frame it is going to be.

        Translate
        ClayUUID
        Legend
        Sep 27, 2020 2:59 AM UTC

        Explain. It sounds like you're trying to use Animate in a wrong way.
