3 'view' character of bumble bee, left, standing, right, all 3 views show up in scene

  • May 20, 2020
  • 1 reply
  • 1234 views

3 'view' character of bumble bee, left, standing, right, all 3 views show up in scene...have designated left right and standing tags



file attached



Why do all 3 show up at same time...I am using the 'draggable' feature to move the bee around the scene

Thanks

Mark

This topic has been closed for replies.

1 reply

alank99101739
Legend
May 22, 2020

To share a puppet, it is better to use "Export Puppet" from the menus. This creates a .puppet file that includes all the rigging. The PSD file does not show any of the rigging you used.



Do you want to use a swap set with triggers or a head turner behavior or walk behavior to switch between the profiles? E.g. with a Head Turner behavior you normally call the left and right "Left Profile" and "Right Profile" and turn off the eyeball so they are hidden. You have to add the behavior yourself (its not on the puppet by default). The first child can stay as "Standing". The same tags are for the walk behavior by the way, which you could use instead if more appropriate.

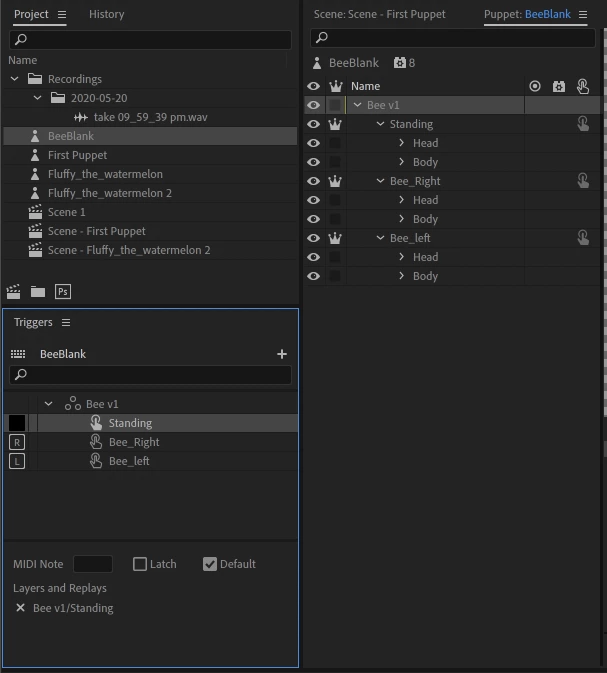

If you are using a swapset, it does not matter what the layers are called. E.g. I clicked in Rigging the last column for "Bee v1" and picked "swapset" from the menu tha appeared. I then went over to the Trigger area and added L and R for the side profiles, making the first ("standing") the default.



The swapset makes it display only one of the three triggered layers at a time (Standing by default). Pressing L and R makes it display the other two profiles. But you might want to use Head Turner instead maybe?

markmnAuthor
Inspiring
May 22, 2020

First of all, thank you for taking time to help me and the tip about supplying the puppet file instead...



I am going right now to try out your recommendations, I just wanted let you know how much I appreciated your help!



Will let you know how things 'swap out'



MarkInMN

markmnAuthor
Inspiring
May 28, 2020

Just wanted to take a moment and thank you again for sharing...It works beeeebeautifu!
