Arm rigging with walk behavior

6 replies
589 views
Translate

Hello all, I have a character with a walk behavior. Both arms are rigged with sticks, shoulder, wrist, and elbow tags, and they have the Limb IK behaviors to avoid stretching. They swing as I desire, but I want to be able to drag the both arms independently and without distorting limbs or hands while my character is walking. I've tried removing the elbow and wrist tags, but that just stops the arm swinging.

Any pointers? Thanks!

This topic is closed to new replies. Start a new post to keep the conversation going.

Community Expert

Community Expert

I improved my puppet a little.

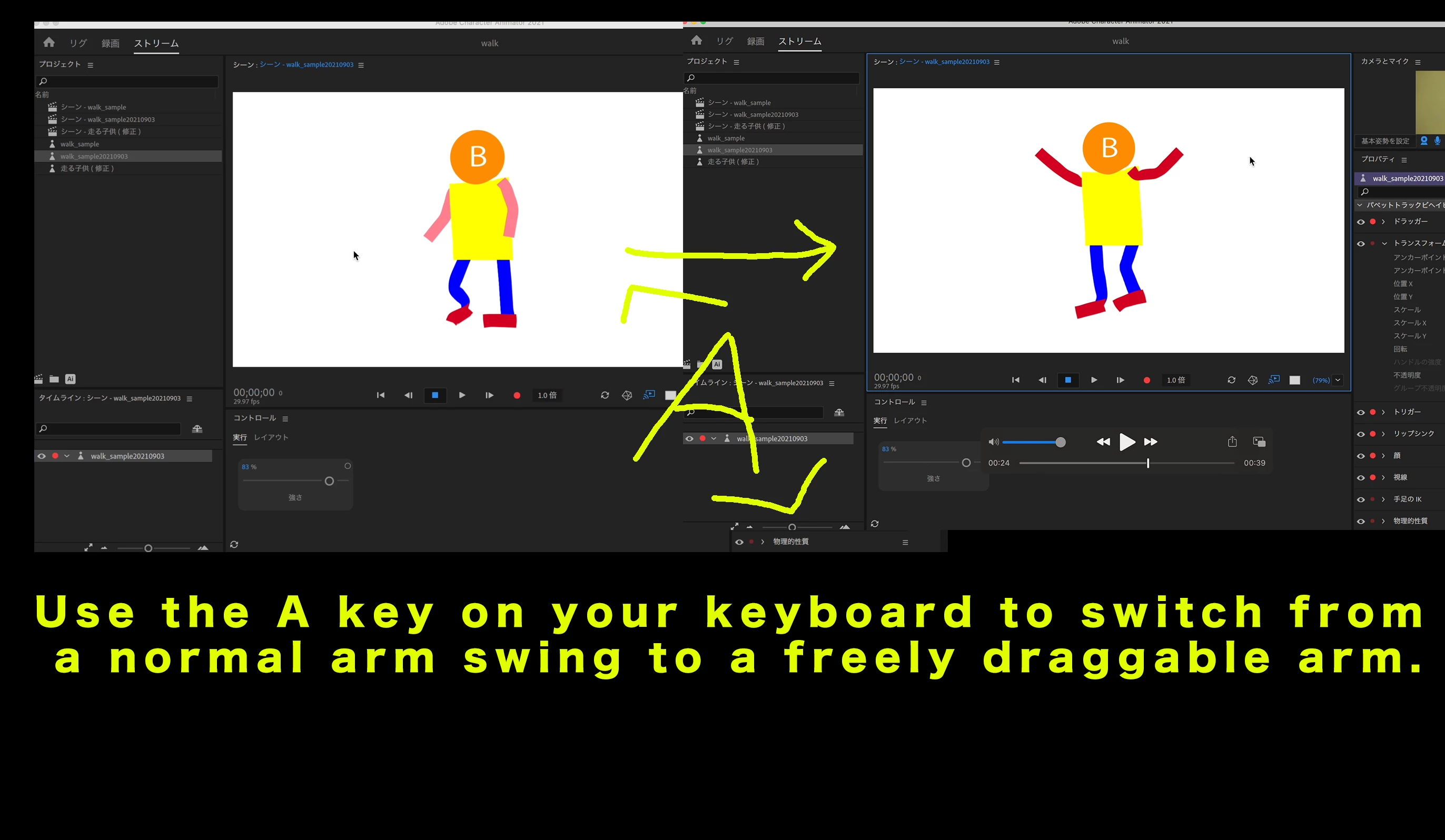

Use the A key on your keyboard to switch from a normal arm swing to a freely draggable arm.

DropBox
https://www.dropbox.com/s/cwmu6o2wh9nsqdc/add_swap_walk_sample20210903.puppet?dl=0

YouTube
https://youtu.be/fCcMi8n8DRQ

Thank You.

Translate

k_oshiro(AdobeCommunityExpert)

Ej010118047475Author

Participating Frequently

Thank you, I'll give this a try!

Translate

Legend

Hi there,

Let us know if the suggestion given by the expert helped.

Regards,

Shivangi

Translate

Community Expert

Community Expert

Translated Japanese into English using translation software.

1) Divide the layer structure into "Arms" and "Head and Body".

2) Tag the Arm layer with "Shoulder", "Elbow", and "Wrist", and add "limb IK" behaviors.

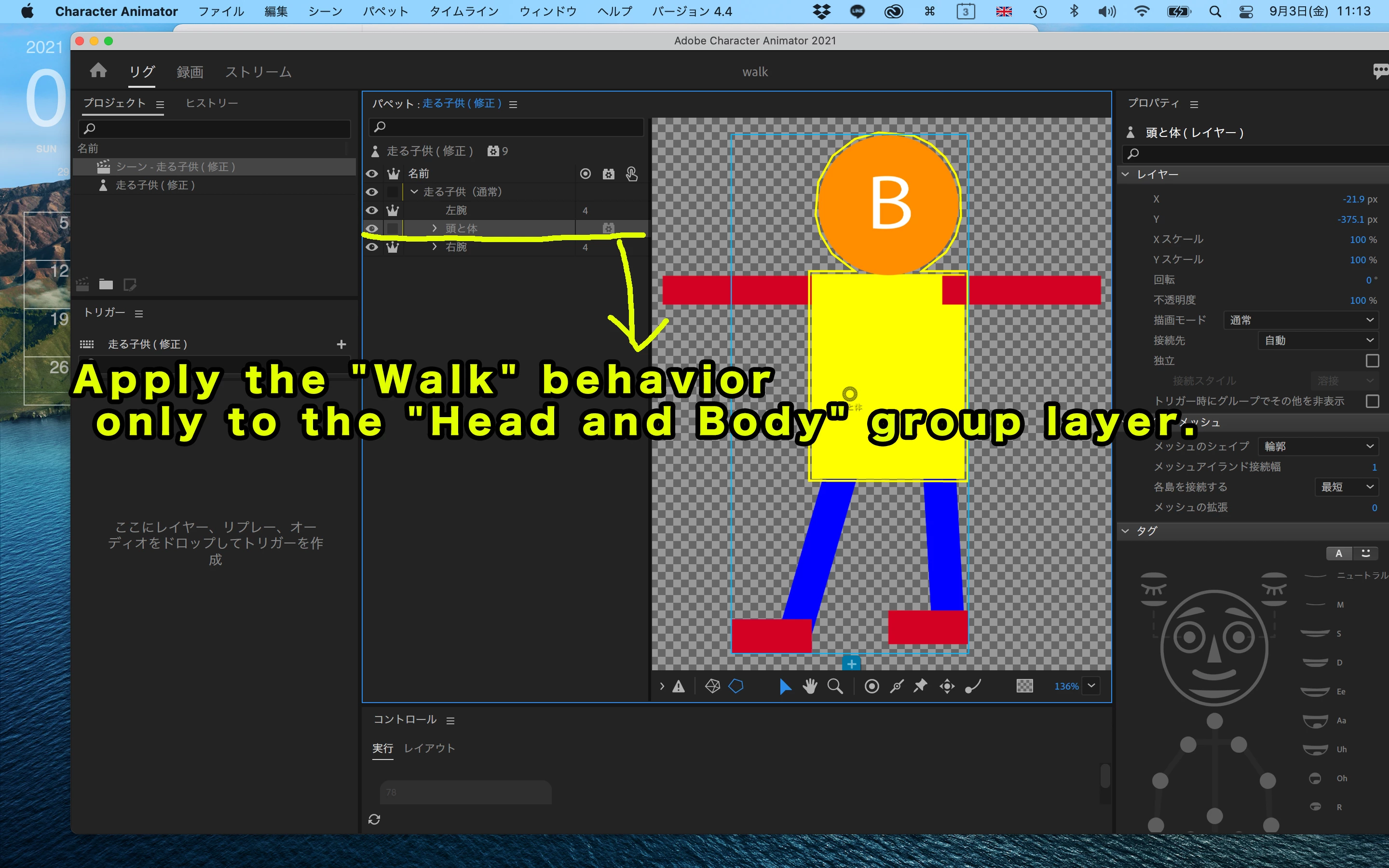

3) Apply the "Walk" behavior only to the "Head and Body" group layer.

A sample puppet has been uploaded to DropBox.

https://www.dropbox.com/s/2w6kfg87cd1tgg5/walk_sample20210903.puppet?dl=0

An instructional video has been uploaded in Japanese.

https://youtu.be/ihTI7e9EHCc

If you want to learn more, the following video is also helpful. (Japanese)
https://youtu.be/kZfs7_xmh6Q

Thank you.

Translate

k_oshiro(AdobeCommunityExpert)

Community Expert

Community Expert

postscript
limbs IK works this way,

but I find it difficult to swing the puppet's arm and move the puppet's wrist at the same time.
