Character Animator + Ableton Live + Bome's MIDI Translator

Hi,



I'm trying to send midi or key stroke signals from Ableton Live, thru Bome's, into Character Animator (CA). Does anyone know if it's possible for me to trigger something in Ableton live and simulaneously send the signal to CA to trigger my puppet? I can't seem to get CA to recorgnize any signals coming from Bomes.



Thanks!

This topic is closed to new replies. Start a new post to keep the conversation going.

3 replies

k_oshiro
Community Expert
k_oshiroCommunity Expert
Community Expert
Nov 29, 2020 3:41 PM UTC

It seems to have worked itself out.
I'm glad to hear that.

Translate
k_oshiro(AdobeCommunityExpert)
    k_oshiro
    Community Expert
    k_oshiroCommunity Expert
    Community Expert
    Nov 29, 2020 12:36 AM UTC

    I changed Japanese to English with translation software.
    (1) Connect a MIDI keyboard to your PC.
    (2) Can Adobe Character Animator receive MIDI signals without Ableton Live or BOME's MIDI Translator running?

    (3) If Adobe Character Animator is not receiving MIDI signals, the cause is probably your PC's MIDI driver.
    (4) If it works, then the problem may be with the ”BOME's MIDI Translator”.

    5) Why don't you try other virtual MIDI drivers?
    There is "MIDI Yoke" or "loopMIDI".

    ThankYou.

    Translate
    k_oshiro(AdobeCommunityExpert)
      jimmy8dmtAuthor
      Inspiring
      Nov 29, 2020 3:30 PM UTC

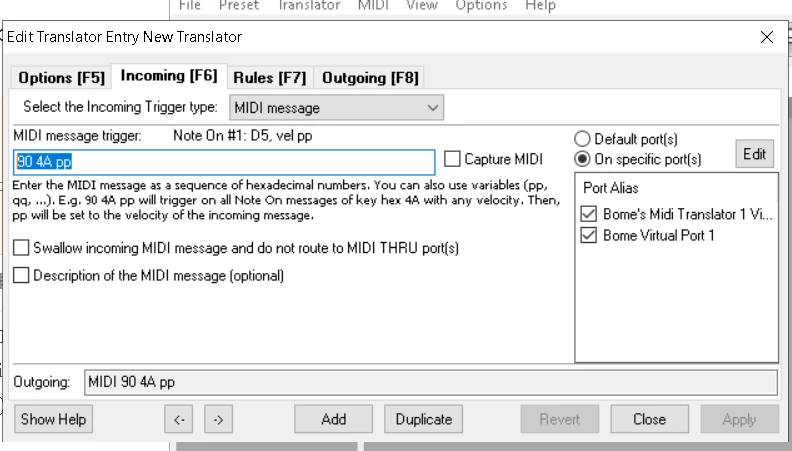

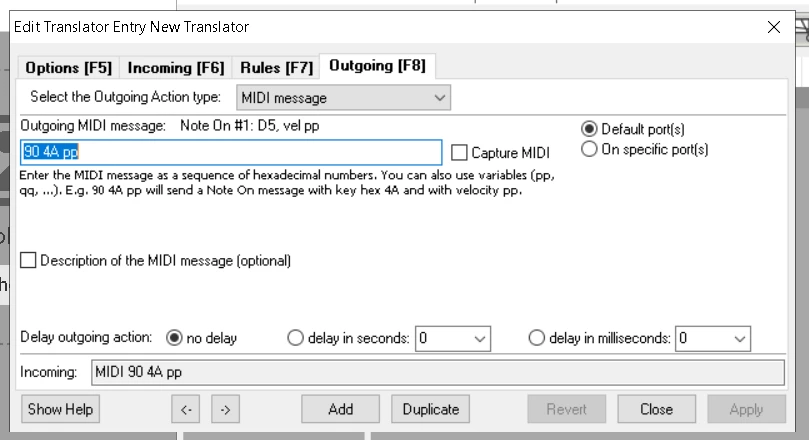

      Thank you for the feedback. Character Animator has 'MIDI Note' field assigned to every trigger. By entering a number in that field you are essentially telling CA which midi note will be used to initiate the trigger. I set it to the number #74 through #80, for different triggers in CA. You can see below how the Midi Note F# in Ableton, translates to the #74 in CA. In Bomes, I set my 'Incoming' trigger to MIDI 90 4A pp (Which translates to D5 on a keyboard). In my 'Outgoing' setting I set the MIDI exacty the same, 90 4A pp.

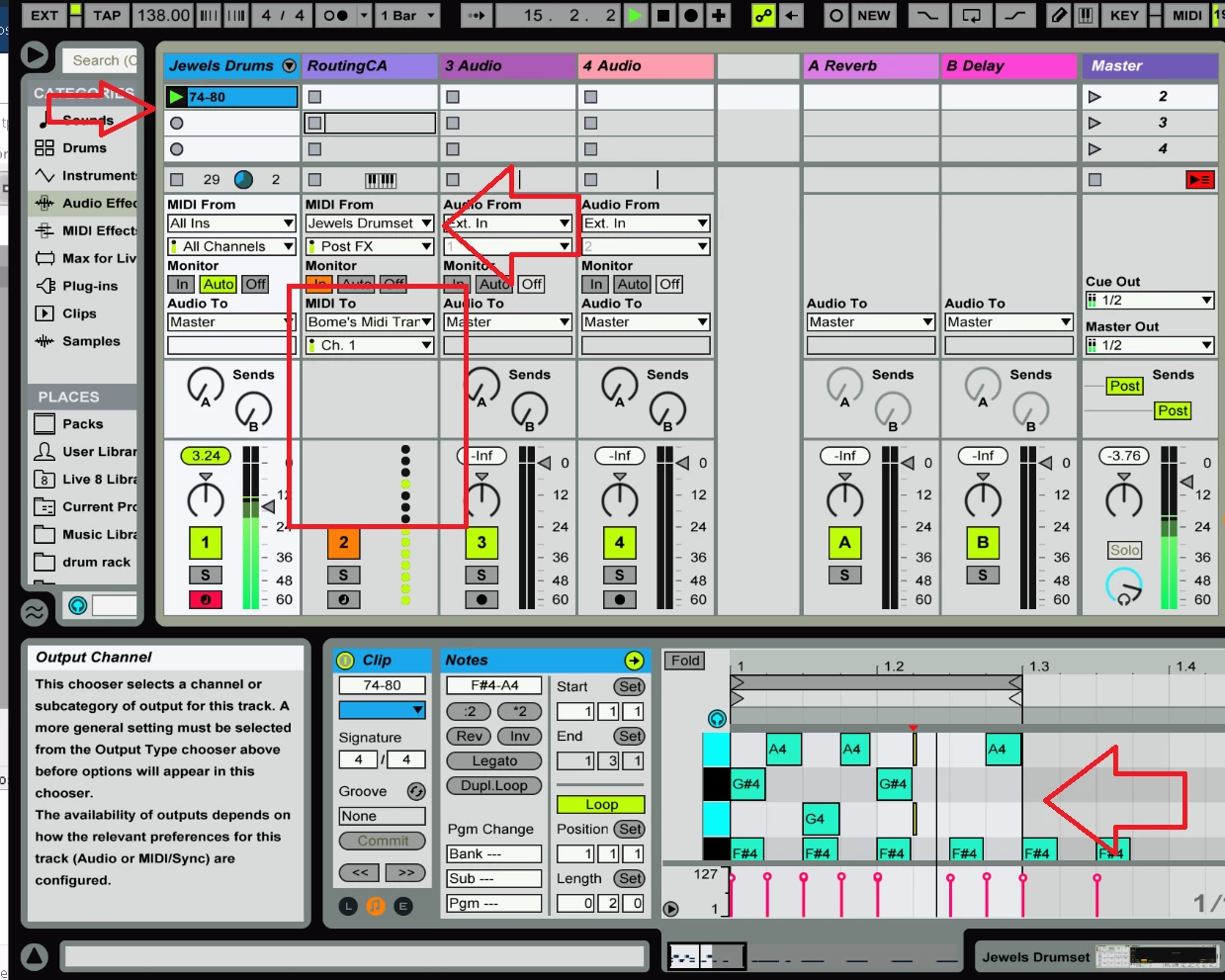

      Then I setup Ableton to route the MIDI signals from Track 1 (Jewels Drums) to Track 2 (Routing CA), which takes the MIDI From Track 1 and sends the MIDI to Bome's Midi Translator CH.1.

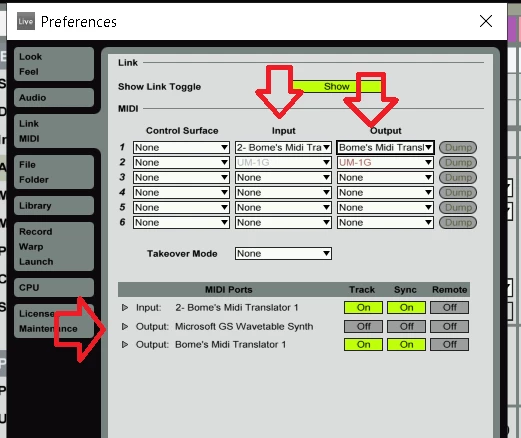

      Then I set my MIDI Preferences in Ableton to make sure it sends MIDI from Ableton to Bomes

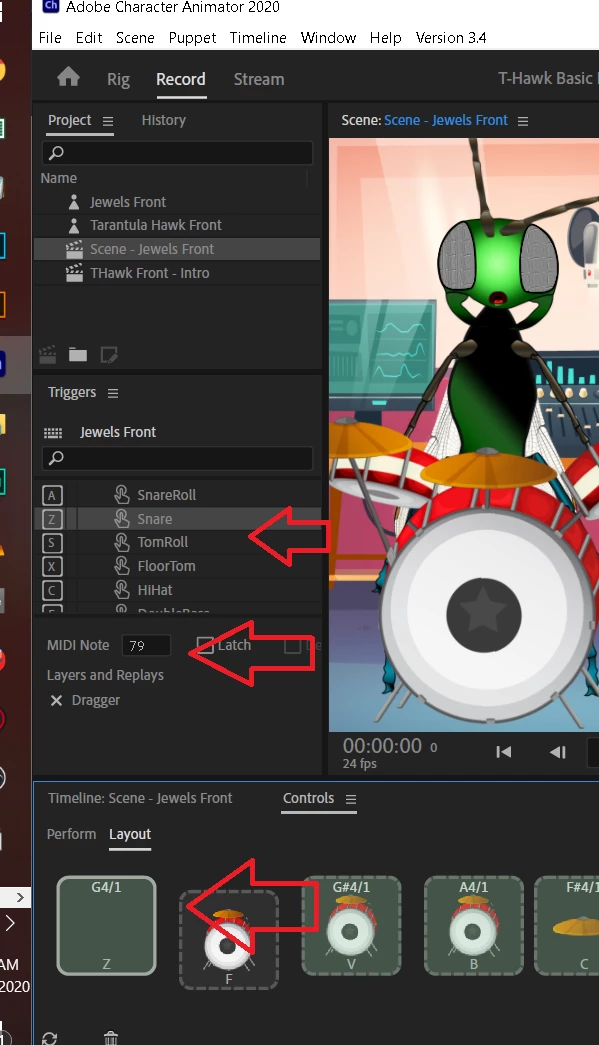

      Lastly, in CA you can see how the #79 was assigned to the Midi Note field for a trigger assigned to move the snare drum of my drummer puppet. Ableton is sending the note G4 from track 1. Every time I hit G4 in Ableton, it sends the signal through Bomes, into CA, and triggers my snare drum.
