Hey! Head and Body, unite!

  • October 26, 2023
  • 3 replies
  • 2448 views

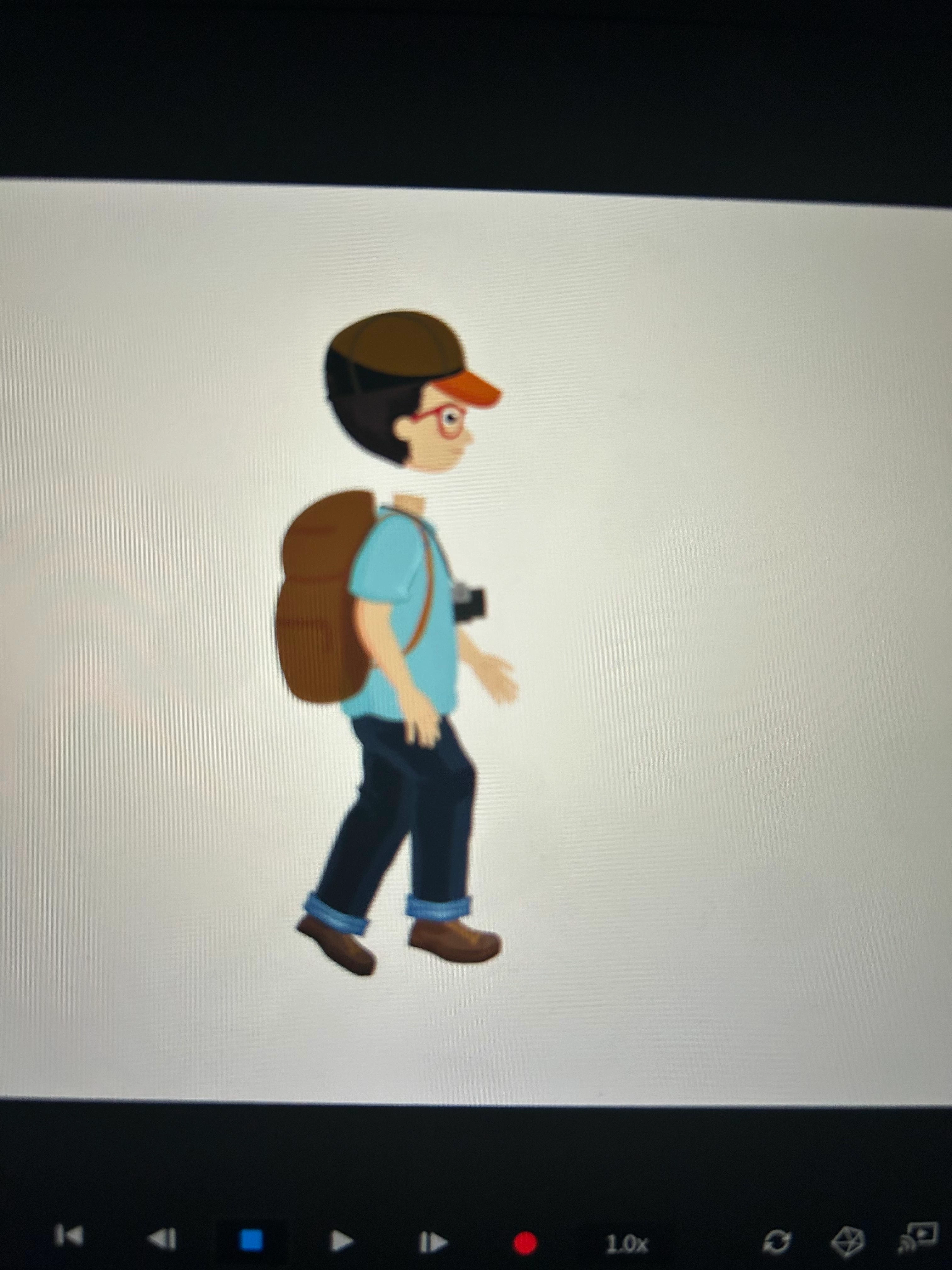

hello, can someone help me? When I turn on the walking feature, my character's head separates from his body. "neck" is in the "body" layer. They should have held on to each other:/ what can I do?

This topic has been closed for replies.
Correct answer j-saito

A different version that @Keyvancloud323284143a4n restarted but still had a trouble with:

After my fix:

 

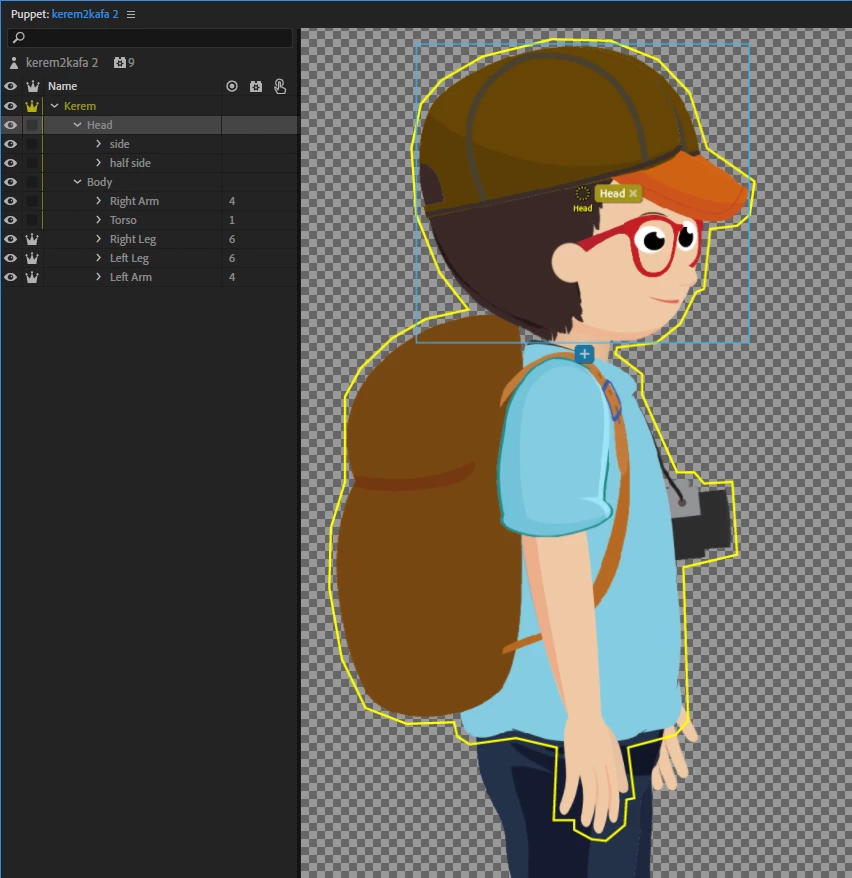

The rig before the fix: 

Notice the yellow contour goes around the head and the torso.

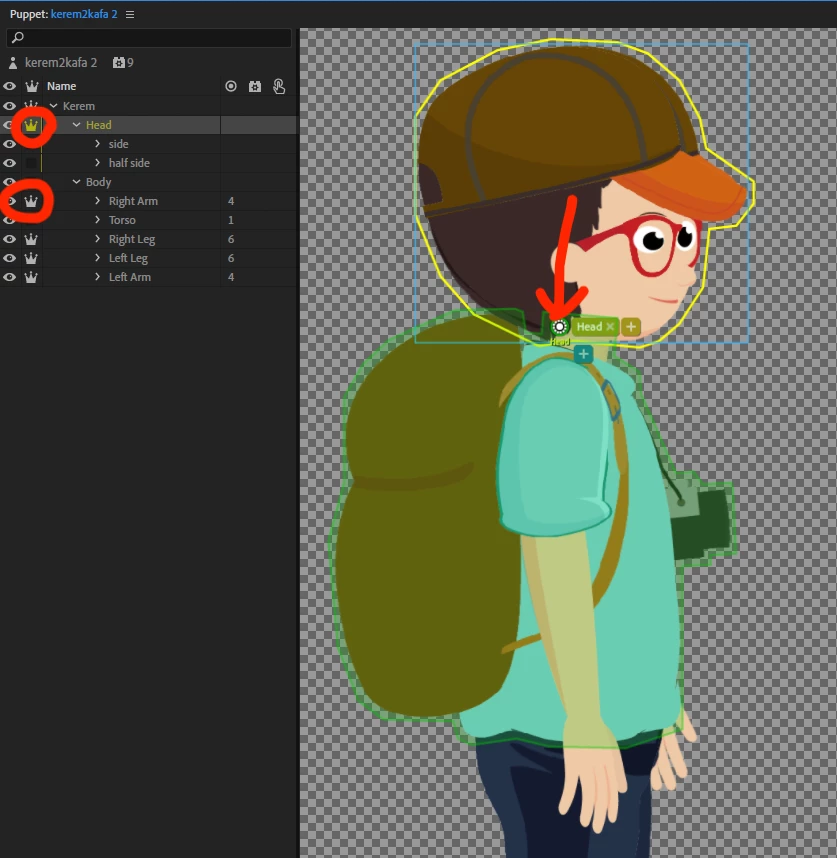

The rig after the fix:

Notice how the yellow contour of the head layer is just around the head.



Steps:

1. Make the "Head" and "Right Arm" layers independent (crowned) so they are treated as separate 2D images

2. Move the origin of the Head layer on top of the parent layer (green region) so the head will be connected

3 replies

J
Adobe Employee
j-saitoCorrect answer
Adobe Employee
October 26, 2023

A different version that @Keyvancloud323284143a4n restarted but still had a trouble with:

After my fix:

 



The rig before the fix: 

Notice the yellow contour goes around the head and the torso.



The rig after the fix:

Notice how the yellow contour of the head layer is just around the head.



Steps:

1. Make the "Head" and "Right Arm" layers independent (crowned) so they are treated as separate 2D images

2. Move the origin of the Head layer on top of the parent layer (green region) so the head will be connected

    J
    Adobe Employee
    j-saito
    Adobe Employee
    October 26, 2023

    This thread may be relevant https://community.adobe.com/t5/character-animator-discussions/rigging-issues/m-p/14141102#M24183

    TheOriginalGC
    Community Expert
    TheOriginalGCCommunity Expert
    Community Expert
    October 26, 2023

    Can you share a screen-capture of the rigging hierarchy? I am wondering if (a) the head layer is tagged independent of the body and (b) the head layer origin point is situated on the neck. Thanks in advance.

    K
    Keyvancloud323284143a4nAuthor
    Participating Frequently
    October 26, 2023

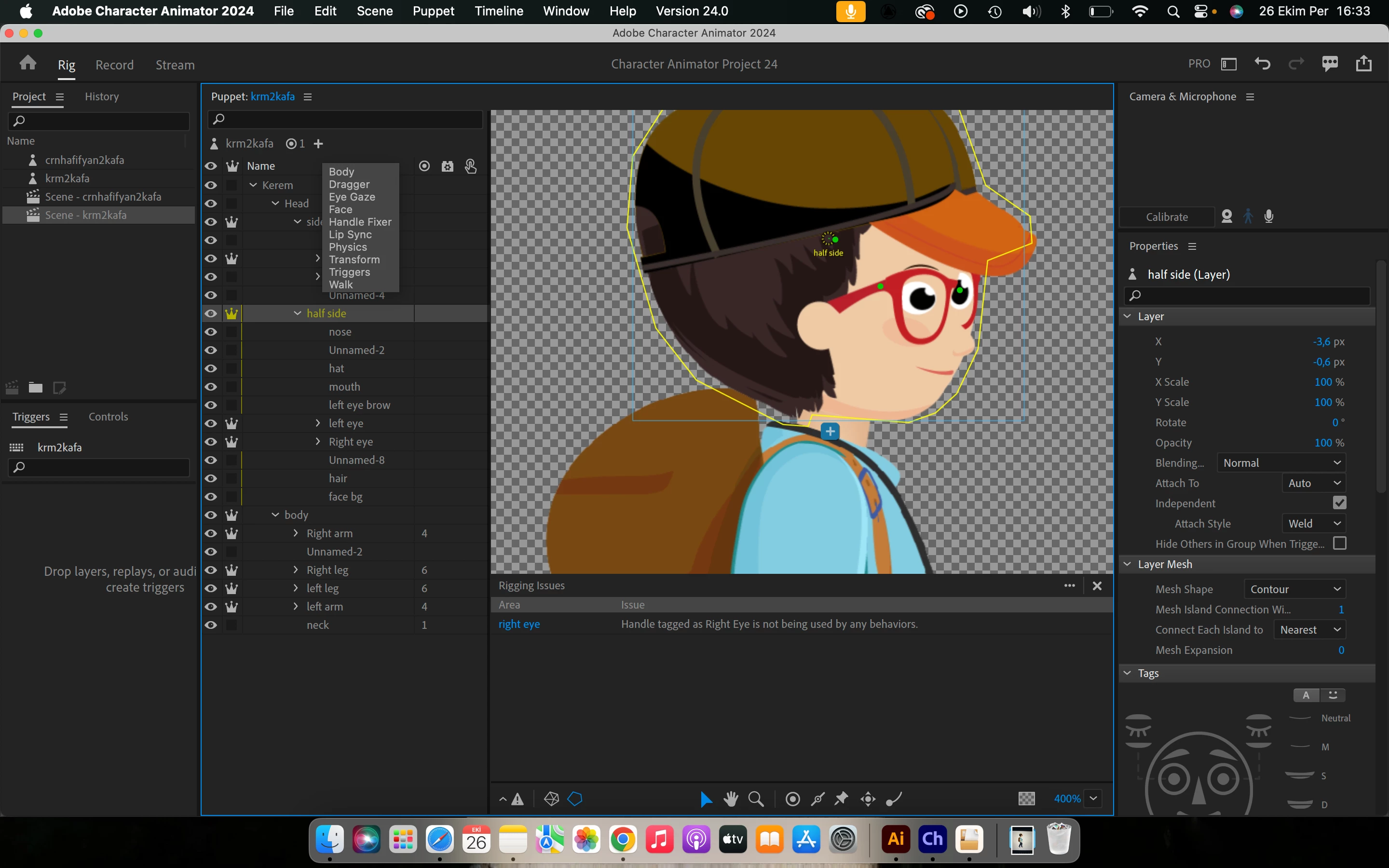

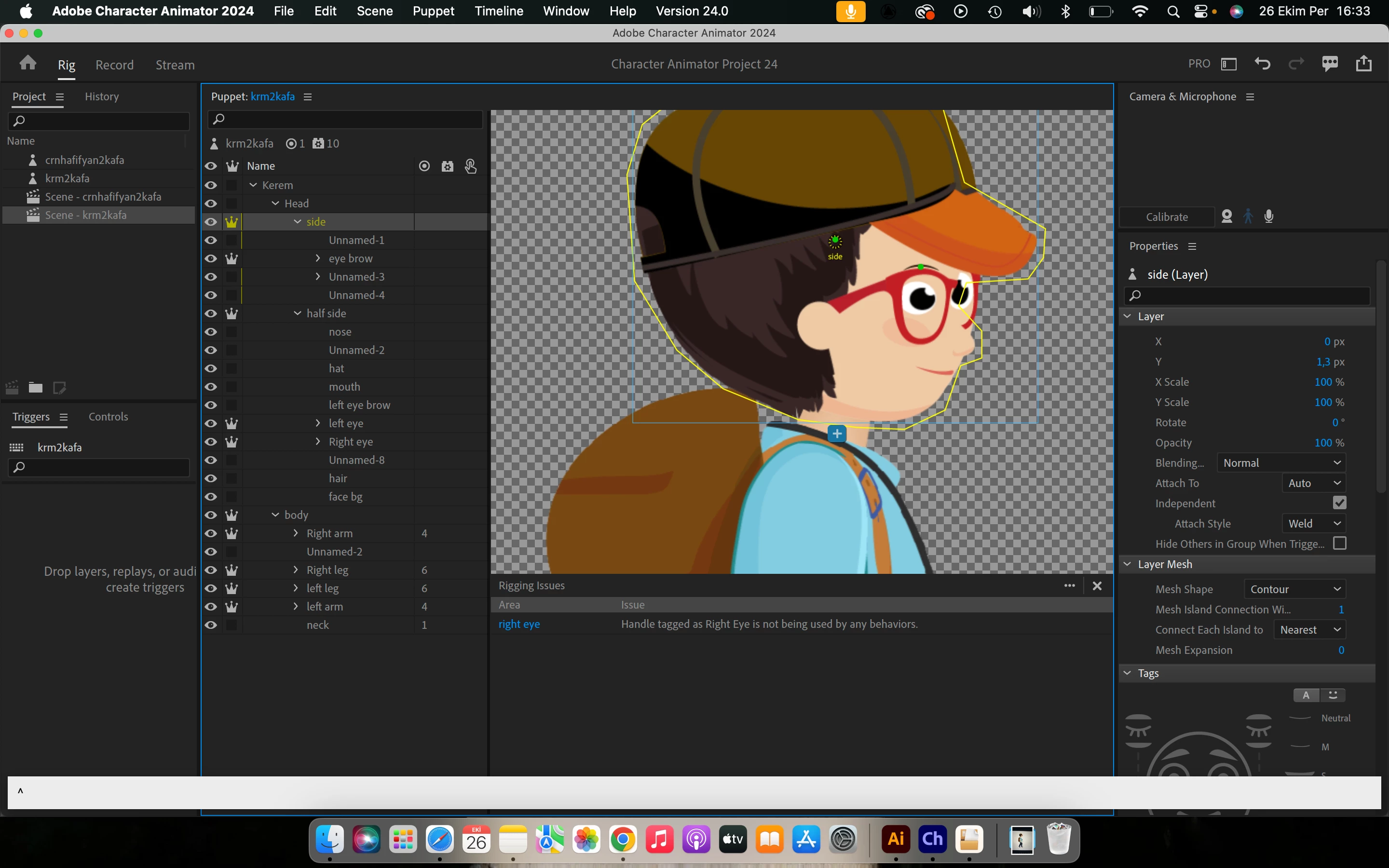

    First of all, thank you. I hope the photos I have attached will be useful to you.



    TheOriginalGC
    Community Expert
    TheOriginalGCCommunity Expert
    Community Expert
    October 26, 2023

    Okay, the head isn't independent, but the body is, so try toggling the crown icon on the body to make it dependent to the head. Also, it looks like the origin point for the head is in the default position. Try dragging it so that it makes contact with the neck (the body will turn green).
