Need help to make my puppet walk :(

  • January 9, 2023
  • 3 replies
  • 925 views

Hey people,



this is Pia from Germany. I created a puppet with Illustrator and want to make it walk with the Character Animator now. I really don't know why the legs aren't moving the way I want them to. I already checked my layers and the handles I setted but I still can't figure out what I did wrong.



I would be very thankful if anyone of you can help me to fix this!



Here you can download my project within one week: https://we.tl/t-Vs51AOYALM



Kind regards

Pia

This topic has been closed for replies.
Correct answer k_oshiro

Hi, thanks for your DM.

I translated Japanese into English using software.

1) Your puppet's body layer did not have a tag on the right hip.
2) You do not need to tag the layers that group the feet together.
3) Added toe tags to each foot layer.
4) Unchecked ground detection in the IK section of the limbs.


Please check.
Corrected files have been uploaded to GoogleDrive.

https://drive.google.com/file/d/1LG5VLu3g76UKV9V5Nb_kjbtcruQ9rxXG/view?usp=sharing





3 replies

k_oshiro
Community Expert
k_oshiroCommunity ExpertCorrect answer
Community Expert
January 9, 2023

Hi, thanks for your DM.

I translated Japanese into English using software.

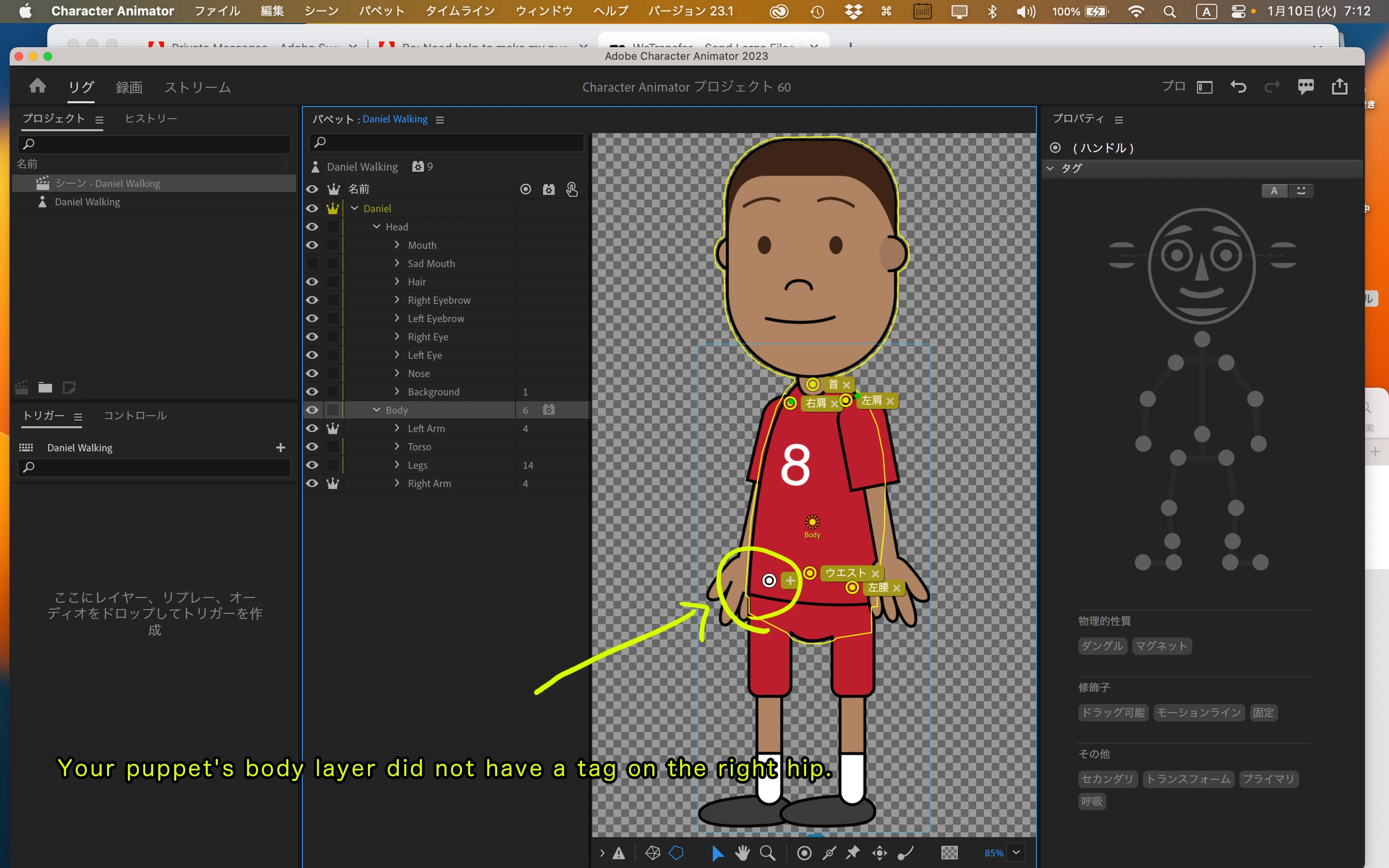

1) Your puppet's body layer did not have a tag on the right hip.
2) You do not need to tag the layers that group the feet together.
3) Added toe tags to each foot layer.

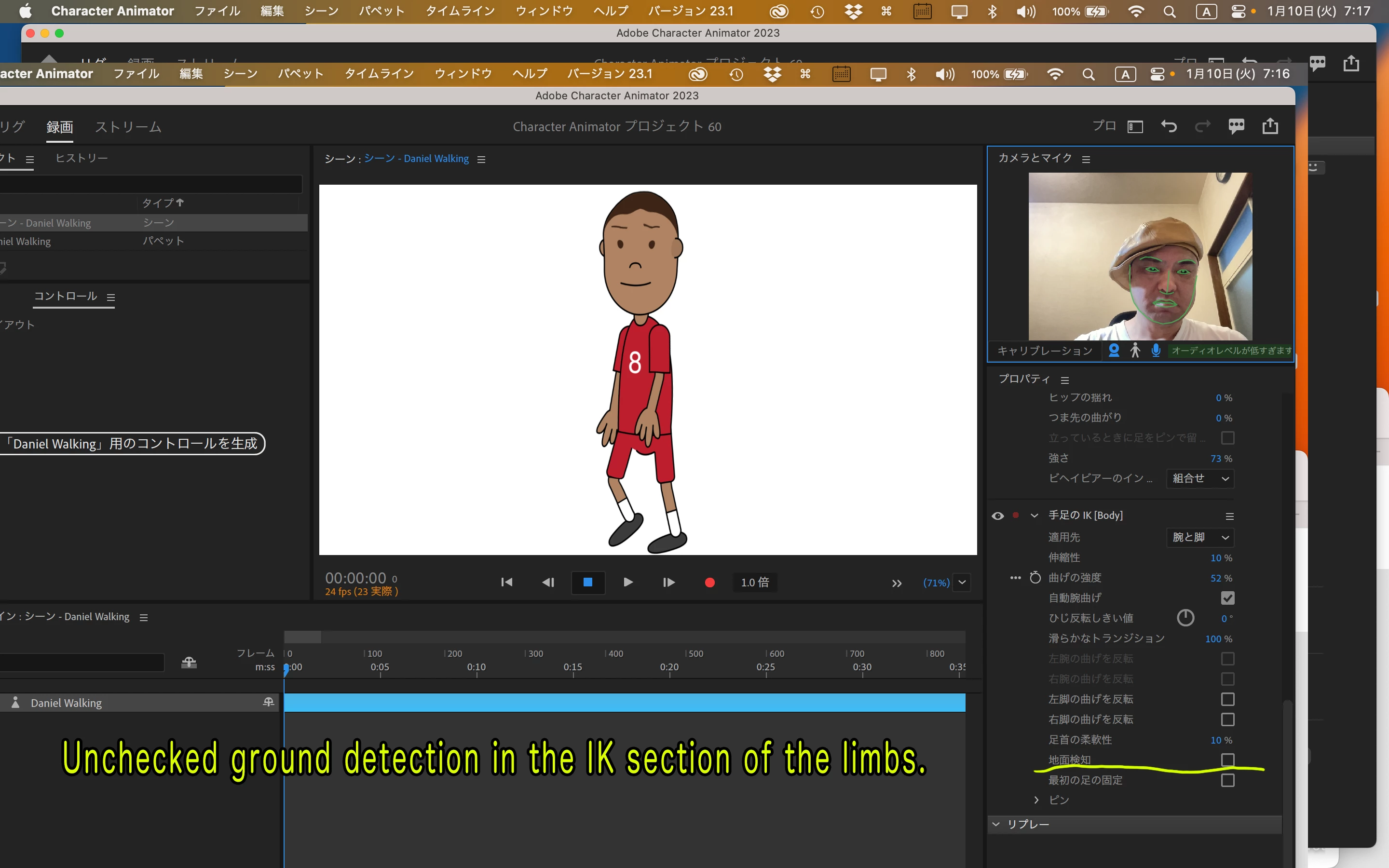

4) Unchecked ground detection in the IK section of the limbs.


Please check.
Corrected files have been uploaded to GoogleDrive.

https://drive.google.com/file/d/1LG5VLu3g76UKV9V5Nb_kjbtcruQ9rxXG/view?usp=sharing





k_oshiro(AdobeCommunityExpert)
P
Pia23758927n3lwAuthor
Participating Frequently
January 12, 2023

Wow, thank you SO much for your explanation and the corrected files! That really helps me to understand what I did wrong. Big thanks.

    P
    Pia23758927n3lwAuthor
    Participating Frequently
    January 9, 2023

    It seems that the file doesn't work, so here you should be able to download my puppet: https://we.tl/t-zMIxKL4Agk

    TheOriginalGC
    Community Expert
    TheOriginalGCCommunity Expert
    Community Expert
    January 9, 2023

    Sorry, you'll need to include the folders along with the chproj file.

      P
      Pia23758927n3lwAuthor
      Participating Frequently
      January 9, 2023

      Thanks for your answer! Can you tell me if the right file is included now? I posted a new link here.

      TheOriginalGC
      Community Expert
      TheOriginalGCCommunity Expert
      Community Expert
      January 10, 2023

      I didn't see the link, but I was able to see the puppet file and use that. It looks like @k_oshiro fixed the problem for you. Please let us know if there are any problems.
