Question

Photoshop changes not showing in Character Animator Record Mode

  • September 28, 2021
  • 3 replies
  • 742 views

Hello,

Thank you in advance for reading my post.

I am adjusting the Cassandra puppet from OK Samurai in Photoshop. When I click Save and return to Character Animator, the puppet has the updated changes showing in Rig Mode. But the Cassandra puppet in Record Mode still shows an earlier version of the puppet. Therefore, I cannot create a scene of my new version of the puppet. I've tried multiple times with no luck. I also tried the following

  • Check that Auto sync with art work and puppet path were accurate
  • Opened CA and PS separately. Changes made in the independently opened PS still only save to Rig Mode in CA

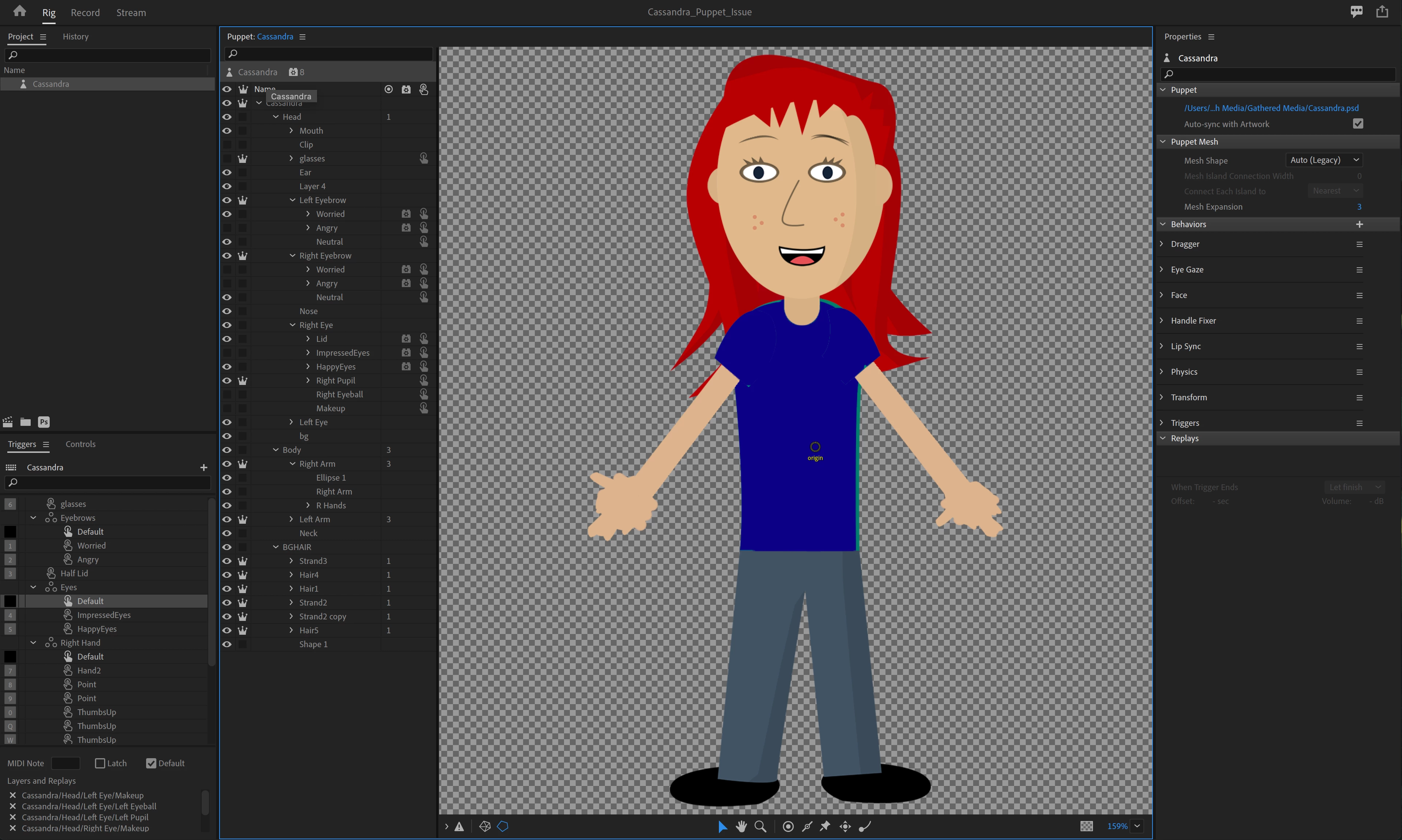

I attached the CA file here. I'd appreciate any expertise in resolving this issue.  My changed version of the puppet should be showing in Rig Mode: eyes aren't open as wide, navy blue shirt, etc.

Thanks

Amit

This topic has been closed for replies.

3 replies

oksamurai
Community Manager
oksamuraiCommunity Manager
Community Manager
September 28, 2021

This is what I see.



If I go into your project under the Gathered Media 1, 2, and 3 folders, I see about 4 different Cassandras - there should really be only one. The first Gathered Media has one with the blue shirt and one called "copy" with the blue shirt and glasses. My guess is you just need to relink to the correct version.

A
Amit_GoelAuthor
Participating Frequently
September 29, 2021

Thank you for the response.

I went in and deleted all the other casandras and there is only one left in one folder: Gathred Media.

I then went into CA and opened the character in PS. I made a change and saved it. I even checked the path in PS and it saved it right to that Gathered media folder.

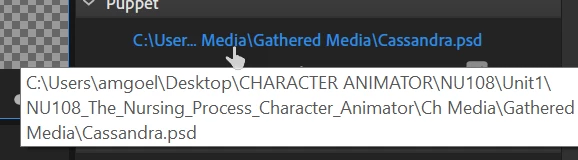

When I went back into CA, the Rig Mode had the new character, but Record Mode still has the old one. I checked the path in CA, too. (screenshot below)



It's weird.  If I deleted all the other instances of the puppet, where is it reading that old puppet from?  Is there another path in CA that the old version of Casandra is reading from?

You're very kind to keep helping me, though!

Any thoughts now?  I changed out the files in that google drive location with my updated ones if that helps.







oksamurai
Community Manager
oksamuraiCommunity Manager
Community Manager
September 29, 2021

I think you actually are seeing the correct file, but triggers are taking over and not showing what you expect. So currently in Rig mode you have frame 2 of the "happy eyes" trigger visible. That's a temporary frame that isn't going to show up (if you press the 5 key in record mode you'll see it in action). You would need to change the layers "Right Eyeball" and "Left Eyeball" to have the visuals come through.

alank99101739
alank99101739
Legend
September 28, 2021

There is a size limit on attachments - sometimes better to upload to google drive / dropbox etc and share the download link here instead. (I cannot see an attachment.)



If you can see the changes in rigging mode but not when recording, my *guess* is it's either it is something like a swapset hiding the bit you changed, or you have two puppets in your project and you are not editing the one you are using in the scene. But certainly looking at the puppet can help. Screenshots can also help spot problems.



Oh there is also a refresh button under the scene, where i think if you shift-click (or was it alt-click... try both!) it flushes more internal caches just in case something got stuck.

A
Amit_GoelAuthor
Participating Frequently
September 28, 2021

Hello,

Thank you for the response. I tried the refresh item but it didn't work.  I created a google link with the files:  https://drive.google.com/drive/folders/1kKaLKj8TupMh81uawNjckVOUTpqbpP7q?usp=sharing

Are you able to see the files?

I managed to get the old puppet into the navy blue shirt, but she won't update with any of my other settings: narrower eyes, etc.

Thanks

Amit

A
Amit_GoelAuthor
Participating Frequently
September 28, 2021

Did my attachment come through? I tried multiple times to attach the file, but I'm not sure it worked. And it won't let me go back to edit the original post.

I dragged the file onto the correct area and it just disappeared. I also tried browsing to it. Same result.

Thanks

Amit
