Problem with puppet

Forum|Forum|7 years ago
April 8, 2019
3 replies
1548 views

Hello people! I am this person who had problems with NVIDIA Geforce:2 problems: "Warning: Is project... already open and?" and closing program

Now I use inegrated Intel graphic card, because as you can see in my previous post using NVIDIA was one big crush. I tested it with Intel card on sample puppets and it seemed to work fine. I was happy that I've got temporary solution, but NOT. With Intel it also doesn't work. I've created a new thread because now the problem is different. When I want to use not sample project, my rig mode is usable, but instead of puppet I see something very weird instead of my puppet (and it happens on Intel card, not nvidia).

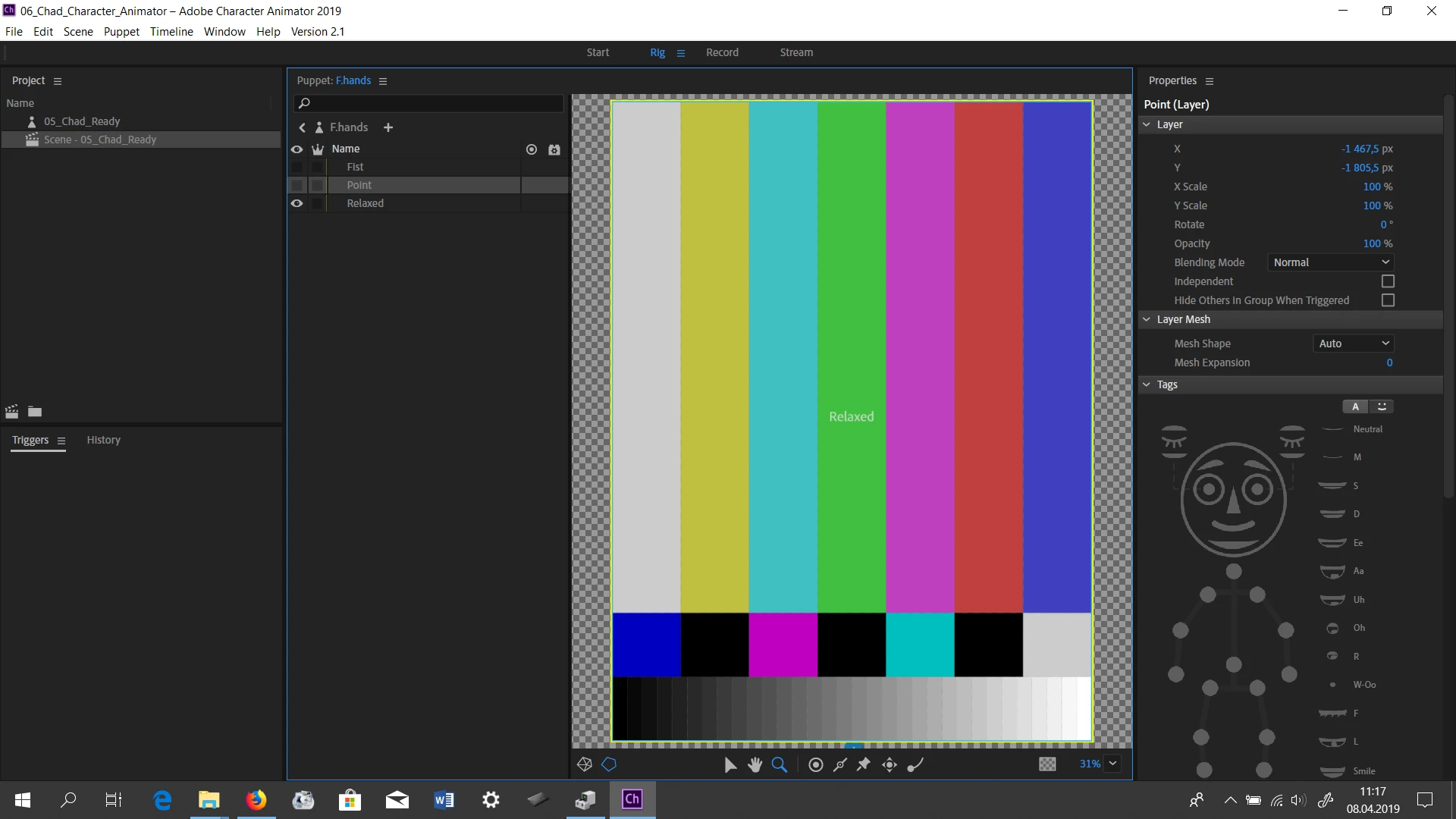

It looks like this:

What can I do? Switch on Adobe Animate? Is any possiblility to fix this program? (all my computer specs are in the linked thread)...

DanTull any ideas? You were helpful with nvidia problem. I suppose it's not related to nvidia if it is turned off, so maybe solving it isn't as hard...

This topic has been closed for replies.

Correct answer DanTull

Usually those color bars in place of artwork means that the PSD/AI file for the puppet cannot be found.

If you select the puppet in the Project panel, the top section of the property panel should say "Puppet" and have a path in it. Is that path blue or orange? If it is orange, it means the artwork file can't be found at its last known location. Also, is the check box for auto sync with artwork checked or unchecked? If the artwork file was changed/resaved and the auto sync checkbox is unchecked, that might also explain the missing status for the layer.

DT

F

FraglessinaAuthor

Inspiring

thanks for help!

DanTullCorrect answer

Adobe Employee

Usually those color bars in place of artwork means that the PSD/AI file for the puppet cannot be found.

If you select the puppet in the Project panel, the top section of the property panel should say "Puppet" and have a path in it. Is that path blue or orange? If it is orange, it means the artwork file can't be found at its last known location. Also, is the check box for auto sync with artwork checked or unchecked? If the artwork file was changed/resaved and the auto sync checkbox is unchecked, that might also explain the missing status for the layer.

DT

alank99101739

Legend

I have that problem when the path to the artwork file is not correct (or any other reason it cannot load artwork file).

First I suggest clearing the CH cache. There is the two arrows in a circle button in bottom right corner of scene window (and rig window?). The ‘Refresh’ button. Try clicking that. Then try clicking holding down SHIFT. Then try again with ALT. I forget which, but it does more of a hard refresh.

If that does not work, click on the puppet in the project panel and check the Path property in the prosperities panel. Does the path name look right? If not, click on the path name to point it at the artwork file again correctly.

It normally is the pathname to the artwork file that results in that test image pattern for me.
