Replace limb IK with Midi simulation?

  • May 18, 2021
  • 6 replies
  • 1591 views

Hi, I am experimenting with advanced scenarios to control the Character animator. Recently, I started to move away from limb IK (arms) toward midi control and I find that it is much easier to control character this way if the character animator window is not opened.

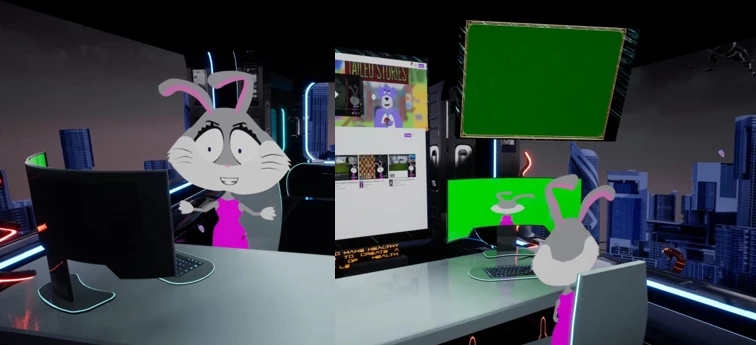

For example, I use Unreal Engine to make a 3D room and my character lives inside



Problems with it:

  • When I switch cameras and shoot the camera from the back, I need to swap ears, hide eyes, etc. – solved with an AutoIT script. They have a command “controlsend” to send the keypress to a specific part of any program that you have opened. So, I just sync the button press between the unreal engine and Character Animator and swap all required elements
  • Wrist swap required. I need to switch the wrist based on the elbow angle, so the big finger looks appropriate – not solved, but have an idea. We can send keypress to Character Animator as discussed in #1 + we can control the hand with midi slider. If we develop some small program that can read the value of my Midi slider, I can code the logic to send swap keypress based on the midi values.
  • Live Replay cycles + looping. Idea from #2 can be developed further. Let’s say we have a virtual midi controller that simulates midi? Let’s say we have a record and replay button and the ability to save and adjust midi values. It seems like it would pretty much give me as much control as possible.



The question to the community if someone knows a good way to deal with midi this way. Should I go straight for something custom or is there some software or hardware you can think of that does something similar? I would rather buy than develop something that exists.

Let me know if there are some good workflows to automate midi. I see some cases like control servers with midi, but the only thing I found work with PowerShell only and lagging up to 20-30 seconds behind.



If you are interested in details on how I use midi

https://youtu.be/cZkAoSkVj3Y

Details on that “controlsend” from AutoIt

https://youtu.be/YLDG8GOoclQ?t=239

This topic has been closed for replies.

6 replies

tailedstories
tailedstoriesAuthor
Known Participant
June 25, 2021

Hi,

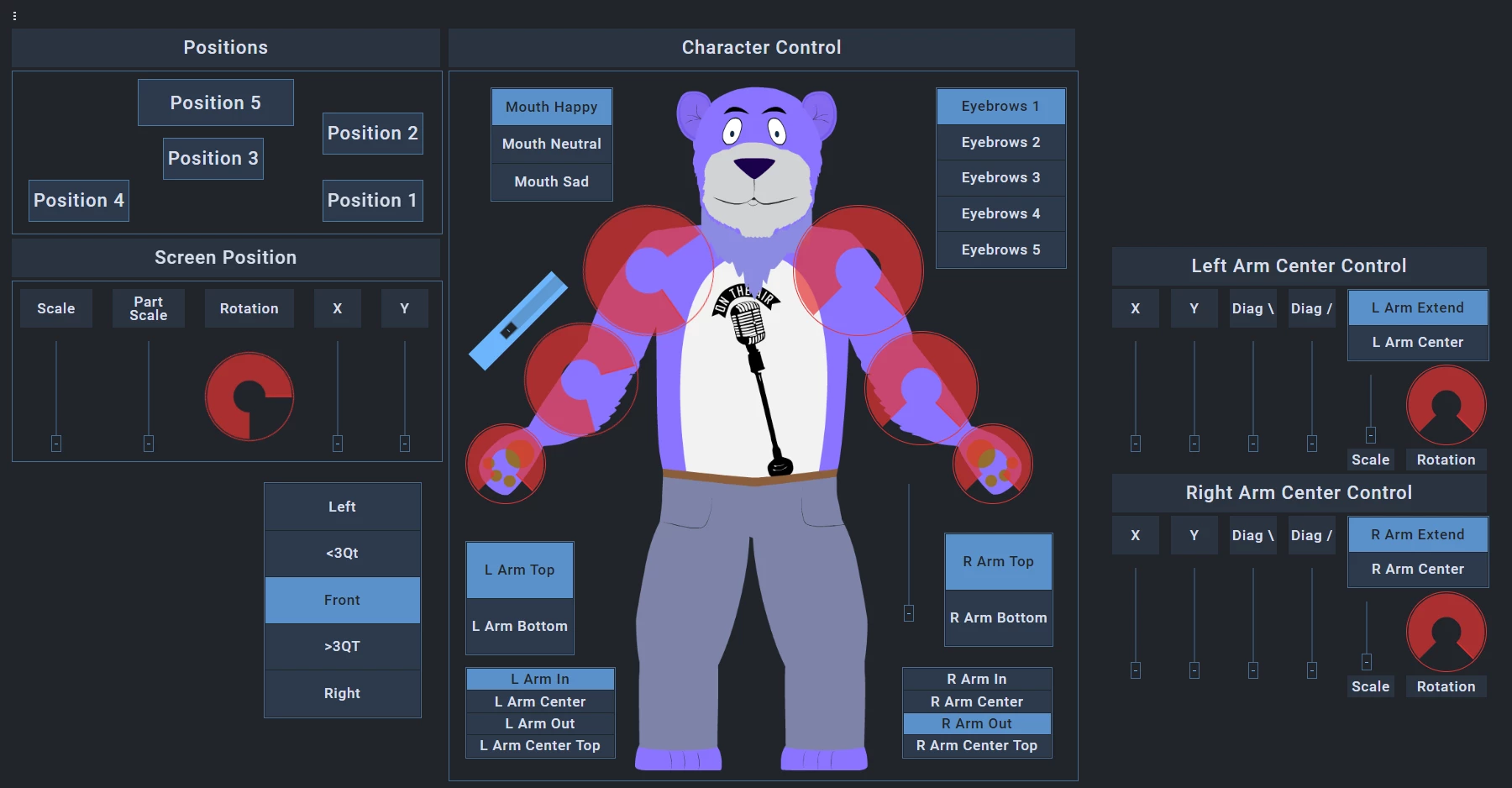

One more update. This use case covers the automation of arm flip when we move the knob. There is some code in the scripting tab of the Open Stage knobs, but it is very light.



Video description

https://youtu.be/Jt_CJSJm4jI



Let me know how it went if someone tries

    tailedstories
    tailedstoriesAuthor
    Known Participant
    May 28, 2021

    Hi,



    Just to bring a conclusion to the topic. I tried to integrate the joint angles to bring to the character animator, seems to work fine as the POC. The part that I like best is an option to record and replay tracked joints and you can push it to the character of a different size.

    Check it out, let me know if someone has some thought or tries to make it work, will be glad to help.

    https://youtu.be/GaTeppKdaxY

      tailedstories
      tailedstoriesAuthor
      Known Participant
      May 30, 2021

      Made it easier to try it out. Now there is no need for a complicated setup + both arms work + real-time.

      To run you will need to prepare your puppet.

      Here is rigging:

      1) Arms Top - top arm layer is not independent. Used to connect arms to the body

      2) Left Arm - forearm art + all nested layers. The dot of this layer will represent the shoulder. We add transform behavior and will use rotation, so both forearm and nested wrist will move together

      3) Left Shoulder - shoulder to forearm art

      4) Left Forearm - elbow art + all nested layers. Same as #2 but for only the elbow and wrist. Extra transform behavior here.

      5) Wrist layer should have a swap set with the big finger on the opposite side. If you want to flip your wrists automatically.

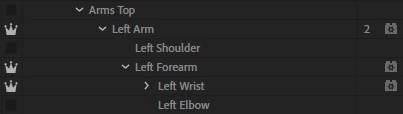

      Refer to pic for details. On the right you see where to add transform behavior, on the left what to make independent.



      You will also need to prepare a "control" panel. Add character to the scene, go to controls.

      Grab:

      1) Rotation of the shoulder

      2) Rotation of the wrist

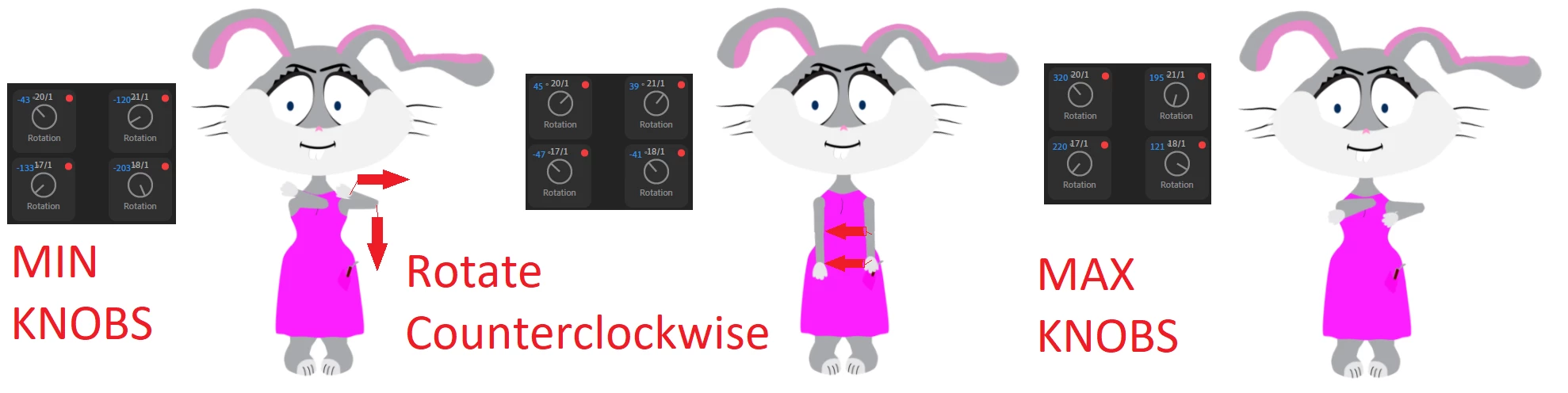

      Refer to the picture of how to set up minimum and maximum knob positions.

      Start with a position on the left, move joints counterclockwise until complete a circle.



      Character setup should be done. To run body tracking you will need to download the file:

      https://github.com/tailedstories/adobe_character_animator_hand_control/blob/main/body_control_full.py



      It is a python3, so you will need to have it + you will need to run "pip install" to get libraries: cv2; mediapipe; rtmidi.

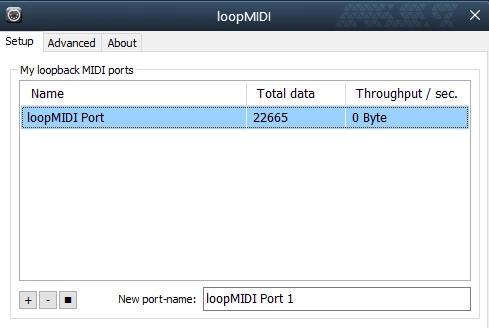

      You will also need to install a loopmidi and add a virtual midi device

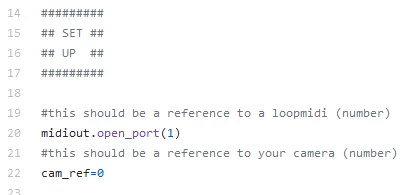

      After this, you should be good to go. Python files should not require adjustments. One thing you may want is to adjust what camera or loop midi port to use. You can do it here



        tailedstories
        tailedstoriesAuthor
        Known Participant
        May 30, 2021

        Oh and to flip wrists automaticly you will need to assign spesific notes to the wrists:

        1) Left Out - Midi Note 81

        2) Left In - Midi Note 80

        3) Right Out - Midi Note 82

        4) Right In - Midi Note 83

        You also need to check "latch"



          tailedstories
          tailedstoriesAuthor
          Known Participant
          May 24, 2021

          Hi, one more update. I figured out the way to use a webcam to track hands and use hand gestures to control the character animator. I recorded the video on a basic gesture - when flipping the wrist, trigger swap set.

          https://youtu.be/9mfgDAPNEck



          Let me know if some of those use cases are interesting or you have an idea of what else to do. I am going to explore using facial expressions for character control. But that probably would not be as easy to replicate as this one.

          oksamurai
          oksamurai
          Legend
          May 24, 2021

          Innovative ideas! Yes, hands or motions being a way to initiate triggers is definitely something that has come up recently as people are testing out the body tracking beta and are unable to reach their keys.

          tailedstories
          tailedstoriesAuthor
          Known Participant
          May 24, 2021

          Sounds good, I will make the next one with a front camera and body tracking behavior. In terms of gestures I am thinking:

          1) 2 hands wrist track - one wrist used to recognize that we want to do trigger (e.g. ignore both wrists if not spiderman). This is probably required, so we do not have things triggered at random. In the case of a top/down camera, we can just position it, so hands are outside, with the front camera + full-body tracking we need to be more careful.

          2) The second wrist can trigger: 1 finger, 2 fingers, 3 fingers, thumbs up, spiderman



          Any thoughts on what else to add? I am thinking touching the fingers can be a trigger and then match the distance to translate finger distance to a knob value. But those seem to be involved and I want to keep this side of a project at least somewhat easy enough for a random person to try

          tailedstories
          tailedstoriesAuthor
          Known Participant
          May 20, 2021

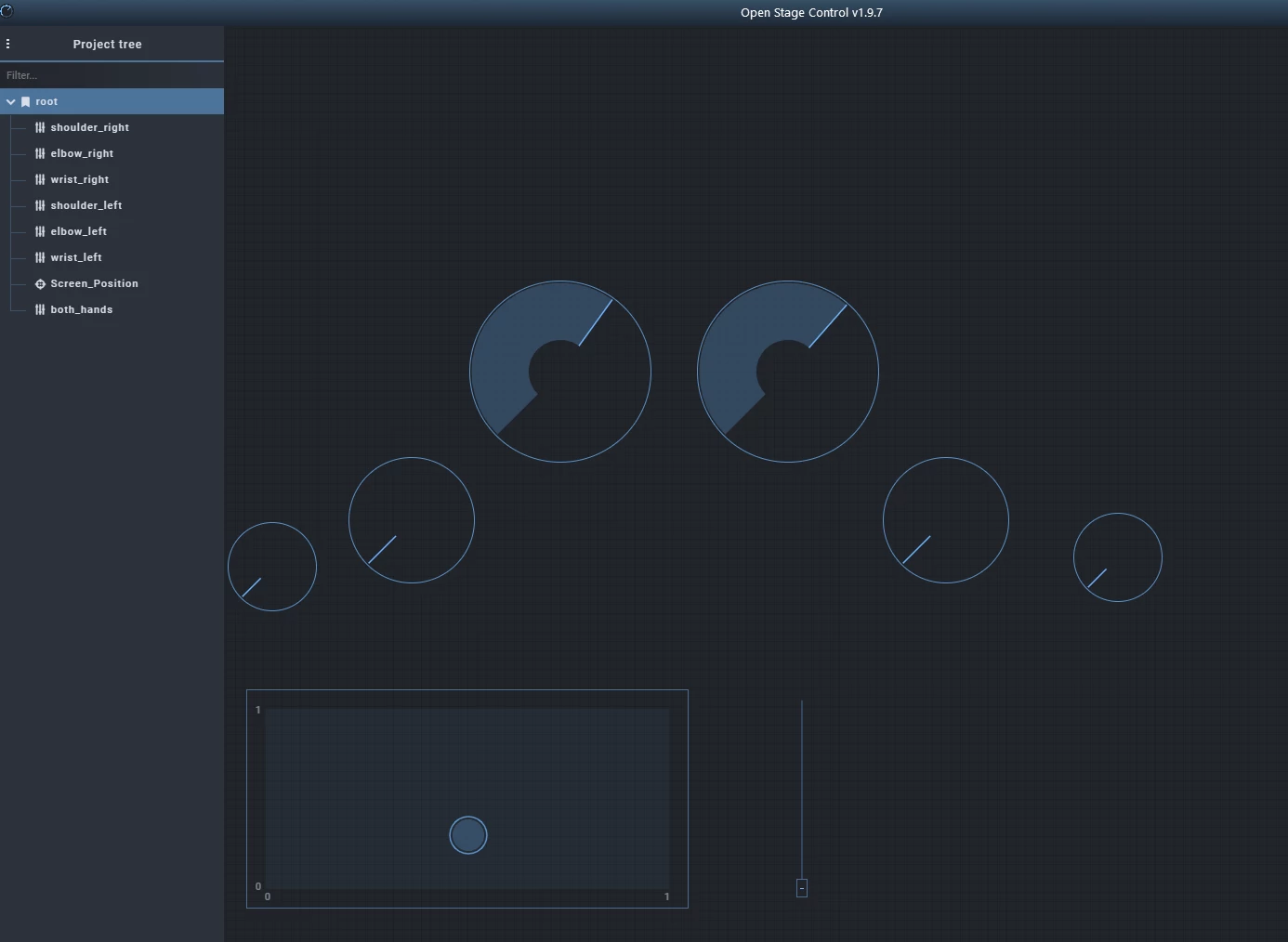

          Hi, quick update. There is no need to go full custom there is an amazing project Open Stage Control

          https://openstagecontrol.ammd.net/



          It allows:

          1) Create a custom layout

          2) Choose from/to values for knobs and a step (if you want more stop/motion look, so steps are further apart and more snappy)

          3) There is a scripting section, that I did not check much yet, but it seems like sending a midi key to flip wrist based on the elbow is on the table.

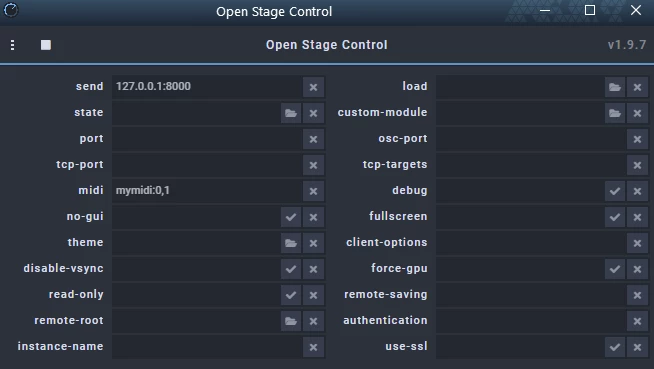

          It is a bit tricky to set the first time, but nothing much. Here are some settings I used to send a test message to Character Animator



          When you add knobs and controls the main part is. Where we care about:

          1) address

          2) preArgs

          3) target from the settings in the screenshot above



          I also tested, we can attach knobs to existing midi values to use the same ones that the physical controller uses. All the way seems like an app to investigate here

            oksamurai
            oksamurai
            Legend
            May 18, 2021

            Wow this is impressive stuff!

              alank99101739
              alank99101739
              Legend
              May 18, 2021

              Cool stuff! If any use, I played with MIDI a few years back. The blog post has a link to some Unity C# code I wash playing with. It converted HTC Vive (VR) controller positions into MIDI events which got sent to Character Animator. https://extra-ordinary.tv/2018/09/28/midi-and-adobe-character-animator/



              I have not touched the code in a few years - buyer beware! 😉

                tailedstories
                tailedstoriesAuthor
                Known Participant
                May 18, 2021

                Nice, it looks like it may just work for sending signals, so looping animation should be straightforward. Just need to wrap around some recording and stick it into the unreal engine would be nice. I will post if manage to develop it into something useful.



                The cool part that it allows to record joint angles so recorded midi should work across different characters with different limb sizes. I have 40 characters planned, so this should be a neat speed up in prepping the puppets
