uneven eye movement_Version 1.5

  • April 25, 2018
  • 5 replies
  • 2153 views

I’m experiencing an uneven eye movement issue that is only apparent in Version 1.5.  The eyes are moving independently from one another and yield a cross-eyed result.  Although the eyes are asymmetrical, they function properly in Version 1.1 of Ch Anim. Could this be a bug?

This topic is closed to new replies. Start a new post to keep the conversation going.
Correct answer oksamurai

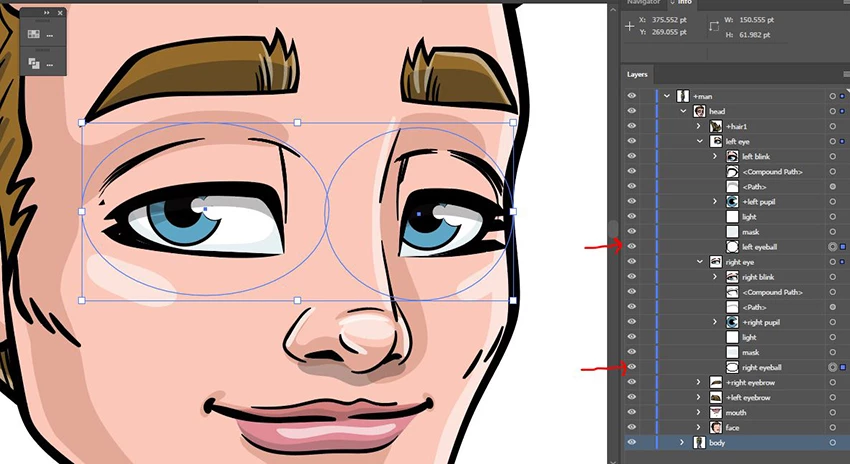

Sean sent me the puppet, and the issue was a lack of eyeballs. I've seen this in a couple of puppets with eye issues after 1.5 - while 1.0 seemed to handle these situations okay, because of some pupil changes (non-centered support), if you don't have an eyeball layer for the right and left you'll run into wonky situations like this. For Sean's case, I made some invisible ovals (no stroke or fill in AI) in each eye, called them "right eyeball" and "left eyeball," and when it reimported they worked well after turning down eye gaze strength a little.

5 replies

oksamurai
oksamuraiCorrect answer
Legend
April 25, 2018

Sean sent me the puppet, and the issue was a lack of eyeballs. I've seen this in a couple of puppets with eye issues after 1.5 - while 1.0 seemed to handle these situations okay, because of some pupil changes (non-centered support), if you don't have an eyeball layer for the right and left you'll run into wonky situations like this. For Sean's case, I made some invisible ovals (no stroke or fill in AI) in each eye, called them "right eyeball" and "left eyeball," and when it reimported they worked well after turning down eye gaze strength a little.

    sricciar13
    sricciar13Author
    Participant
    April 25, 2018

    Thanks a ton Dave!  This solved the problem.

    sricciar13
    sricciar13Author
    Participant
    April 25, 2018

    alank99101739
    alank99101739
    Legend
    April 25, 2018

    It could be a bug, but it also could be something that used to not matter (but was wrong) now matters.

    In case useful, I wrote up a recent blog post on how I debug eyes... https://extra-ordinary.tv/2018/04/21/debugging-character-animator-eyess/ - would love to know if useful or I am missing topics worth covering or other useful techniques...

      sricciar13
      sricciar13Author
      Participant
      April 25, 2018

      Thanks alank99101739.  Very thorough write-up
