Position polygons over Flexbox

  • November 5, 2019
  • 3 replies
  • 519 views

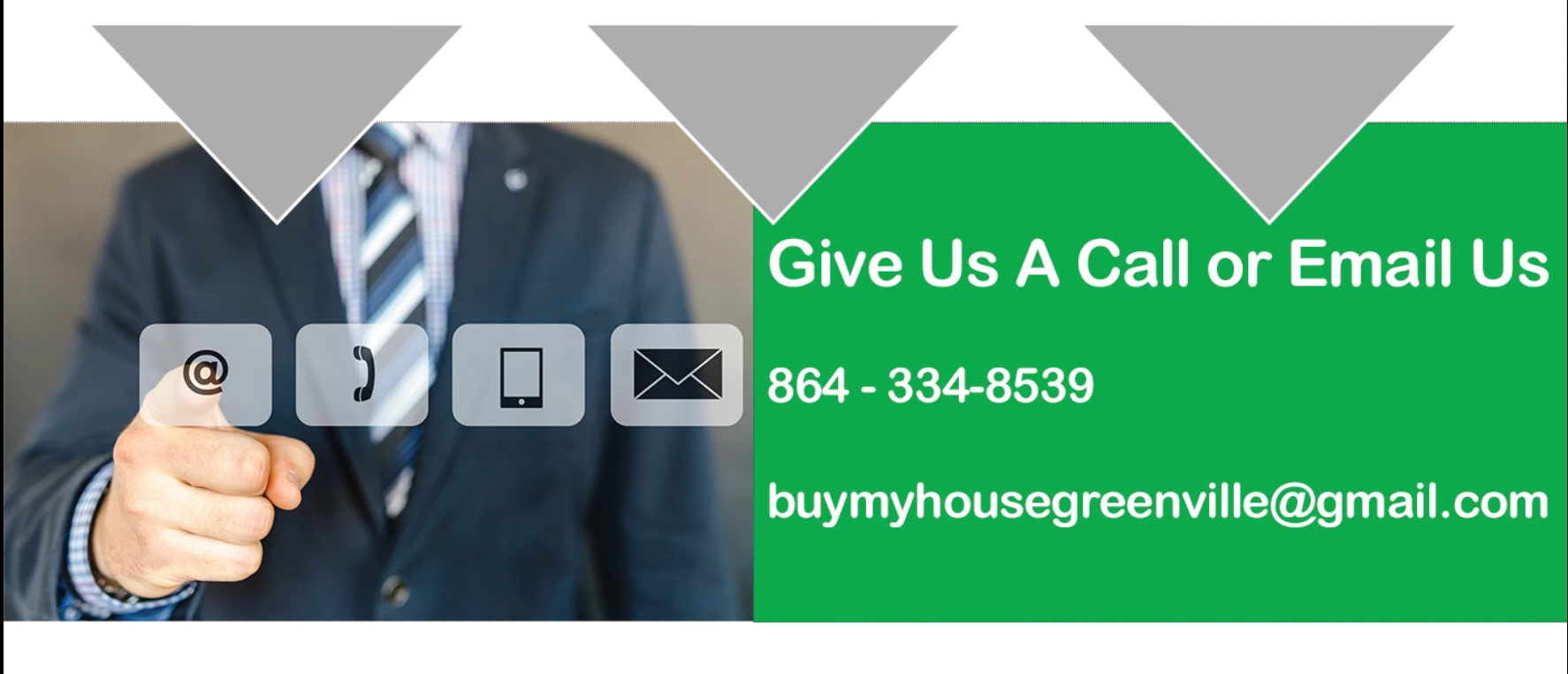

I have successfully created a flexbox.  However, I would like this flexbox to be positioned with the polygons over it like I have it in this image.  How can I code it to look the way it does in the image? I tried to do the flexbox right under the polygons, but it did not do the way it is supposed to.

This topic has been closed for replies.
Correct answer osgood_

Code example below, not really sure how you intend to re-configure the layout for mobile devices.

(No frameworks involved).









<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Example</title>
<style>
* {
box-sizing: border-box;
}
body {
font-family: helvetica, sans-serif;
font-size: 14px;
}
.contact-info {
width: 60%;
margin: 0 auto;
}
.arrows {
display: flex;
justify-content: space-around;
position: relative;
z-index: 100;
}
.arrow-down {
width: 0;
height: 0;
border-left: 70px solid transparent;
border-right: 70px solid transparent;
border-top: 70px solid #acadad;
}
.contact {
display: flex;
margin-top: -36px;
min-height: 200px;
}
.contact-icons {
display: flex;
align-items: center;
justify-content: center;
width: 50%;
background-image: url('https://images.unsplash.com/photo-1507679799987-c73779587ccf');
background-size: cover;
background-position: center center;
}
.contact-icons a {
padding: 15px;
background-color: rgba(255, 255, 255, 0.7);
color: #000;
text-decoration: none;
margin: 0 4px;
border-radius: 8px;
}
.contact-text {
display: flex;
flex-direction: column;
justify-content: center;
width: 50%;
background-color: #0caa4b;
padding: 20px;
}
.contact-text h3 {
margin: 0;
padding: 10px 0;
color: #fff;
font-size: 22px;
font-weight: 400;
}
.contact-text h4 {
margin: 0;
padding: 10px 0;
color: #fff;
font-size: 16px;
font-weight: 400;
}
</style>
 </head>
 <body>
<section class="contact-info">
<div class="arrows">
<div class="arrow-down"></div>
<div class="arrow-down"></div>
<div class="arrow-down"></div>
</div>
<!-- end arrows -->
<div class="contact">
<div class="contact-icons">
<a href="#">Icon</a>
<a href="#">Icon</a>
<a href="#">Icon</a>
<a href="#">Icon</a>
</div>
<div class="contact-text">
<h3>Give Us A call or Email Us</h3>
<h4>864-334-8539</h4>
<h4>buxmxhoxsxgrxenvixlx@xmaxl.com</h4>
</div>
</div>
<!-- end contact -->
</section>
<!-- end contact-info -->
</body>
</html>









3 replies

O
osgood_Correct answer
Legend
November 5, 2019

Code example below, not really sure how you intend to re-configure the layout for mobile devices.

(No frameworks involved).









<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Example</title>
<style>
* {
box-sizing: border-box;
}
body {
font-family: helvetica, sans-serif;
font-size: 14px;
}
.contact-info {
width: 60%;
margin: 0 auto;
}
.arrows {
display: flex;
justify-content: space-around;
position: relative;
z-index: 100;
}
.arrow-down {
width: 0;
height: 0;
border-left: 70px solid transparent;
border-right: 70px solid transparent;
border-top: 70px solid #acadad;
}
.contact {
display: flex;
margin-top: -36px;
min-height: 200px;
}
.contact-icons {
display: flex;
align-items: center;
justify-content: center;
width: 50%;
background-image: url('https://images.unsplash.com/photo-1507679799987-c73779587ccf');
background-size: cover;
background-position: center center;
}
.contact-icons a {
padding: 15px;
background-color: rgba(255, 255, 255, 0.7);
color: #000;
text-decoration: none;
margin: 0 4px;
border-radius: 8px;
}
.contact-text {
display: flex;
flex-direction: column;
justify-content: center;
width: 50%;
background-color: #0caa4b;
padding: 20px;
}
.contact-text h3 {
margin: 0;
padding: 10px 0;
color: #fff;
font-size: 22px;
font-weight: 400;
}
.contact-text h4 {
margin: 0;
padding: 10px 0;
color: #fff;
font-size: 16px;
font-weight: 400;
}
</style>
 </head>
 <body>
<section class="contact-info">
<div class="arrows">
<div class="arrow-down"></div>
<div class="arrow-down"></div>
<div class="arrow-down"></div>
</div>
<!-- end arrows -->
<div class="contact">
<div class="contact-icons">
<a href="#">Icon</a>
<a href="#">Icon</a>
<a href="#">Icon</a>
<a href="#">Icon</a>
</div>
<div class="contact-text">
<h3>Give Us A call or Email Us</h3>
<h4>864-334-8539</h4>
<h4>buxmxhoxsxgrxenvixlx@xmaxl.com</h4>
</div>
</div>
<!-- end contact -->
</section>
<!-- end contact-info -->
</body>
</html>









    BenPleysier
    Community Expert
    BenPleysierCommunity Expert
    Community Expert
    November 5, 2019

    Unless you are willing to spend a lot of time coding rather than getting an outcome, it is best to use a framework that has all included. In my case I make grateful use of Bootstrap and if I were to design something similar to what you have, I would inlude a card like in https://getbootstrap.com/docs/4.0/components/card/#image-overlays which is based on Flexbox.

    Wappler is the DMXzone-made Dreamweaver replacement and includes the best of their powerful extensions, as well as much more!
    Nancy OShea
    Community Expert
    Nancy OSheaCommunity Expert
    Community Expert
    November 5, 2019

    Please upload the test page  to your server and post the URL.

    Nancy O'Shea— Product User & Community Expert
    A
    ashleyc1208766Author
    Participant
    November 5, 2019

    file:///Users/macbook/Desktop/BuyMyHouse/index.html



    Nancy OShea
    Community Expert
    Nancy OSheaCommunity Expert
    Community Expert
    November 5, 2019

    That's not a URL.   That's a file on your Macbook desktop which nobody can see except you.   You need to FTP the file and supporting assets to a public facing web server like  https: // yourdomain . com

    Nancy O'Shea— Product User & Community Expert
