Pattern swatch

  • June 13, 2022
  • 4 replies
  • 627 views

How to add pattern in pattern pannel into swatch pannel permanently? Please help me with this.

  1. I have tried many methods but not working.
This topic has been closed for replies.
Correct answer Kurt Gold

Another way is – at least if you trust the cloud-based Libraries palette – to store objects with pattern fills in a library group. You can then just drag them onto the scratch area while holding down the Alt key to transfer them into the main Swatches palette.



That would work with new documents as well as with already existing documents.



4 replies

Kurt Gold
Community Expert
Kurt GoldCommunity ExpertCorrect answer
Community Expert
June 13, 2022

Another way is – at least if you trust the cloud-based Libraries palette – to store objects with pattern fills in a library group. You can then just drag them onto the scratch area while holding down the Alt key to transfer them into the main Swatches palette.



That would work with new documents as well as with already existing documents.



    Doug A Roberts
    Community Expert
    Doug A RobertsCommunity Expert
    Community Expert
    June 13, 2022

    Add the swatch, then save your file as a document profile (see location below)

    Alternatively, edit all the existing document profiles at the following location to include that swatch:



    C:\Users\Username\AppData\Roaming\Adobe\Adobe Illustrator 26 Settings\en_GB\x64\New Document Profiles

      marliton
      Community Expert
      marlitonCommunity Expert
      Community Expert
      June 13, 2022

      Hi. This could be helpful: https://graphicdesign.stackexchange.com/questions/114427/how-to-permanently-save-swatches-in-illustrator-cc-2018



      Marlon Ceballos
      Mike_Gondek10189183
      Community Expert
      Mike_Gondek10189183Community Expert
      Community Expert
      June 13, 2022

      Create a swatch library

      You create a swatch library by saving the current document as a swatch library.

      • Edit the swatches in the Swatches panel so that it contains only the swatches you want in the swatch library.

      Select Save Swatch Library from the Swatches panel menu (Choose a nice name to keep yourself organized as you will see this)





      Then in the flyout menu for your new library check persistent. I would take the extra step of saving a workspace, as the persistent has been buggy in the past.









        A
        Ashu24845488rcnxAuthor
        Known Participant
        June 13, 2022

        Thanks for tha reply.

        But will it be added to a swatch pannel permanently?



        Mike_Gondek10189183
        Community Expert
        Mike_Gondek10189183Community Expert
        Community Expert
        June 13, 2022

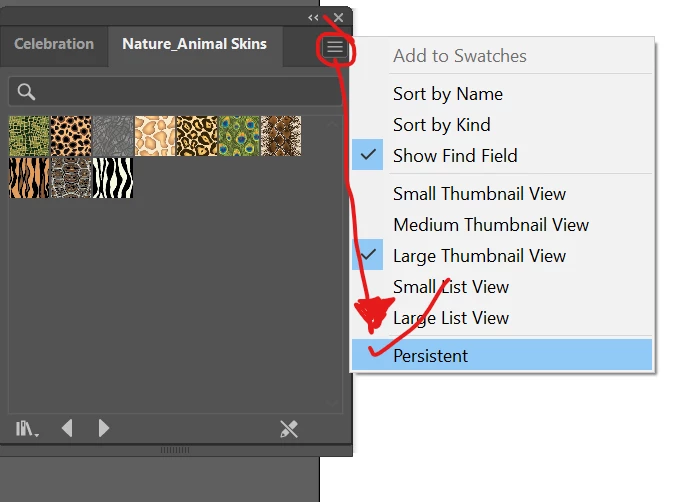

        Yes it  wil be added to a new swatch panel name you choose as seen in my screenshot (eg: nature Animal Skins).



        To add to your swatches you would have to use the method Doug suggest. With that though will only work n new files that are crated using the document profile() you edited, not existing documents.
