[Scripting] Dividing an object path via Javascript / ExtendScript

It's pretty easy to do it manually, but of course you can make a simple action that would:

- Select the path(s)

- Select menu > Object > Direction Handles

- Edit menu > Cut

- Edit menu > Clear

- Edit menu > Paste in Front

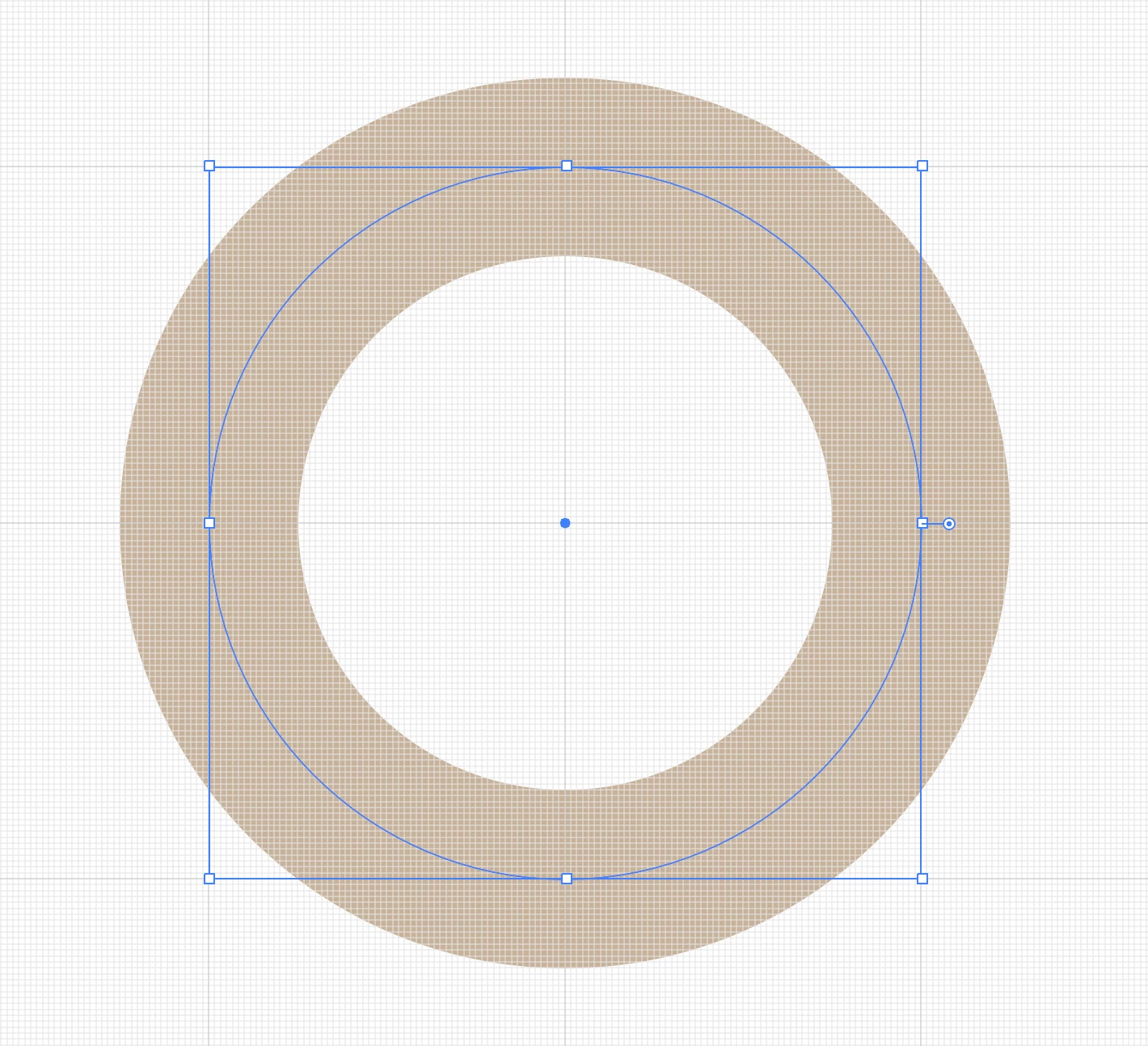

If you are rather looking for pizza shapes, it can be done with a simple graphic style.

This should split a path into it's segments.

// select path
var path1 = app.activeDocument.selection[0];
var points = path1.pathPoints;
if (path1.closed) var cap = points.length;
else var cap = points.length - 1;
for (var i = 0; i < cap; i++) {
    var path2 = app.activeDocument.pathItems.add();
    var p1 = path2.pathPoints.add();
    p1.anchor = points[i].anchor;
    p1.rightDirection = points[i].rightDirection;
    p1.leftDirection = points[i].leftDirection;
    var p2 = path2.pathPoints.add();
    if (path1.closed && i == cap - 1) {
        p2.anchor = points[0].anchor;
        p2.rightDirection = points[0].rightDirection;
        p2.leftDirection = points[0].leftDirection;
    } else {
        p2.anchor = points[i + 1].anchor;
        p2.rightDirection = points[i + 1].rightDirection;
        p2.leftDirection = points[i + 1].leftDirection;
    }
}
path1.remove();

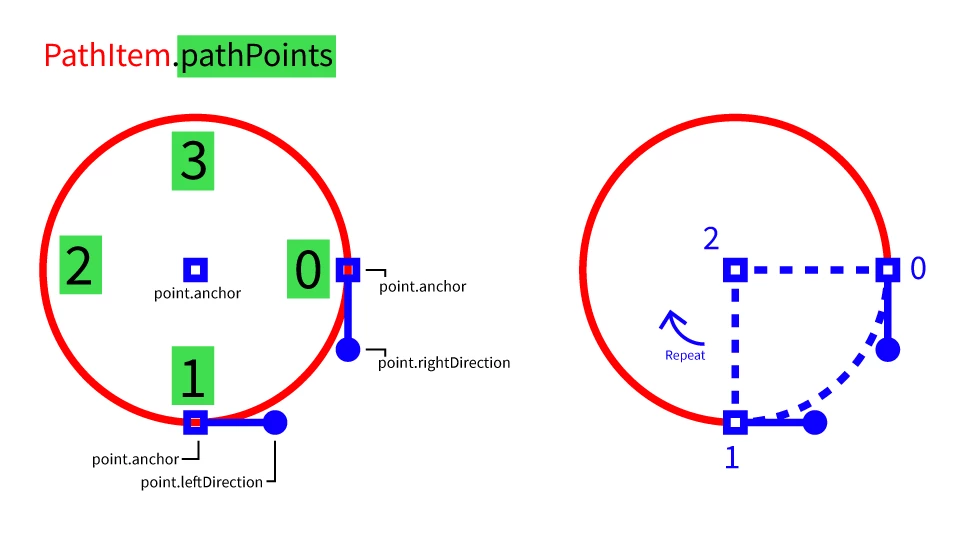

Hi, do you mean like pizza slices, or just the standalone arcs? The relevant pages in those online docs would be PathItem, PathPoints, and PathPoint:

Slice result being:

And a script example which should be relatively easy to understand for someone starting out with scripting:

function subDivideToCenter(item) {
    var bounds = item.geometricBounds, // we need the bounds
        // The left edge plus half it's width is center:
        centerX = bounds[0] + ((bounds[2] - bounds[0]) / 2),
        // Top edge plus half it's height is center:
        centerY = bounds[1] + ((bounds[3] - bounds[1]) / 2),
        centerPoint = [centerX, centerY]; // we need this coordinate since this is a point in our upcoming slices

    // So we iterate over each of the pathPoints
    for (var p = 0; p < item.pathPoints.length; p++) {
        // And grab the current point and the next point:
        var point = item.pathPoints[p],
            nextPoint = item.pathPoints[(p + 1) % item.pathPoints.length];
        // The above is a fancy way of saying add 1 to the number unless it's the last, then be 0

        /**
         * We know the points needed for pizza-like slicing:
         *   - Any given point and one of it's handles
         *   - The next point and it's own opposite handle pointing inwards
         *   - The centerpoint
         *
         * So we can make the list explicitly:
         */
        var pointsList = [
            // 0:
            {
                anchor: point.anchor,
                leftDirection: point.anchor, // We don't want this curve
                rightDirection: point.rightDirection // We only want this one, towards the next point
            },
            // 1:
            {
                anchor: nextPoint.anchor,
                leftDirection: nextPoint.leftDirection, // This is the opposite curve from prior
                rightDirection: nextPoint.anchor, // And we ignore this one
            },
            // 2:
            {
                // Then our last point is just the center of the shape with no curves:
                anchor: centerPoint,
                leftDirection: centerPoint,
                rightDirection: centerPoint
            }
        ];
        // Add a new shape:
        var slice = app.activeDocument.pathItems.add();
        // Then iterate through the pointsList above:
        for (var n = 0; n < pointsList.length; n++) {
            var pointData = pointsList[n],
                newPoint = slice.pathPoints.add();
            // And set the keys of the PathPoint object explicitly:
            newPoint.anchor = pointData.anchor;
            newPoint.leftDirection = pointData.leftDirection;
            newPoint.rightDirection = pointData.rightDirection;
        }
        // To connect the centerpoint back to the original for a slice, we set it as a closed shape:
        slice.closed = true;
    }
    // To remove the original shape, uncomment this line:
    // item.remove();
}

// We trigger the main function on the first selected object, like an ellipse:
subDivideToCenter(app.selection[0]);

If you mean the arcs only without connecting back to the centerpoint then it's the same exact code, you'd just delete the last object from the pointsList array:

// 2:
{
    // Then our last point is just the center of the shape with no curves:
    anchor: centerPoint,
    leftDirection: centerPoint,
    rightDirection: centerPoint
}

And this line at the very end of the function:

// To connect the centerpoint back to the original for a slice, we set it as a closed shape:
slice.closed = true;

You create additional paths at the respective angles and invoke a Pathfinder operation, completely reconstruct the path by fetching its underlying Bèzier values for tha anchor points or simply or simply duplicate the layer and delete extraneous points. Whatever is the best approach for you. I'm also sure there is already some clever "unjoin anchor points" script or something liek that out there plus some plug-ins offer such useful little tricks.

Mylenium
