A3 won´t print the bottom Part of the Page

Forum|Forum|3 years ago
November 7, 2022
4 commentaire
2994 vue

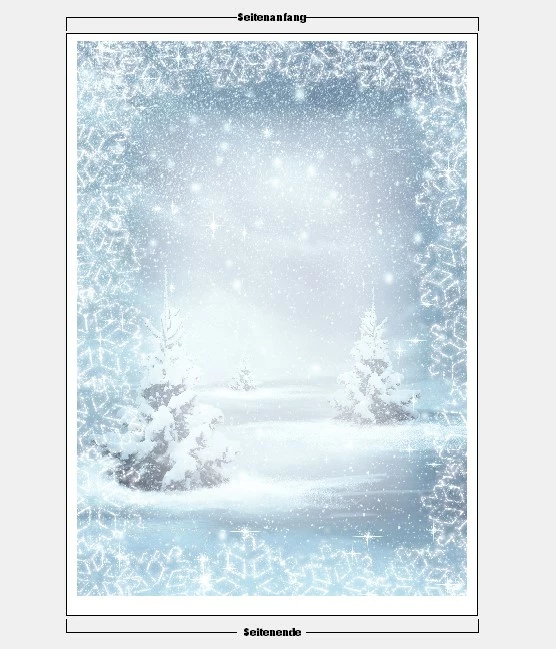

I have to Print a Document in A3, problem is I can't print the bottom 1,5 cm on the page (see attached file),

Tried all the settings, tried to export it as PDF, same result,

is that a Printer Problem (or Limitation) or I’m missing something?

W10 22H2, InDesign 18.0, EPSON SC-P5000

Thanks in advance for the support.

Print

Ce sujet a été fermé aux réponses.

Meilleure réponse par Carmelo5FA3

*Final Update*

I was finally able to print to the entire (almost) A3 paper,

what does “almost” means?

Well, I was able to print with “0” margin on both right and left side and 3 mm margin on top on bottom part.

After looking for that on many forums, I realized that the 3 mm gap on both, top and bottom part, could be a printer limitation.

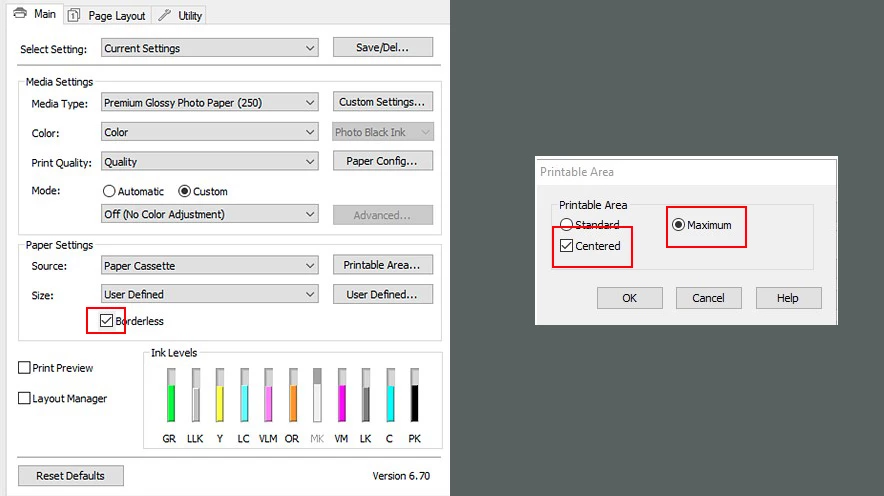

If someone found himself in my same situation, I leave the configuration that I used to achieve those margins.

I would like to thank Derek Cross and James Gifford for the effort to help me figure the solution.

C

Carmelo5FA3AuteurRéponse

Inspiring

*Final Update*

I was finally able to print to the entire (almost) A3 paper,

what does “almost” means?

Well, I was able to print with “0” margin on both right and left side and 3 mm margin on top on bottom part.

After looking for that on many forums, I realized that the 3 mm gap on both, top and bottom part, could be a printer limitation.

If someone found himself in my same situation, I leave the configuration that I used to achieve those margins.

I would like to thank Derek Cross and James Gifford for the effort to help me figure the solution.

James Gifford—NitroPress

Legend

Few home/office printers can print to page margins, although it's become more common with multifunction printers with photo-printing capabilites or a simulation of it.

Most printers have at least 1/4 inch of print margin on most page sizes.

C

Carmelo5FA3Auteur

Inspiring

Little Update,

I tried to export the file as JPEG (to have more compression as possible in order to avoid filling the printer memory),

same result, then I switched to A4, same result, then I printed the same JPEG file from another Printer (OKI Printer that we use in our Lab for simple document), here is the difference

James Gifford—NitroPress

Legend

Given that A3 is a large sheet size for a home/office printer, I would bet more on the driver or printer running out of working memory or page space than anything else.

Reduce the complexity of the page and see if it prints. It may be that while your printer can handle the print size, it can only do so with relatively memory-efficient fonts and limited graphics.

Derek Cross

Community Expert

It may be the limit of your printer's printing area – check the documentation.

C

Carmelo5FA3Auteur

Inspiring

Hi Derek, thanks for the reply.

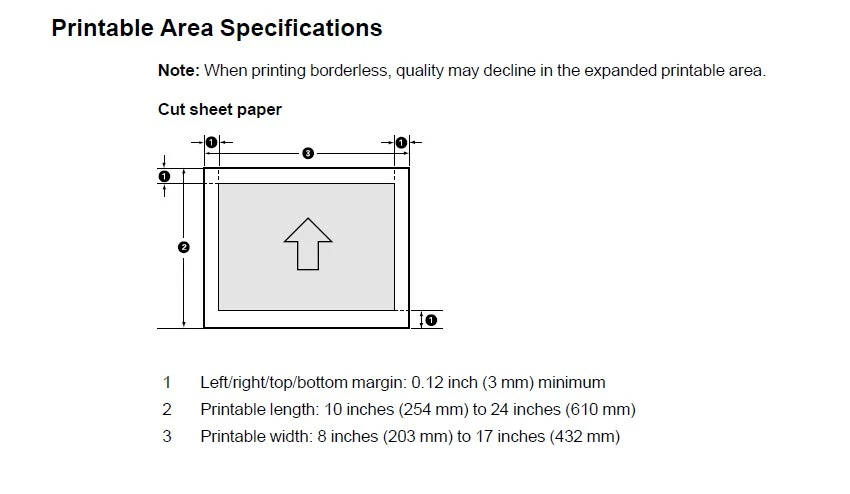

I checked the Documentation of my printer, and it says 3 mm minimum margin to each side, (top, left and right side margins are 3 mm), bottom side margin is 15mm.

Derek Cross

Community Expert

You should always print from a PDF created from InDesign, rather than directly from InDesign. The print doc margins look promising – are you sure the bottom bit of the image is missing?
