Can't draw a straight line - In Design

Question

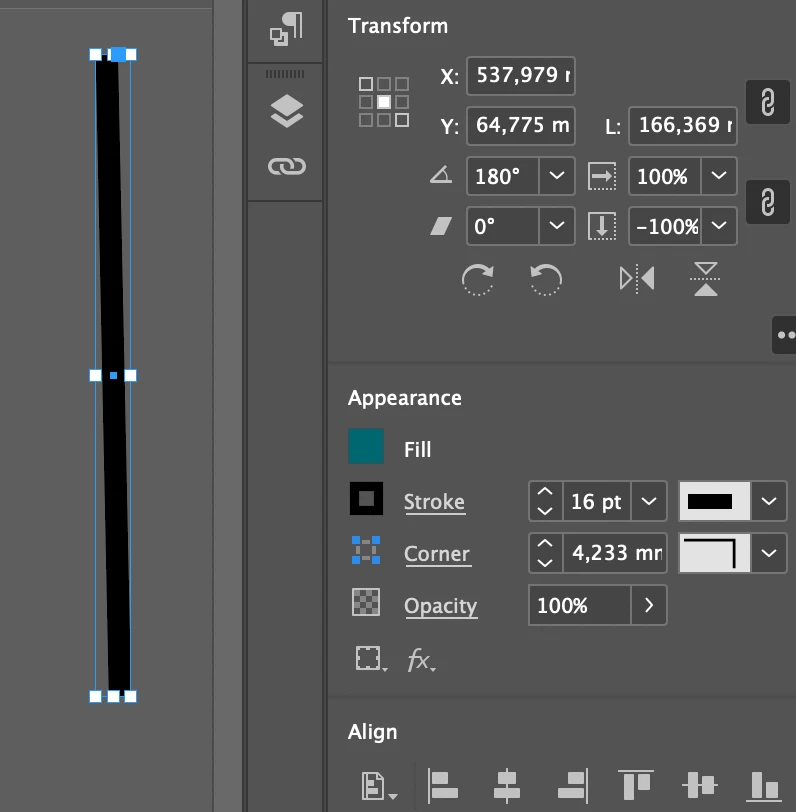

I don't know what am I doing wrong, but this line is supposed to be straight inside the frame (see 180 angle)

Peter Spier · Accepted Answer

@Willi Adelberger It's a line, not a rectangle -- the transform prox shows only three points, center and two ends.

@Bea! You misunderstand what the angle field is showing. It shows the amount of rotation applied when you make a change rather than the angle at which it was drawn relative to the x or y axis. To constrain the line to horizontal, vertical, or a 45 degree slope hold down the shift key as you draw.

Bill Silbert · Answer

I was able to replicate this using a 10 point stroke. What is happening is that the top endpoint does not match the X coordinate of the bottom endpoint. To fix it select either the top or bottom endpoint using the direct selection tool (white arrow). Copy the X coordinate (Command (Mac)/Control (PC)-C) of that point from the x coordinate value shown in either the Transform or Control Panel. Then select the other endpoint with the direct selection tool and paste the X coordinate which you previously copied into the X coordinate of either the Transform or Control Panel. The line should now look perfectly vertical. To draw a line perfectly vertical in the first place hold the shift key when drawing the line with the pen tool or line tool.
