Drawing svg code javascript (no import)

Forum|Forum|5 years ago
January 5, 2021
5 replies
2197 views

Hi, I'm writing a script to create a simple document with text and a rather simple vector logo placed on it.

For the logo I don't want to choose the same file in a dialog every time I run the script so I wondered if there was a way to create an object directly using the svg code from the logo file.

Therefore, the logo in my document would not be a linked file but vector indesign items.

This topic has been closed for replies.

Correct answer rob day

Unless there is a mean to get the pathpoints of an already existing graphic (that I could copy-paste for example).

There is.

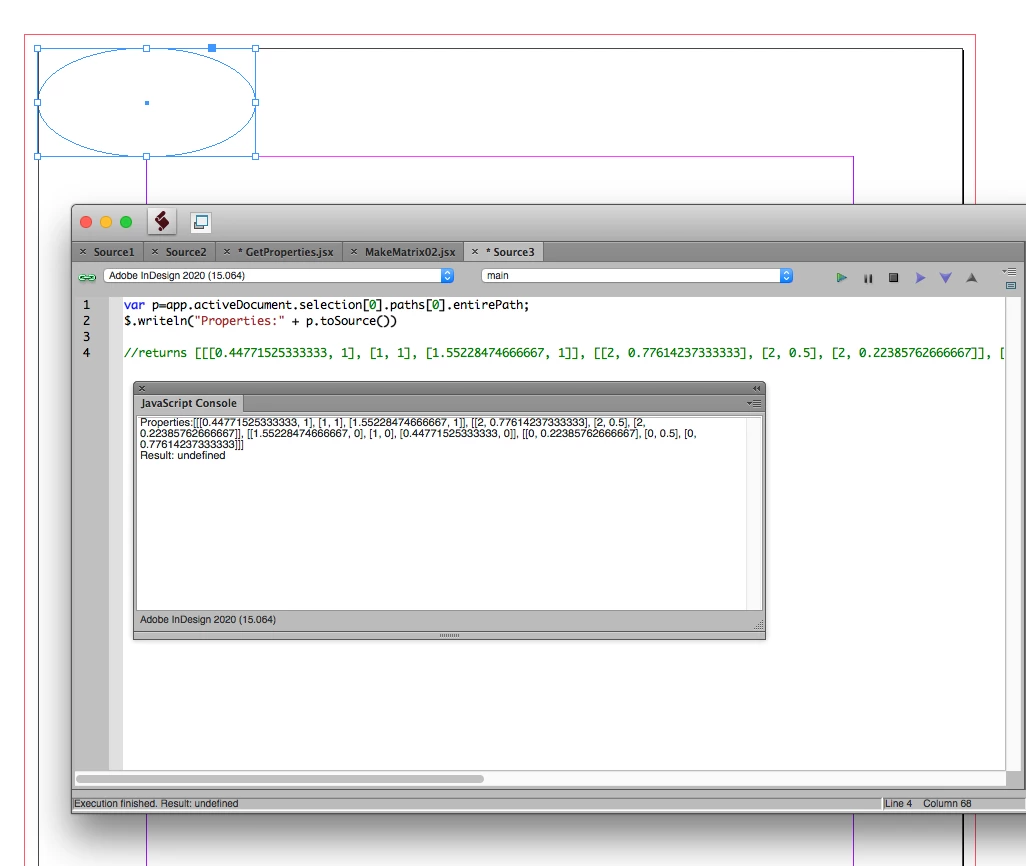

This code would return the entirePath property of the selected path:

var p=app.activeDocument.selection[0].paths[0].entirePath;
$.writeln("Properties:" + p.toSource())

//returns [[[0.44771525333333, 1], [1, 1], [1.55228474666667, 1]], [[2, 0.77614237333333], [2, 0.5], [2, 0.22385762666667]], [[1.55228474666667, 0], [1, 0], [0.44771525333333, 0]], [[0, 0.22385762666667], [0, 0.5], [0, 0.77614237333333]]]

Then to create the same path in a new script it would something like this function (rulers set to inches):

//gets a selection’s path
//var p=app.activeDocument.selection[0].paths[0].entirePath;
//$.writeln("Properties:" + p.toSource())



//the entire path property
var pathArray = [[[0.44771525333333, 1], [1, 1], [1.55228474666667, 1]], [[2, 0.77614237333333], [2, 0.5], [2, 0.22385762666667]], [[1.55228474666667, 0], [1, 0], [0.44771525333333, 0]], [[0, 0.22385762666667], [0, 0.5], [0, 0.77614237333333]]]
//the target page
var pg = app.activeDocument.pages[0]

var poly = makePath(pg, pathArray);
poly.fillColor = "Black"

/**
* Make a path with the provide entire path array
* @9397041 the target page
* @9397041 the entire path array
* @Return the polygon
*
*/
function makePath(pg, ep){
    //add a new polygon to page
    var thePath= pg.polygons.add();
    //set the entire path
    thePath.paths[0].entirePath = ep;
    return thePath
}

R

Robert Kyle

Inspiring

Looks like you've got the SVG solution you were looking for, but I just want to point out that you can store a library on a server and give everyone on your team access to it. Yet it's still only one thing to change if/when change becomes necessary. In fact, we keep our executable script code on a server for that same reason; the client PCs run them via shortcuts.

L

laurentc39824241Author

Participating Frequently

For this particular script, it won't change (or if it does everything else will so it will become useless anyway).

That's an other topic but I've tried several times to put our scripts on a server and run them via shortcuts, but the shortcuts get replaced by the actual files at each CC's update. Got tired of replacing them with shortcuts every time...

I would love to have a simple mean to share scripts, documents presets, default color settings and other stuff in the team...

R

Robert Kyle

Inspiring

Not sure what's happening there. We have absolutely no JavaScript code on desktop PCs. Or libraries or templates. We have a shortcut in the startup folder that initiates our scripting system at startup, including a ScriptUI panel with buttons and dropdowns linked to other scripts, all on the server.

If it's really not possible to use a shortcut in CC, I think I'd try using a stub scriptthat simply executes doScript() on script files on the server.

Jens Trost

Inspiring

Hi @laurentc39824241,
you could save your logo as .svg, copy the svg-code into a variable in your script and then create the logo on the fly as svg file again.

L

laurentc39824241Author

Participating Frequently

Nice ! That's exactly what I want to do ! Do you have any hint on how to do that ?

BarlaeDC

Community Expert

Hi,

Should be able to use this, just change the var content line to be the SVG code, and the filename to FILE.svg.

https://community.adobe.com/t5/after-effects/create-a-txt-file-in-extendscript/td-p/9645024?page=1

Malcolm

rob day

Community Expert

There isn‘t an option for scripting svg code, but you can script polygons and their paths. It should be possible store the logo’s pathPoints in arrays and construct new polygons

https://www.indesignjs.de/extendscriptAPI/indesign-latest/#PathPoint.html#d1e267038

https://www.indesignjs.de/extendscriptAPI/indesign-latest/#Path.html#d1e266307

https://www.indesignjs.de/extendscriptAPI/indesign-latest/#Polygon.html

L

laurentc39824241Author

Participating Frequently

Unfortunately even if the logo is not complicated, it has some curves that make me think it would be tedious to do that way. Unless there is a mean to get the pathpoints of an already existing graphic (that I could copy-paste for example).

rob day

Correct answer

Community Expert

Unless there is a mean to get the pathpoints of an already existing graphic (that I could copy-paste for example).

There is.

This code would return the entirePath property of the selected path:

var p=app.activeDocument.selection[0].paths[0].entirePath;
$.writeln("Properties:" + p.toSource())

//returns [[[0.44771525333333, 1], [1, 1], [1.55228474666667, 1]], [[2, 0.77614237333333], [2, 0.5], [2, 0.22385762666667]], [[1.55228474666667, 0], [1, 0], [0.44771525333333, 0]], [[0, 0.22385762666667], [0, 0.5], [0, 0.77614237333333]]]

Then to create the same path in a new script it would something like this function (rulers set to inches):

//gets a selection’s path
//var p=app.activeDocument.selection[0].paths[0].entirePath;
//$.writeln("Properties:" + p.toSource())



//the entire path property
var pathArray = [[[0.44771525333333, 1], [1, 1], [1.55228474666667, 1]], [[2, 0.77614237333333], [2, 0.5], [2, 0.22385762666667]], [[1.55228474666667, 0], [1, 0], [0.44771525333333, 0]], [[0, 0.22385762666667], [0, 0.5], [0, 0.77614237333333]]]
//the target page
var pg = app.activeDocument.pages[0]

var poly = makePath(pg, pathArray);
poly.fillColor = "Black"

/**
* Make a path with the provide entire path array
* @9397041 the target page
* @9397041 the entire path array
* @Return the polygon
*
*/
function makePath(pg, ep){
    //add a new polygon to page
    var thePath= pg.polygons.add();
    //set the entire path
    thePath.paths[0].entirePath = ep;
    return thePath
}

M

Mike Bro

Legend

Hello,

Re: " I don't want to choose the same file in a dialog every time I run the script"

You can do what robert said and store your logo in a specific location then have the script place that file without using a dialog to select.

Example:

doc = app.documents[0];

var myFolder = doc.filePath;

myLogo = app.activeDocument.place(File(myFolder.fsName + "/" + "Logo.eps"));

Regards,

Mike

L

laurentc39824241Author

Participating Frequently

Thanks for your answers.

The thing is, if I want to share the script in my team, I will need to share the logo as well, and it will need to have the exact same file path.

It would be way more simple if I could draw it directly in the script.

R

Robert Kyle

Inspiring

Doon't know about SVG. I've always stored logos & such in a library, then use a script to place the library asset. This means non-scripters can tweak the asset as long as they save it under the same name.
