FOGRA 39 adding other colours to solid blocks of 100% colour

  • July 21, 2017
  • 3 replies
  • 1777 views

Hi,

I'm using FOGRA 39 Print Profile in Indesign as a conversion process for our CMYK print jobs.

One of our companies uses 100% Magenta in solid blocks, and although it's correct in the artwork, when output to PDF using this profile, there is other colours being added to the solid blocks of colour, like cyan.

Can anyone tell me how to fix it?

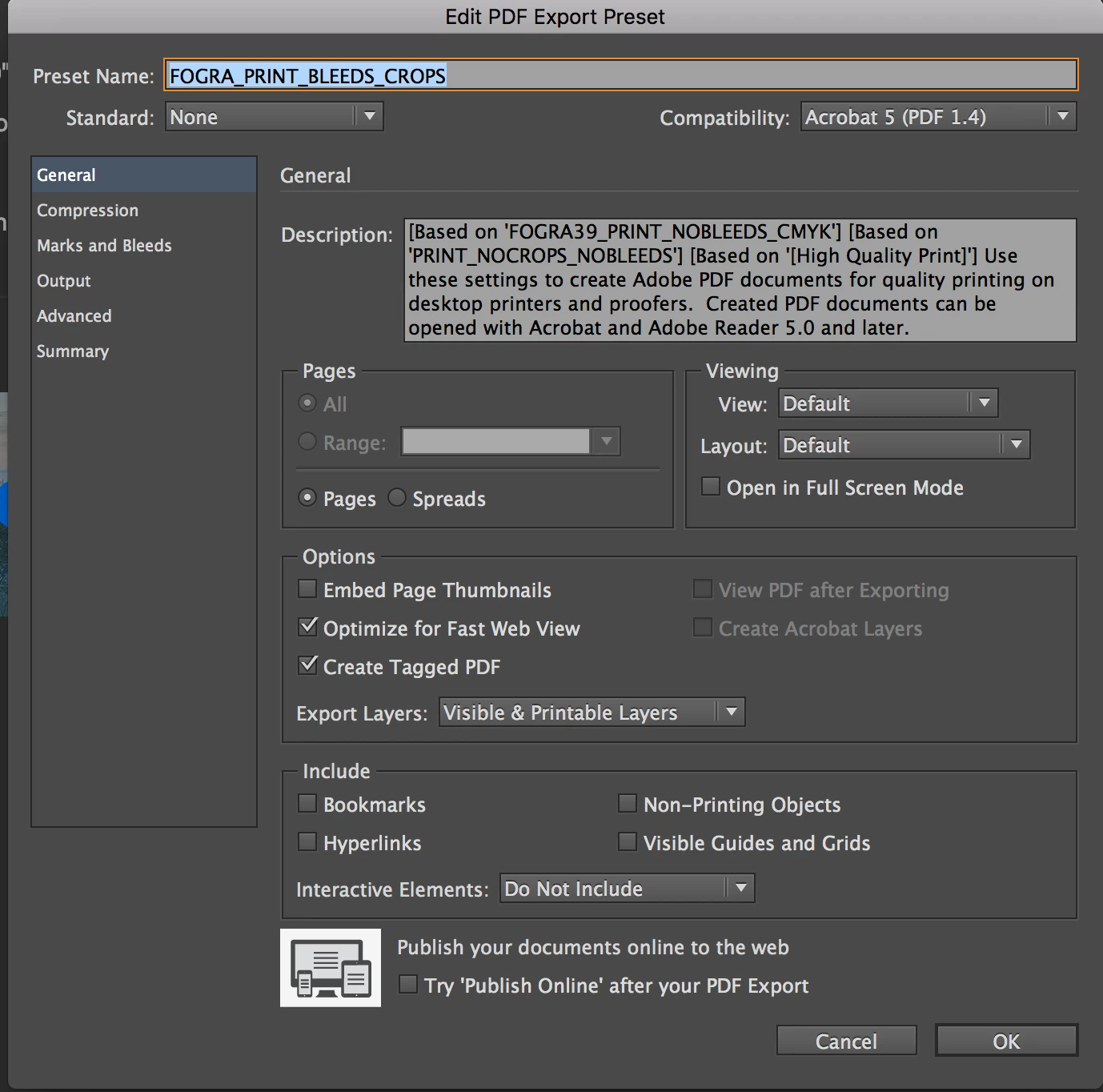

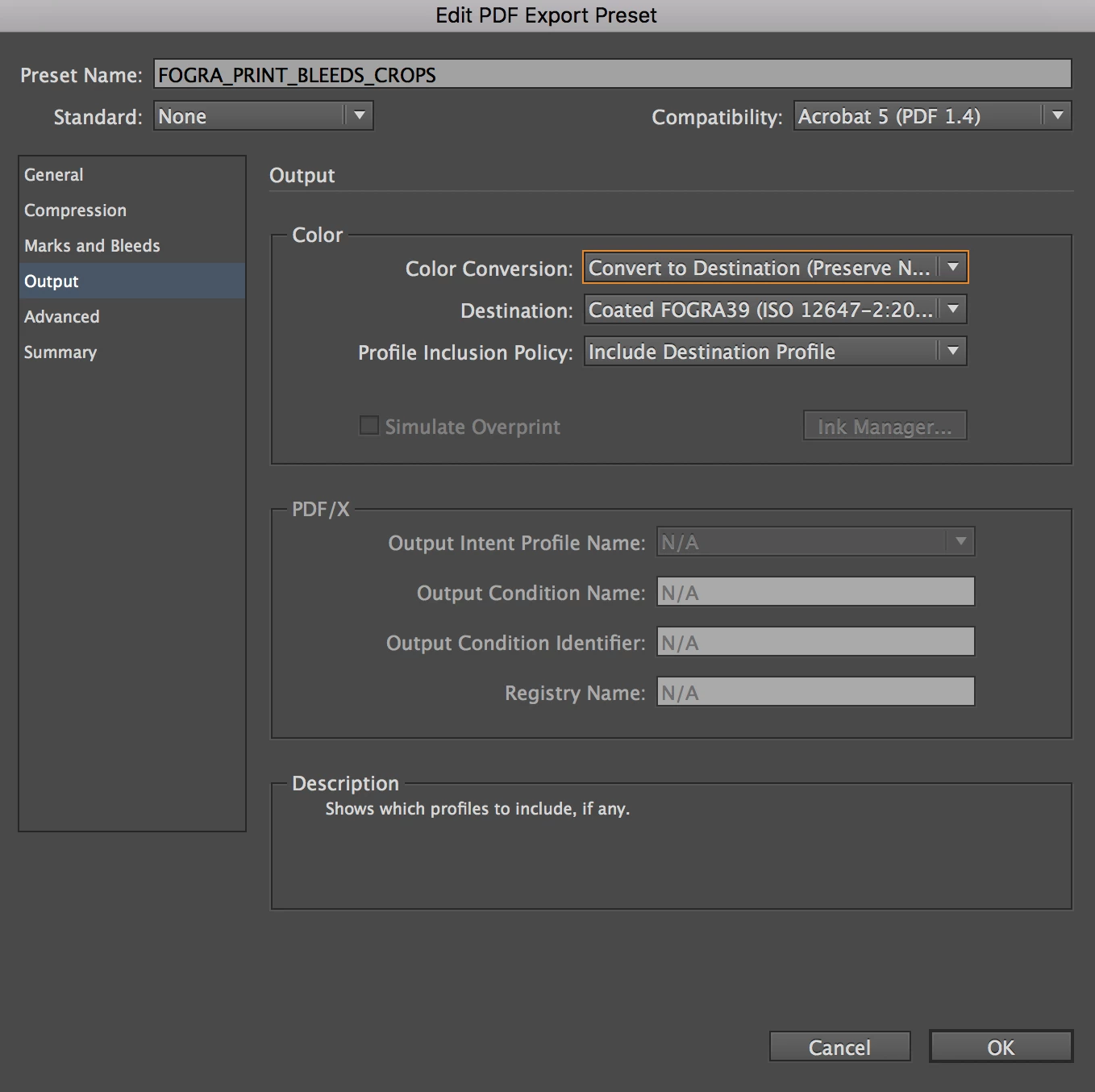

I've attached screenshots here

    This topic has been closed for replies.

    3 replies

    rob day
    Community Expert
    Community Expert
    July 21, 2017

    Also, because you are including the destination profile, the Simulation Profile or CM settings you choose in AcrobatPro will affect the separation numbers—I'm assuming you are checking the output numbers in Acrobat. Make sure Coated FOGRA39 is set as the Simulation profile.

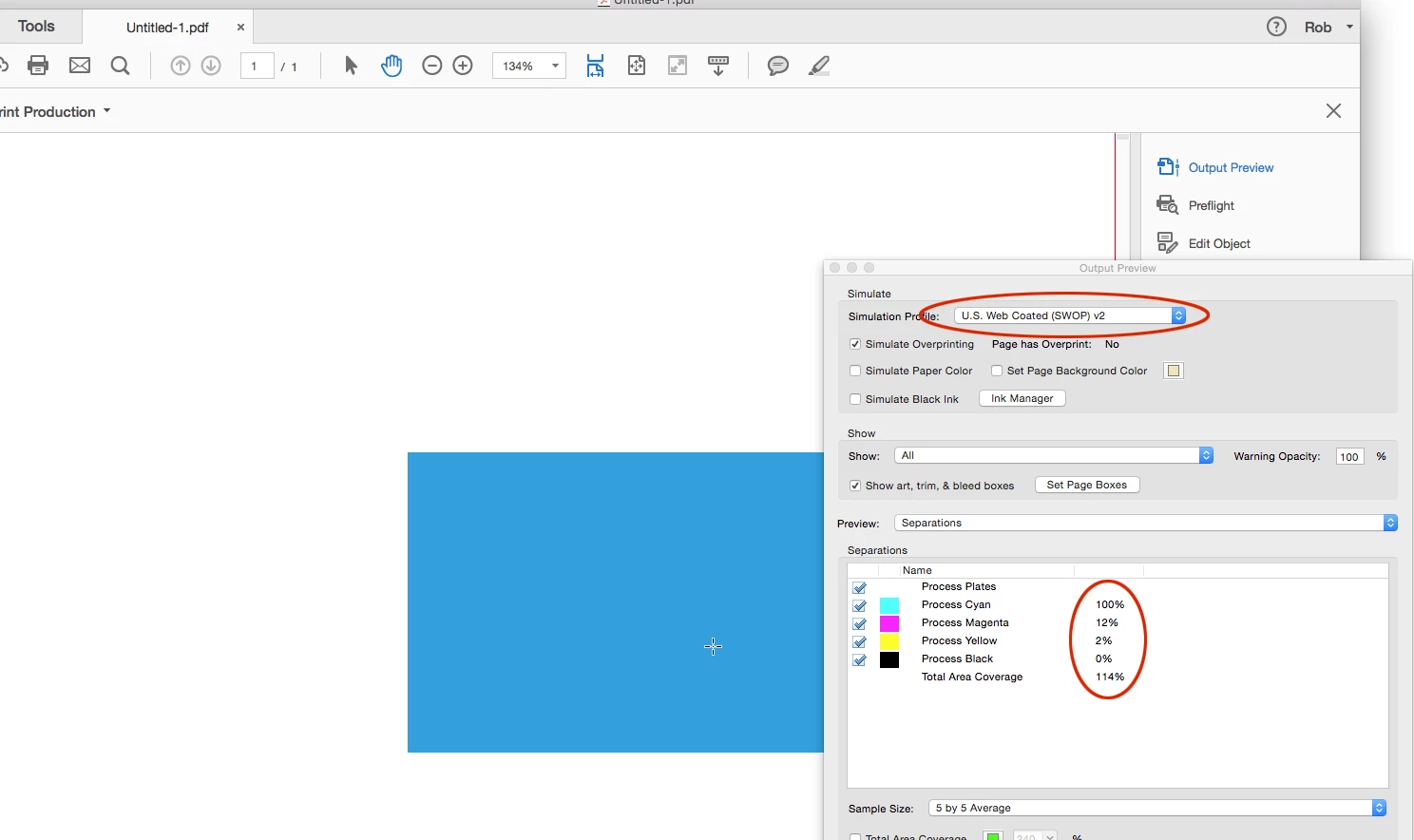

    Here's 100% Fogra39 cyan with US Web Coated SWOP set as the Simulation profile

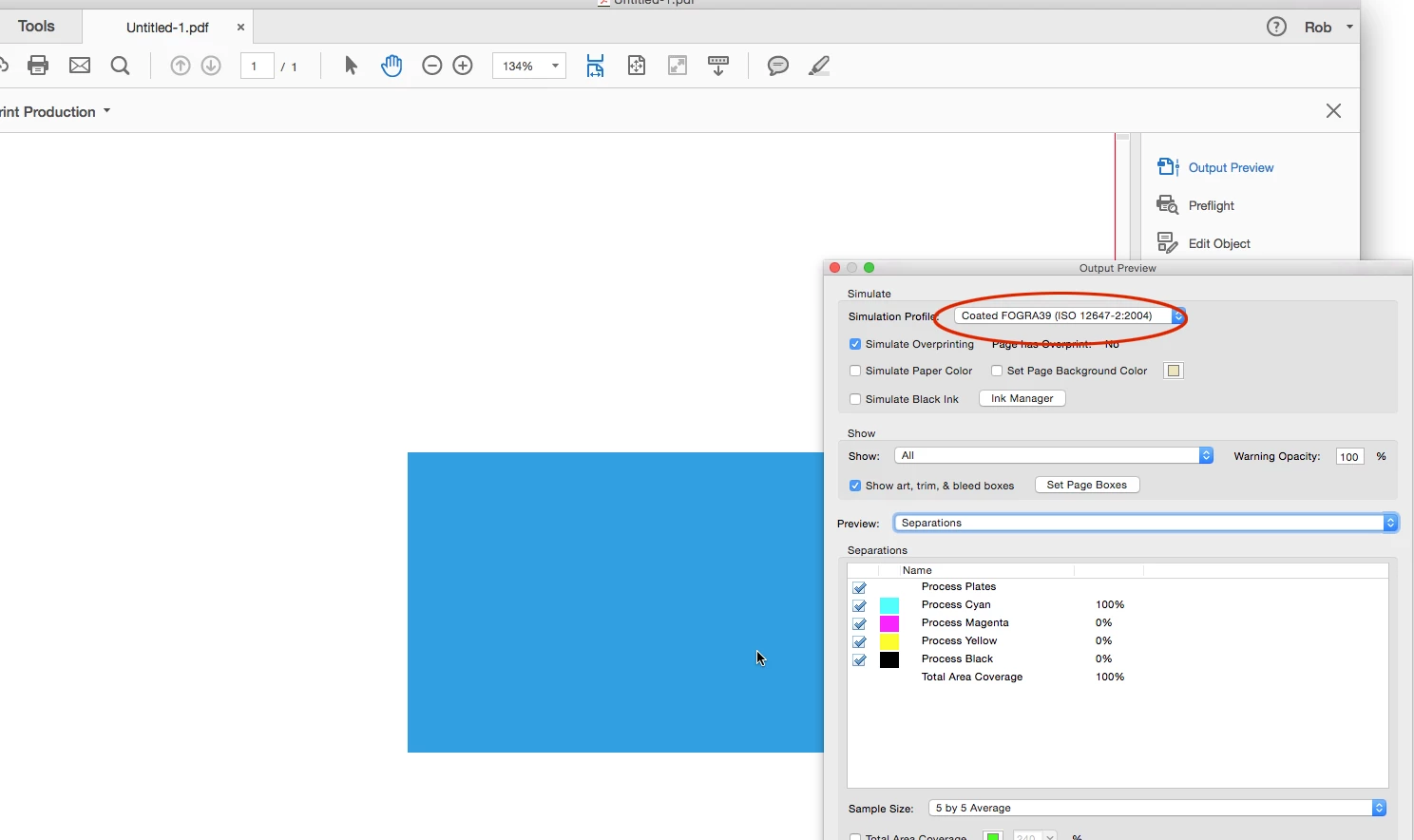

    With the Fogra39 the numbers are unchanged:

    rob day
    Community Expert
    Community Expert
    July 21, 2017

    One of our companies uses 100% Magenta in solid blocks, and although it's correct in the artwork, when output to PDF using this profile, there is other colours being added to the solid blocks of colour, like cyan.

    That could happen if your document's assigned CMYK profile is not also Coated FOGRA39. Check Edit>Assigned Profiles... and make sure the assignment is correct. Note that Color Settings doesn't necessarily show the document's profile Working CMYK and Document CMYK can be different—you want Document CMYK.

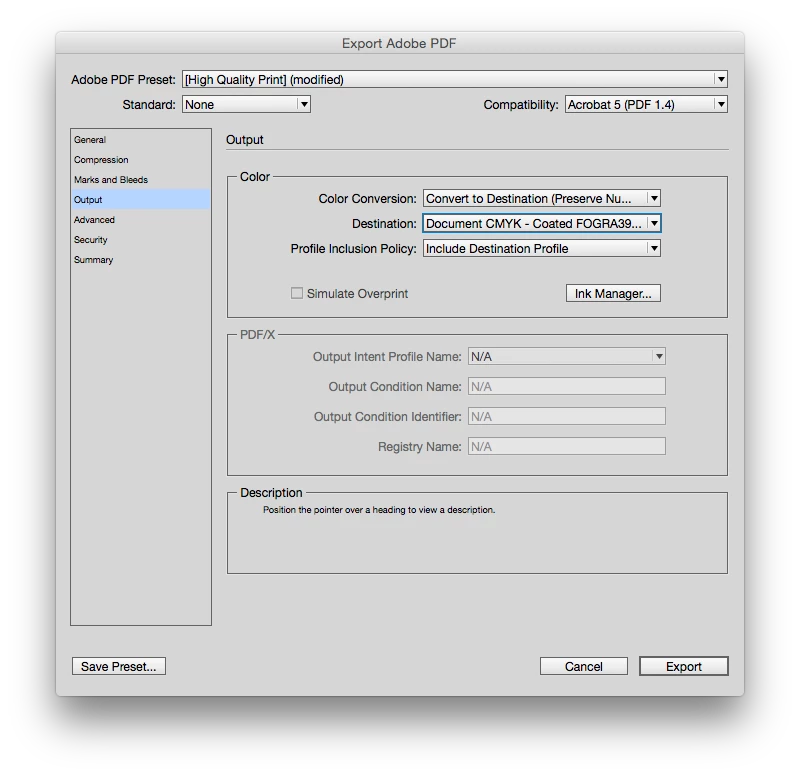

    Your destination should have the Document CMYK prefix like this:

    Legend
    July 21, 2017

    Thank you for the screen shots. They only show half of the story though. Please show:

    - your colour settings in InDesign

    - a screen shot showing how you see that the resulting colour has changed

    - the exact version number of all software involved.
