Frame Knockout/Mask

Forum|Forum|10 months ago
June 27, 2025
2 replies
443 views

So, I've created an inner stroke to frame an image but what I'd like is for this stroke to knock out the top image and allow an underlying image to show through - is this possible?

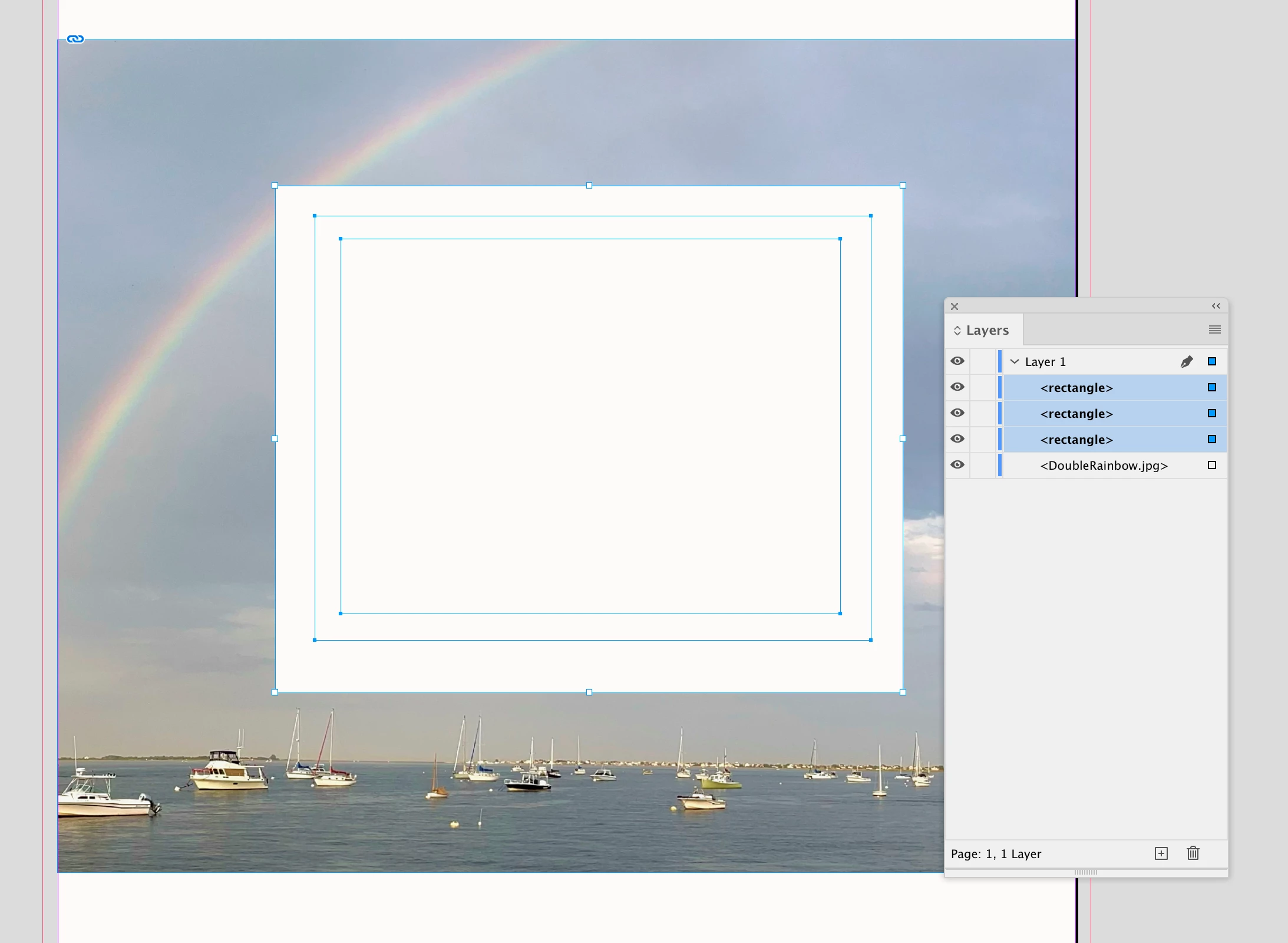

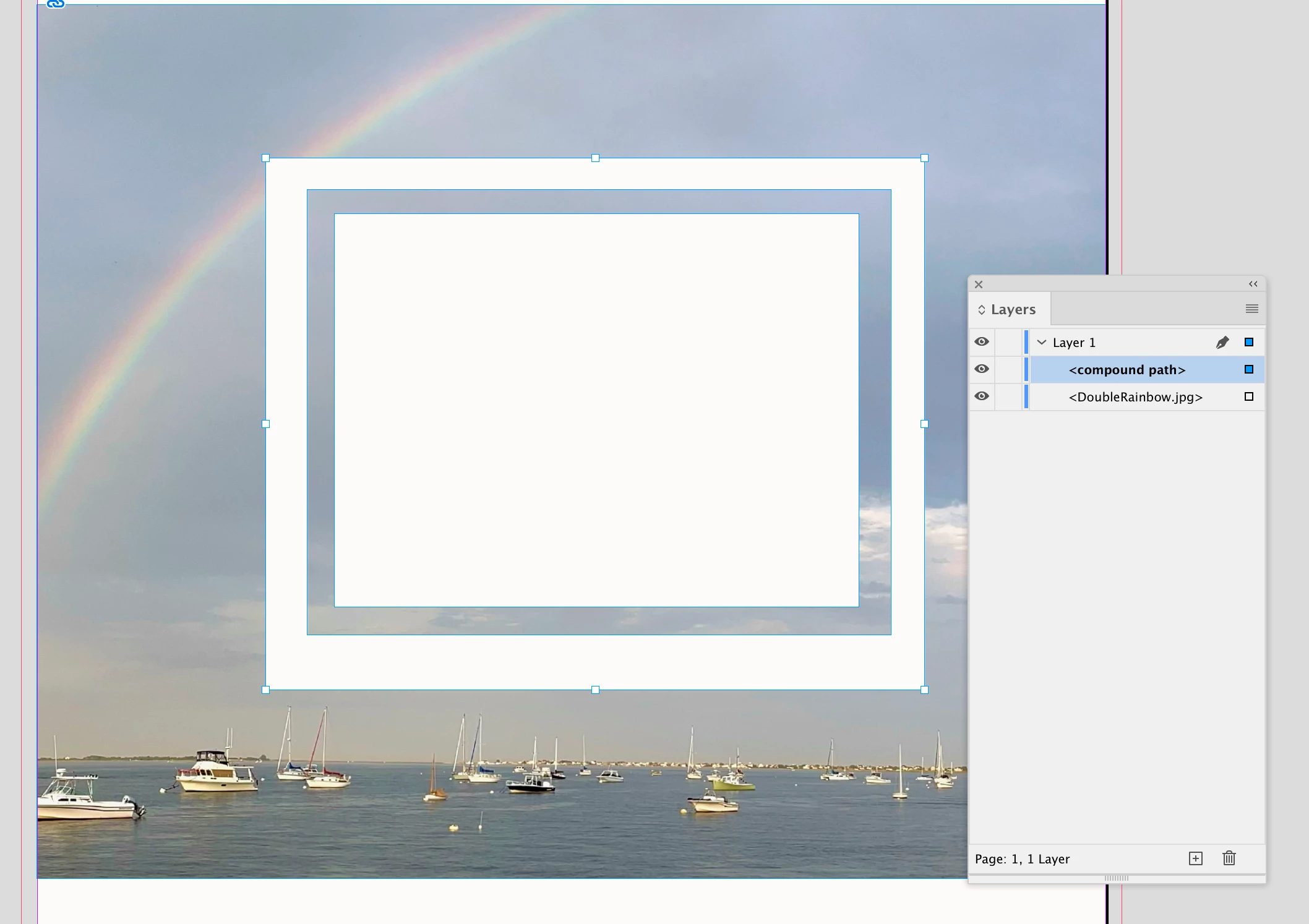

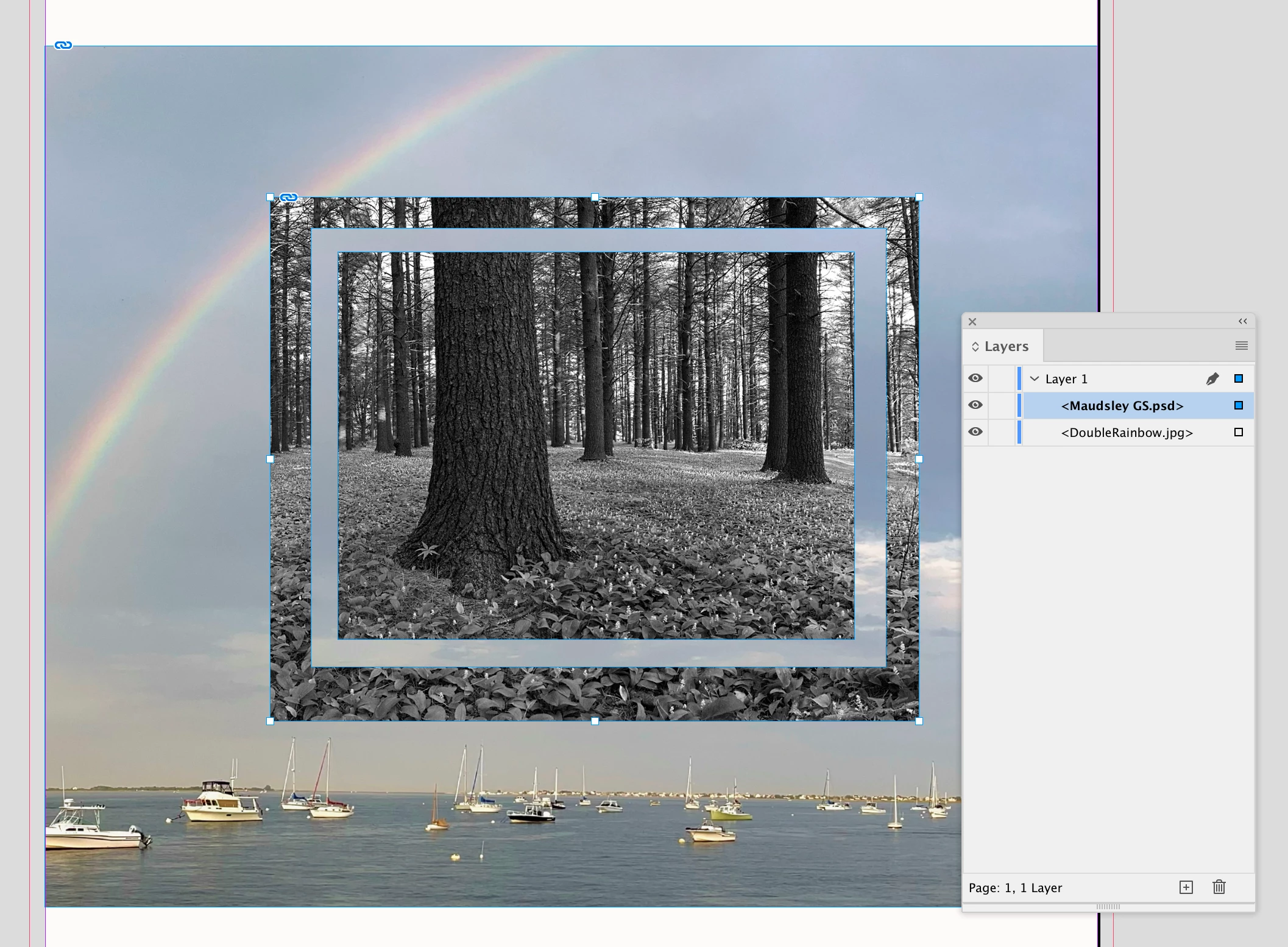

I've created this example by making a compound object and placing the underlying image into it to achieve the result, but I'd like to know if this same effect can be created by using an inner stroke and masking/knocking out the top image?

Feature request

E

Eugene Tyson

Community Expert

Not sure if this is what you mean

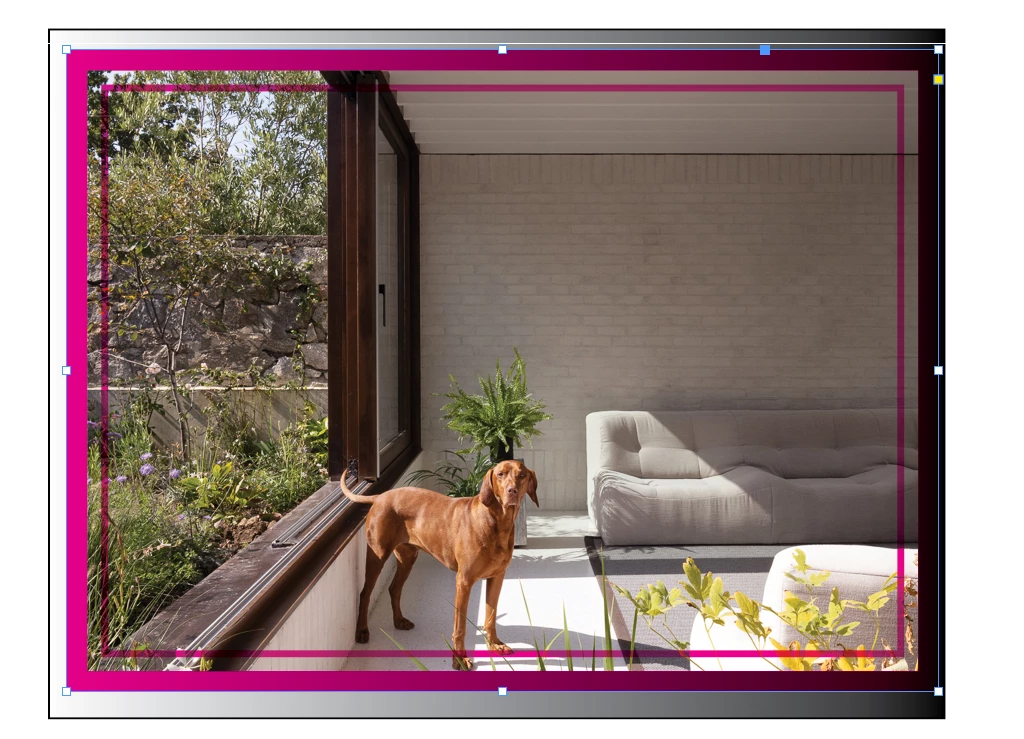

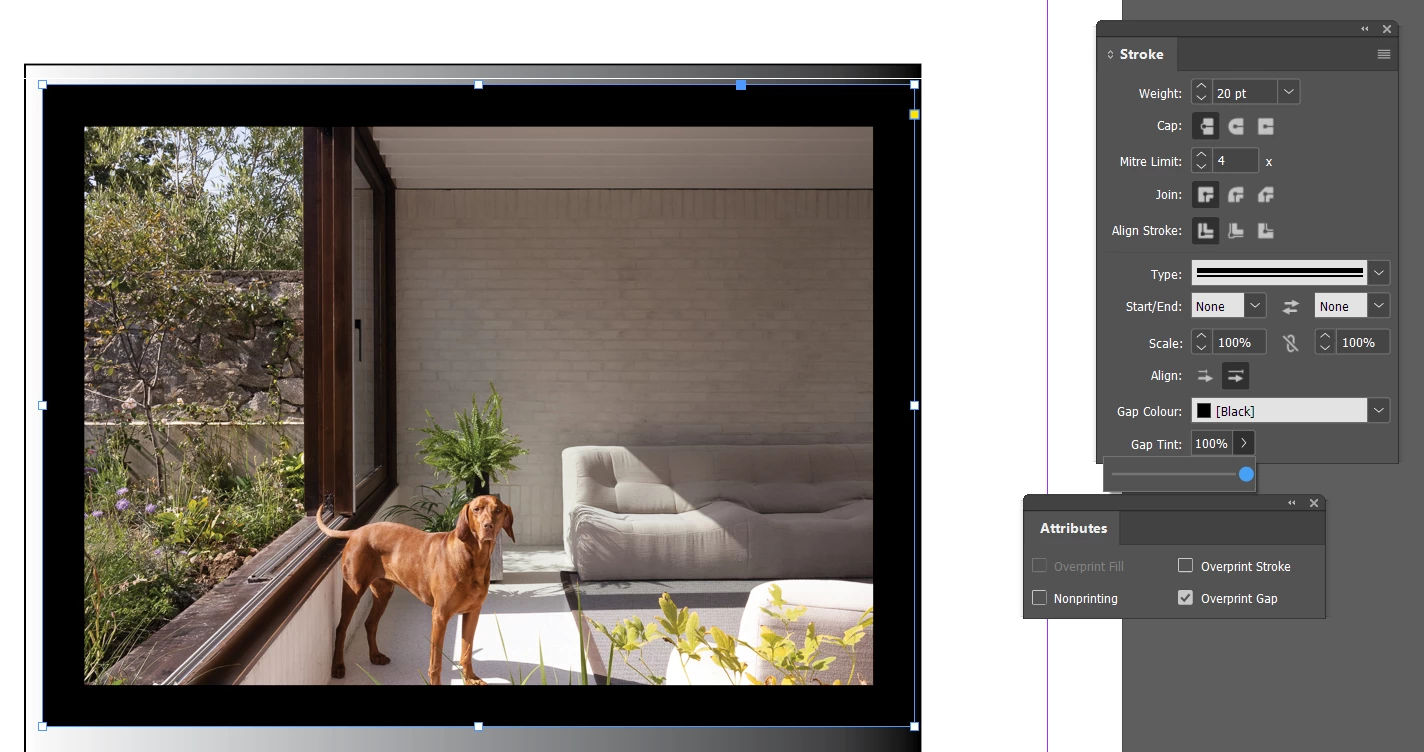

Here I set to 20pt stroke with Gap set to black too

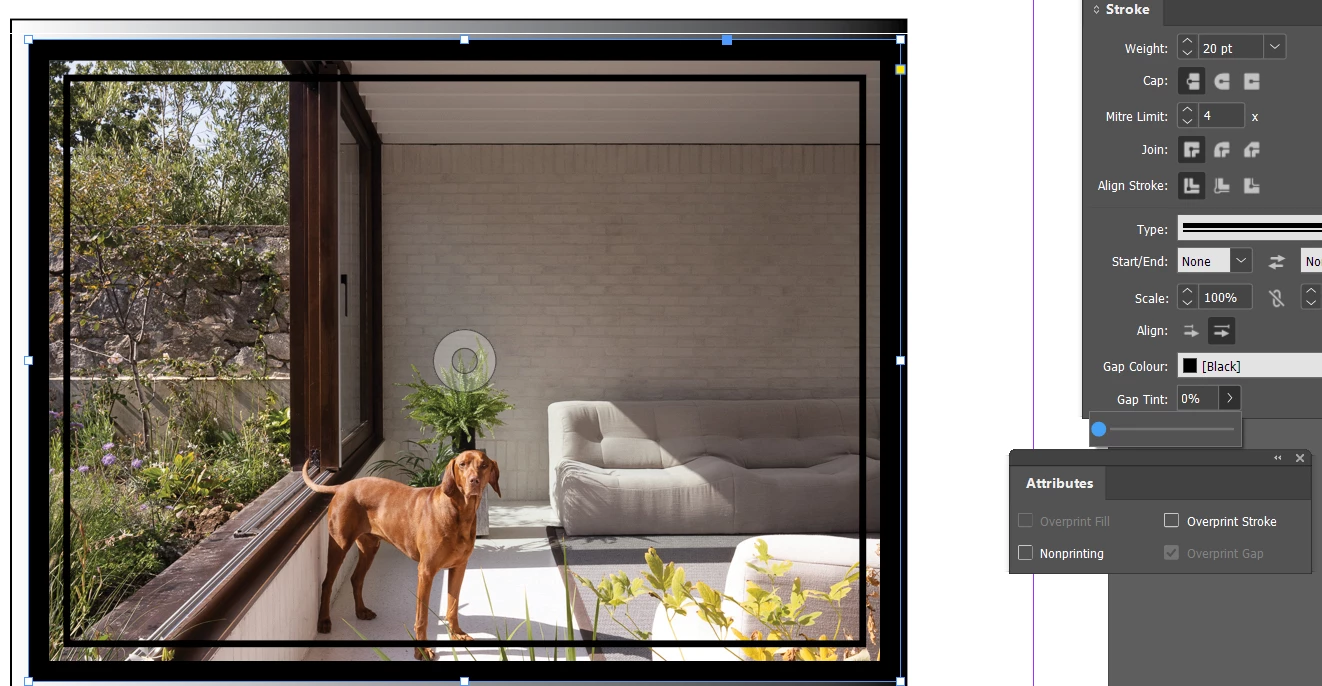

The with the Attributes Panel open - set the Overprint Gap to be ticked

Then reduce the tint to 0%

The overprint Gap gets greyed out for some reason

Of course not tested in real world production

But might work

Then changing to any colour works

G

Gavin31332558259uAuthor

Known Participant

Thanks Eugene
It's kind of what I want to achieve but in your example the inner stroke is overprinting the top image rather than knocking it out to allow the underlying fill/image to show through 100%

rob day

Community Expert

for this stroke to knock out the top image and allow an underlying image to show through - is this possible?

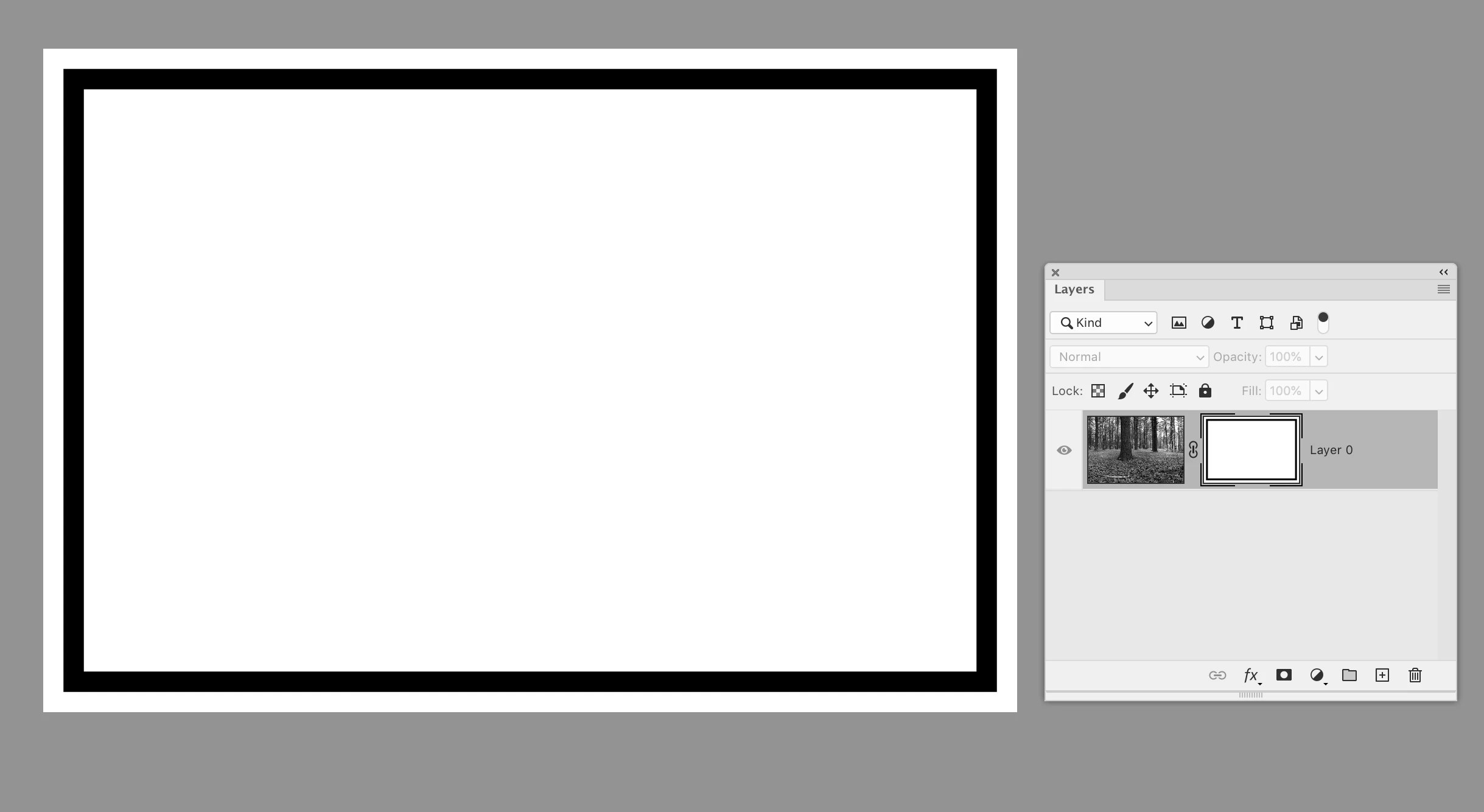

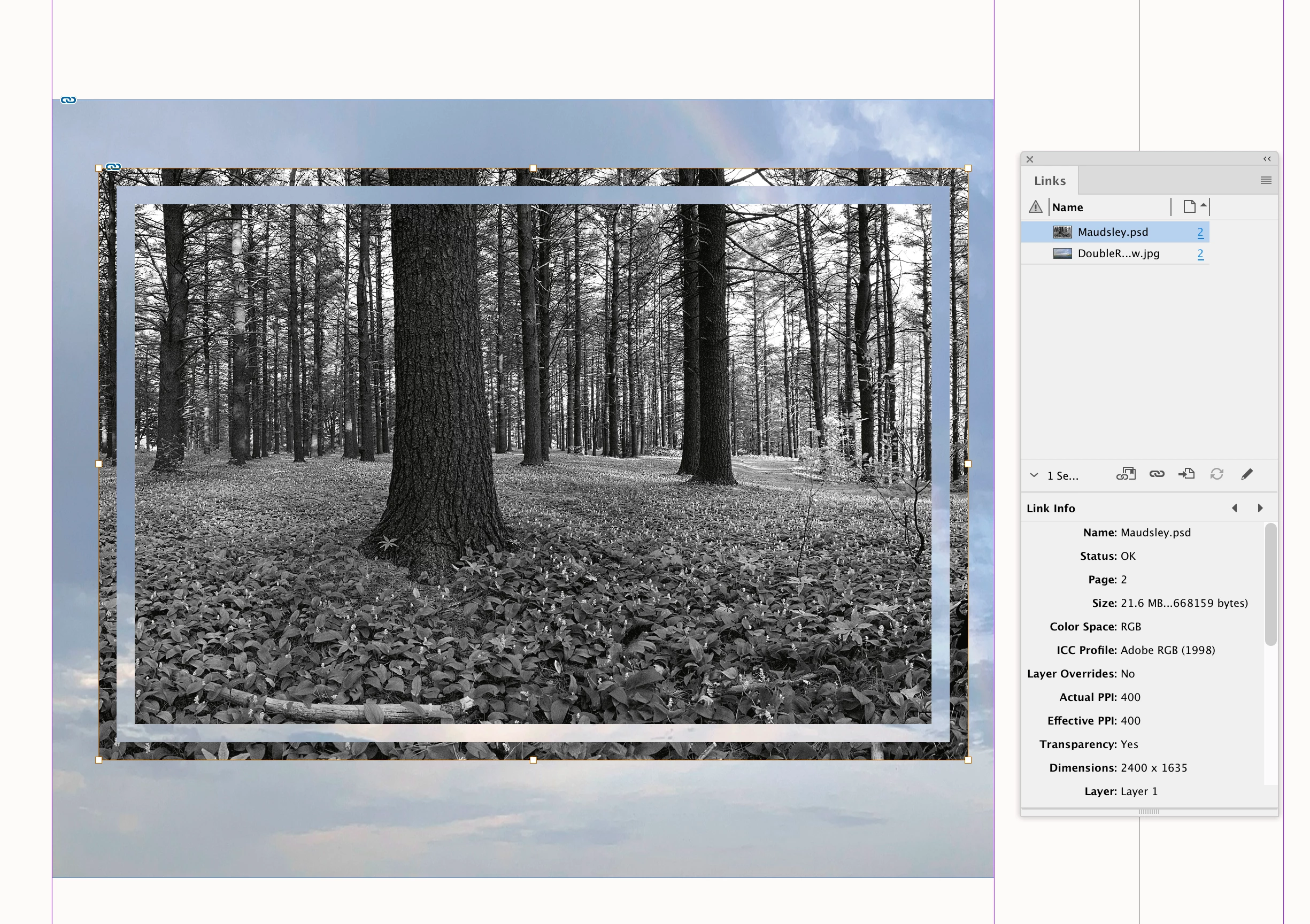

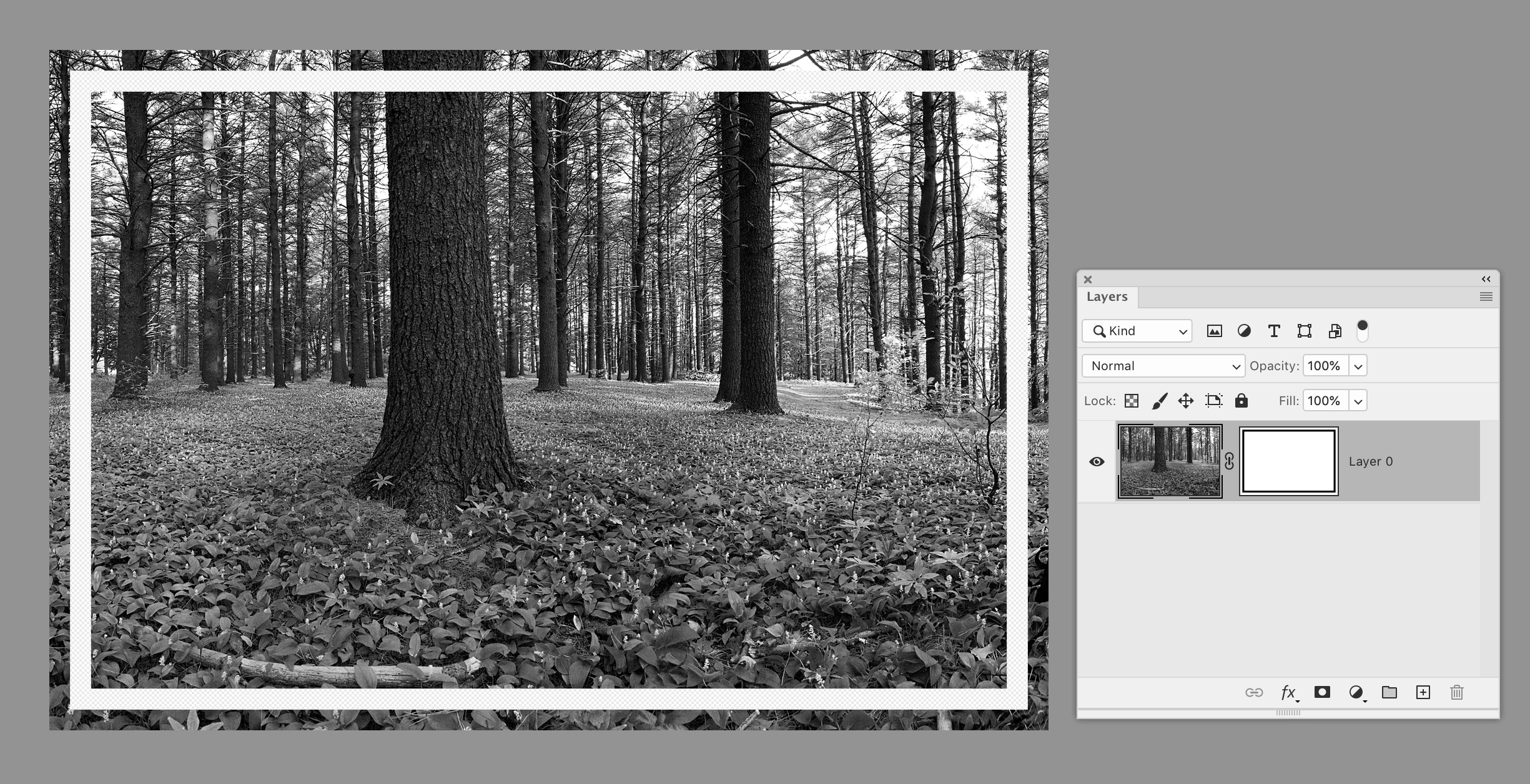

Hi @Gavin31332558259u , I don’t think so, maybe someone else will have an idea. Not sure if this is better than your compound object, but you could do it in Photoshop with a mask for the inner stroke:
