Getting started with InDesign Server

Forum|Forum|4 years ago
January 27, 2022
4 replies
1903 views

Dear forum,

I am trying to get myself rapidly acquainted with InDesign Server. I googled for info but couldn’t achieve what I want: to run a few sample scripts provided with Server SDK. Most of the info I found is outdated with links that are broken.

I realize that scripts for server are somewhat different: no Script UI, dialogs, selection, active document / book / script / spread / page, etc.

I read a couple of articles I found very useful for a noob like me: here and here

Here’s where I’ve got so far.

I downloaded the trial version, installed and activated the trial period.

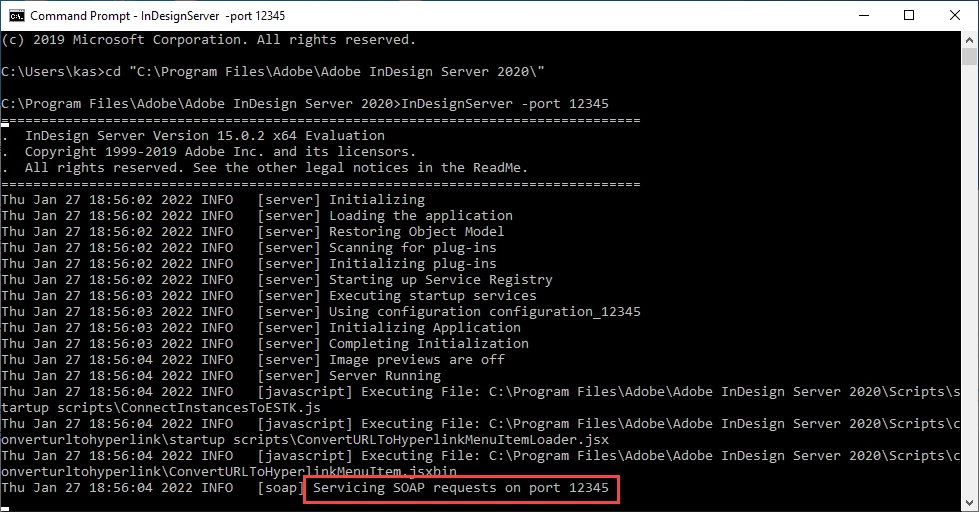

I started an instance of InDesign Server on a SOAP port from Command Prompt

cd "C:\Program Files\Adobe\Adobe InDesign Server 2020\"
InDesignServer -port 12345

And now I have it up and running:

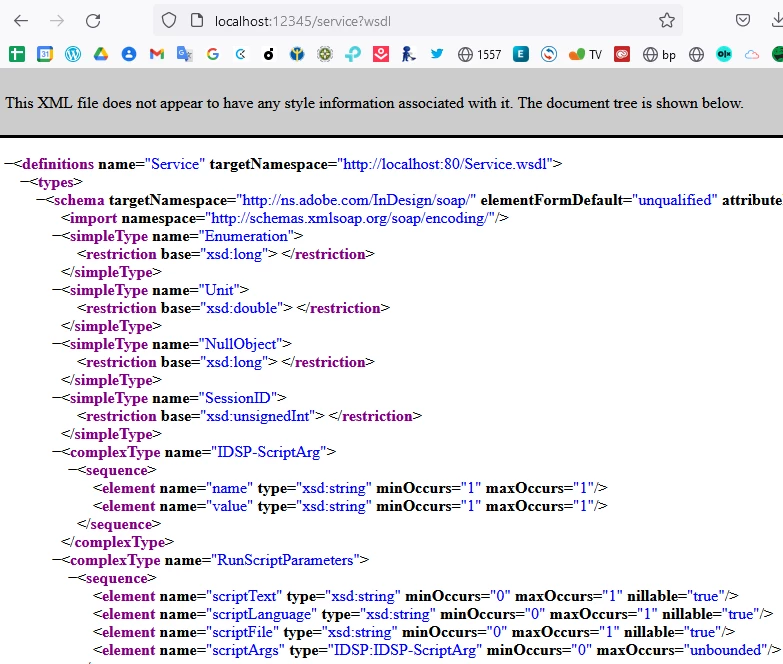

I navigated to http://localhost:12345/service?wsdl and IS responded to the SOAP request:

Then I go to ESTK and try to run the sample HelloWorld.jsx

But when I’m trying to target Adobe InDesign 2020, I get this message:

I click Yes. Then this dialog pop-ups forever and nothing happens:

I read about the sample client. Tried to run only the java version (because, as far as I understand, AIR application and Flash Builder aren’t supported anymore).

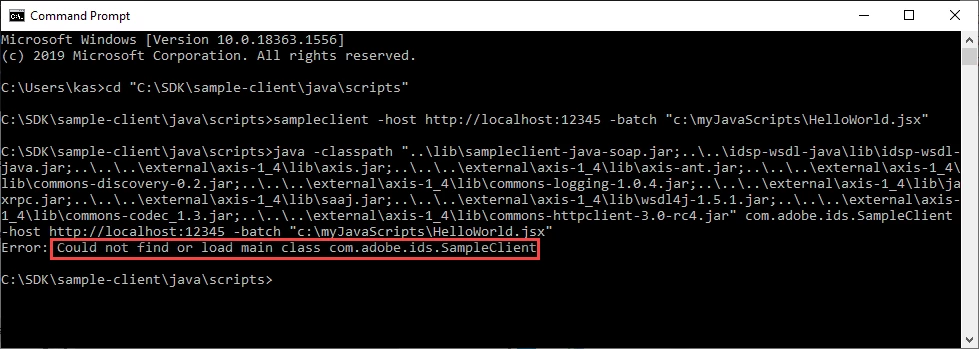

cd "C:\SDK\sample-client\java\scripts"
sampleclient -host http://localhost:12345 -batch "c:\myJavaScripts\HelloWorld.jsx"

This resulted in an error: Could not find or load main class com.adobe.ids.SampleClient

When I start IS with ‘InDesignServer’ command (no port), I get this message:

If no configuration name is given, "configuration_portnumber" is used; if no

port number is specified, "configuration_noport" is used. To use the Java API,

an iorfile must be specified. To use SOAP, a port must be specified.

Any ideas of what I’m doing wrong? Are there any settings I should set: edit a config file or something? All I want is to make a quick start: just to see how it works and test some scripts.

How is it controlled? There must be a console or something? How scripts are triggered (Obviously, there's no scripts panel folder)?

Is scripting experience enough to automate InDesign Server?

Could someone give me step-by-step instructions to make it work? (I am a noob in this!).

This topic has been closed for replies.

Kasyan ServetskyAuthor

Legend

I wonder where the tlb-file is?

From 'Intro to InDesign Server 2020.pdf' — pages 23-24:

To remain valid, the InDesign Server type library is created or updated on start-up and stored on the local hard drive. The resulting .tlb file is saved to the Application Data folder:
C:\ProgramData\Adobe\InDesign Server\<version>\<locale>\configuration_12345\ScriptingSupport\<version>\Resources for Visual Basic.tlb

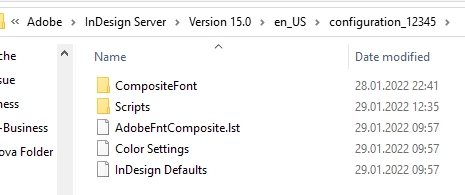

But there's no Scripting Support folder:

I see IDS in the list, but the library won't load:

Kasyan ServetskyAuthor

Legend

Found it here:

C:\ProgramData\Adobe\InDesign Server\Version 15.0\en_US\configuration_12345\Scripting Support\15.0\Resources for Visual Basic.tlb

But it trows another error:

SumitKumar

Inspiring

Dear Kas,

I am not aware of it so can not comment on this.

-Sumit

Kasyan ServetskyAuthor

Legend

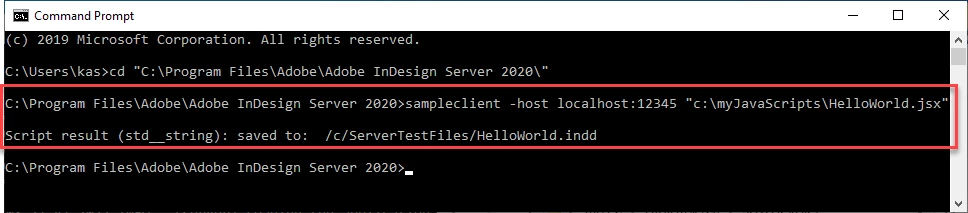

Now I can run the scripts both from ESTK and command prompt:

Thank you, guys!

The only thing I am afraid of now: what if it stops working after restart?

M

Manan Joshi

Community Expert

Hi @Kasyan Servetsky,

I don't have access to WIN machine with IDS installed at the moment but if I remember correctly the path to the sampleclient application is not correct. Look for sampleclient inside the IDS installation directory. Something like the following

C:\Program Files\Adobe\Adobe InDesign Server 2020

And the command to run the script would be(I am not aware of the -batch argument)

sampleclient -host localhost:12345 yourScriptPath

Regarding debugging using ESTK, look for the entry with your SOAP port listed. Using the Adobe InDesign Server 2020 application does hang, I have faced this as well. If you don't see the entry with port in the target then try to execute a script with a $.writeln call using sampleclient that should hopefully sort the issue.

Regarding what else is needed to start with IDS, I would say exeprience with InDesign scripting is more than enough to hit the ground running. You need to be aware of some API differences that you already have figured like using documents[0] instead of activeDocument etc. The best way forward could be to execute your existing scripts see where it fails and move it from there. With a couple of such iterations you will have the idea about the things you need to take care of.

-Manan
