Help with a script

  • August 21, 2023
  • 3 replies
  • 655 views

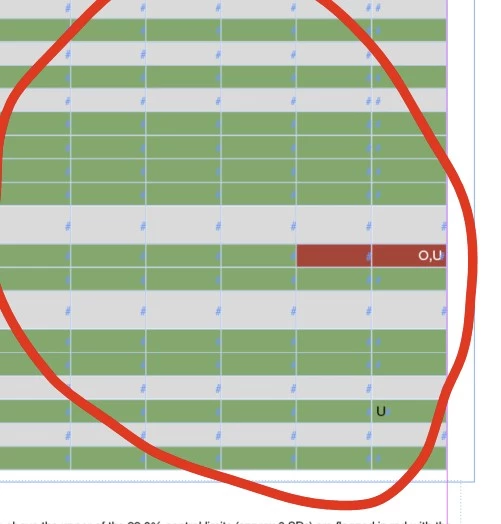

Hi, can you please help me? I need a script that can detect when the cells in a table have content, if they have content the font inside the cell should be changed to white bold and the colour to red (specific tint that I can add later). If the cell doesn't have any content it should be coloured green (again on a specific tint I have).





    This topic has been closed for replies.

    3 replies

    Peter Kahrel
    Community Expert
    Peter KahrelCommunity Expert
    Community Expert
    August 22, 2023

    And another tip for you, @Eugene Tyson -- you can grab all the table's cells in one go, no need to go through the rows:



    var doc = app.activeDocument;
var cells = doc.selection[0].cells.everyItem().getElements();



    Note the use of everyItem().getElements(). When you iterate over "doc.selection[0].cells", you refer to a collection of the cells and recreate the collection in each iteration. When you use "doc.selection[0].everyItem().getElements()" you create an array of cells, which is a one-off.



    You should almost always avoid processing a collection, and convert the collection into an array. In a big table the difference can be quite dramatic.

      Robert at ID-Tasker
      Robert at ID-Tasker
      Legend
      August 22, 2023

      And as an additional benefit - this will return ONLY selected Cells - not the whole table.



        E
        Community Expert
        Eugene TysonCommunity Expert
        Community Expert
        August 21, 2023

        I'm not a great scripter - but I am trying

        I can get so far and just giving up now

        This creates the tint swatch - but duplicates the black swatch for me - and I can't fix it

        And I can't get the white text - no matter if I try white, paper or [paper]



        var doc = app.activeDocument;

var table = doc.selection[0];


var redColor = doc.colors.add({space: ColorSpace.RGB, colorValue: [255, 0, 0]});
var greenColor = doc.colors.add({space: ColorSpace.RGB, colorValue: [0, 255, 0]});
var whiteColor = doc.swatches.item("[Paper]"); // Use the [Paper] swatch for white


var boldCharacterStyle = doc.characterStyles.item("BoldStyle");
if (!boldCharacterStyle.isValid) {
    boldCharacterStyle = doc.characterStyles.add({name: "BoldStyle"});
    boldCharacterStyle.fontStyle = "Bold"; // Set the style to Bold
}


for (var r = 0; r < table.rows.length; r++) {
    var row = table.rows[r];


    for (var c = 0; c < row.cells.length; c++) {
        var cell = row.cells[c];
        var cellTexts = cell.texts; // Get all Text objects in the cell

        if (cellTexts.length > 0) {
            var cellText = cellTexts[0].contents;


            if (cellText !== "") {
                cell.fillColor = redColor;
                cellTexts[0].fillColor = [paper]Color;


                cellTexts[0].applyCharacterStyle(boldCharacterStyle);
            } else {
                cell.fillColor = greenColor;
            }
        } else {

            cell.fillColor = greenColor;
        }
    }
}
          M
          Community Expert
          Manan JoshiCommunity Expert
          Community Expert
          August 22, 2023

          Hi @Eugene Tyson,

          I did not understand the duplicate issue that you mentioned. The only thing I could reproduce is that if you execute the script while the Black color is selected in the swatches panel then the color that the script creates is named Back Copy etc, is this what you are referring to? If so then it can be resolved by setting the name of the created colors explicitly



          var redColor = doc.colors.add({space: ColorSpace.RGB, colorValue: [255, 0, 0], name:"Red"});
var greenColor = doc.colors.add({space: ColorSpace.RGB, colorValue: [0, 255, 0], name:"Green"});



          For the While color you should use the method itemByName and the color name would be Paper. Try the following



          var whiteColor = doc.swatches.itemByName("Paper"); // Use the [Paper] swatch for white



          The other issue in the code is the following



          cellTexts[0].fillColor = [paper]Color;
It should be
cellTexts[0].fillColor = whiteColor;



          Also, do note that its a good practice to check for the existence of the color before creating it else the script would crash if you try to create the same color again. So this script would crash on color creation if you run it twice on the same document,

          Let me know if this resolves all the issues.

          -Manan



          -Manan
          E
          Community Expert
          Eugene TysonCommunity Expert
          Community Expert
          August 22, 2023

          Thank you for the pointers



          I've made edits - and it might be the best written script - it seems to work



          var doc = app.activeDocument;
var table = doc.selection[0];

// Check for "Red" swatch
var redColor = doc.colors.itemByName("Red");
if (!redColor.isValid) {
    redColor = doc.colors.add({space: ColorSpace.RGB, colorValue: [255, 0, 0], name: "Red"});
}

// Check for "Green" swatch
var greenColor = doc.colors.itemByName("Green");
if (!greenColor.isValid) {
    greenColor = doc.colors.add({space: ColorSpace.RGB, colorValue: [0, 255, 0], name: "Green"});
}

// Paper swatch exists
var whiteColor = doc.swatches.itemByName("Paper");
if (!whiteColor.isValid) {
    whiteColor = doc.swatches.add({name: "Paper"});
}

var boldCharacterStyle = doc.characterStyles.item("BoldStyle");
if (!boldCharacterStyle.isValid) {
    boldCharacterStyle = doc.characterStyles.add({name: "BoldStyle"});
    boldCharacterStyle.fontStyle = "Bold"; // Set the style to Bold
}

for (var r = 0; r < table.rows.length; r++) {
    var row = table.rows[r];

    for (var c = 0; c < row.cells.length; c++) {
        var cell = row.cells[c];
        var cellTexts = cell.texts; // Get all Text objects in the cell

        if (cellTexts.length > 0) {
            var cellText = cellTexts[0].contents;

            if (cellText !== "") {
                cell.fillColor = redColor;
                cellTexts[0].fillColor = whiteColor;

                cellTexts[0].applyCharacterStyle(boldCharacterStyle);
            } else {
                cell.fillColor = greenColor;
            }
        } else {
            cell.fillColor = greenColor;
        }
    }
}
          Robert at ID-Tasker
          Robert at ID-Tasker
          Legend
          August 21, 2023

          If you work on a PC - you don't need a dedicated script, you could use free version of my ID-Tasker and with few simple Rules build a Task that will do it for you. Then you can easily modify those Rules to get a different result.

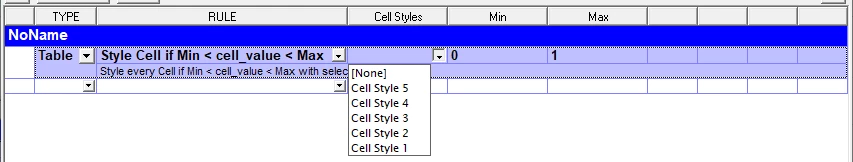

          In fact, you would need only one Rule:



          There are also different rules if you want to process only specific Range of Cells, Rows or Columns.



            Robert at ID-Tasker
            Robert at ID-Tasker
            Legend
            August 21, 2023

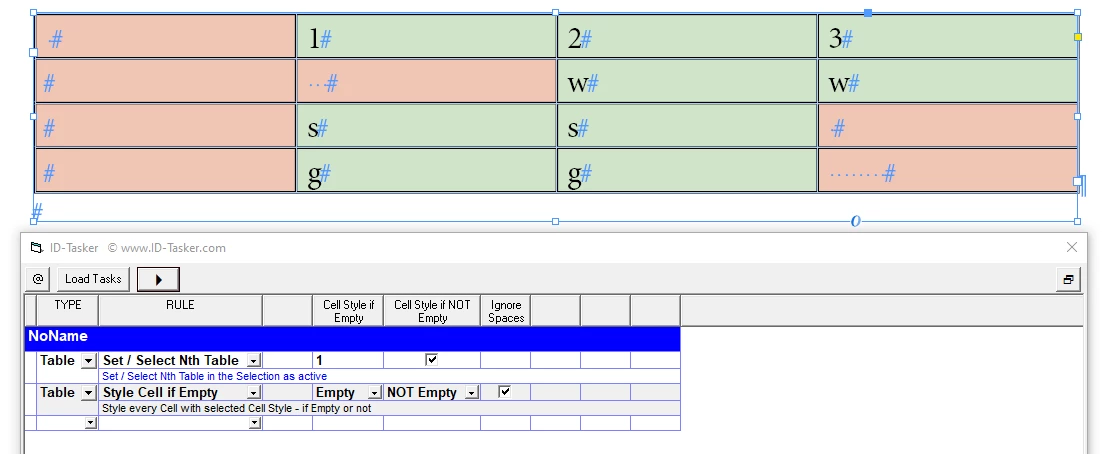

            Fresh of the press - and still free:



            First Rule is to let ID-Tasker know which Table should be processed - it checks what is selected and is pretty flexible.

            Of course you can select "empty" Style on the list - if Cells should't be styled / modified.
