Help with bleed issue please

  • November 4, 2024
  • 2 replies
  • 707 views

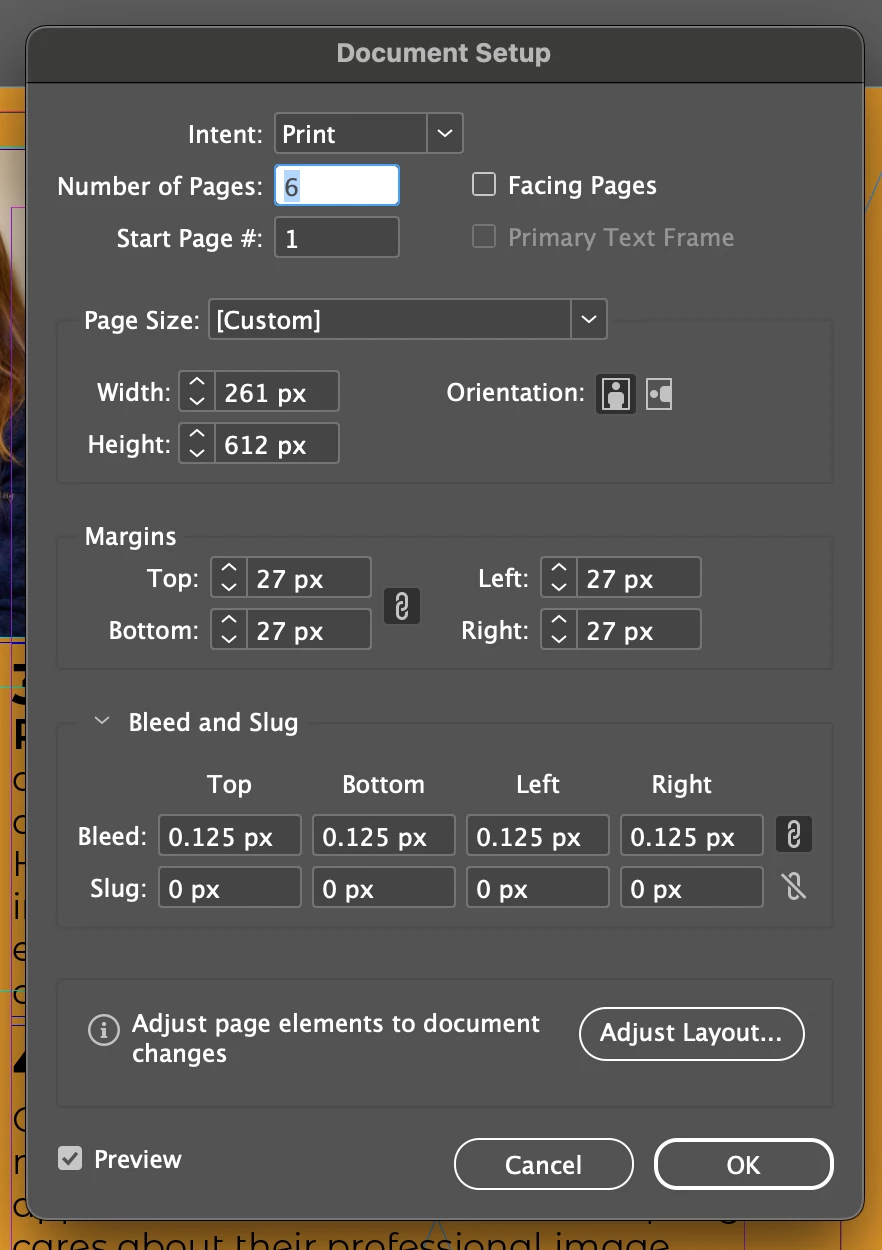

I have a brochure set to a .125 px bleed.

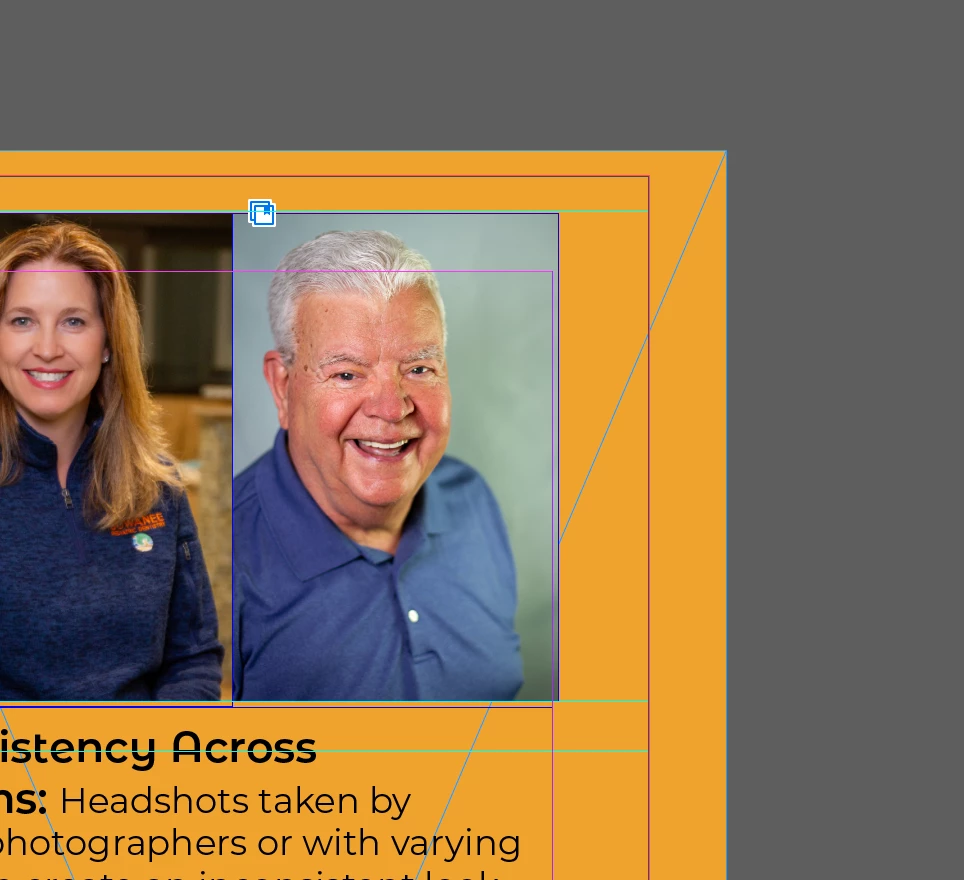

I have my backgrounds expanded past the bleed area.

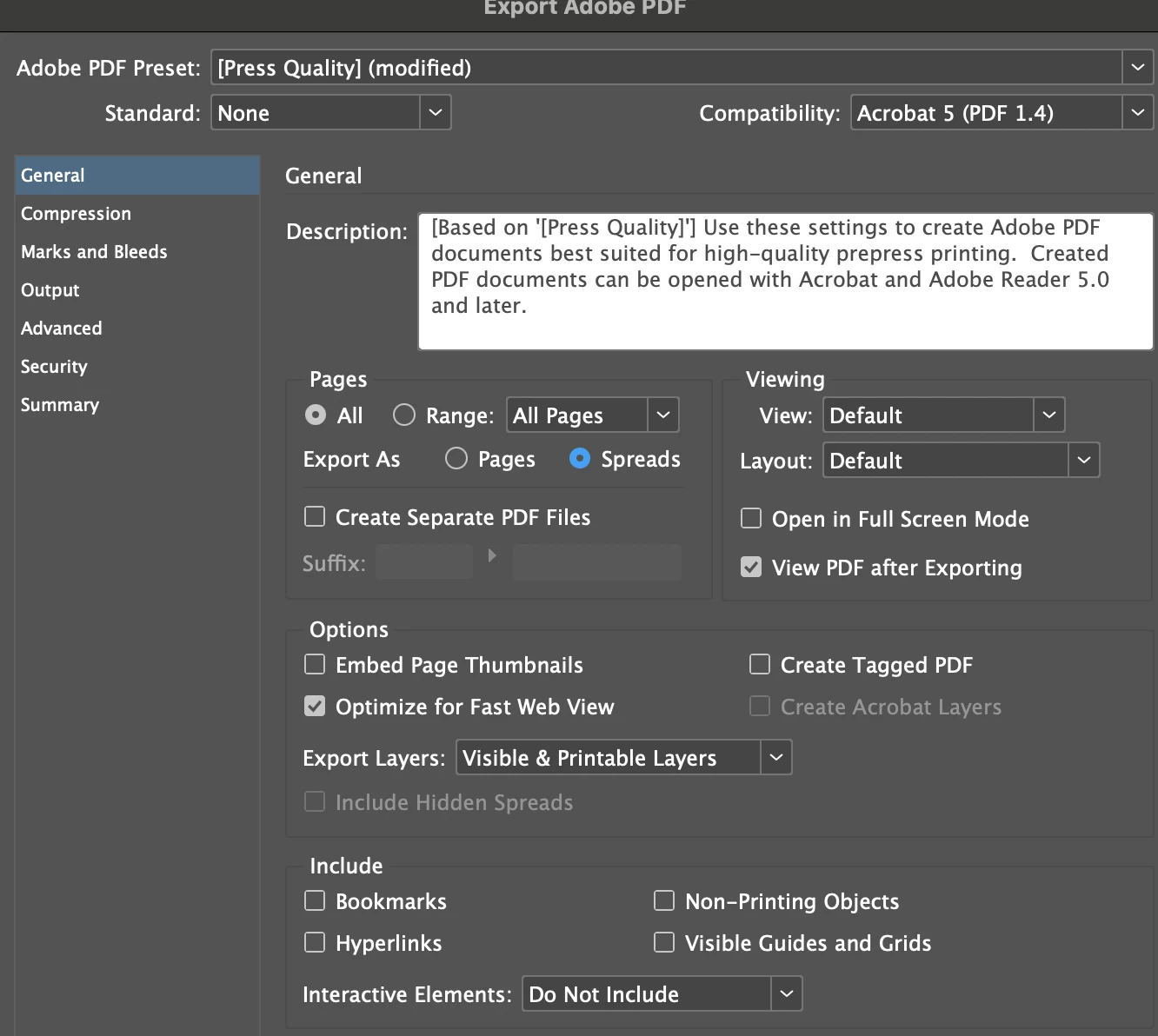

I export to press quality.

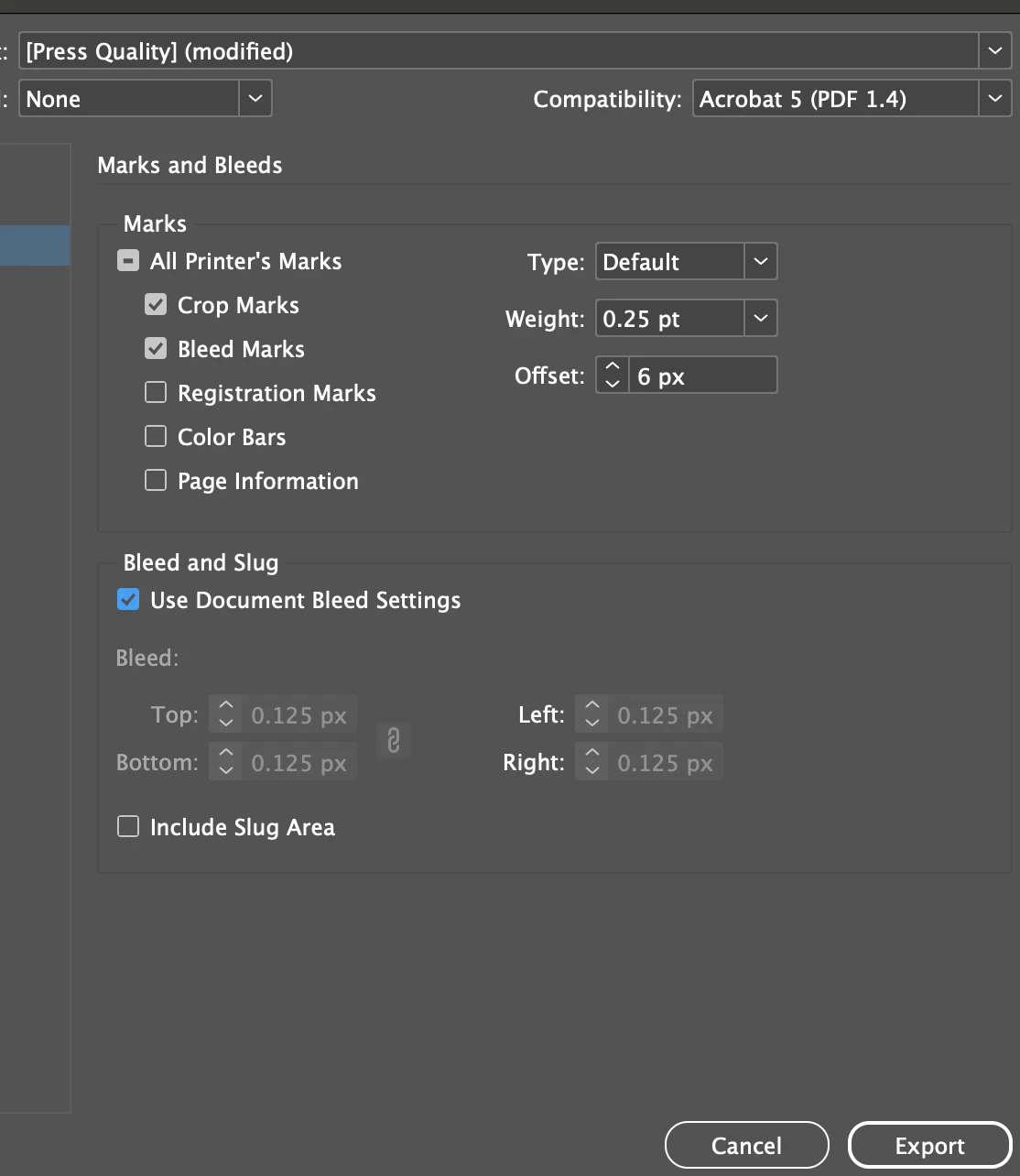

I choose use doc bleed settings and trim marks.

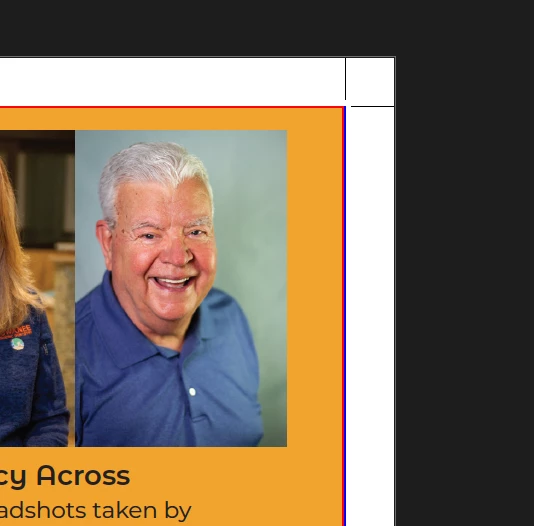

When exported and opened back up in Adobe Pro, NO BLEED BACKGROUNDS ARE SHOWING!!!

Images attached: Thanks in advance for any help. I have to get this printed!

This topic has been closed for replies.
Correct answer James Gifford—NitroPress

You're working in pixels. There is essentially no such thing as a 1/8-pixel element.



Don't work in pixel mode in InDesign. It's a very poor tool for things like web banners and the like. And since you're working for print... it's completely the wrong measurement system. Switch to inches or millimeters (or the pro choice, pica/points).

2 replies

Z
Zealous_work5E55
Inspiring
November 4, 2024

Why did you design in pixels? Do you need bleed for a pixel based doc? (I'm thinking screen intended viewing.)

Stop and think about how much area is .125 pixels. It's a non real number; less than one pixel. ID should have alerted and not even exported imo.

    James Gifford—NitroPress
    James Gifford—NitroPressCorrect answer
    Legend
    November 4, 2024

    You're working in pixels. There is essentially no such thing as a 1/8-pixel element.



    Don't work in pixel mode in InDesign. It's a very poor tool for things like web banners and the like. And since you're working for print... it's completely the wrong measurement system. Switch to inches or millimeters (or the pro choice, pica/points).

      Dazzling_user15D5
      Dazzling_user15D5Author
      Known Participant
      November 4, 2024

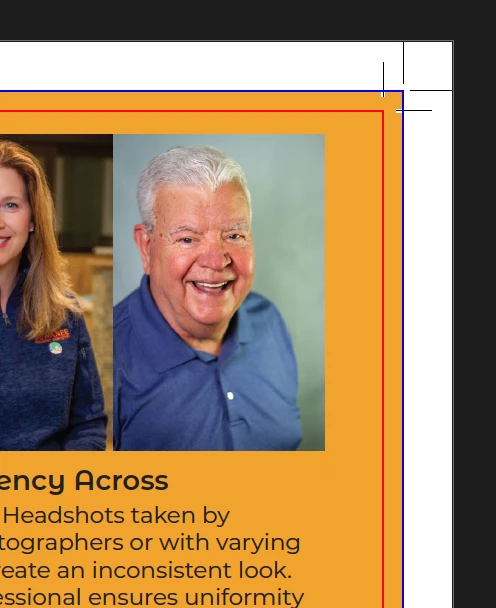

      That did it! I adjusted everything to inches, readjusted all the background color rectangles and resaved it. Now I am getting the marks I expected to see. I think when I started this project, I just opened it and started designing and never really set it up well. Thank you!
