How do I display variable values in the panel?

  • March 25, 2026
  • 2 replies
  • 71 views

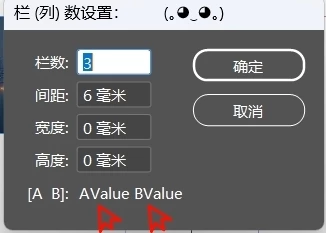

I'm trying to display the values of A and B at the bottom of the panel as a hint.
AValue and BValue are the variables being read.

This is how it currently looks; how can I modify it to display the variable values?

Thanks.

    with (theDialog.dialogColumns.add()) {
        staticTexts.add({ staticLabel: "[A  B]:" });
    }
    with (theDialog.dialogColumns.add()) {

        staticTexts.add({ staticLabel: 'AValue BValue' });
    }



    2 replies

    rob day
    Community Expert
    rob dayCommunity Expert
    Community Expert
    March 25, 2026

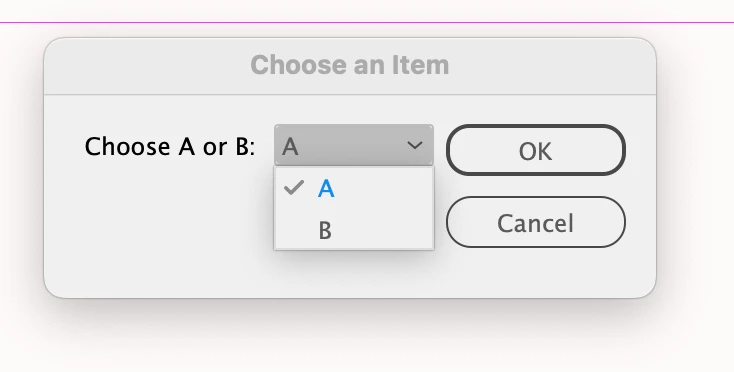

    Hi ​@dublove , If you are using the built in dialog class you can use dropdowns.add():



    makeDialog();

    var dd;
    function makeDialog(){
        //the list to display (an array of strings)
        var dlist = ["A", "B"]

        var theDialog = app.dialogs.add({name:"Choose an Item", canCancel:true});
        with(theDialog){
            with(dialogColumns.add()){
                    with(dialogColumns.add()){
                        //the lists lable
                        staticTexts.add({staticLabel:"Choose A or B: "});
                    }
                    with(dialogColumns.add()){
                        //the dropdown
                        dd = dropdowns.add({stringList:dlist, selectedIndex:0, minWidth:80});
                    }
            }
        }
        if(theDialog.show() == true){
            //the selected item
            dd = dlist[dd.selectedIndex]
            main();
            theDialog.destroy();
    	}
    }


    function main(){

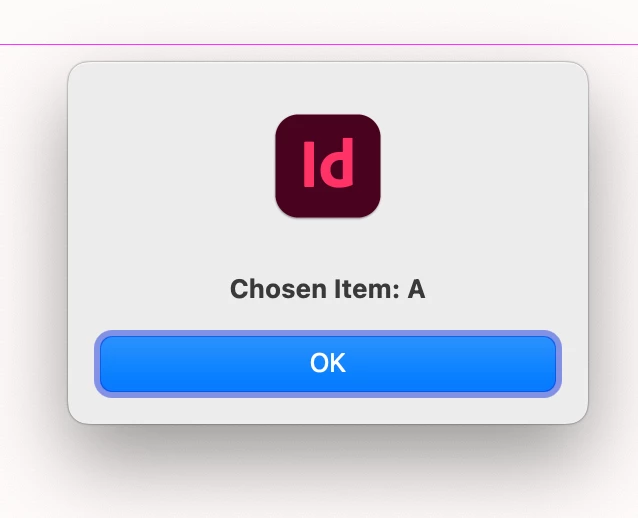

        alert("Chosen Item: " + dd);
        //Do something with the result
    }







      dublove
      dubloveAuthor
      Legend
      March 25, 2026

      ​@rob day

      I don't want a drop-down list.
      I just need to display the value of `lo`—just display it; I won't be modifying this value later.
      It's a static reference.

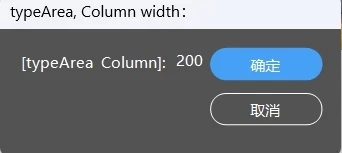

      just like this:

      I've included a code sample in another reply below.



      rob day
      Community Expert
      rob dayCommunity Expert
      Community Expert
      March 25, 2026

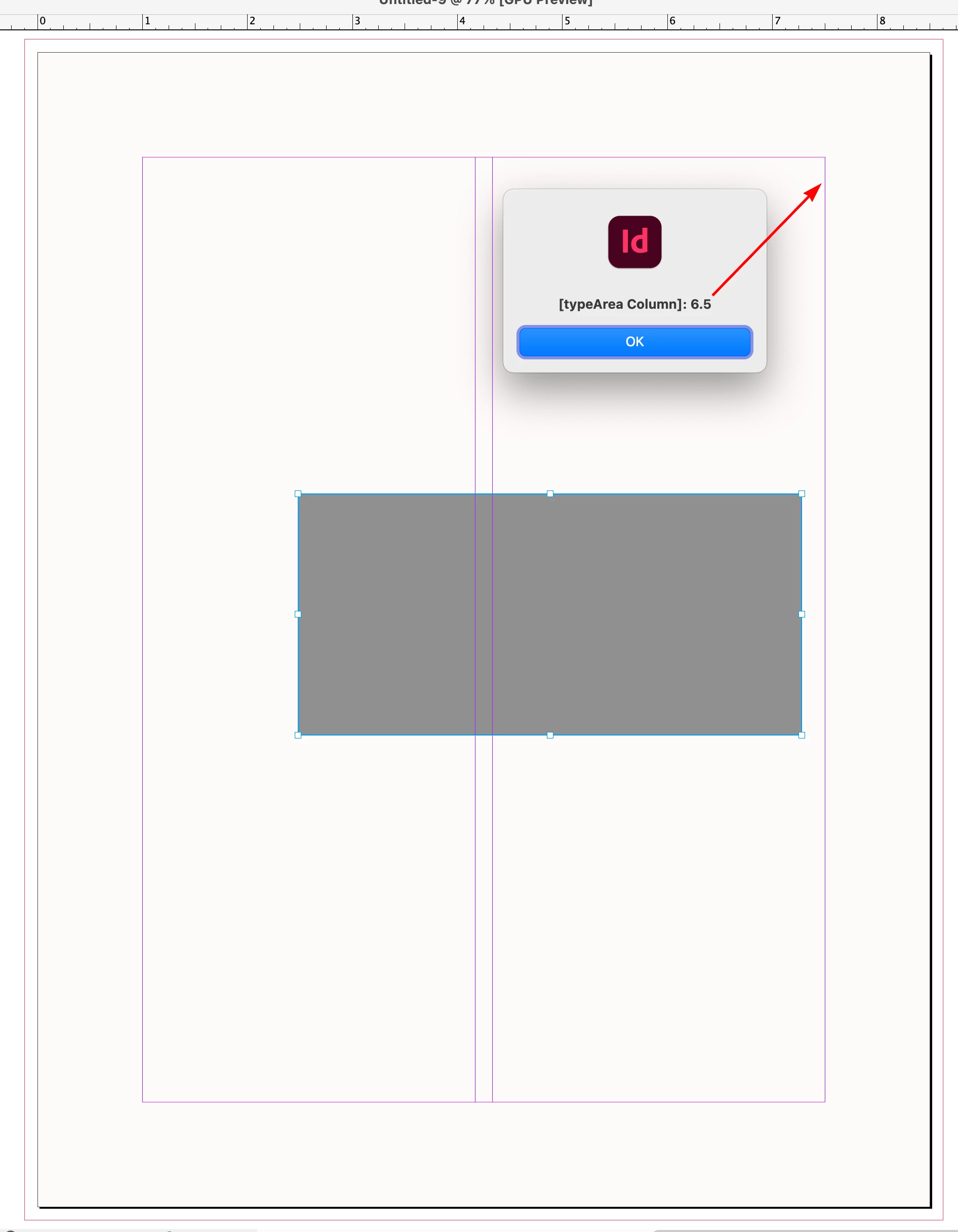

      If you are not looking for user interaction why not use a simple alert?



      var item = app.activeDocument.selection[0]; //当前　选中项
      var cpp = item.parentPage.marginPreferences.columnsPositions;
      lo = cpp[cpp.length - 1];
      alert("[typeArea Column]: "+ lo)





      M
      Community Expert
      Manan JoshiCommunity Expert
      Community Expert
      March 25, 2026

      The editbox has a text property use that to set the text of the statictext field.

      -Manan
      dublove
      dubloveAuthor
      Legend
      March 25, 2026

      I can't find any examples to refer to.

      M
      Community Expert
      Manan JoshiCommunity Expert
      Community Expert
      March 25, 2026

      Lets say if the editbox is referenced by editOne and editTwo variable then the value can be accessed via

      editOne.text

      So the final code might become something like

      staticTexts.add({ staticLabel: editOne.text + " " + editTwo.text });



      -Manan
