How to Align Document Grid to Baseline?

  • June 12, 2023
  • 1 reply
  • 1929 views

Without changing the relative position of the Baseline, is there a way to align the Document Grid to it?
Basically, I have a 15pt Baseline Grid, and would like to use an aligned 7.5pt document grid.



thanks



<Title renamed by moderator>

This topic has been closed for replies.
Correct answer rob day

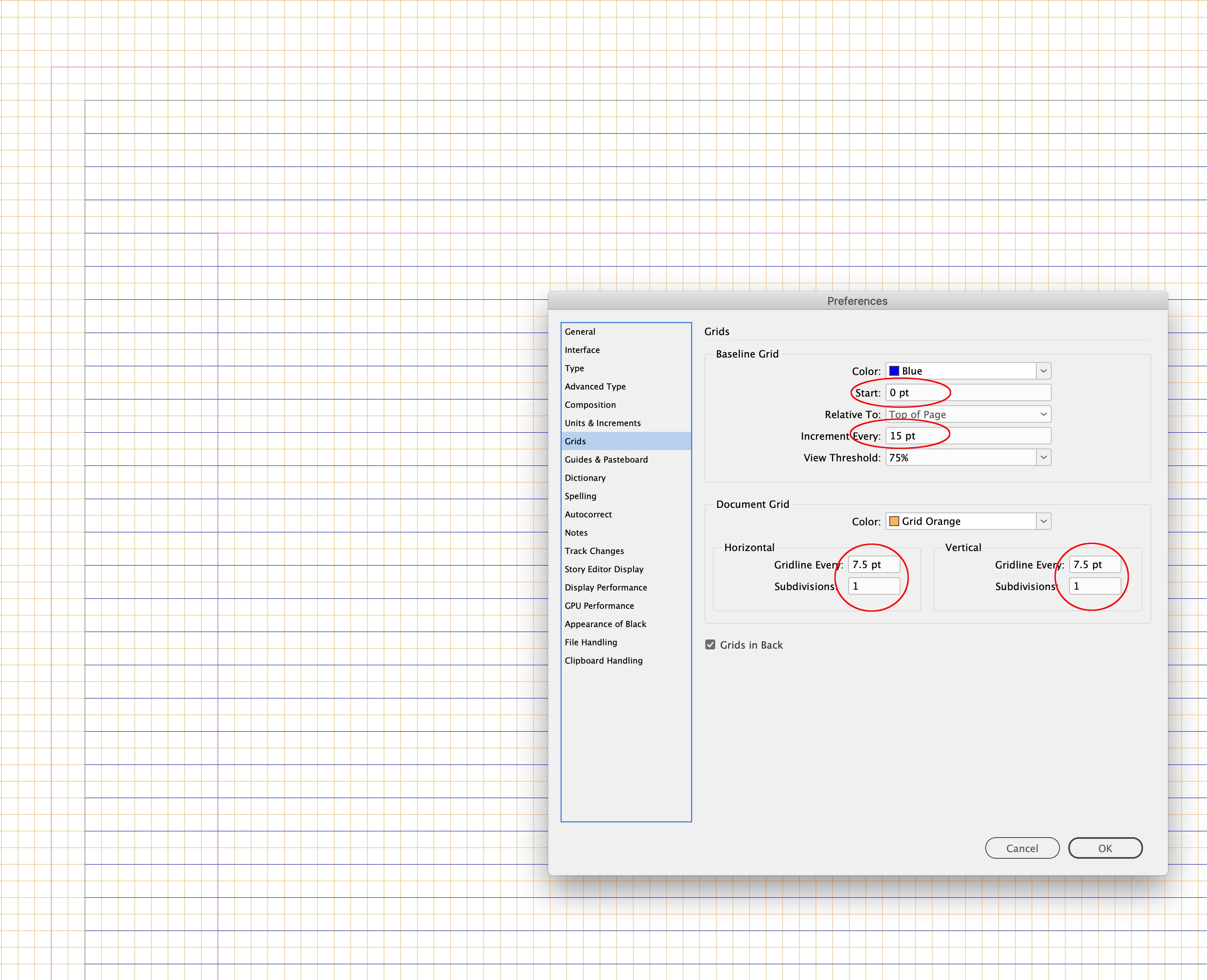

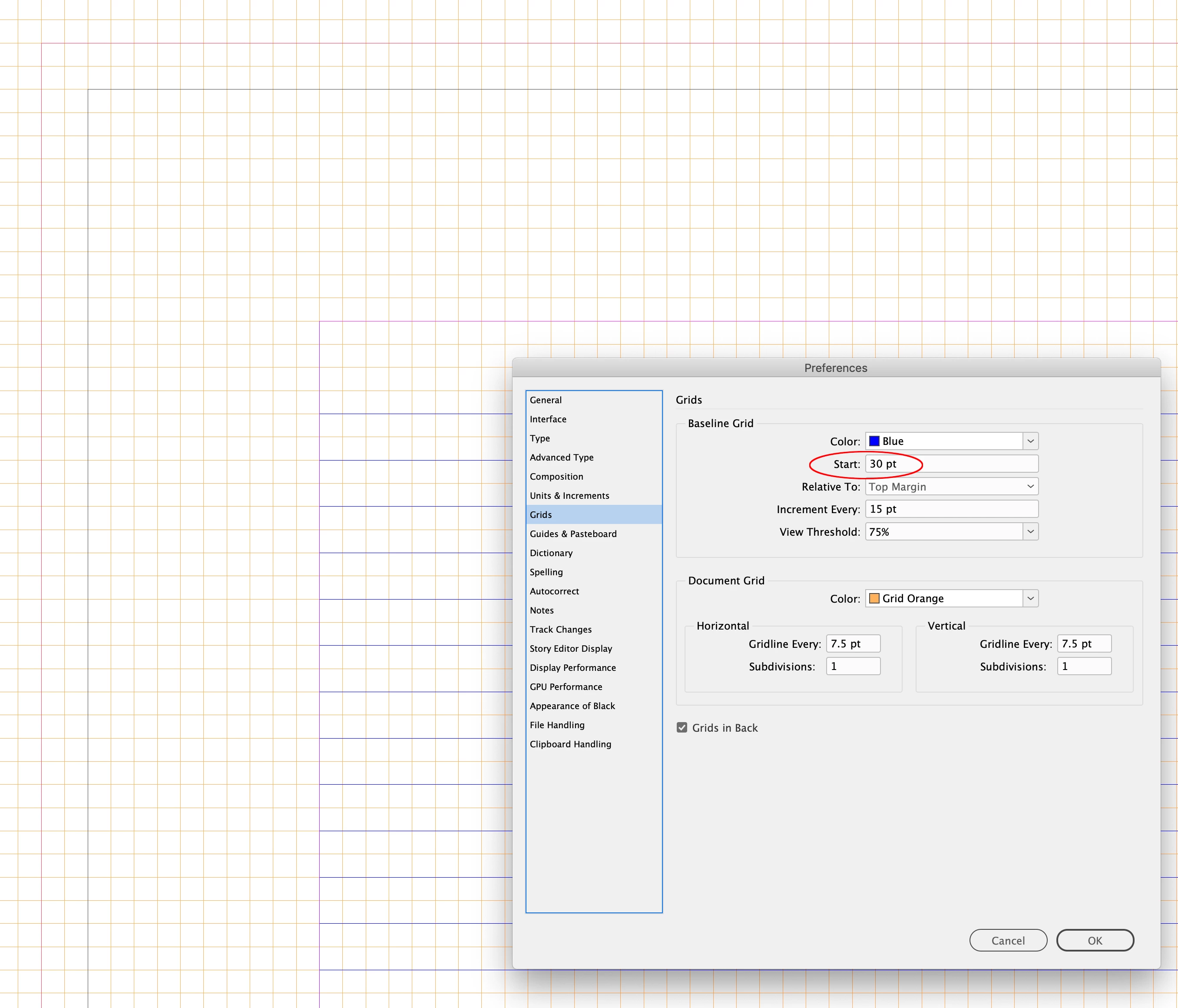

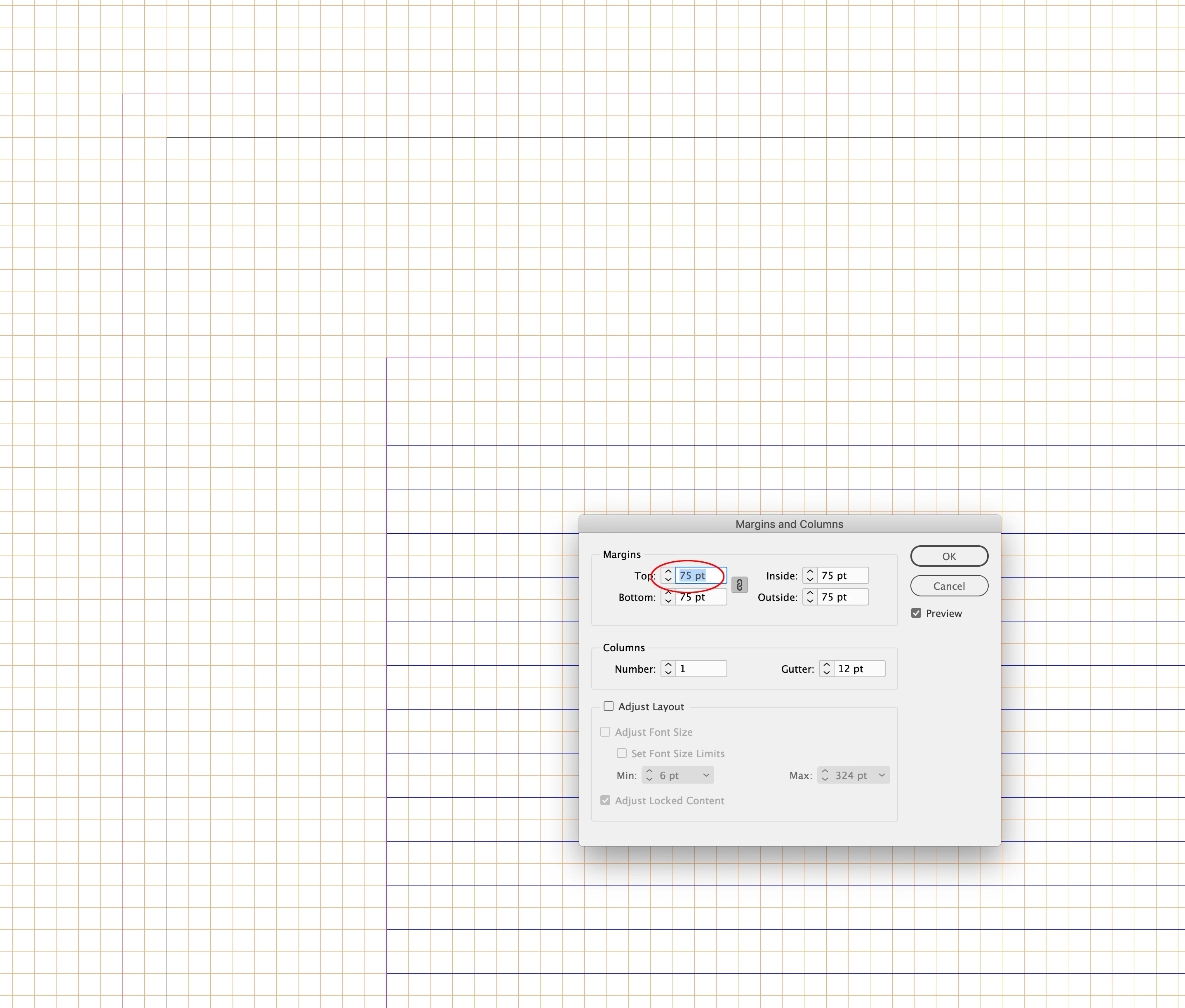

For that to work your Start and Top Margin dimensions would have to be multiples of 15:



1 reply

Lukas Engqvist
Community Expert
Lukas EngqvistCommunity Expert
Community Expert
June 12, 2023

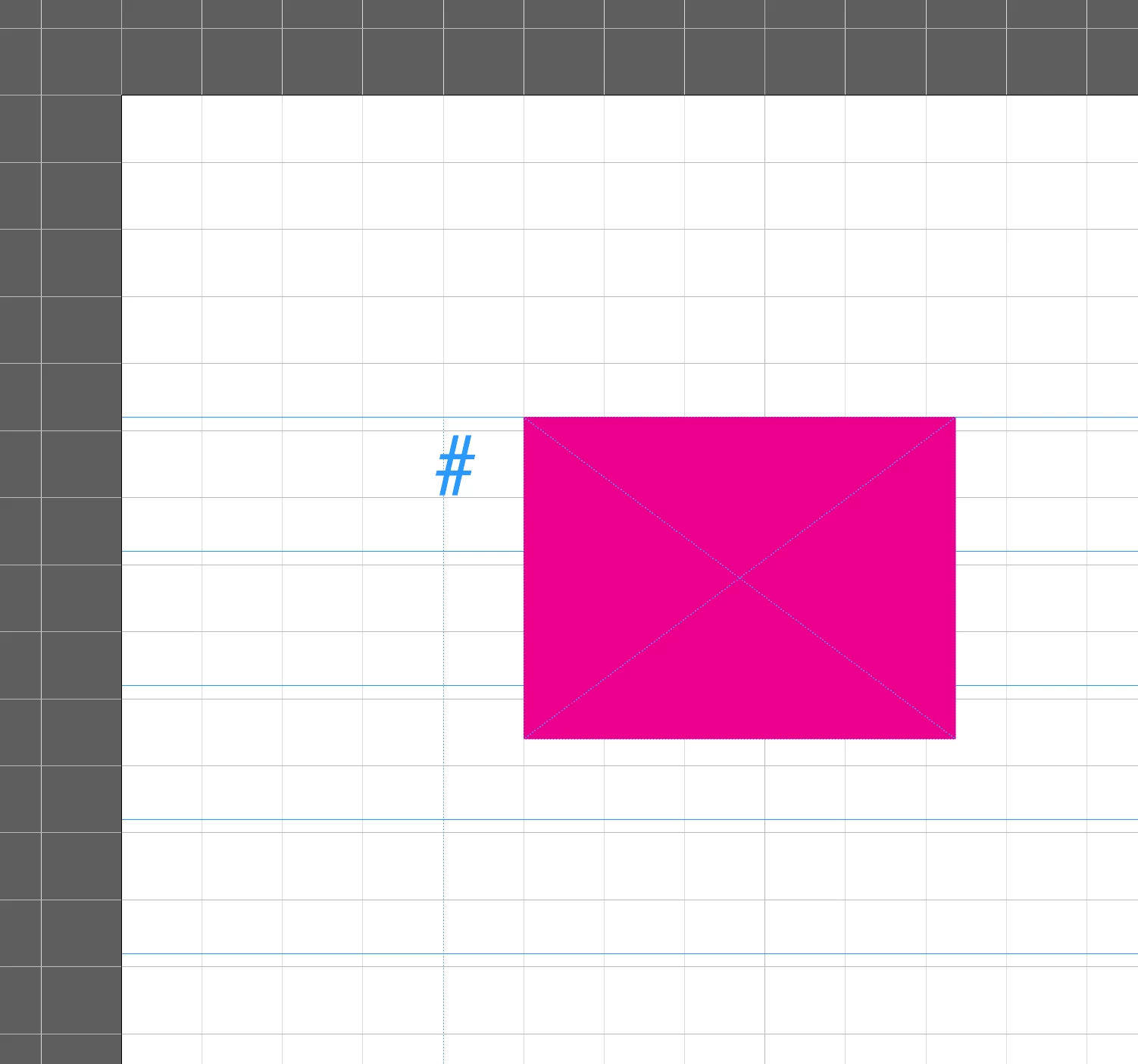

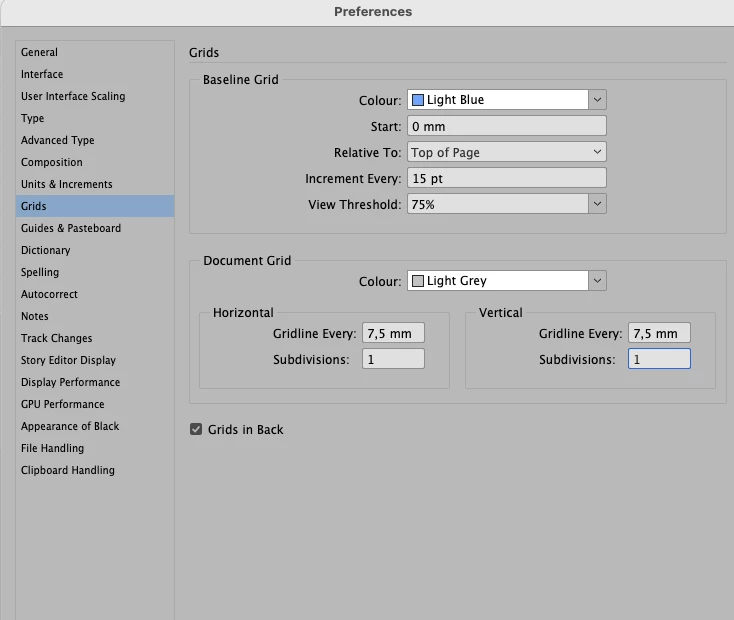

You can set where the document grid and the baseline grid start.
I don't know how many subdivisions you want on your document grid.

15pt document grid with 2 subdivisions would also work?

rob day
Community Expert
rob dayCommunity Expert
Community Expert
June 12, 2023

Hi @Lukas Engqvist , your rulers are set to millimeters—I think the gridlines would have to be every 7.5 points not millimeters:





    Lukas Engqvist
    Community Expert
    Lukas EngqvistCommunity Expert
    Community Expert
    June 12, 2023

    🙂 yes that's true, was a bit too fast
