How to change the reference point in InDesign using ExtendScript?

Forum|Forum|3 years ago
November 15, 2022
3 replies
2417 views

I want to move the upper right corner of a selection of items to a specific position. But at the moment the reference point of the selection of items is on the lower left corner.

app.selection[0].move([10, 10]);

Is there a way to change the reference point to the upper right corner in InDesign using ExtendScript?

Thank you for your help.

Scripting

This topic has been closed for replies.

Correct answer rob day

I want to set the position selection by setting the position of the upper right corner of the selection.

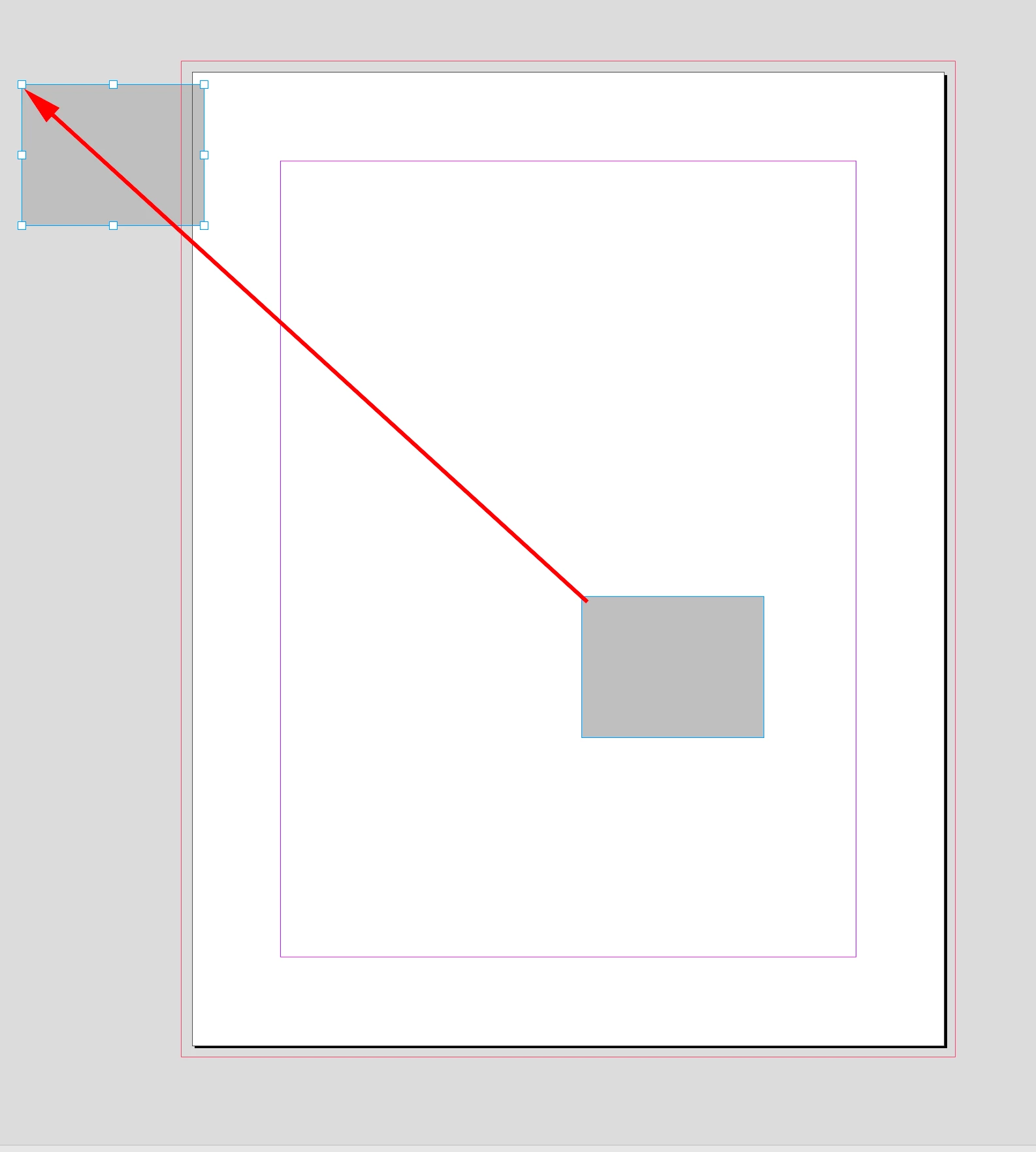

With app.selection[0].move([10, 10]); I always get this:

Are you looking for this?:

Subtract the width of the selection from x:

var doc = app.activeDocument
var s = app.selection[0];
var b = s.geometricBounds
var w = b[3]-b[1]
s.move([10 - w, 10]);

Peter Kahrel

Community Expert

You can't. But you could of course create a document, set the refeence point, and discard the document.

R

rudiwarttmann

Participating Frequently

Thanks a lot - yes, strange enough, but will do it this way.

I remember something similar - wasn't that the thing how to navigate to a URL?

Peter Kahrel

Community Expert

That was a while ago! But yes, to navigate to a URL, place a text frame, enter a URL hyperlink, and follow that link.

R

rudiwarttmann

Participating Frequently

To come back to the actual question: "How can I change the reference point in InDesign":

Manually, it's possible to change the standard reference point with _no_ document open, i.e. without a "Layout Window".

Is this also possibly by scripting? Or is also this lacking in the scripting API?
(Just as a side note: You can't set a text frame on a master page to be the "primary text frame" by script.)

leo.r

Community Expert

I'm not sure, but I wonder if the last script by @rob day in this discussion will give you a hint:

https://community.adobe.com/t5/indesign-discussions/javascript-how-to-scale-an-image-using-a-script/td-p/14215420

Namely, this parameter: AnchorPoint.TOP_LEFT_ANCHOR

I don't know the final goal you pursue so it may have nothing to do with what you need.

Peter Kahrel

Community Expert

You have to reference a layout window, which you don't have if you don't have an open document.

rob day

Community Expert

Hi @Alexander17 , the move() method is to x,y, so you shouldn’t have to set the reference point. Make sure the rulers are set to 0—does this work?:

app.scriptPreferences.measurementUnit = MeasurementUnits.POINTS;
var doc = app.activeDocument

doc.zeroPoint = [0, 0];
doc.viewPreferences.rulerOrigin = RulerOrigin.PAGE_ORIGIN;

app.selection[0].move([10, 10]);
app.scriptPreferences.measurementUnit = AutoEnum.AUTO_VALUE;

A

Alexander17Author

Participant

The rulers and the measurement unit are not the problem. The rulers are set to 0 und the measurement unit is correct.

I want to set the position selection by setting the position of the upper right corner of the selection. But at the moment the reference point of the selection is the lower left corner.

rob day

Correct answer

Community Expert

I want to set the position selection by setting the position of the upper right corner of the selection.

With app.selection[0].move([10, 10]); I always get this:

Are you looking for this?:

Subtract the width of the selection from x:

var doc = app.activeDocument
var s = app.selection[0];
var b = s.geometricBounds
var w = b[3]-b[1]
s.move([10 - w, 10]);
