how to color raster grayscale links in a different pantone

  • May 14, 2019
  • 2 replies
  • 475 views

i have indesign file of a book which is printed  in pantones only. all links are raster files in grayscale (when you open link in photoshop you can see its black & white)

In indesign they are colored automatically in 4 diferent pantones but few links are still just black and i have to colored them in the same pantones. How do i do that??

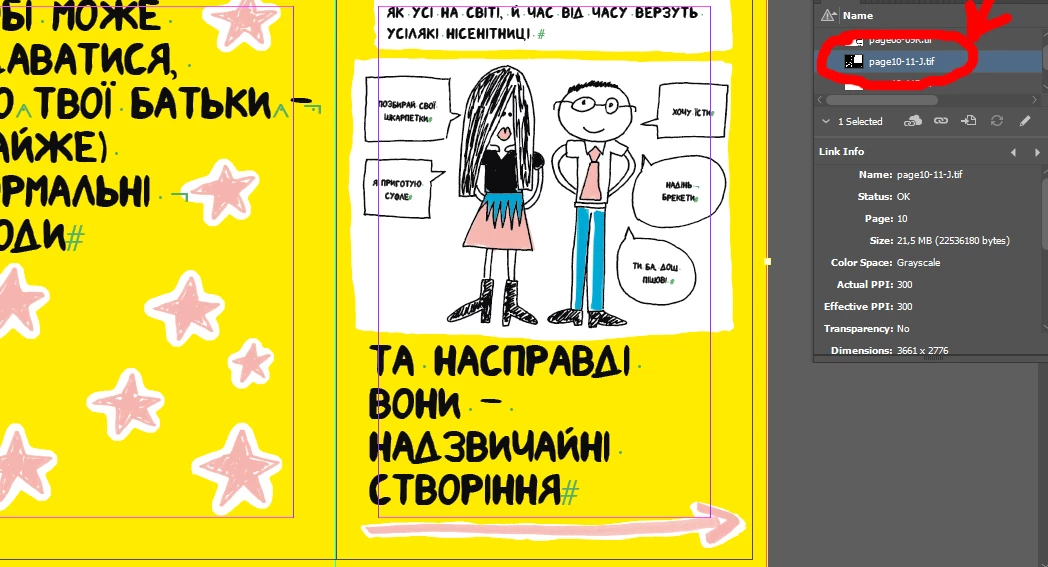

every page has 4 layres, every color is a separate grayscale link (u can see on the pictire yellow fon for example and how it looks in links list )

    This topic has been closed for replies.
    Correct answer Laubender

    designera79966717  wrote

    …In indesign they are colored automatically in 4 diferent pantones …

    Hi designera79966717 ,

    they are not colored "automatically", I think. Each of the placed images was selected and a swatch was applied from the Swatches panel. I guess, that for items colored with [Black] additionally the fill is set to "overprint" in the Attributes panel. You usually do not want that with other colors than [Black].

    If you want to recolor an image, just select the image inside its container frame and assign a new color.

    Also check if "overprint" is applied. If so do not set "overprint" to colors that are not [Black]. Also check "Overprint Preview" with "Separation Preview" to see if the colors are applied the right way.

    Regards,
    Uwe

    2 replies

    L
    Community Expert
    LaubenderCommunity ExpertCorrect answer
    Community Expert
    May 14, 2019

    designera79966717  wrote

    …In indesign they are colored automatically in 4 diferent pantones …

    Hi designera79966717 ,

    they are not colored "automatically", I think. Each of the placed images was selected and a swatch was applied from the Swatches panel. I guess, that for items colored with [Black] additionally the fill is set to "overprint" in the Attributes panel. You usually do not want that with other colors than [Black].

    If you want to recolor an image, just select the image inside its container frame and assign a new color.

    Also check if "overprint" is applied. If so do not set "overprint" to colors that are not [Black]. Also check "Overprint Preview" with "Separation Preview" to see if the colors are applied the right way.

    Regards,
    Uwe

    designera79966717
    designera79966717Author
    Participant
    May 14, 2019

    yep. thanks already found the solution))

    Jongware
    Community Expert
    JongwareCommunity Expert
    Community Expert
    May 14, 2019

    That is interesting … Check how these color images are constructed. I think there is only one way to do this (in InDesign (*)): by creating separate images for each colored part in Photoshop.

    If that is the case, then you have to decompose your new images in a similar way in Photoshop first, and save each "channel" of color as a new grayscale image.

    (*) This may be far too late to change at this point, but I am sure you could have created the proper spot color channels in Photoshop as well. If there aren't any new insights on this, it would involve exporting your Photoshop file as a now-dreaded EPS, which I would normally strongly advise not to, but for raster images this should not be any different than a PDF.
