How to Enable Object Preview in Dialog Boxes for InDesign Scripts?

>  I usually get errors where "my dialog window is active".

For the window type, use palette, not dialog.

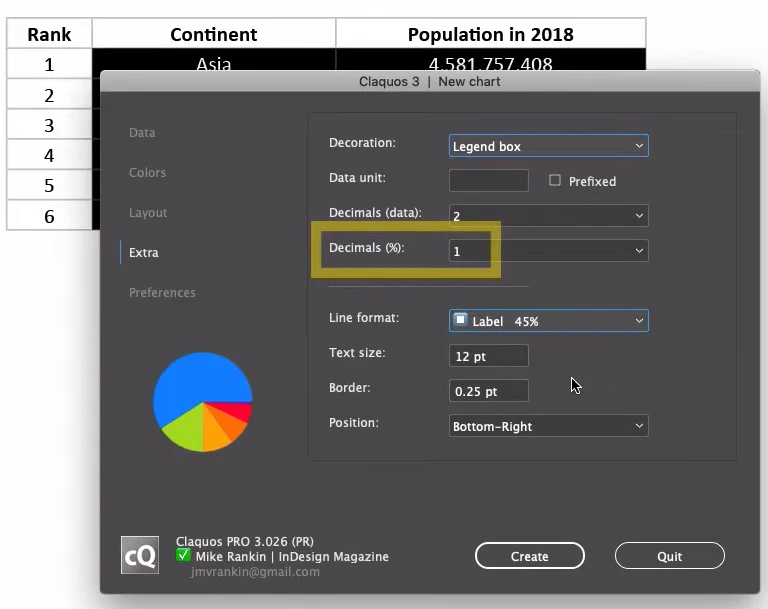

As to preview, Claquos draws a graphic in the script's window. What you're after is a preview as InDesign does it, actually modifying text. You can have the script make any changes, but you'll have to be able to undo them as well.

Hi @eusoujpg, there are some basic drawing functions available in ScriptUI dialogs. I'm not sure if that it how Claquos does it, but this is one approach, assuming that you can draw what you need with these basic methods. Here is an example showing some ScriptUIGraphics capabilities. Note that this snippet creates a ScriptUI Window with a "custom" element stored in "canvas" property.

- Mark

(function () {

    var size = 300;

    var w = new Window("dialog {text:'Canvas Test', canvas:Custom  {preferredSize:[" + size + "," + size + "]}}"),
        canvas = w.canvas,
        bottomUI = w.add("group {orientation:'row', alignment:['right','top'], alignChildren:'right' }"),
        buttons = bottomUI.add("group {orientation:'row', alignment:['right','top'], alignChildren:'right' }"),
        cancelButton = buttons.add('button', undefined, 'Cancel', { name: 'cancel' }),
        okButton = buttons.add('button', undefined, 'Draw', { name: 'ok' });

    canvas.onDraw = function () {
        var g = canvas.graphics;
        var color = [Math.random(), Math.random(), Math.random()],
            left = Math.floor(Math.random() * size / 2),
            top = Math.floor(Math.random() * size / 2),
            width = Math.floor(Math.random() * (size - left)),
            height = Math.floor(Math.random() * (size - top));

        g.newPath();

        switch (Math.floor(Math.random() * 3)) {
            case 0:
                g.rectPath(left, top, width, height);
                break;
            case 1:
                g.ellipsePath(left, top, width, height);
                break;
            case 2:
                g.moveTo(left, top);
                g.lineTo(width, height);
                break;
        }

        g.fillPath(g.newBrush(g.BrushType.SOLID_COLOR, color, 1));
        g.strokePath(g.newPen(g.BrushType.SOLID_COLOR, color, 1));

    };

    okButton.onClick = function () {
        canvas.notify('onDraw');
    };

    w.center();
    return w.show();

})();
