How to tile multiple objects at equal intervals but with varying widths to fit the page layout?

Question

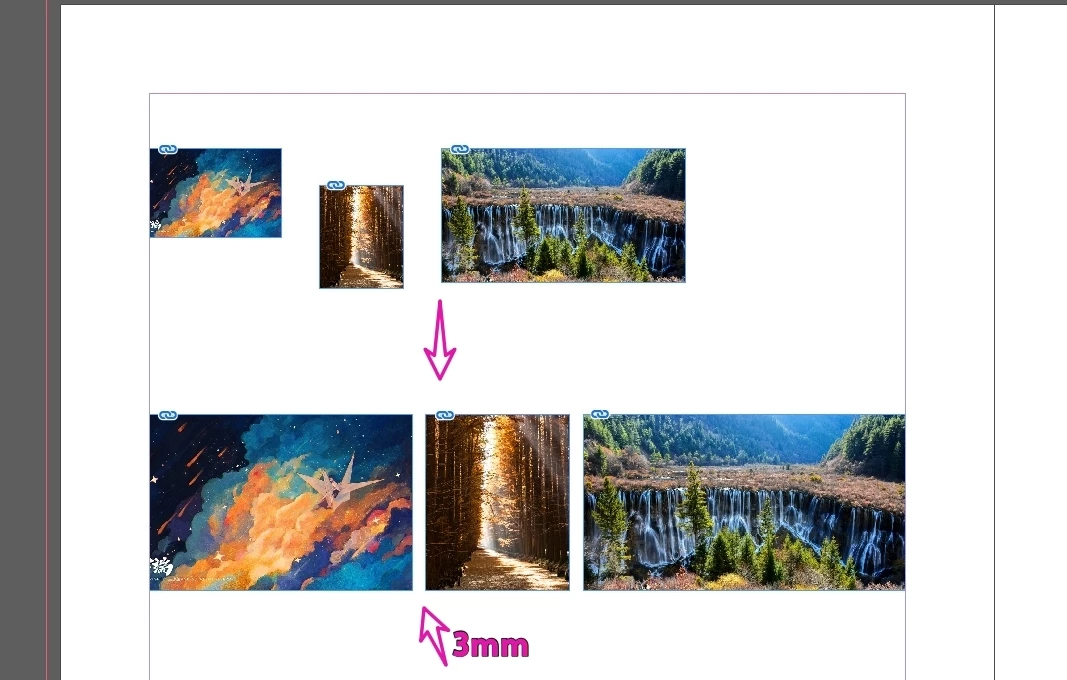

The graphics are of different sizes, but I want to fill the page with 3mm spacing between them. They only need to be the same height, not the same width.
No code needed—just give me a suggested algorithm.
For example, if the page width is 170;

// Spacing
var csp=3;
// Number of columns
var cn=2
w1+w2+w3+3*2=170
h1=h2=h3;

But since both the height and width are unknown, does this mean I have to keep trying different values?

If that really doesn't work, I think allowing the last shape to be cropped might be easier to implement.

Do I need to loop multiple times to scale?
This feels really slow.

Thank you .

m1b · Answer

The algorithm could be like this:Calculate the ratio of frame heights. First frame is 1 (no measurement needed), all subsequent frames ratio = 1 divided by its height. Call this variable S1, S2 etc.Work out the currentTotalWidth. W1*S1+ W2*S2+ W3*S3 …+ GAP * frame count -1.Work out the total scale factor required so that the currentTotalWidth == desiredWidth, which is the page width minus left and right margins. Formula is:SCALE = desiredWidth divided by currentTotalWidth.Scale each frame like this:scale frame 1 by S1*SCALE,frame 2 byS2*SCALE,frame 3 by S3*SCALE, etc.Then position them, starting on the left margin position, and frame 2 would be at W1+GAP, and frame 3 would be at W2+GAP, etc. Position vertical so all frames top matches frame 1.
