Illustrator links not updating in InDesign

Forum|Forum|4 years ago
February 6, 2022
2 replies
3695 views

Windows 10/64 updated Indd/Illus latest updated

I am working on a label project using a manufacturers die/line and dimensions template in illustrator as the base layer. I am building art elements for the label in Illustrator, placing the illustrator file in InDesign and building the type elements in InDesign. I have done this for a long time with success and no issues.

On this particular project, when I turn visibility off on certain illustrator layers and update the InDesign, but the layers where I turned off visibility in Illustrator still show in InDesign, a problem neverbefore encounterfed,

I first rebuilt the illustrator file, placed in in InDesign and got no change. Not visible layers in Illustrator still display after updating in InDesign. So, I deleted InDesign preferences, tried again and still got the same results.

That exhausts the extent of my knowledge to fix the issue, Can anyone help?

Thanks to those who know more than me,

Joe

Import and export

Jeff Witchel, ACI

Community Expert

If you've added or deleted Illustrator Layers or changed Layer names, all bets are off.

Jeff Witchel, ACI

Community Expert

Instead of turning your Layers on or off in Illustrator, have you tried Object Layers Option under the Object menu in InDesign?

Brad @ Roaring Mouse

Community Expert

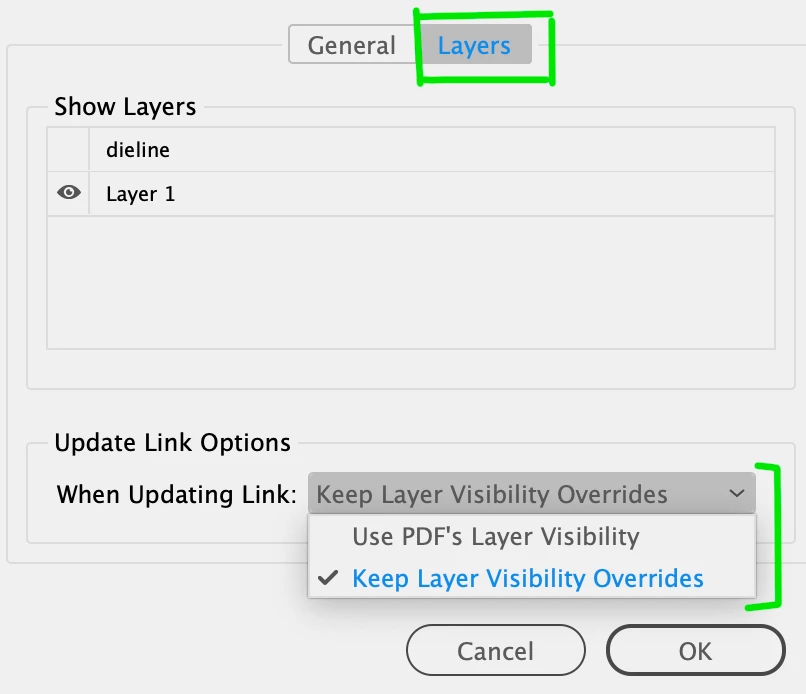

When you place, check what you selected for Import Options > Layers.

The default is "Keep" which means even though you turned off the layer in Illustrator, it will still show in InDesign

C

camelbreathAuthor

Inspiring

Brad, thanks for your quick response and help, but for the life of me, I cannot find the interface you show above. Can you please stick my nose it?

I've used InDesign since version two, but that one escapes me. I do the Control + D, go to File>place and looked in preferences, but I'm still missing it.

Thanks,

Joe

Brad @ Roaring Mouse

Community Expert

It's at the bottom of the Place dialog box... Check the box for Show Import Options, and it brings up options for the placing of your .ai files, and you'll see the two tabs for General and Layers.
