Images scaling while placing using script

  • July 28, 2021
  • 2 replies
  • 1354 views

Hi all, I am noticing a strange behavior of .place on scaling while placing images using script. Below is the code snippet:



with(app.activeDocument.stories[0].paragraphs[0].insertionPoints[-1]) {
place(File(myImage));
//place(File(myImage), false, {horizontalScale: 100, verticalScale: 100});
}



The first place command is showing my sample image scaled at 111.5% while the container box itself is created of correct size (original image size).



When I run the second place command with horizontal and vertical scales set to 100% then only it comes okay.



Different scaling is being applied to different images but I am not able to see any scaling applied in the original images themselves. I have attached the sample image as well to this thread.



Hope it must be an easy thing to solve. Can someone please help me understanding this strange behaviour of InDesign?



Best wishes,

Nishant

This topic has been closed for replies.
Correct answer BarlaeDC

Hi,

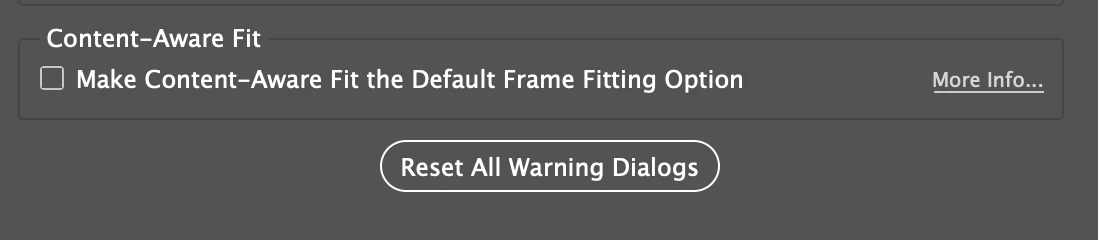

Just to get the easy stuff out of the way, in Preferences->General there is this setting, might want to make sure it is off.





2 replies

L
Community Expert
LaubenderCommunity Expert
Community Expert
July 28, 2021

Hi Nishant,

not the case here, but also note:



A possible issue with the first method where you are placing an image to an insertion point:

The text frame of that insertion point could be scaled.

And that would scale the placed image as well.



Symptom of a scaled text frame:

Select it and look up the values for x and y in the scaling editing fields.

They are different from 100%.



If you are not aware of it, check the preferences before transforming an object.

app.transformPreferences.whenScaling

and others at app.transformPreferences:

https://www.indesignjs.de/extendscriptAPI/indesign-latest/#TransformPreference.html



Regards,
Uwe Laubender

( ACP )



    BarlaeDC
    Community Expert
    BarlaeDCCommunity ExpertCorrect answer
    Community Expert
    July 28, 2021

    Hi,



    Just to get the easy stuff out of the way, in Preferences->General there is this setting, might want to make sure it is off.





      N
      Nishant-KumarAuthor
      Participant
      July 28, 2021

      Hi Barlae, if I may call you so. That's just perfect and solved the problem. Thank you so much to you and to this lively community to allow newbies like me to clarify such basic things.



      I read through Adobe's documentation and it says "Content-Aware Fit removes the transformations, such as Scale, Rotate, Flip, or Shear, applied to the image. However, the transformations applied to the frame are not removed.".

      But the result we get is otherwise, i.e. it applies transformations such as scale even though they are not applied in the image itself.



      Although I am curious to know why content aware fit artifically scale the images, it is fine if you are not able to answer my this question due to other priorities.



      Regards,

      Nishant

      m1b
      Community Expert
      m1bCommunity Expert
      Community Expert
      July 28, 2021

      Hi Nishant, if you are writing a script for inserting the image, try something like this:



      var myImagePath = '/Users/mark/Desktop/sample.png';
var lastInsertionPointOfStory = app.activeDocument.stories[0].paragraphs[0].insertionPoints[-1];
var img = (lastInsertionPointOfStory.place(File(myImagePath)))[0];
img.horizontalScale = 50;
img.verticalScale = 50;
img.fit(FitOptions.FRAME_TO_CONTENT);



      Notice that you have more control over the placed image, including applying the FitOption we want.



      Also, if you don't mind, I recommend you do not use the "with" form in this case—it implies you are going to be doing a lot of things to the last insertion point, but that isn't the case in your snippet, and it makes it awkward in my opinion.

      - Mark
