In Design not exporting the right size

  • February 23, 2022
  • 2 replies
  • 1854 views

Hey all! I need an assist.



I have a 6"x4" post card with an 1/8" bleed.

When I export, it comes out 6.4x4.4.



I checked that there are no margins etc. Will you help me figure out what I'm missing, please?

Thank you!

This topic has been closed for replies.

2 replies

Peter Spier
Community Expert
Peter SpierCommunity Expert
Community Expert
February 24, 2022

Are you including printer's marks in the export? They add to the PDF size.

If you are you will also need to increast the marks offest to at least the value of the bleed allowance to keep them out of the bleed area, which will increase the size even more.

    T
    Tess15A7Author
    Participating Frequently
    February 24, 2022

    Hi Peter, thanks for that! There are no printers marks (they asked me not to).

    Just now a TON of white space around the art and 6.2x4.2.



    I may be a lost cause! 🙂

    Peter Spier
    Community Expert
    Peter SpierCommunity Expert
    Community Expert
    February 24, 2022

    Did you run your artwork out to the bleed guides?

      J E L
      Community Expert
      J E LCommunity Expert
      Community Expert
      February 23, 2022

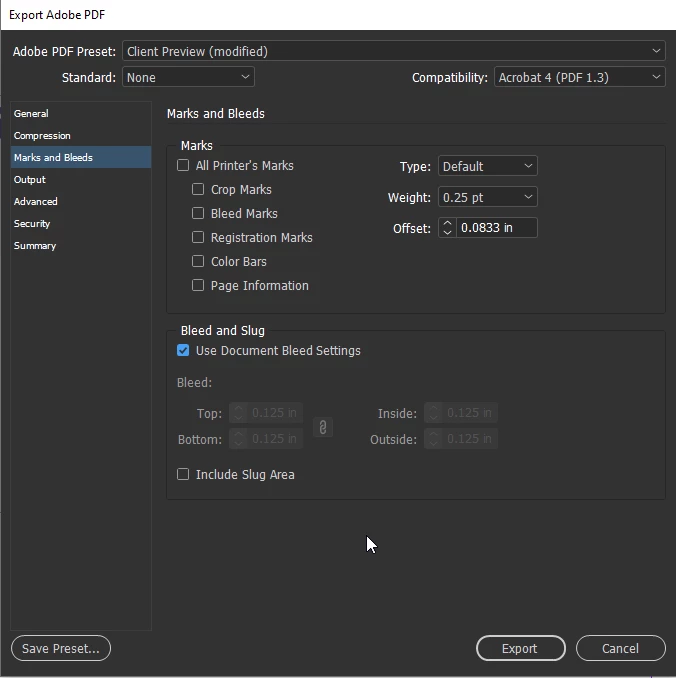

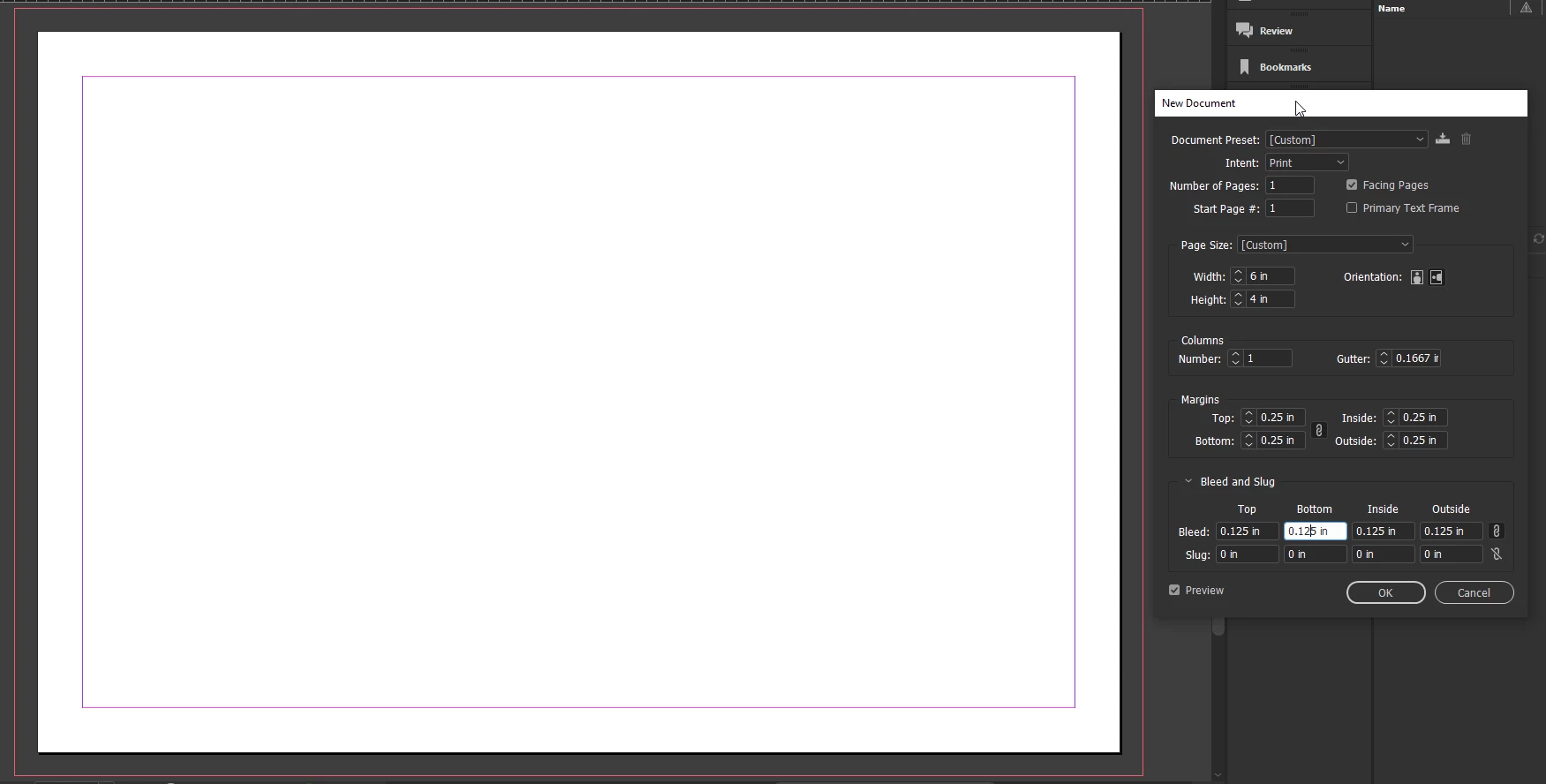

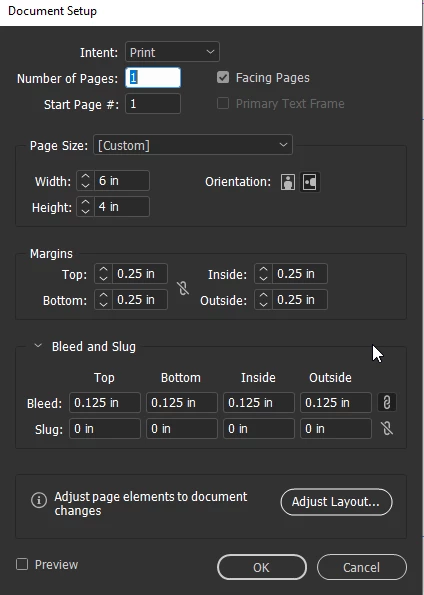

      Hi @Tess15A7 Okay. You want 6.25 x 4.25 for full bleed. Check your document set up and your export settings. Margins don't matter as they are your interior settings only, not final overall dimensions.







      PDF Properties result:





        T
        Tess15A7Author
        Participating Frequently
        February 24, 2022

        I made my settings match yours, and the PDF "Actual Size" is 6.2x4.2 (I assume Adobe rounds up).

        My new and improved challenge is there is now a TON of space around the outside of the art. Is that just how it is going to be? I want to print a full bleed...did I say that?





        J E L
        Community Expert
        J E LCommunity Expert
        Community Expert
        February 24, 2022

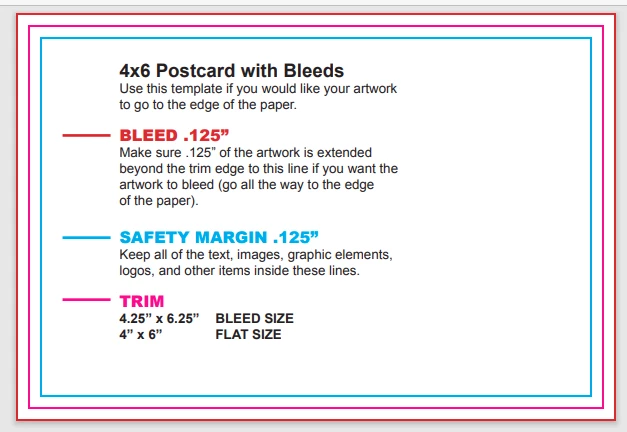

        No, it doesn't round up unless you are beyond 3 decimal points. You should be seeing the size exactly like mine at 6.25 x 4.25. I'm not sure what you mean about a TON of space around the outside without seeing your artwork. The outside red line is the bleed mark. The black line inside that is the trim mark. The purple line represents my margin settings, but check with your printer. Did they provide a template? Something like below?
