Indesign rendering/ display issue

  • June 4, 2019
  • 4 replies
  • 4239 views

Hi, I'm looking for any tips on how to speed up performance in indesign

when working with a vector file that, apparently, wants to use huge amounts

of computer resources, or something.

the illustrator file (from a freelancer) is only 3.5MB in actual file size,

but it has LOTS AND LOTS of very small pieces in it, that i guess Indesign

is trying to render. It takes FOREVER and slows everything down. When the

application (file?) or the object is set to Display Performance > Typical,

it works just fine.

HOWEVER

1) Object-level display settings aren't persistent. When i reopen the

document, or (as just now) tried to use the "crop to front cover" script,

the display reverted to "high" for everything everything screeched to a

halt.  nb: View > Display Performance is set to "allow object-level display

settings."

2) with "typical" on, the jpeg i created (using the export function)

doesn't contain all of the image data, rather it matches the screen

display.  Is this expected behavior?

What can I do to speed up working with this file?

This topic has been closed for replies.
Correct answer rob day

It's not surprising you are having problems with this–there are literally thousands of vector objects in the .ai/.pdf file. Even if you can live with a typical Display performance, there will likely be problems at output. I think the best option would be to open the PDF/x-4 version in Photoshop at 300-400ppi and save as a .PSD. If you plan to scale up in InDesign, save with enough res so the ID Effective res is over 300ppi. That will rasterize the vectors and retain the Illustrator transparency.

4 replies

L
Community Expert
LaubenderCommunity Expert
Community Expert
June 5, 2019

AmybethMenendez  wrote

Hi, I'm looking for any tips on how to speed up performance in indesign

when working with a vector file that, apparently, wants to use huge amounts

of computer resources, or something.

…

Hi AmybethMenendez ,

may I ask what your hardware specs are?

I see only slightly degradation of speed when working with the AI file.

InDesign CC 2018.1 on Windows 10.

Regards,
Uwe

rob day
Community Expert
rob dayCommunity Expert
Community Expert
June 4, 2019

the illustrator file (from a freelancer) is only 3.5MB in actual file size,

but it has LOTS AND LOTS of very small pieces in it

Is the file you are placing an .ai file with the images embedded (the freelancer included the links when she saved the file)?

What happens if you resave the .ai file as a PDF/X-4 file, and place the PDF?

A
amybethm222Author
Inspiring
June 4, 2019

Here is just the Illustrator file, placed in Indesign and the pdfx file on the left. Same results. Its a very complex ai file.https://www.dropbox.com/s/2c6kb9xpfiiisfr/Illustrator_pdfx%20Folder.zip?dl=0

rob day
Community Expert
rob dayCommunity ExpertCorrect answer
Community Expert
June 4, 2019

It's not surprising you are having problems with this–there are literally thousands of vector objects in the .ai/.pdf file. Even if you can live with a typical Display performance, there will likely be problems at output. I think the best option would be to open the PDF/x-4 version in Photoshop at 300-400ppi and save as a .PSD. If you plan to scale up in InDesign, save with enough res so the ID Effective res is over 300ppi. That will rasterize the vectors and retain the Illustrator transparency.

Jeff Witchel, ACI
Community Expert
Jeff Witchel, ACICommunity Expert
Community Expert
June 4, 2019

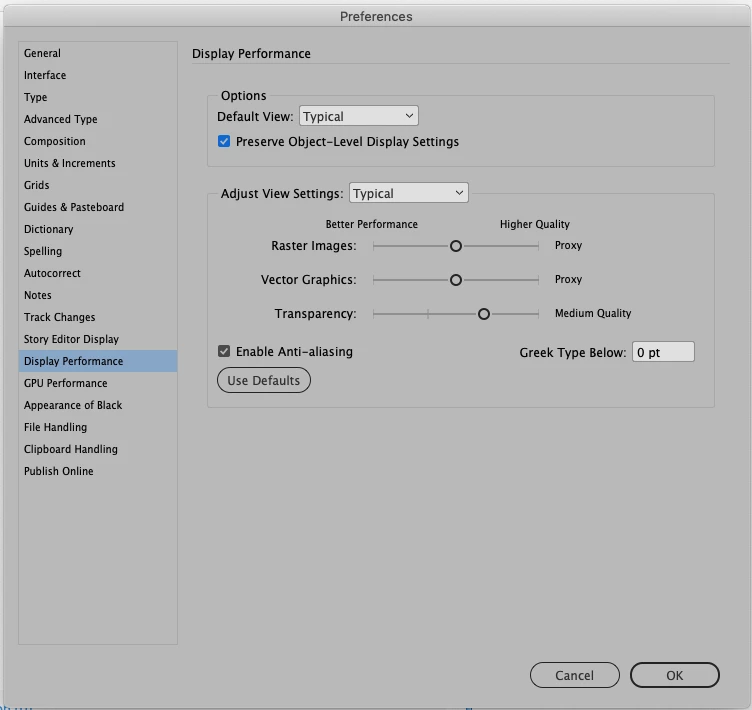

Try closing all documents, and go to Preferences > Display Performance. For Default View, choose Typical. If you want to Preserve Object-Level Display Setting, check it.

Then reopen your document.

Hope this works.

A
amybethm222Author
Inspiring
June 4, 2019

We've all ready done that. What about the Export jpeg reflecting the view setting? is that common? Ive not seen export settings too reflect view settings. (25 years of prepress) Due to the files being an unreleased book jacket I cannot post the jpgs....

Jeff Witchel, ACI
Community Expert
Jeff Witchel, ACICommunity Expert
Community Expert
June 4, 2019

From my understanding, Resolution of a JPEG is not connected to Display Performance.

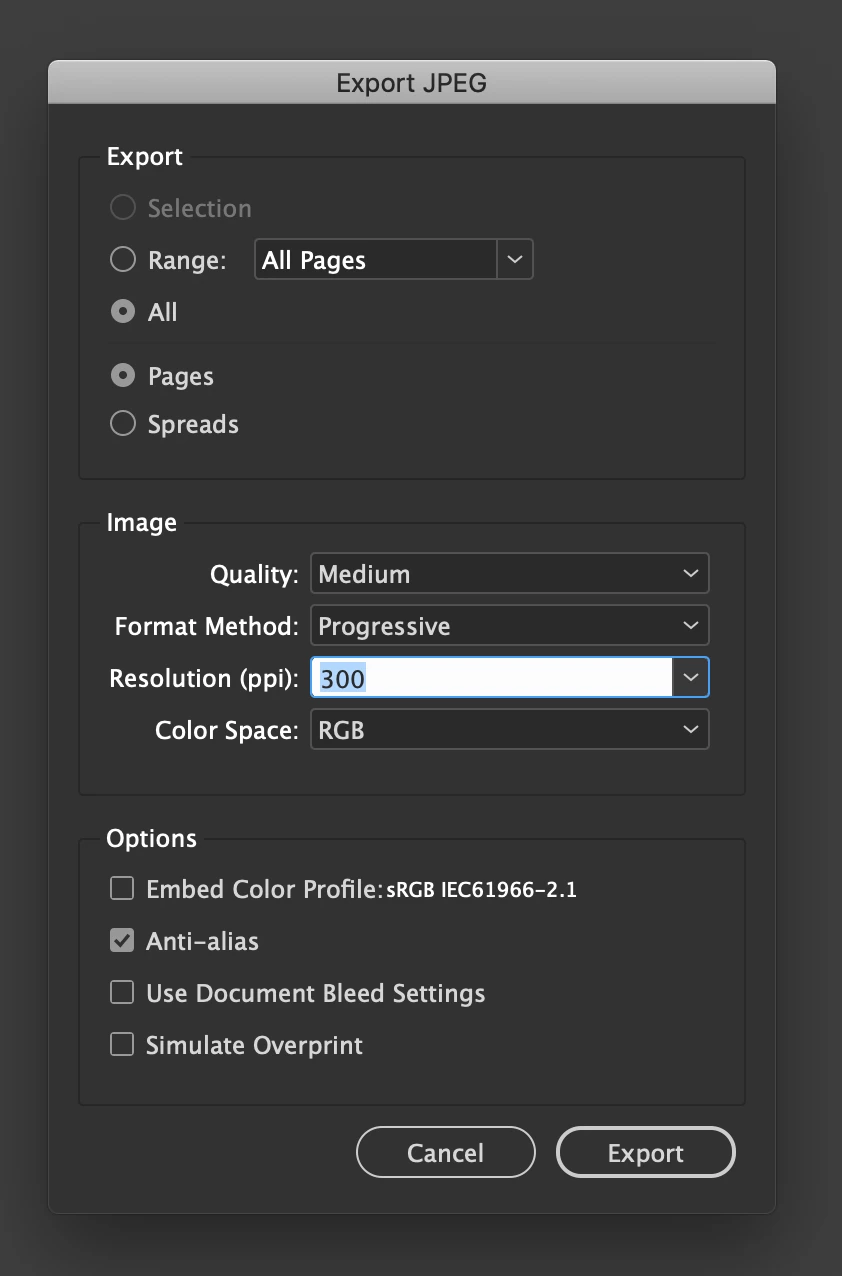

When you go to File > Export and choose JPEG as the Format and press Save, a dialog opens which allow you to specify Resolution. Choose your Resolution and press Export.

See screenshot below.

Bill Silbert
Community Expert
Bill SilbertCommunity Expert
Community Expert
June 4, 2019

With no document open go to the Display Performance section of InDesign's preferences and choose Typical for your Default View and check "Preserve Object-Level Display Settings". Click OK and then quit InDesign. These settings should then become the default for any new documents that you create. For already created documents you will have to make these same adjustments for them individually.

Generally InDesign will always run more efficiently (quickly) when in Typical Screen Mode. This is especially true when complicated Illustrator files or very high resolution Photoshop images are in the file. This will, of course, vary from computer to computer. It may also vary depending on which version of InDesign and which operating system that you are using (it would be very helpful if you include that information if you need any more help).

InDesign's speed may also be affected by third party plug-ins. You should make sure that any that you might be using are compatible with your version of InDesign and/or your operating system.
