Known Participant

Question

Indesign script – get xmp metadata for broken links

Forum|Forum|6 years ago
October 1, 2019
4 replies
4399 views

Hi All,

often I have to work with indesign documents at different locations and I have to deal with broken links.

My main problem is to get the credit-lines for missing images (usually JPeG-previews from adobe.stock.com) with a script. These are stored in the indd-file, even if the image-file is missing. See Example 2 below.

Is there a way to get this information by java script? Up to now I only could mange to
get these information for existing files with the code below (Example 1).

Can anyone help, please?

Thanks Thomas

Example 1 – my code to read xmp-info for existing files:

if (ExternalObject.AdobeXMPScript == undefined){

ExternalObject.AdobeXMPScript = new ExternalObject('lib:AdobeXMPScript'); }

//read Photoshop entry:

var xmpFile = new XMPFile (fileRef.fsName, XMPConst.NS_PHOTOSHOP, XMPConst.OPEN_FOR_READ);

var xmp = xmpFile.getXMP();

xmpFile.closeFile()

var myPS_Credit = xmp.getProperty(XMPConst.NS_PHOTOSHOP,"Credit");

Example 2 – xmp-data for missing image taken from indd-file displayed with "less-command":

<x:xmpmeta xmlns:x=“adobe:ns:meta/“ x:xm

ptk=“Adobe XMP Core 5.6-c148 79.163765, 2019/01/24-18:11:46 „>

<rdf:RDF xmlns:rdf=“http://www.w3.org/1999/02/22-rdf-syntax-ns#“>

<rdf:Description rdf:about=““

xmlns:dc=“http://purl.org/dc/elements/1.1/“

xmlns:tiff=“http://ns.adobe.com/tiff/1.0/“

xmlns:xmp=“http://ns.adobe.com/xap/1.0/“

xmlns:xmpMM=“http://ns.adobe.com/xap/1.0/mm/“

xmlns:xmpRights=“http://ns.adobe.com/xap/1.0/rights/“

xmlns:pur=“http://prismstandard.org/namespaces/prismusagerights/2.1/“

dc:format=“image/jpeg“

tiff:ResolutionUnit=“2“

tiff:XResolution=“50000/377“

tiff:YResolution=“50000/377“

xmp:CreateDate=“2011-03-23“

xmp:CreatorTool=“Adobe Stock Platform“

xmp:MetadataDate=“2019-09-12T08:37:23“

xmp:ModifyDate=“2011-03-23“

xmpMM:DocumentID=“30962553“

xmpMM:InstanceID=“Adobe Stock 30962553“

xmpRights:Marked=“True“>

<pur:creditLine>

<rdf:Bag>

<rdf:li>Mny-Jhee - stock.adobe.com</rdf:li>

</rdf:Bag>

</pur:creditLine>

</rdf:Description>

</rdf:RDF>

</x:xmpmeta>

This topic has been closed for replies.

Kasyan Servetsky

Legend

Sorry, but I'm sick and tired of fighting with this lousy new forum software.

I really don’t understand why Adobe decided to ruin something that worked well for years.

Who knows what [removed] is this? Why I can’t just post a reply?

Thomas 42541987Author

Known Participant

Well, I had to reset my password today ...

I don´t know what´s going on.

Anyway, I´ll do some tests tonight. I found this, possibly it is a question of different namespaces?

NS_DC The XML namespace for the Dublin Core schema, http://purl.org/dc/elements/1.1

NS_IPTC_CORE The XML namespace for the IPTC Core schema.

NS_RDF The XML namespace for RDF.

NS_XML The XML namespace for XML.

NS_XMP The XML namespace for the XMP basic schema.

NS_XMP_RIGHTS The XML namespace for the XMP copyright schema.

NS_XMP_MM The XML namespace for the XMP digital asset management schema.

NS_XMP_BJ The XML namespace for the job management schema.

NS_XMP_NOTE The XML namespace for the XMP note schema. An Adobe private namespace; do not create new properties.

NS_PDF The XML namespace for the PDF schema.

NS_PDFX The XML namespace for the PDFX schema. An Adobe private namespace; do not create new properties.

NS_PHOTOSHOP The XML namespace for the Adobe Photoshop custom schema.

NS_PS_ALBUM The XML namespace for the Adobe Photoshop Album custom schema.

NS_EXIF The XML namespace for Adobe’s EXIF schema.

NS_EXIF_AUX The XML namespace for Adobe’s EXIF auxiliary schema.

NS_TIFF The XML namespace for Adobe’s TIFF schema.

NS_PNG The XML namespace for the PNG schema.

NS_JPEG The XML namespace for the JPEG schema.

NS_SWF The XML namespace for the Flash small web format schema.

NS_JPK The XML namespace for the JPK schema.

NS_CAMERA_RAW The XML namespace for the Camera Raw schema.

NS_DM The XML namespace for the DM schema.

NS_ADOBE_STOCK_PHOTO The XML namespace for the Adobe Stock Photos schema.

NS_ASF The XML namespace for the Microsoft advanced streaming format schema.

Kasyan Servetsky

Legend

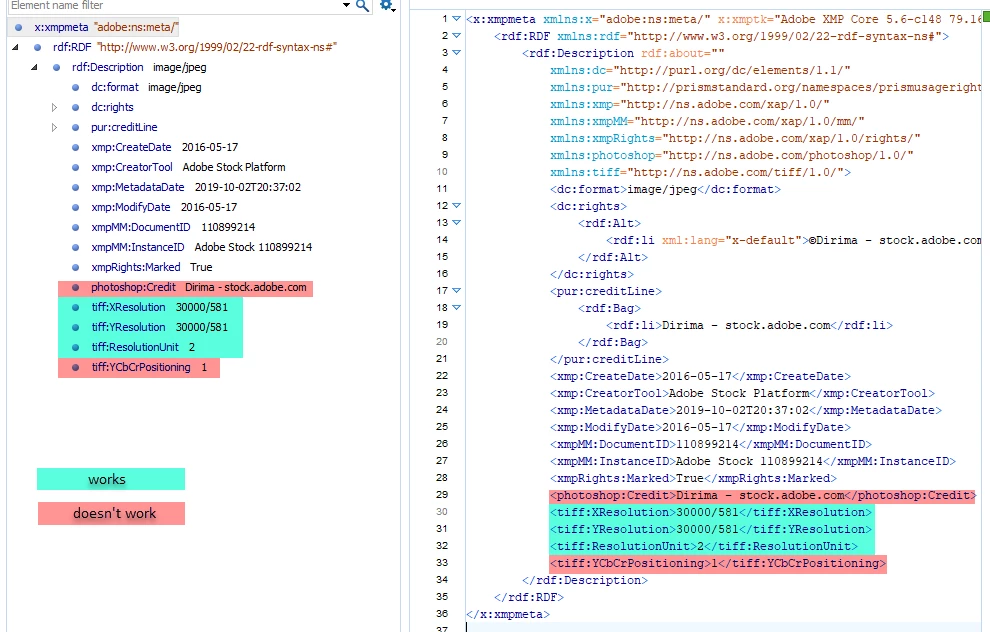

It seems to me that both should work identically, but it doesn't:

Kasyan Servetsky

Legend

Theoratically, this should work:

main();

function main() {
	var doc = app.activeDocument;
	var link = doc.allGraphics[0].itemLink;
	var xmp = link.linkXmp;
	var prop = xmp.getProperty(XMPConst.NS_PHOTOSHOP, "photoshop:Credit");
	$.writeln((prop == "") ? "FAILED" : prop);
}

But in practice it doesn't, though it works, for some reason with, say, XResolution (also with a missing file)

main();

function main() {
	var doc = app.activeDocument;
	var link = doc.allGraphics[0].itemLink;
	var xmp = link.linkXmp;
	var prop = xmp.getProperty(XMPConst.NS_TIFF, "tiff:XResolution");
	$.writeln((prop == "") ? "FAILED" : prop);
}

I don't understand why one works but another doesn't.

Kasyan Servetsky

Legend

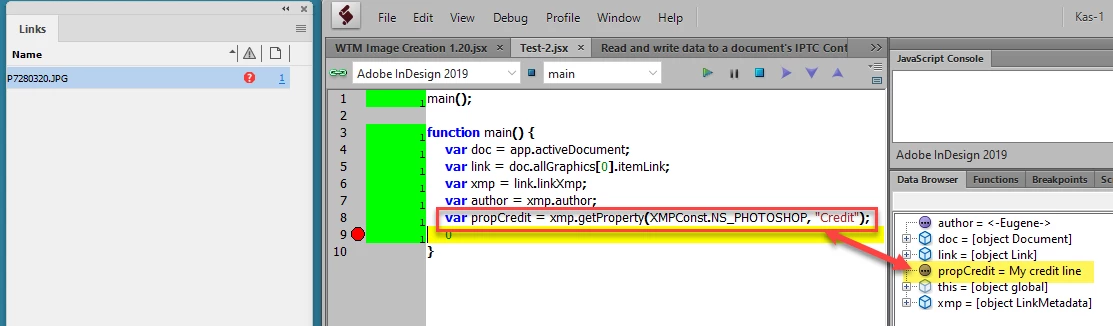

I just made a quick test and, yes, it's possible. For example, let's try this code:

main();

function main() {
	var doc = app.activeDocument;
	var link = doc.allGraphics[0].itemLink;
	var xmp = link.linkXmp;
	var author = xmp.author;
	var propCredit = xmp.getProperty(XMPConst.NS_PHOTOSHOP, "Credit");
}

It works with a missing link as well.

Thomas 42541987Author

Known Participant

@Kasyan_Servetsky

Thomas 42541987Author

Known Participant

Hi Kasyan,

Unfortunately your code does not work with preview-images downloaded from stock.adobe.com

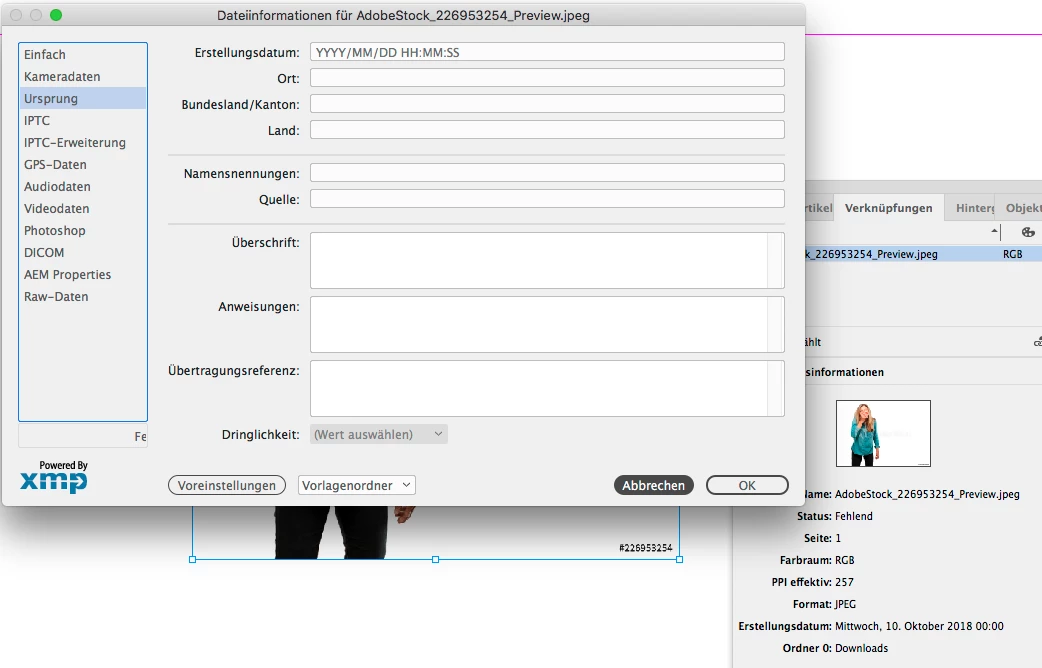

The file-information that you request in your code returns an empty string. I think this is because the file-information is empty (see image).

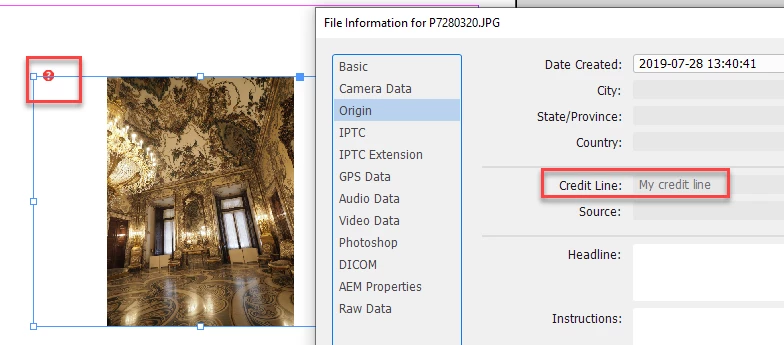

It is not a problem to access author and credit information for missing files that I created myself, but it seems to be a little tricky with adobe-stock-previews.

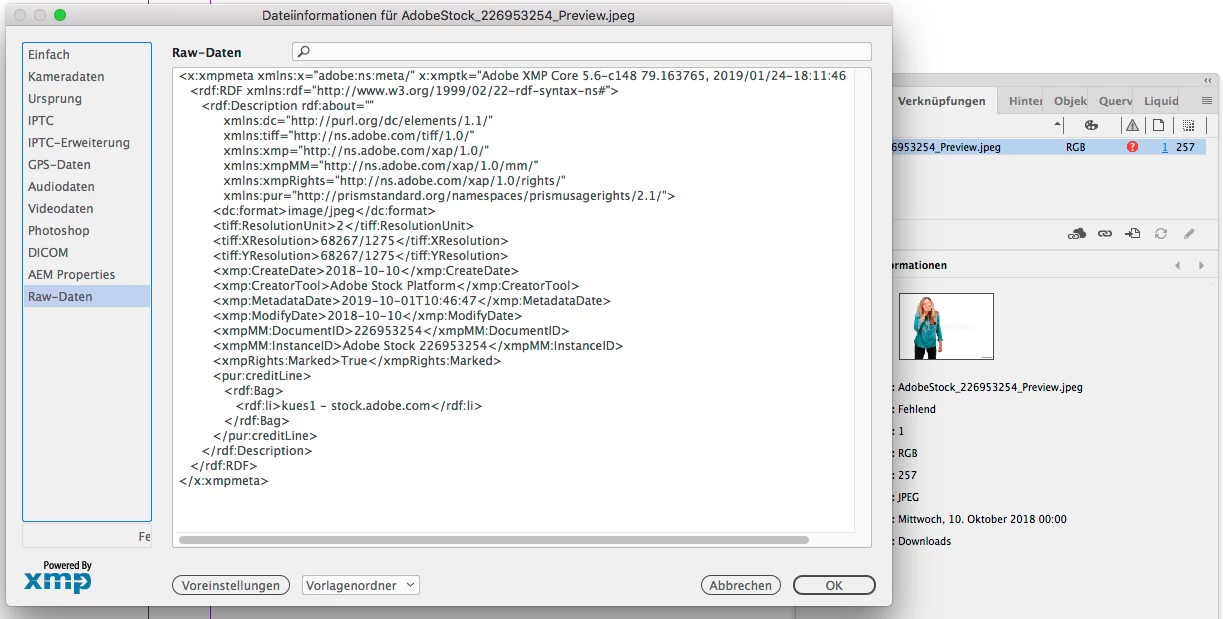

It seems to me, that I need access to the raw-xmp-data (see image 2) ... but I dont know how.

Best, Thomas

BTW: I tested this with Indesign CC 2019/2020 German version
