Issue rasterize vector, vector to raster,...

Forum|Forum|8 years ago
November 7, 2017
3 replies
6507 views

So i have an issue with vectors. Since i want to reduce the size of final pdf and there's no option rasterizing it while exporting it I was forced to ask for your help guys. So I have a indesign file with approximately 80 pages containing pictures and texts as well as some vector drawings, i.e. autocadexports as pdf. I'd like to rasterize these pdfs in order to achive smaller output but to keep some decent quality, when not high. I tried to export everything first as jpeg and then place thoes in new file, but result was lowquality and big size. I also tried to flatten pdf by adjusting the opacity of pdf on 99,9%, bud result is the bad quality of export as well as bad text. Do you have some tips or tricks for methe? Im on the edge of nerve breakdown. Tnx in advance

This topic has been closed for replies.

K

KolyaZigAuthor

Participant

Thank you guys. I'll try these suggestions of yours.

Uwe should I save thoes as save for web, and which format shuold I usealso? Png?

rob day

Community Expert

You can force all vectors to rasterize by exporting a flattened PDF (PDF/X-1a or Acrobat 4 Compatibility). If there's a transparent object anywhere on the spread the Transparency Flattener preset determines how vectors are exported:

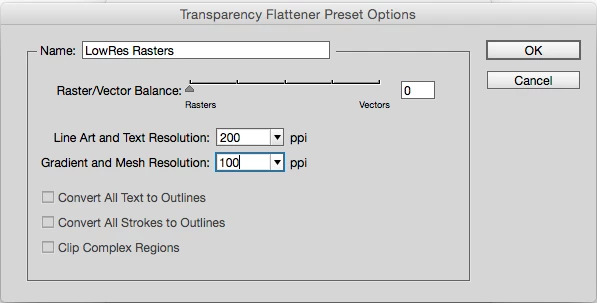

So you can set the Raster/Vector Balance to all Rasters and choose a line art resolution.

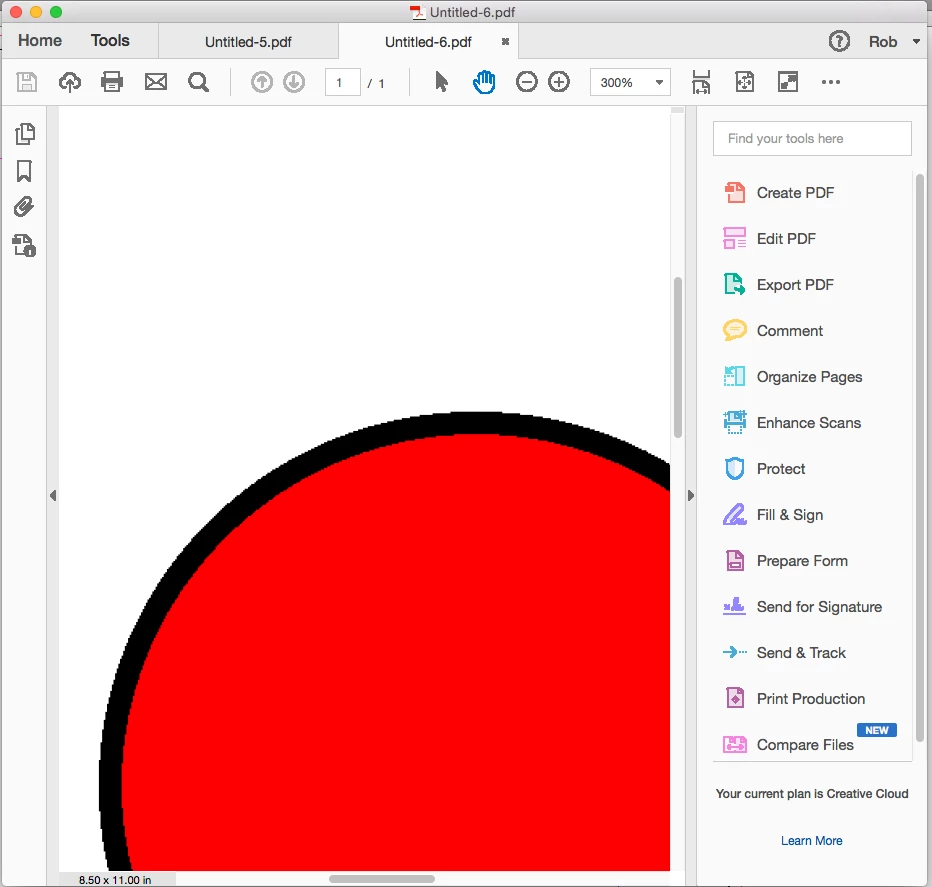

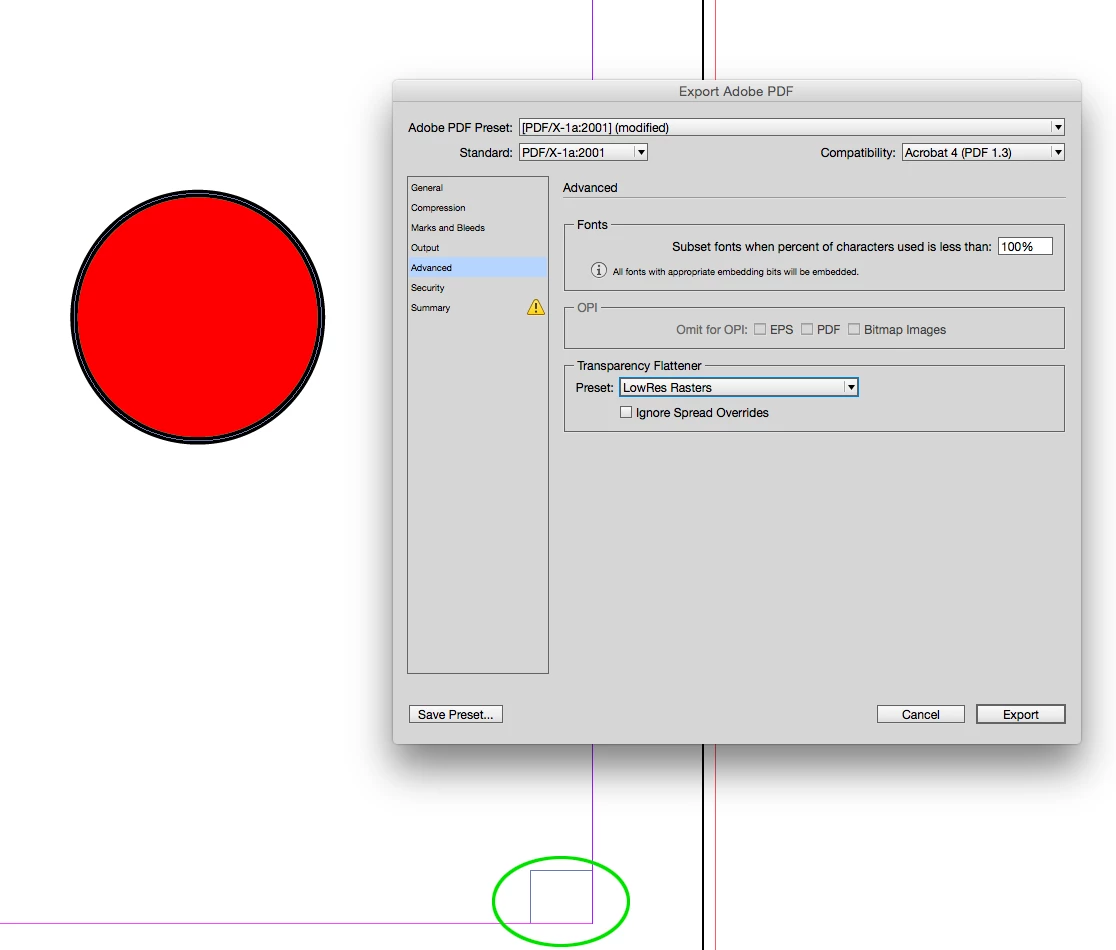

Here I have a transparent rectangle on the page which will force the red circle to rasterize. The transparent object can be anywhere on the spread and doesn't have to touch the vector objects. Set the custom flattener preset in the Advanced tab
