Question

Margins bigger on right side

  • August 23, 2017
  • 5 replies
  • 11440 views

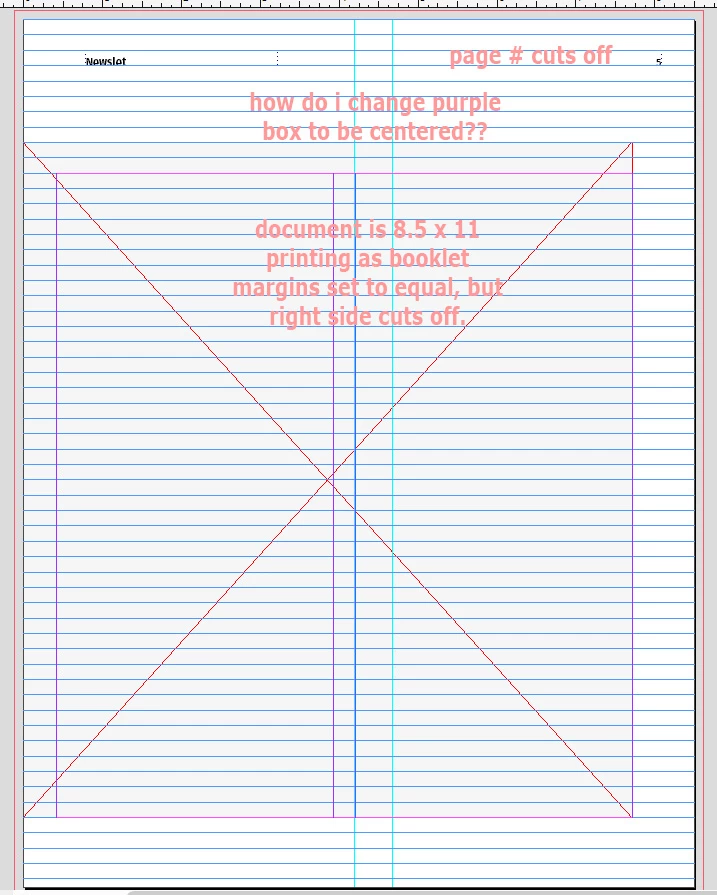

I have a whole bunch of spreads based off one of two masters in a document that will likely be printed and put in a binder/displayed online as a PDF. On my screen in InDesign, each spread appears to have an equal right and left margin. Document and print setting also show equally sized margins. However, when I print, the margin on the right side is bigger for both pages in a spread. I've tried changing the liquid layout settings to no avail. I also tried toggling "facing pages" which did nothing. The masters also print with uneven margins, so it must be either an issue with the master spreads, a document setting, or a print setting, I think. Any suggestions of settings to change would be much appreciated!  Thanks.

This topic has been closed for replies.

5 replies

lucy12187
Inspiring
July 7, 2022

I just purchased and downloaded an adobe stock indesign template and have the same issue...

Dave Creamer of IDEAS
Community Expert
Community Expert
July 7, 2022

This is a super old thread--you would be better off starting a new one (and give more details).

David Creamer: Community Expert (ACI and ACE 1995-2023)
lucy12187
Inspiring
July 7, 2022

I did but when I was searching to see if a topic about the same issue had already been posted, I saw this one...

https://community.adobe.com/t5/stock-discussions/adobe-stock-indesign-template-size/m-p/13055772



Barb Binder
Community Expert
Community Expert
August 24, 2017

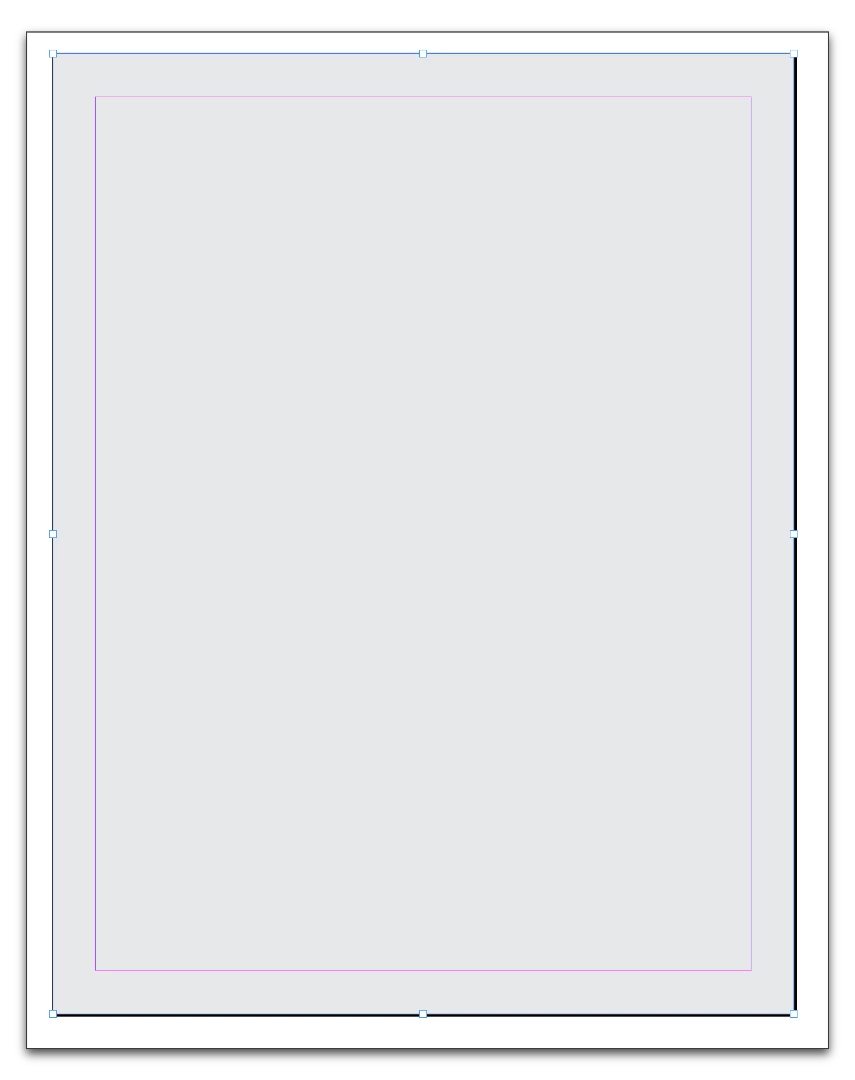

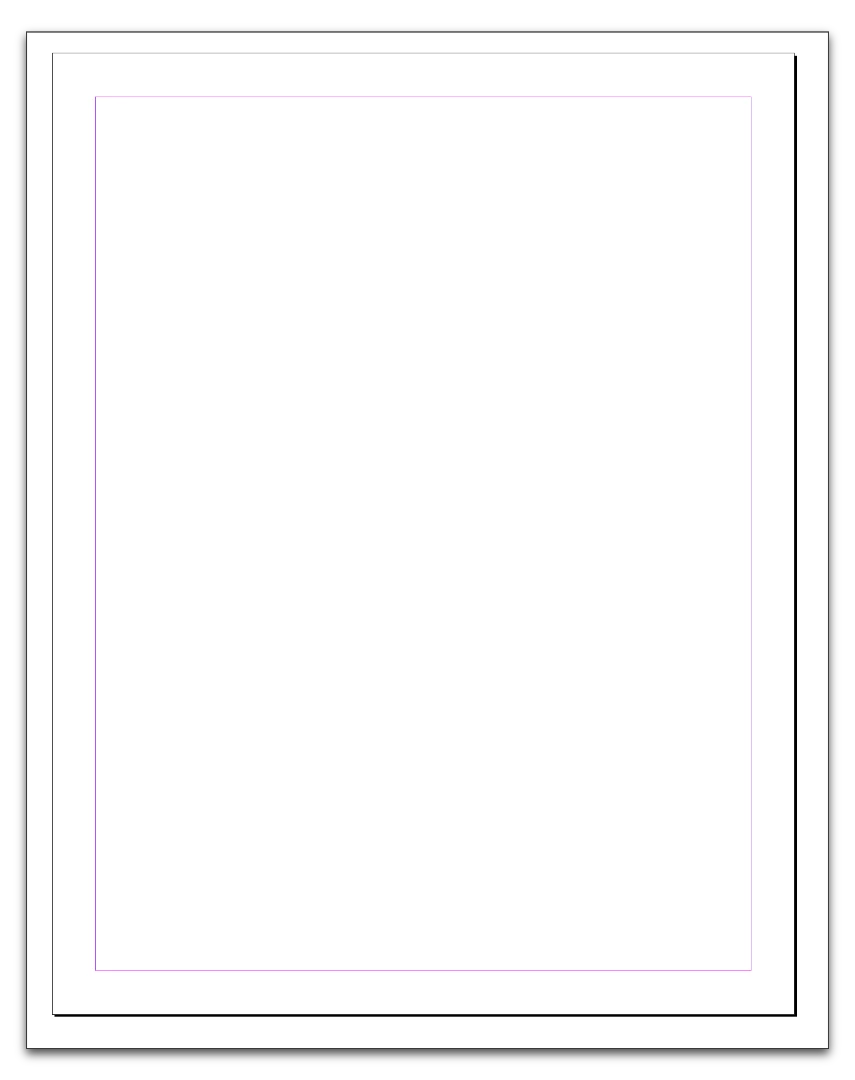

To see if it is the printer, create a new document. Add a light gray rectangle that covers the entire page, and see how it prints. Is it centered, or off-set to one side or another? If so, in addition to Jeff's suggestion, the printer may have centering controls.

~Barb at Rocky Mountain Training
Jeff Witchel, ACI
Community Expert
Community Expert
August 23, 2017

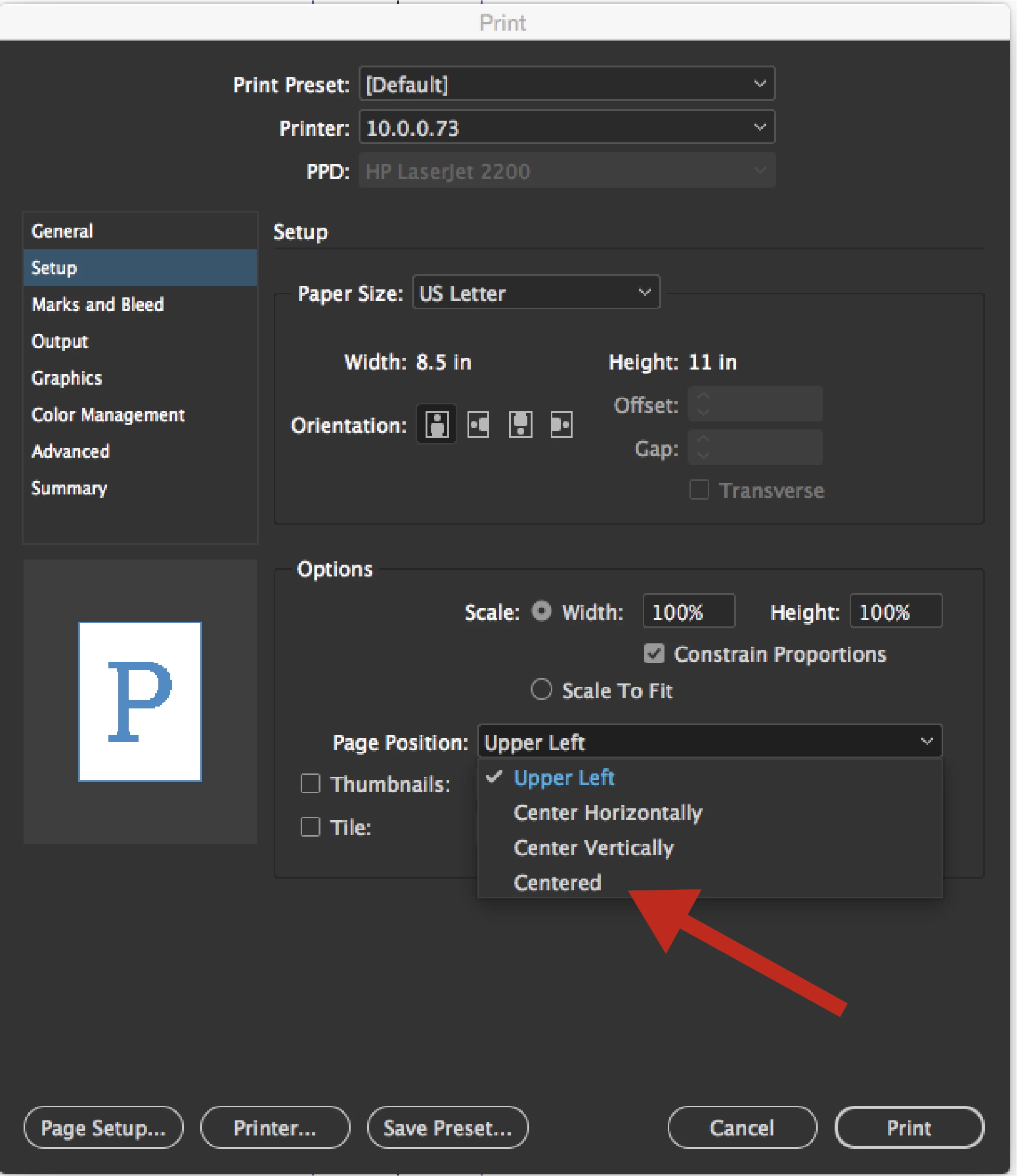

If you are referring to printing on a desktop printer, you should make sure you choose Center in your print options under Setup, Page Position.

See screenshot.

kirat76339549
Participant
August 24, 2017

Hi, thanks! I have actually already done this to no avail, but this is a good suggestion.

Barb Binder
Community Expert
Community Expert
August 25, 2017

Did you print the gray box (above) to see if it is the printer?

~Barb at Rocky Mountain Training
Legend
August 23, 2017

The uneven margins are most likely your printer feeding the paper unevenly. We have had ours occasionally drift so much that there is no margin on one side, and a half-inch on the other (instead of the expected 1/4 inch of white all around).

Bill Silbert
Community Expert
Community Expert
August 23, 2017

You can check if your page margins are set equally by selecting the document page or master page that you want to check in the Pages Panel and going under the Layout Menu to Margins and Columns. There it will tell you how the margin guides are set up and you can change them there if you wish. However, this will not assure that the actual text frames that you are using are actually aligned to those margins. Click on your text frame and see if it is actually aligned to the margin guides. If the text frame is actually aligned but the text is not then check the paragraph format panel to see if there is any right or left indent added and also check in the Text Frames Options dialog (Command-B on a  Mac and Control-B on a PC) to see if any inset spacing has been set in the text frame. For a document that has only one page size and orientation Liquid Layout is not necessary and should be turned off. If you actually want the inner margins of a spread to be larger (to accommodate the gutter) then set up the job in Facing Pages and in the New Document Dialog choose a different value for inner and outer margins.
