Mobile template size

  • October 5, 2022
  • 1 reply
  • 240 views

Hi



I'm designing for the iPhone X and am trying to use the preset that comes with InDesign (1125 x 2436 px). However, at 100% this is really big; the text size is 36pt for body text when placed on this template. Which presents a bit of a problem for my project, as my client wants to know what the font size will be on screen. I know that's not particularily relevant to app design with dynamic fonts etc, however, my client is very specific in wanting to know what font size I'm using so they have some sort of benchmark. So being able to use an 'actual-size' preset would be really handy. Any advice would be awesome!



If you need anymore background I've designed a print resource which my client now wants to develop into an app and I'm designing the layout for the app developer. And my client is very focused on font size (was a web developer about 30 years ago ...)!



Thanks

This topic has been closed for replies.

1 reply

rob day
Community Expert
rob dayCommunity Expert
Community Expert
October 5, 2022

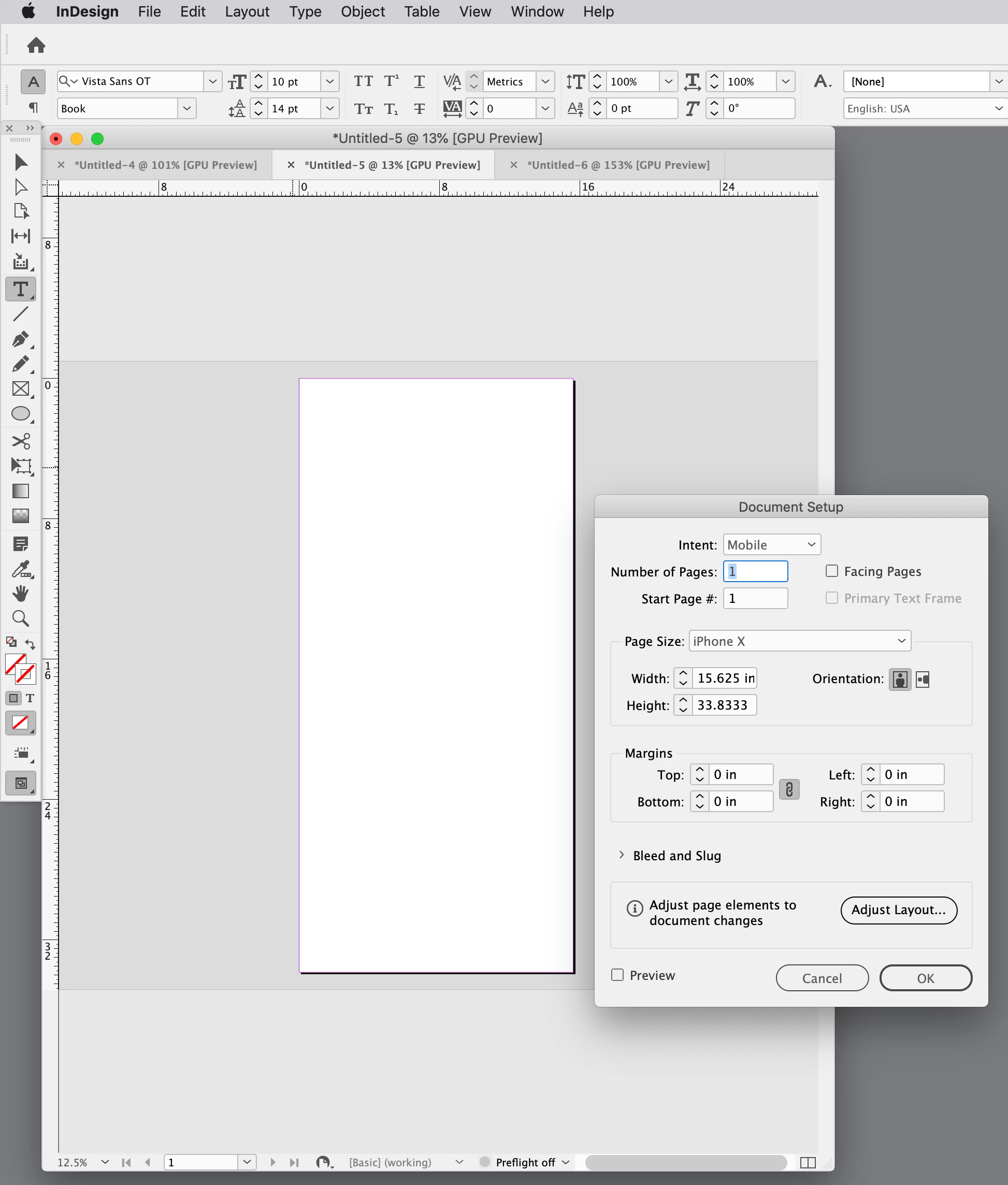

Hi @vickyb30597743 , An InDesign page is a vector object, so it has no resolution. InDesign does have a Pixel Ruler Unit, but it has a static output dimension of 1/72", so if you change your iPhoneX page’s ruler units to Inches and check its dimensions they will be 15.625" x 33.8333":





By default InDesign also defines the print output size of a point as 1/72", so you are forced to set the body text large relative to the 15.625" x 33.8333" page.

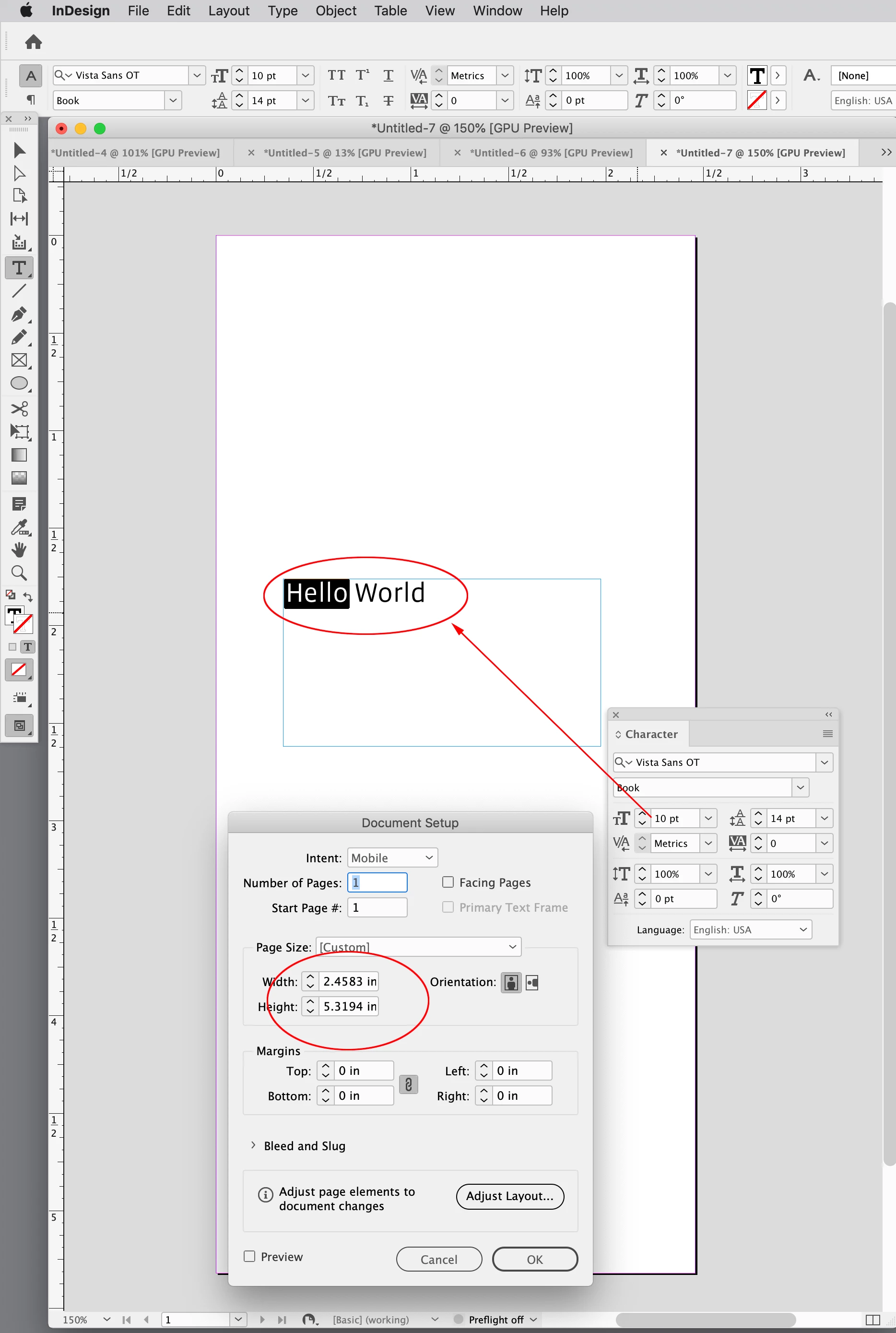

You could set your document up to the iPhoneX physical dimensions—its resolution is 458ppi, so a document at the physical dimensions would be 5.319" x 2.456". In that case your body text set as InDesign pts, would be relative to the iPhone’s physical size:





And my client is very focused on font size



A further complication would be what does your client mean by "font size"—what unit is the developer going to use? Is it InDesign’s and the print world’s points (1/72"), HTML/CSS points (1/96"), or HTML/CSS Pixels?



If the developer is going to use CSS Points then your page dimension should be 1.333 larger to reflect the difference in print points vs. CSS points 96/72=1.33



    V
    vickyb30597743Author
    Participant
    October 5, 2022

    Hi @rob day A massive thank you for the answer - that's really detailed and super helpful - thank you! I should now be able to give the client an idea of potential font size in a unit they understand (pt), and a mock-up PDF that should be 100% screen size. And I'll liaise with the developer to see what units they're going to use!
    Thanks again for your help - it's really appreciated!
