Participant

Question

Multi State objects are not exporting to Interactive PDF via InDesign!!!

Forum|Forum|8 years ago
December 6, 2017
3 replies
8869 views

I'm making an interactive map via Adobe InDesign but am having a specific issue with multi state objects not appearing when I export to PDF. Here's how the document is supposed to work:

A: Initial View

B. View with country selected

HERE'S MY PROCESS:

First I made each country into a button with a corresponding multi state text box + close button.

Country Button + Actions:

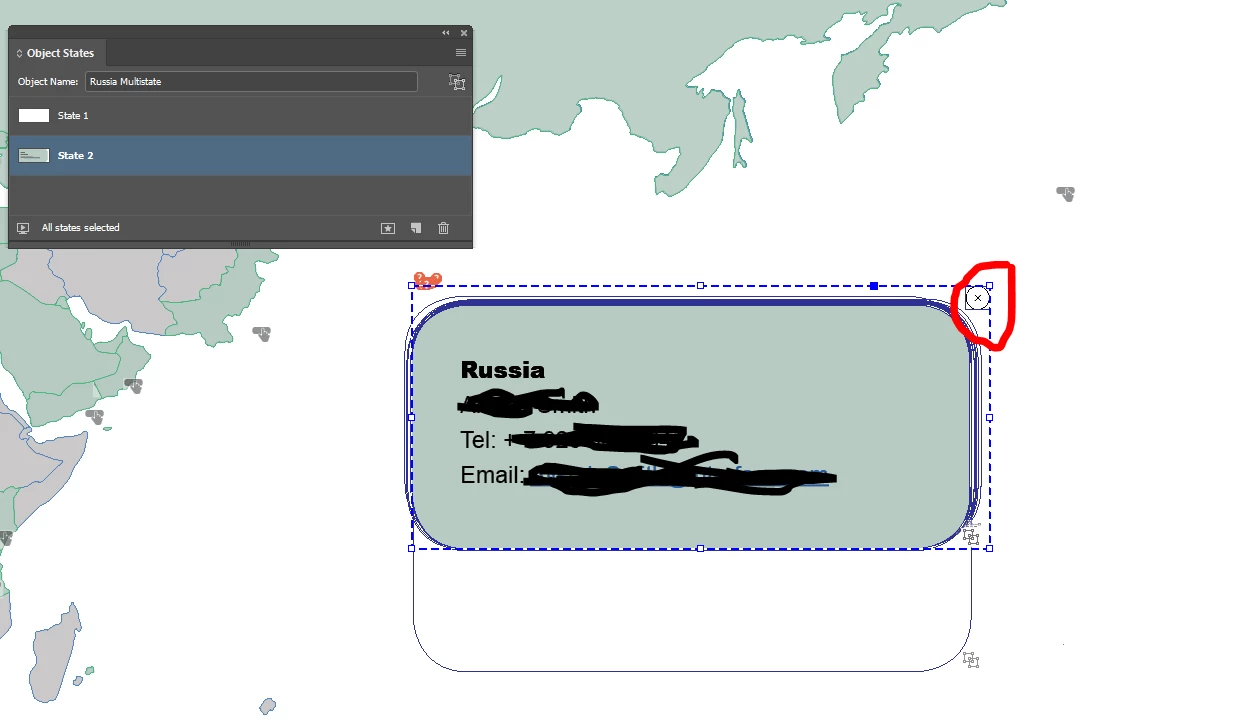

Corresponding Text box/Multi State object:

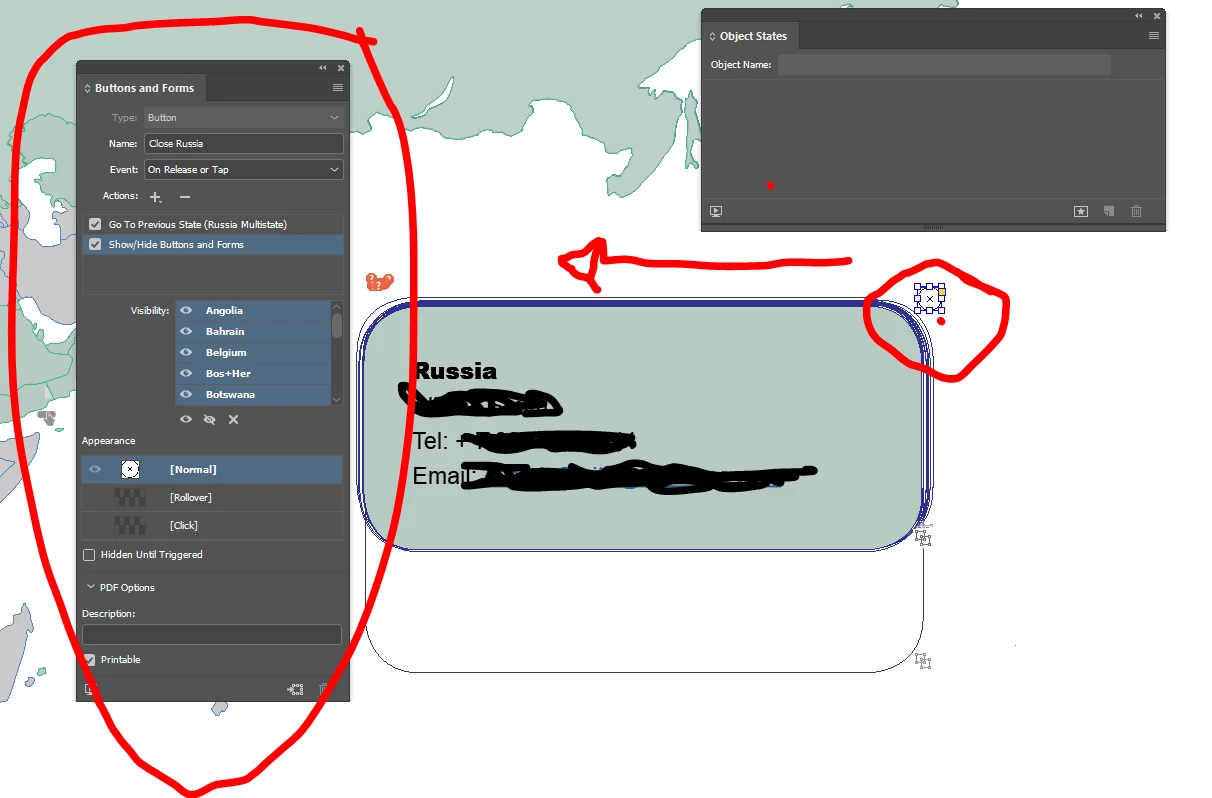

Close Multi State Button:

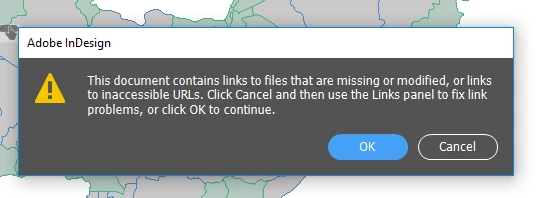

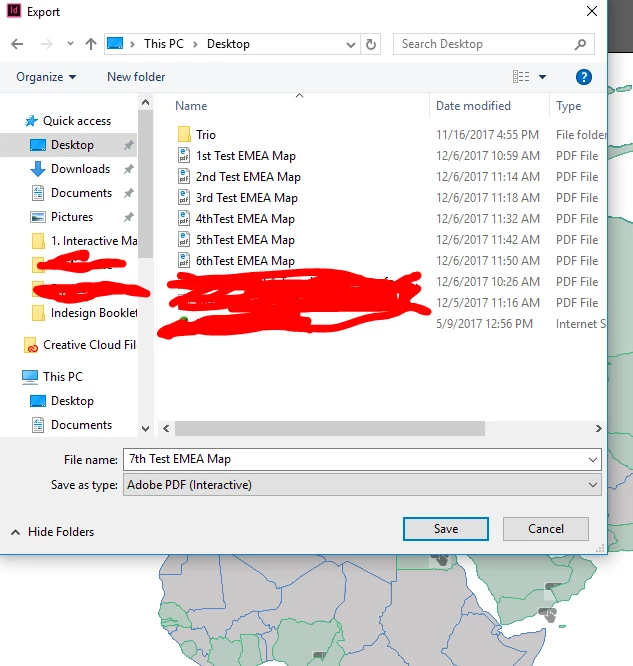

EXPORTING:

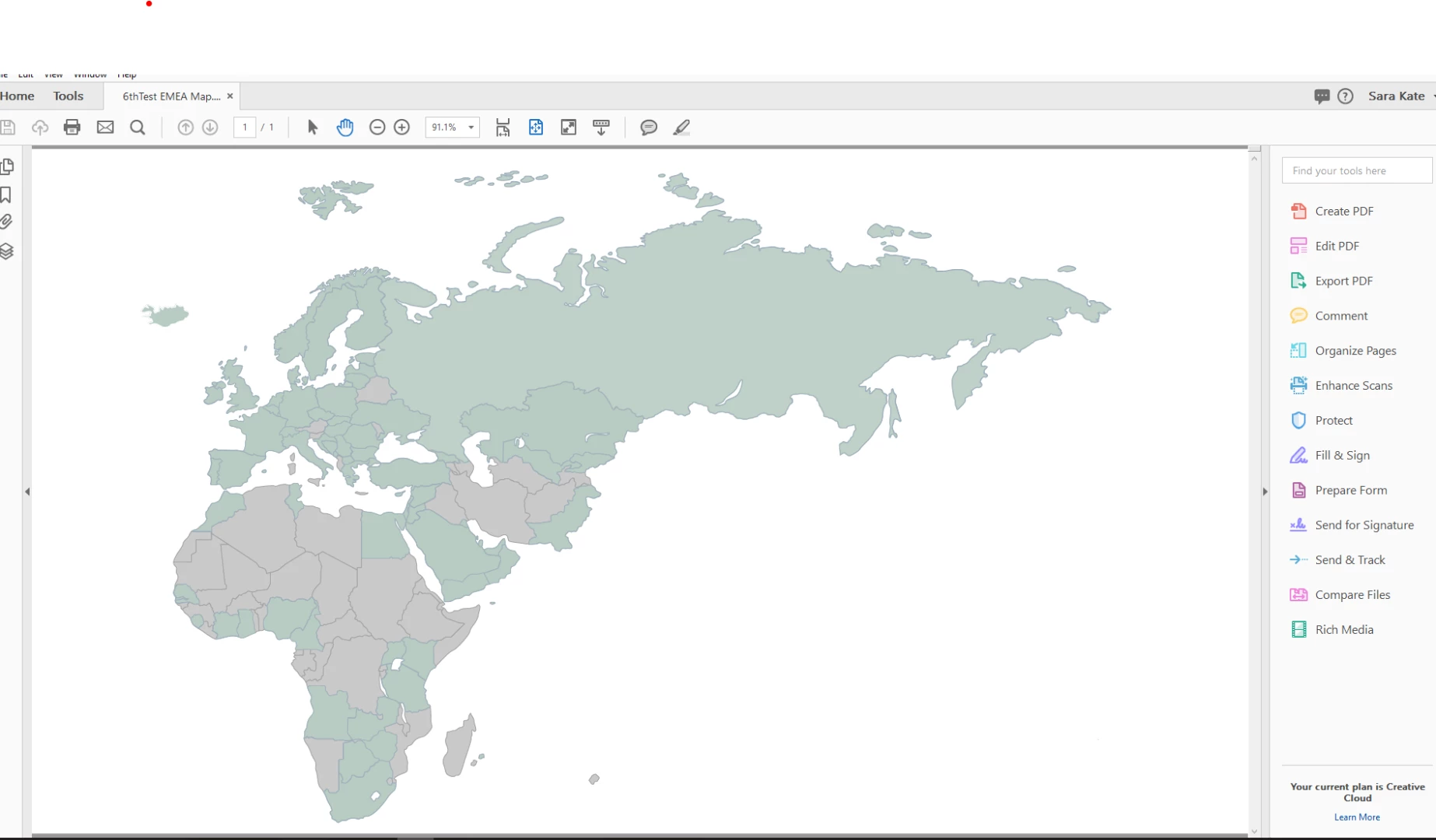

BUT WHEN I OPEN IN PDF, THIS HAPPENS.

The interactive elements work flawlessly in preview mode, but once I open the PDF in Acrobat, the text boxes do not appear when a country is selected.

PLEASE HELP!!!

This topic has been closed for replies.

schroef

Inspiring

To bad Indesign doesnt show / warn the user this doesn't work in PDF. But you can do this in a PDF using hover and click states. I Build a map for Marriott Beach Hotel on Curacao. Its kinda heavy in the export because i didn't compress the illustrator file i made. That one is almost killing acrobat hahaha. At least, the render progress, is that how its called, is glitching like crazy. Acrobat always has major issues with file many objects. ALso it redraws the howl thing a couple times? I guess that's because I've put multiple of the elements on different layers so i could work more easily with them. Some of the buttons have 2 versions on top of each other so i could pull off this trick.

I did this project as a test and also gave them the option to do this, but they didn't want to use ir. But it did allow me to learn this method

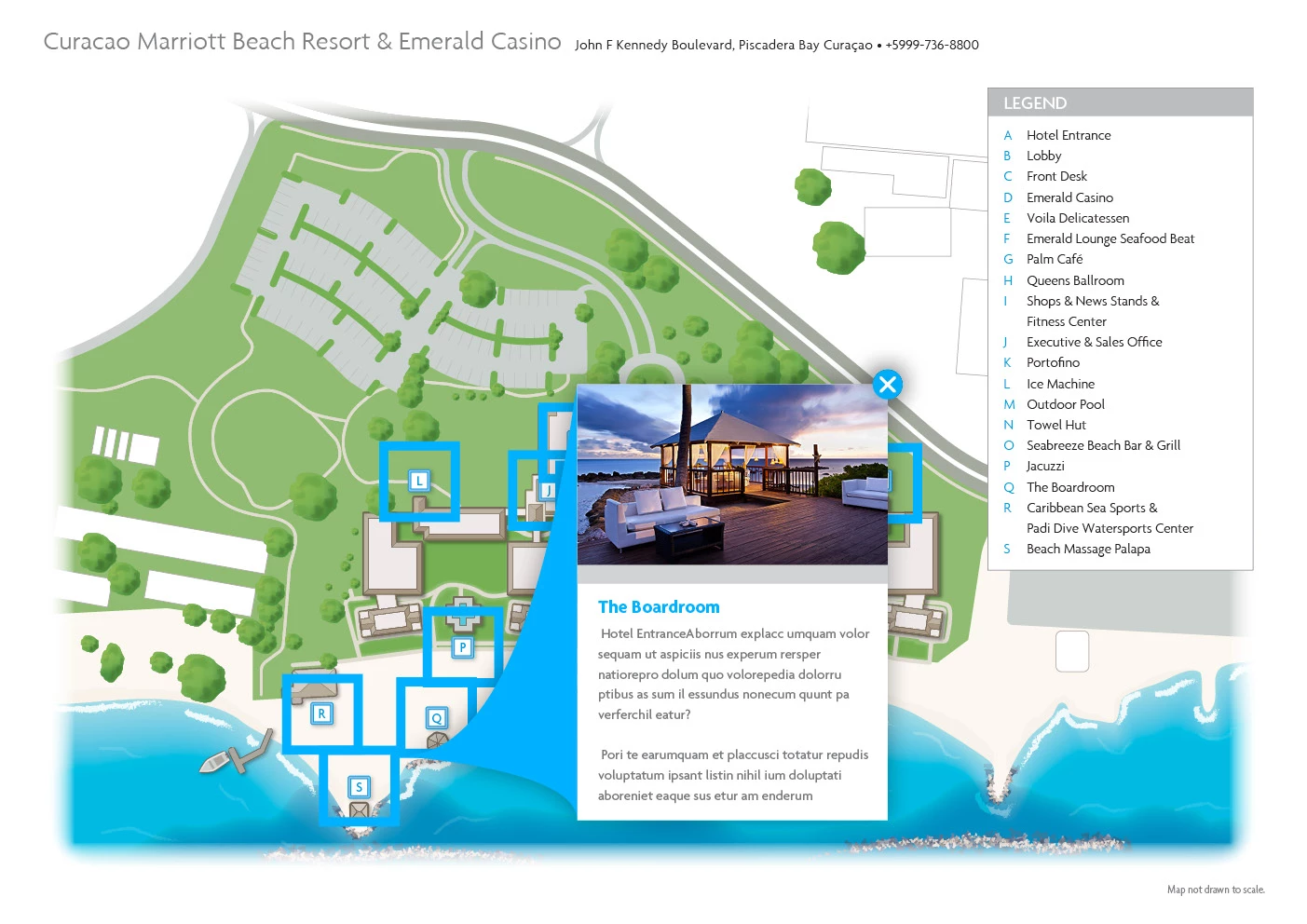

Here's also a JPG export

T

Test Screen Name

Legend

I can't see interactive PDF is suitable for this sort of general consumer use, because it doesn't work in most browsers, or at all on mobile devices. A resort isn't likely to warm to something which involves them in supporting users to install software, explaining why their stuff doesn't work etc. etc.

JonathanArias

Legend

multi state objects don't work on interactive .pdf format, you need to publish online

Derek Cross

Community Expert

The disadvantage of Publish Online is the user has to be online and it's difficult to charge for content. An alternative worth a look at is in5: Export HTML5 from InDesign with in5 - Home

JonathanArias

Legend

thats what i use ( been using IN5 for over a year for magazines and e-modules), works well. issues with animations here and there from personal experience when going from desktop to ipad. but that is the same deal. everything works great online. you can have the option of downloading a .pdf but interactive .pdf does not support MSO. so you have to make a different version of the layout for interactive .pdf. or not do the MSO all together.

amaarora

Community Manager

Hi,

Is export to Publish Online an option in your workflow? Use Publish Online to publish your InDesign documents

-Aman

SKBradfieldAuthor

Participant

After looking into it, Publishing Online is definitely an option! However, I have a few questions/concerns:

1) Do Hyperlinks work when you publish online? They were inactive after testing this option. Note: I typed mailto:"insert email address" into the InDesign hyperlink panel for each email address and the links worked in preview mode, but not when publishing online.

2) Can I use a custom URL for the link instead of the https://indd.adobe.com/view/ default option?

Thanks again to all for the quick responses!

JonathanArias

Legend

For number two the answer is no. This is why IN5 would be a better fit if you want that capabilit. Don’t know why the links would not work.

BUT WHEN I OPEN IN PDF, THIS HAPPENS.
