Participating Frequently

Question

Object States help

Forum|Forum|5 years ago
November 10, 2020
5 replies
1004 views

I have 17 different object states and each one has 4-5 images to click through. I built them out in different layers but once I was done, I combined them so that everything is on one layer. However, when I do the epub preview, I am only able to click through one of the object states. When I export it as an interactive PDF, I can't click any of them though the buttons highlight when I hover over them.

This topic has been closed for replies.

Barb Binder

Community Expert

Does it work as expected in the EIP panel in InDesign?

~Barb

~Barb at Rocky Mountain Training

Barb Binder

Community Expert

Two issues here:

There is something wrong with how the MSO (Multi-state Object) is set up. In addition to the link from @Eugene Tyson, see https://helpx.adobe.com/in/indesign/user-guide.html/in/indesign/using/interactivity-5.ug.html. Set up properly, it should work in the EIP (Epub Interactive Preview) panel. If it doesn't, something is still wrong with the setup.
MSOs are supported when you output to a fixed layout Epub, Publish Online and HTML5 with in5. They are not supported in a PDF, so even when working in the EIP panel, they will not work in Acrobat or Reader.

~Barb

~Barb at Rocky Mountain Training

D

defaultm3zf5dgltih5Author

Participating Frequently

I just tried publishing online and it's doing the same thing. I can click through the 'h' MSO, but no other ones. I can click through 'l' if I place my mouse at just the right spot

https://indd.adobe.com/view/44a3b3af-f54f-4fe2-b32e-382adef90ba1

BobLevine

Community Expert

It looks like you have multiple MSOs.

You cannot stack them on top of each other. Turn it into one very large MSO.

JonathanArias

Legend

objects states dont' work on .pdf format and i am pretty sure they dont' work on epub.

D

defaultm3zf5dgltih5Author

Participating Frequently

But i'm able to click through one of them? What would you suggest doing?

L

Laubender

Community Expert

Multistate objects will not export to interactive PDF.

What you see is just a non-interactive graphic of the active state.

FWIW: I do not fully understand how your document is set up.

Can you show some screenshots with the Layers panel fully expanded so that we can see a bit what's going on?

Also select one of your 17 objects and show the properties of that object with the appropriate panel.

Thanks,
Uwe Laubender

( ACP )

D

defaultm3zf5dgltih5Author

Participating Frequently

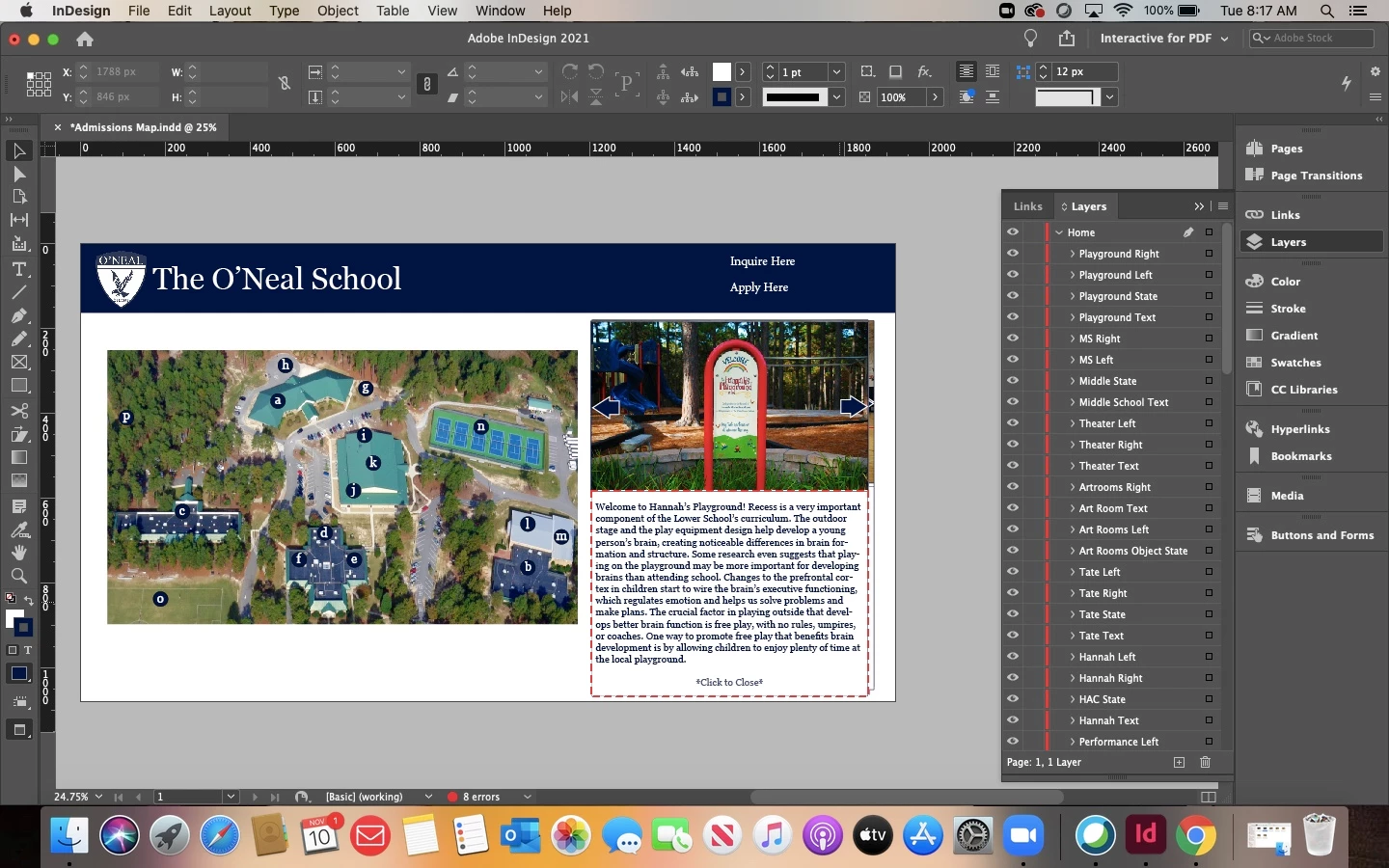

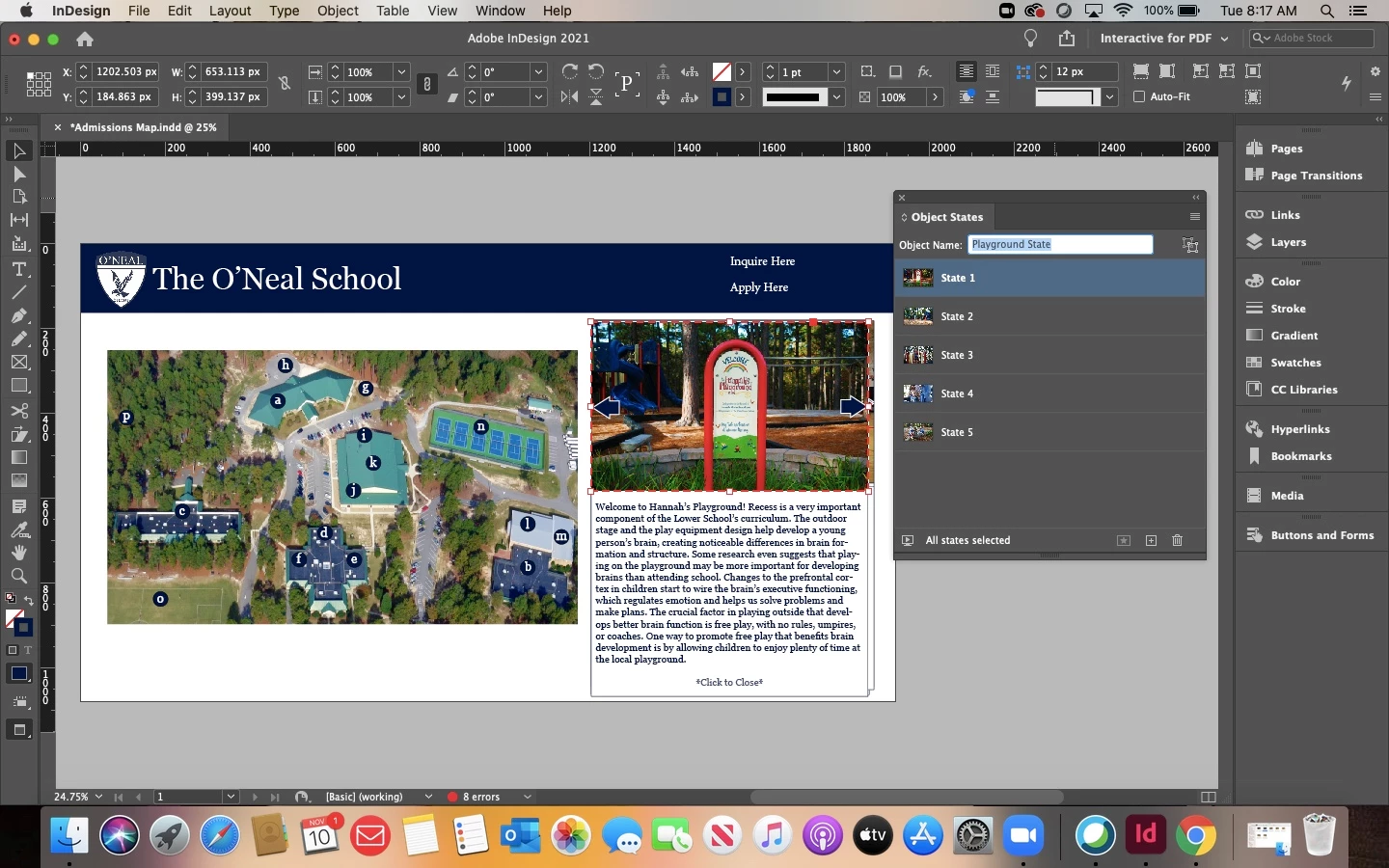

This is the first time I've used INDD so I appreciate any help that I can get. I've attached two screenshots - one of my layers panel and then one of my object state. I used the one that IS working in the epub preview

Derek Cross

Community Expert

You can have a word or words or an image (such as a button shape) as a document hyperlink to say another page in the document, or to an external website. Some devices, for example, iPads, don't have rollover capability – only click – you should avoid multi-action buttons like On Click, On Roll Over, etc. Multi-state object (MSO) don’t work at all in an Interactive PDFs.

E

Eugene Tyson

Community Expert

Hard to know what's going on - no info on your setup/images/sample files etc.

Try going through some tutorials to see where you're making an error.

https://ajarproductions.com/in5course/?lesson=msos
