Paragraph border do not wrap around an object frame

Forum|Forum|3 years ago
October 12, 2022
5 replies
1162 views

Hi,

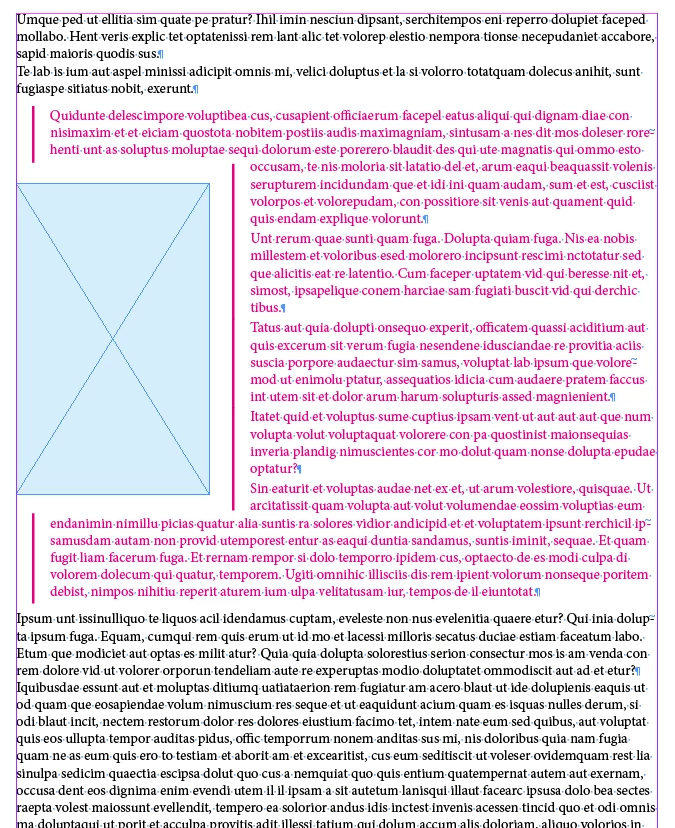

I can't figure out why a text border (left border) style I created doesn't wrap around an object. The border is just ignored and appears under the object frame. See samples.

Border style (top)

The border is ignored when adding a wrapped frame.

Thanks,

This topic has been closed for replies.

Correct answer Geоrge

@FRIdNGE you are a legend! I don't think this option and what it does even exist in Adobe's help files. Thanks hips.

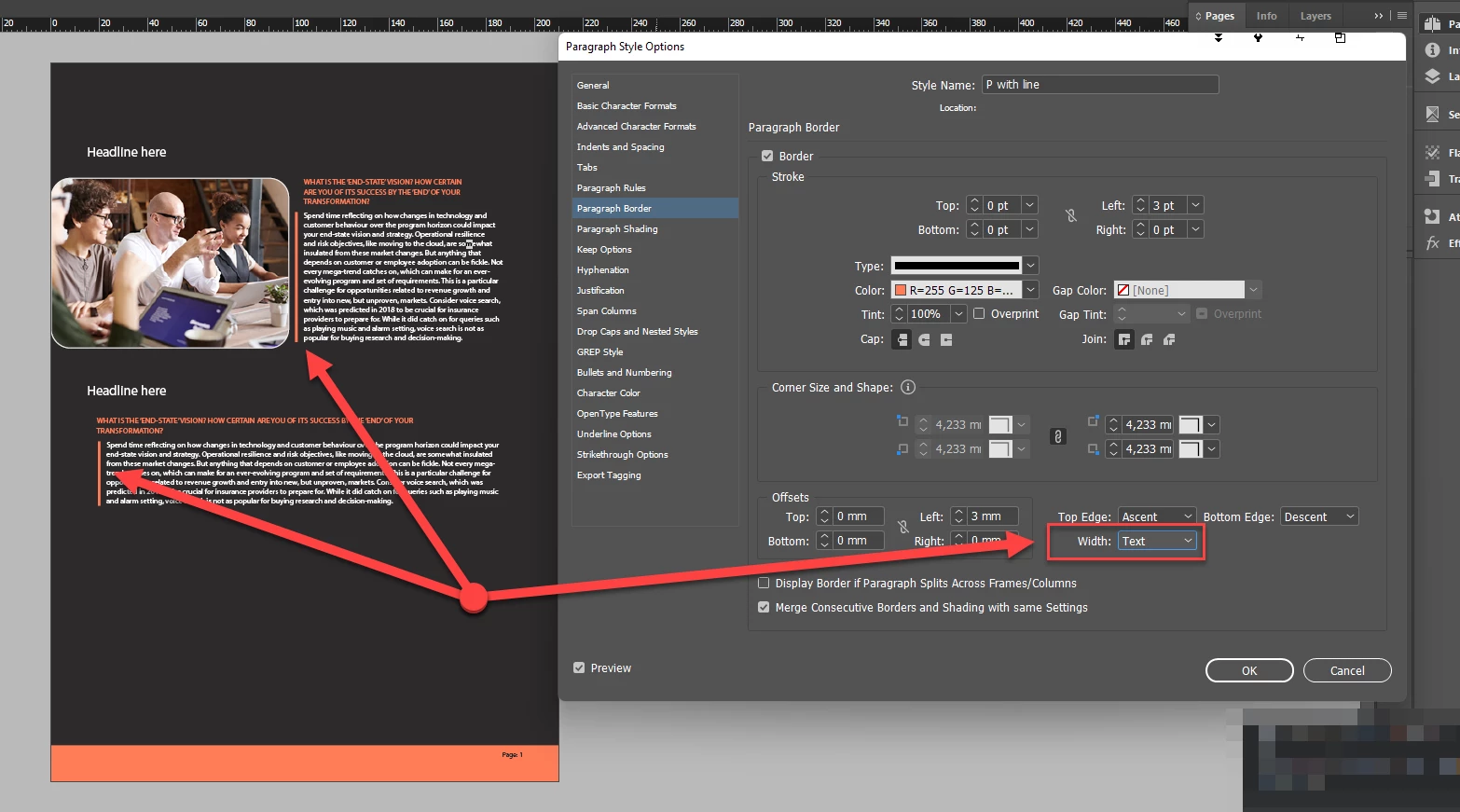

Image for the future readers of this thread:

L

Laubender

Community Expert

@FRIdNGE said: "In “ParagraphBorder” tab, use “Text”."

Right so!

But @migo@kanopi , be aware that the whole paragraph must be affected by the text wrap object.

Two different situation where I used "Text" in Paragraph Border:

Regards,
Uwe Laubender
( Adobe Community Expert )

FRIdNGE

If the op needs more, maybe he will need a creative scripter! …

(^/)

Geоrge

Legend

This left line of paragraph usually needs for quoting and break apart this quote looks wrong.

But nobody says that you can't do anything even if it wrong)))

Remember, never say you can't do something in InDesign, it's always just a question of finding the right workaround to get the job done. © David Blatner

L

Laubender

Community Expert

Hi together,

that's not a bug!

It's just that the text frame has a distinct width and the paragraph rule has to honor the left edge of the text frame.

The graphic frame with text wrap applied is partly stacked on the area of that text frame.

The workaround is clear as George already showed.

Regards,
Uwe Laubender
( Adobe Community Expert )

L

Laubender

Community Expert

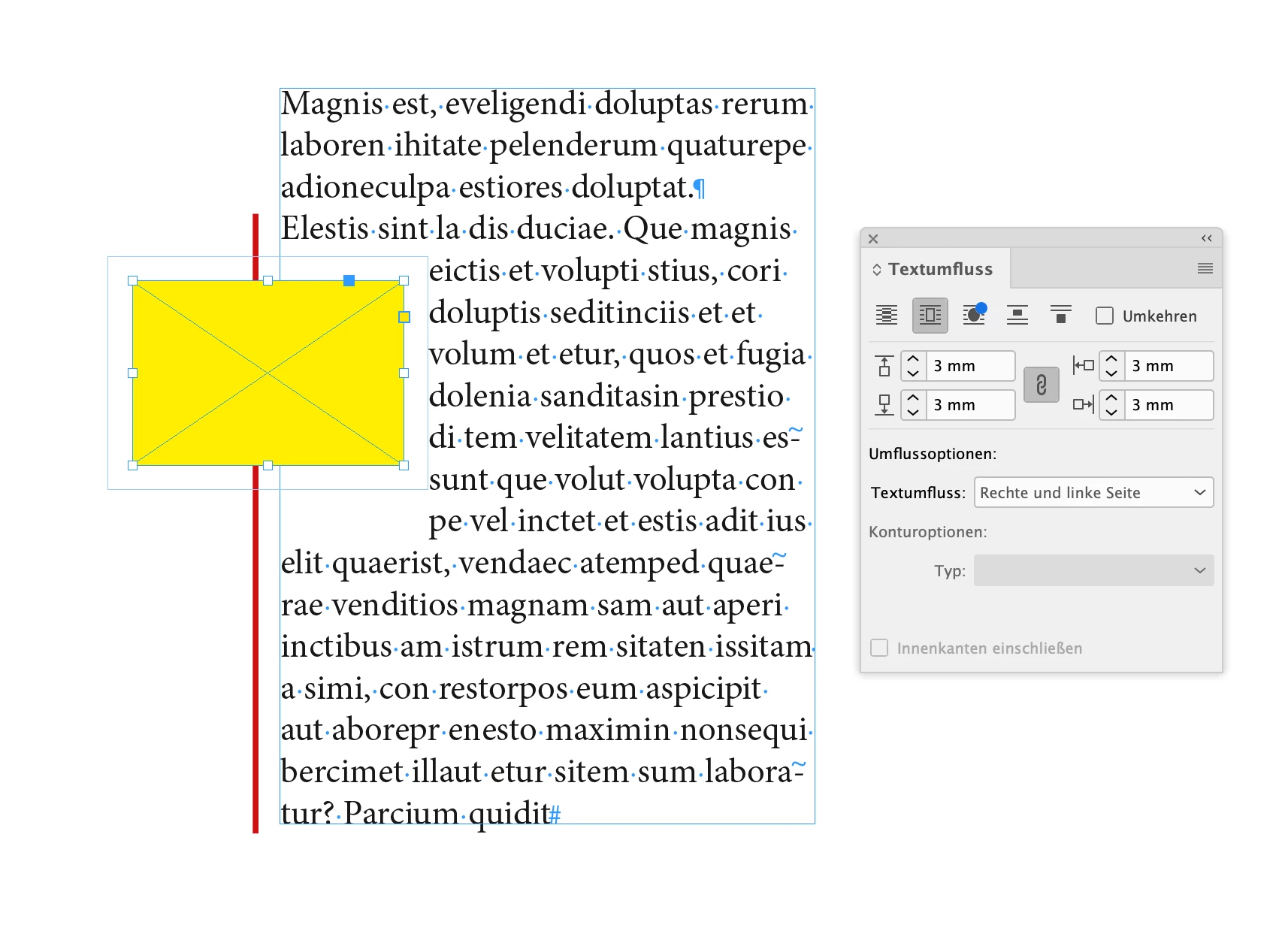

Oh. Forgot that screenshot that is showing the situation:

Regards,
Uwe Laubender
( Adobe Community Expert )

Geоrge

Legend

I do confirm this bug. Do on uservoice.com report about that bug. Give us here the link, I and some other folks will add voice in it.

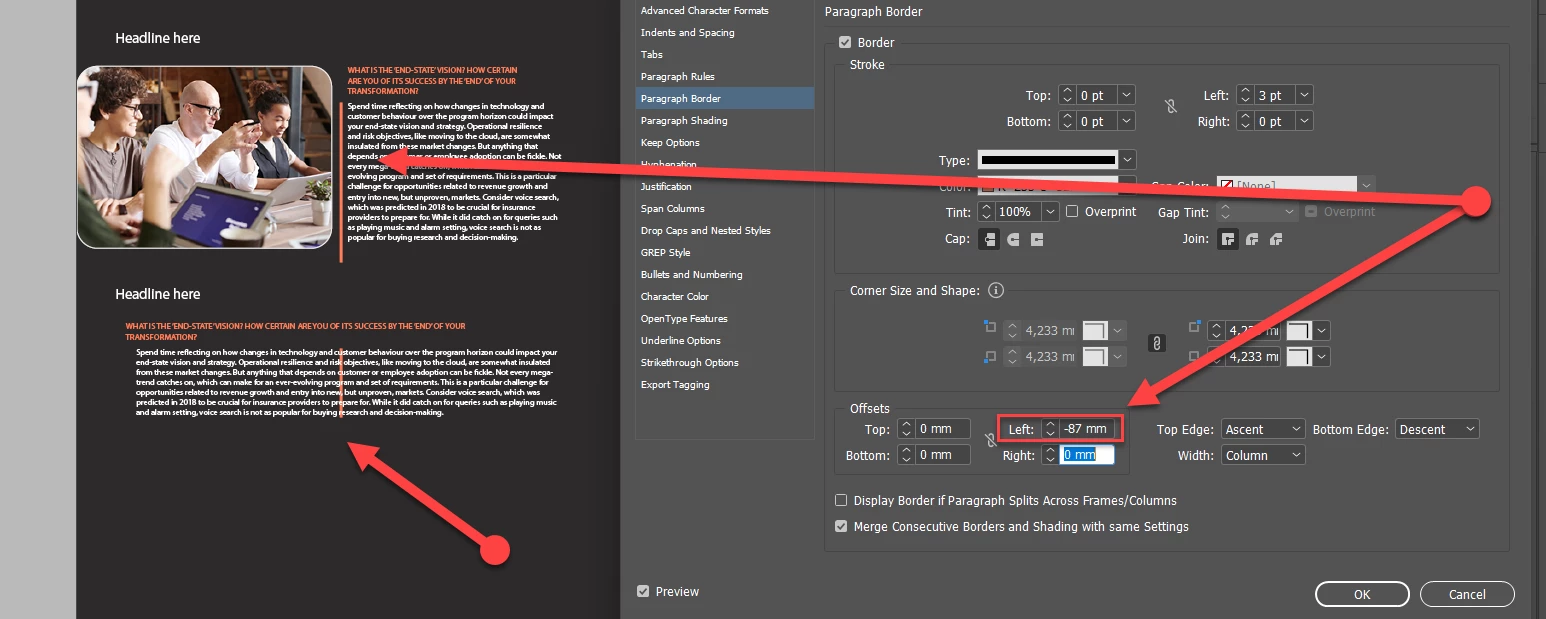

Here the workaround below in an image. But you will need to have 2 paragraph styles with this workaround, because frames without near images with wrap will have normal result for this border line.

Remember, never say you can't do something in InDesign, it's always just a question of finding the right workaround to get the job done. © David Blatner

M

migo@kanopiAuthor

Participating Frequently

Thanks for the workaround. I am aware of this option, however, I have many paragraphs like this with various image and symbol frames. This means that every tiny change within the text flow will require reviewing the entire book. Seems odd but maybe @Laubender is right.

E

Eugene Tyson

Community Expert

Did you anchor the image?

M

migo@kanopiAuthor

Participating Frequently

no. it's really just a simple paragraph style with a left border. Once I add a text wrap frame the border goes under the frame rather than part of the text. see sample file above,

L

Laubender

Community Expert

Hi @migo@kanopi ,

are you sure this is a border applied to text with a paragraph style or the paragraph panel?

Looks more like a column rule applied through the text frame options. But of course, I could be wrong…

Please share a sample page so that we can look into the issue.

Thanks,
Uwe Laubender
( Adobe Community Expert )
